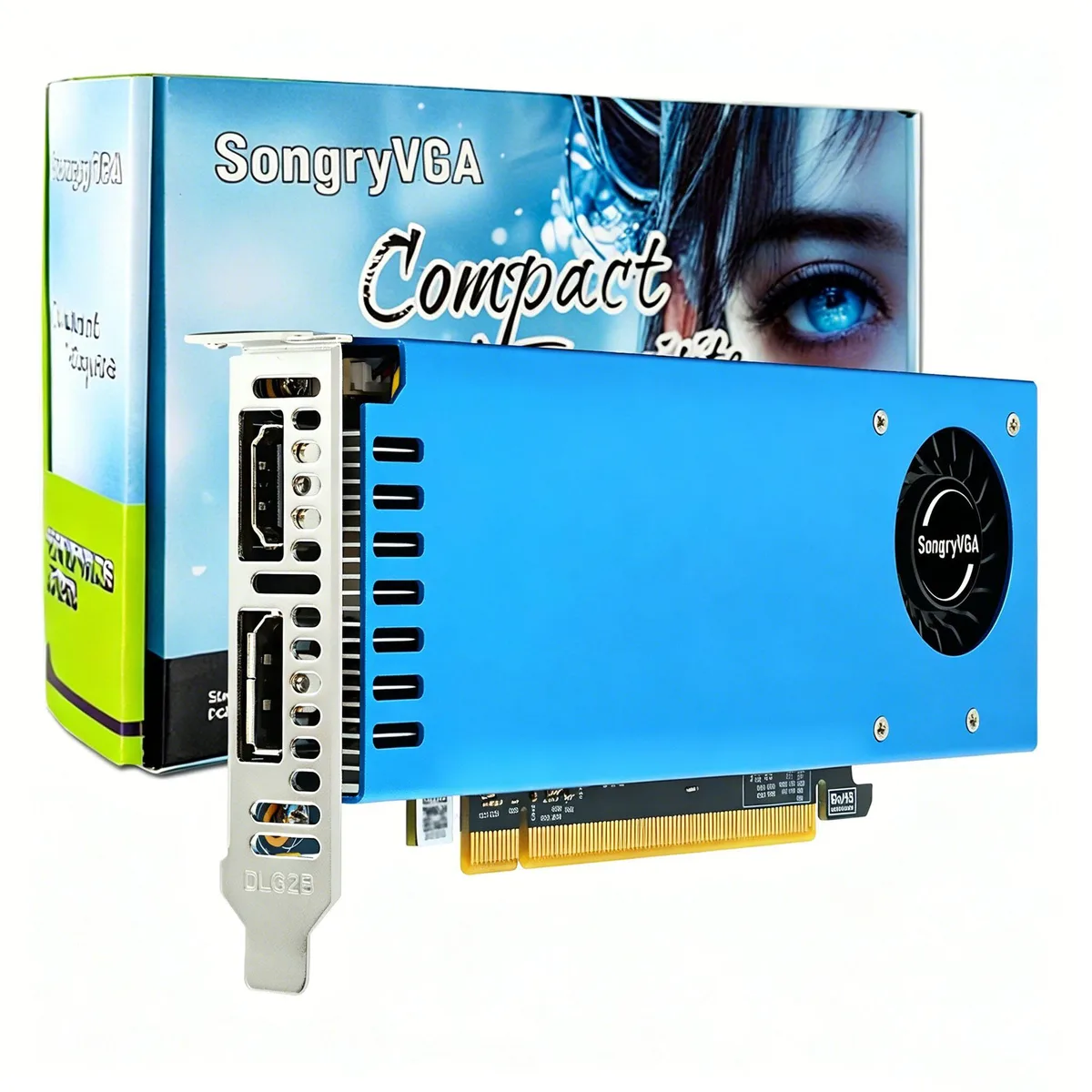

Low-profile GTX 1060 card with single fan, metal bracket, HDMI and DisplayPort outputs

SongryVGA

SongryVGA GTX 1060 3GB Low Profile graphics card

SKU CH-F9GA-XEJDW

Low-profile GeForce GTX 1060 with 3 GB GDDR5, 192-bit bus and HDMI 2.0 plus DP 1.4 for compact SFF builds

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerNVIDIA
  • GPUGeForce GTX 1060
  • Core Clock1506 MHz
  • Boost Clock1709 MHz
  • Effective Memory Clock2002 MHz

Memory Size & Output Ports 3 GB with HDMI + DisplayPort Outputs

  • Low-profile design fits SFF, ITX and HTPC builds
  • 3 GB GDDR5 memory on a 192-bit bus
  • HDMI 2.0 and DisplayPort 1.4 drive two 3840 × 2160 displays
  • 65 W TDP runs on a 200 W power supply
  • DirectX 12.1 and OpenGL 4.6 support modern games

Low Profile GTX 1060 3GB

The SongryVGA GTX 1060 3GB Low Profile graphics card fits small form factor, thin ITX and HTPC builds. It uses a PCI Express 3.0 x16 slot and needs a 200 W power supply. A single fan cooler handles the 65 W thermal design power. The card ships with a full height bracket for standard cases.

3GB GDDR5 192-Bit Memory

Three gigabytes of GDDR5 memory on a 192-bit bus give an effective clock of 2002 MHz. The GPU runs at a 1506 MHz base clock and can boost to 1709 MHz. DirectX 12.1 and OpenGL 4.6 support cover modern APIs. Outputs are one HDMI 2.0 and one DisplayPort 1.4 for up to 3840 x 2160 resolution.

Sustained 65 W Thermal Envelope

Under continuous load the 65 W TDP keeps heat output predictable in tight chassis. The single fan maintains steady clocks without the spikes seen in short bursts. Multi-monitor support across two displays remains stable during long sessions. Driver support spans Windows 7 through 11 plus Linux and BSD variants.

Highlights

  • Low-profile design fits SFF, ITX and HTPC builds
  • 3 GB GDDR5 memory on a 192-bit bus
  • HDMI 2.0 and DisplayPort 1.4 drive two 3840 × 2160 displays
  • 65 W TDP runs on a 200 W power supply
  • DirectX 12.1 and OpenGL 4.6 support modern games

Specifications

BrandSongryVGA
ModelSY106D5LP3G1
InterfacePCI Express 3.0 x16
Chipset ManufacturerNVIDIA
GPUGeForce GTX 1060
Core Clock1506 MHz
Boost Clock1709 MHz
Effective Memory Clock2002 MHz
Memory Size3GB
Memory Interface192-Bit
Memory TypeGDDR5
DirectXDirectX 12.1
OpenGLOpenGL 4.6
Multi-Monitor Support2
HDMI1 x HDMI 2.0
DisplayPort1 x DisplayPort 1.4
Max Resolution3840 x 2160
CoolerSingle Fan
Thermal Design Power65W
Recommended PSU Wattage200W
FeaturesSmall Form Factor Ready
Form FactorLow Profile Ready
Max GPU Length168 mm
Low Profile Bracket IncludedYes
Card Dimensions (L x H)168mm*69mm
Slot WidthSingle Slot

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this card fit in a low-profile chassis and does the package include the correct bracket?

Yes, it is a low-profile design and the box includes a full-height bracket for standard slots.

What power supply is recommended and does the card need an external power connector?

The manufacturer recommends a 200 W PSU; the 65 W TDP typically draws all power from the PCIe slot so no extra connector is required.

Which display outputs are available and what is the maximum supported resolution?

One HDMI 2.0 and one DisplayPort 1.4 are provided, supporting up to 3840 x 2160 resolution.
