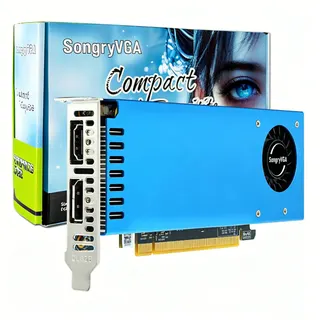

Compact low-profile GTX 1060 graphics card with single fan cooler and metal bracket

SongryVGA

SongryVGA SY106D5LP6G1 GTX 1060 6GB Low Profile graphics card

SKU CH-E810-0P0F6

Low-profile GTX 1060 with 6 GB GDDR5, single fan, HDMI 2.0 and DP 1.4 for compact SFF builds

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerNVIDIA
  • GPUGeForce GTX 1060
  • Core Clock1506 MHz
  • Boost Clock1709 MHz
  • Effective Memory Clock2002 MHz

Memory Size & Output Ports 6 GB with HDMI + DisplayPort Outputs

  • Low-profile design fits small-form-factor builds
  • 6 GB GDDR5 on 192-bit bus for mainstream gaming
  • PCIe 3.0 x16 interface with 65 W TDP
  • HDMI 2.0 and DisplayPort 1.4 drive 3840 x 2160
  • DirectX 12.1 and OpenGL 4.6 support modern APIs

SFF GTX 1060 6GB

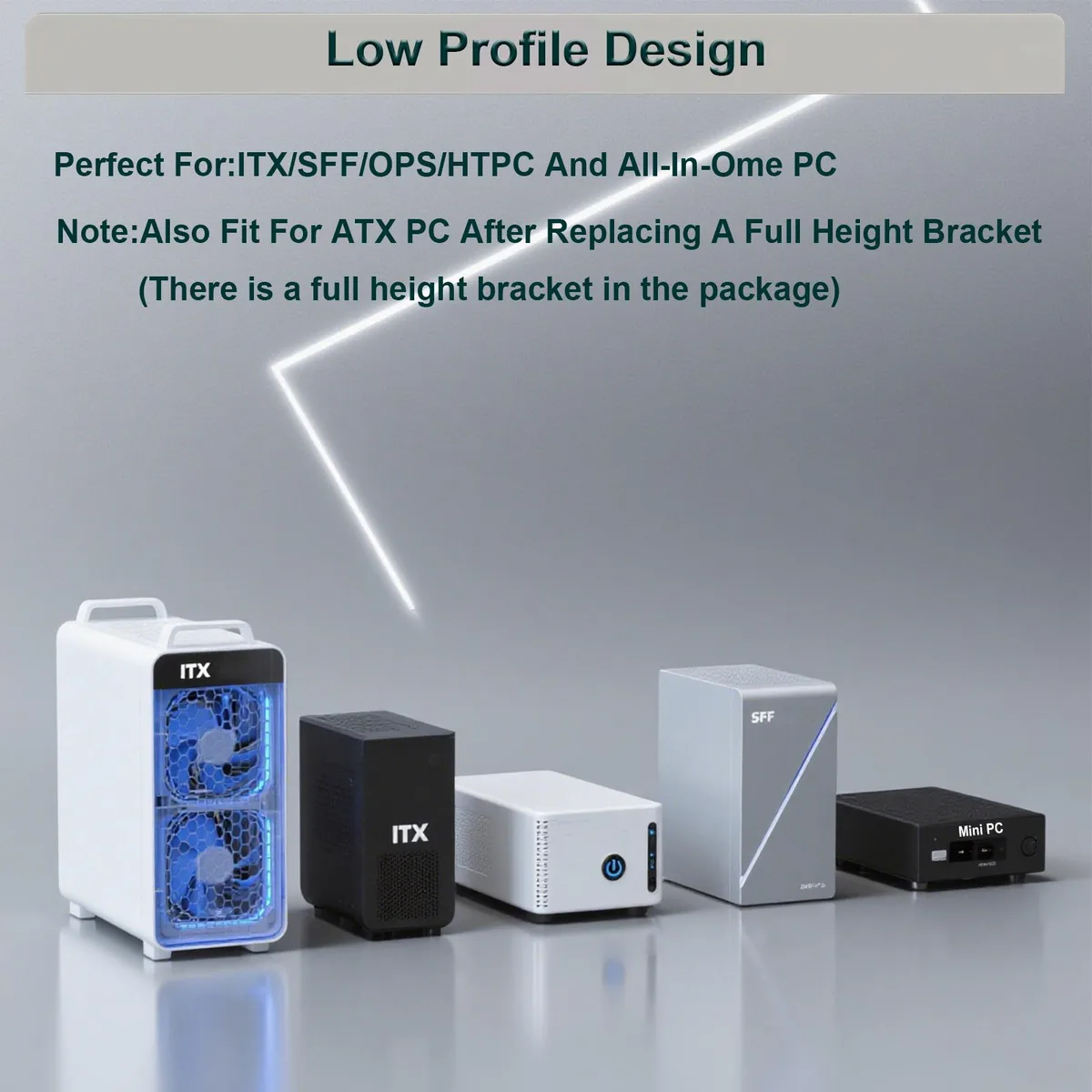

This low-profile graphics card uses the NVIDIA GeForce GTX 1060 GPU with 6GB of GDDR5 memory. It targets small-form-factor PCs, thin ITX builds, and HTPC cases where full-height cards cannot fit. The single-fan cooler keeps the 65W thermal design power in check inside tight chassis.

PCIe 3.0 x16 bandwidth limits

The board connects through a PCI Express 3.0 x16 slot, providing up to 16 GT/s per lane. That ceiling caps total throughput for memory transfers and compute workloads. The 192-bit memory bus runs at an effective 2002 MHz, so the interface is rarely the bottleneck in typical 1080p or 1440p scenarios.

Single fan and dual brackets

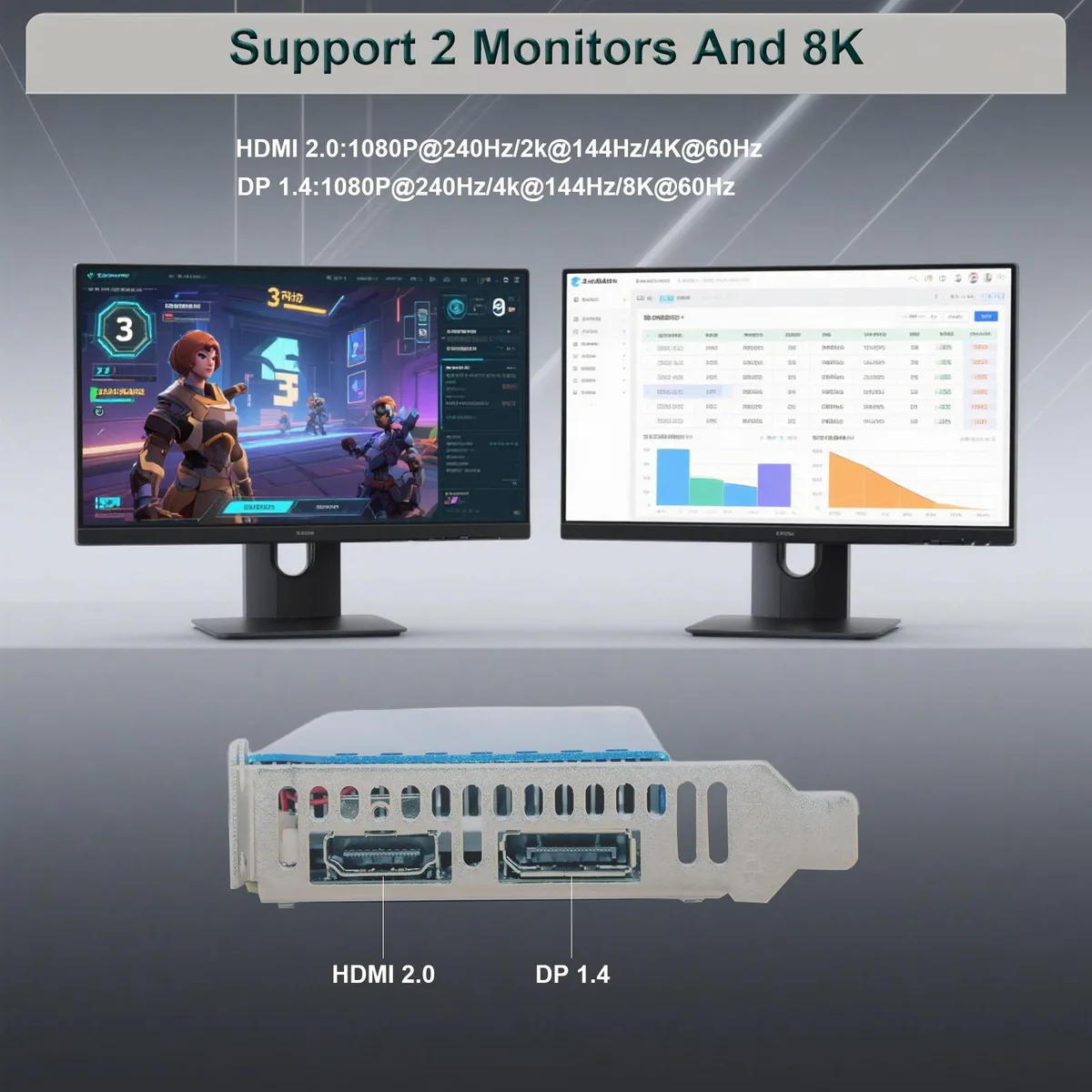

A single axial fan exhausts heat toward the rear bracket, which suits cramped layouts with limited airflow. The box includes a full-height bracket for standard ATX slots and a low-profile bracket for slim cases. One HDMI 2.0 port and one DisplayPort 1.4 port drive two monitors at up to 3840 x 2160 resolution.

Highlights

  • Low-profile design fits small-form-factor builds
  • 6 GB GDDR5 on 192-bit bus for mainstream gaming
  • PCIe 3.0 x16 interface with 65 W TDP
  • HDMI 2.0 and DisplayPort 1.4 drive 3840 x 2160
  • DirectX 12.1 and OpenGL 4.6 support modern APIs

Specifications

BrandSongryVGA
ModelSY106D5LP6G1
InterfacePCI Express 3.0 x16
Chipset ManufacturerNVIDIA
GPUGeForce GTX 1060
Core Clock1506 MHz
Boost Clock1709 MHz
Effective Memory Clock2002 MHz
Memory Size6GB
Memory Interface192-Bit
Memory TypeGDDR5
DirectXDirectX 12.1
OpenGLOpenGL 4.6
Multi-Monitor Support2
HDMI1 x HDMI 2.0
DisplayPort1 x DisplayPort 1.4
Max Resolution3840 x 2160
CoolerSingle Fan
Thermal Design Power65W
FeaturesSmall Form Factor Ready
Form FactorLow Profile Ready
Max GPU Length168 mm
Low Profile Bracket IncludedYes
Card Dimensions (L x H)168mm*69mm
Slot WidthSingle Slot
Package ContentsFull Height Bracket*1

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this card fit inside a small-form-factor chassis?

The low-profile design and single-slot cooler are built for SFF, thin ITX and HTPC cases. A full-height bracket is included if your case needs it.

What power supply capacity is required for the 65 W TDP?

The board draws 65 W from the PCIe 3.0 x16 slot with no external power connector, so a standard SFF supply rated for the slot is sufficient.

Can I drive two 4K displays at the same time?

Yes. HDMI 2.0 and DisplayPort 1.4 each support 3840 x 2160, and the card lists dual-monitor support.
