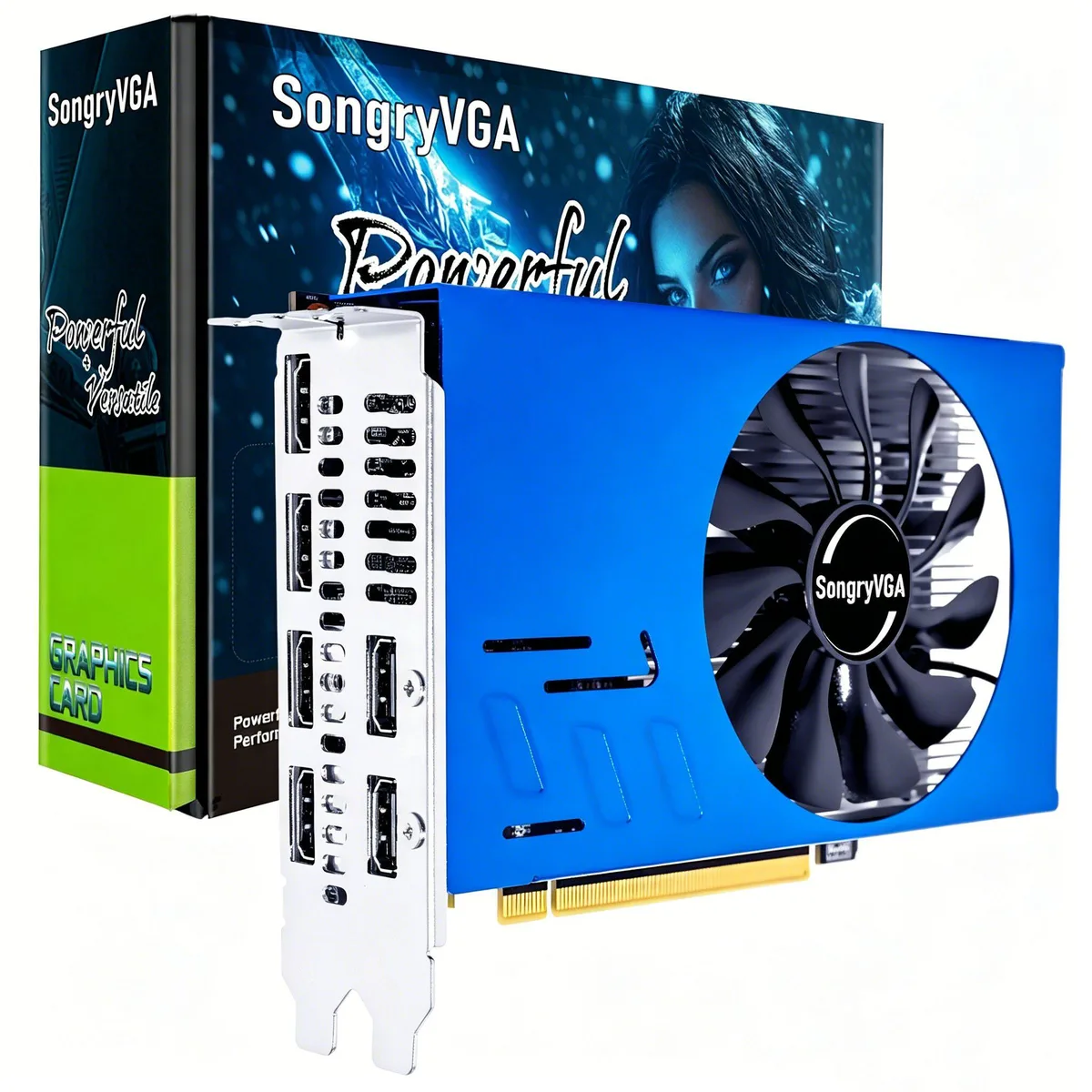

Compact dual-slot graphics card with single fan and six HDMI ports

SongryVGA

SongryVGA SY586H82 RX 580 8GB graphics card

SKU CH-JHWJ-7S67C

Drives up to six 4K displays from six HDMI 2.0 outputs on a compact PCIe 3.0 x16 card with 8 GB GDDR5 and an 80 W TDP

  • InterfacePCI Express 3.0 x16
  • Chipset ManufacturerAMD
  • GPURadeon RX 580
  • Core Clock1244 MHz
  • Stream Processors2048
  • Effective Memory Clock15000 MHz

Memory Size 8GB

  • Drives up to six 4K monitors simultaneously with six HDMI 2.0 outputs
  • Delivers smooth 4K playback via DirectX 12 and OpenGL 4.6 support
  • Fits small-form-factor builds with a compact 6.85-inch dual-slot design
  • Runs efficiently on 80 W TDP using a single 6-pin power connector
  • Processes workloads with 2048 stream processors at 1244 MHz core clock

SongryVGA RX 580 8GB multi-monitor card

This SongryVGA SY586H82 graphics card uses the AMD Radeon RX 580 GPU with 8GB of GDDR5 memory on a 256-bit bus. It provides six HDMI 2.0 outputs that can drive up to six 4K displays at 3840 x 2160 resolution. The card targets trading desks, digital signage and office productivity setups that need many screens from a single slot.

PCIe 3.0 x16 installation with 6-pin power

The board installs into a standard PCI Express 3.0 x16 slot and draws up to 80W through a single 6-pin power connector. Its compact 6.85-inch length and dual-slot bracket fit most small form factor cases. Driver support covers Windows 7 through 11 on both 32-bit and 64-bit editions; the main installation issue is forgetting the external power cable or using a PSU without a 6-pin lead.

8GB GDDR5 frame buffer for six 4K outputs

The 8GB frame buffer and 15000 MHz effective memory clock give comfortable headroom for 2D multi-monitor workloads, video walls and trading arrays across all six ports. The 2048 stream processors at 1244 MHz core clock handle DirectX 12 and OpenGL 4.6 content smoothly. Heavy 3D rendering or modern gaming at high detail will exhaust the memory capacity and thermal budget before the display outputs become a bottleneck.

Highlights

  • Drives up to six 4K monitors simultaneously with six HDMI 2.0 outputs
  • Delivers smooth 4K playback via DirectX 12 and OpenGL 4.6 support
  • Fits small-form-factor builds with a compact 6.85-inch dual-slot design
  • Runs efficiently on 80 W TDP using a single 6-pin power connector
  • Processes workloads with 2048 stream processors at 1244 MHz core clock

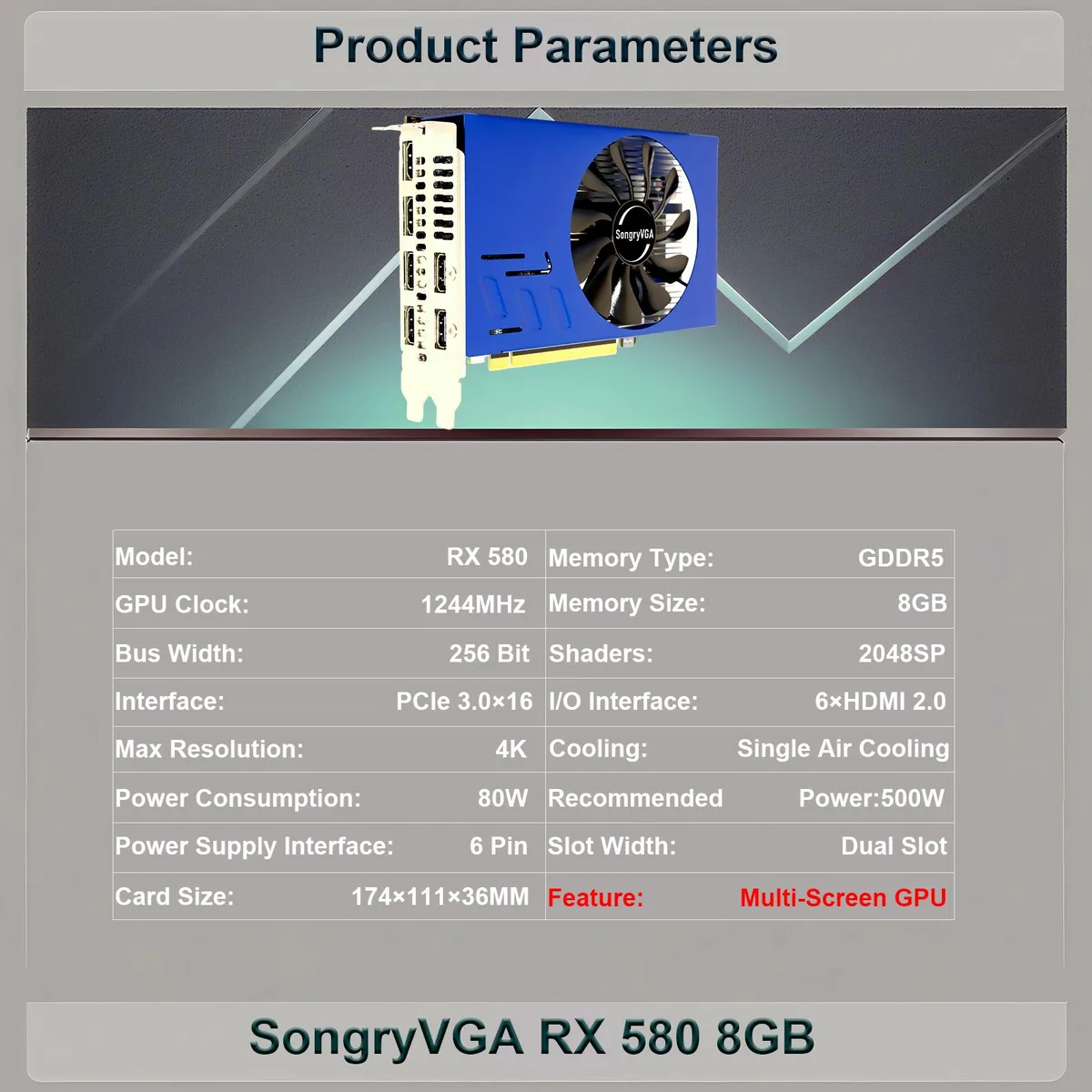

Specifications

BrandSongryVGA
ModelSY586H82
InterfacePCI Express 3.0 x16
Chipset ManufacturerAMD
GPURadeon RX 580
Core Clock1244 MHz
Stream Processors2048
Effective Memory Clock15000 MHz
Memory Size8GB
Memory Interface256-Bit
Memory TypeGDDR5
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support6
HDMI6 x HDMI 2.0
AI FeaturesAI Ready
Max Resolution3840 x 2160
CoolerSingle Fan
Thermal Design Power80W
Power Connector6-Pin
Form FactorATX
Max GPU Length174 mm
Low Profile Bracket IncludedNo
Card Dimensions (L x H)174mm*111mm
Slot Width2 Slots

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will six HDMI 2.0 ports drive six 4K monitors at once?

Yes, the card has six HDMI 2.0 outputs and multi-monitor support for six displays at up to 3840 x 2160 resolution.

Does my power supply need a 6-pin connector for this 80W TDP card?

The board draws all power from a single 6-pin external connector; ensure your PSU provides one.

Is the 6.85-inch dual-slot cooler compatible with small form factor cases?

The compact 6.85-inch length and dual-slot design fit most standard PC cases while dissipating heat via a single fan.
