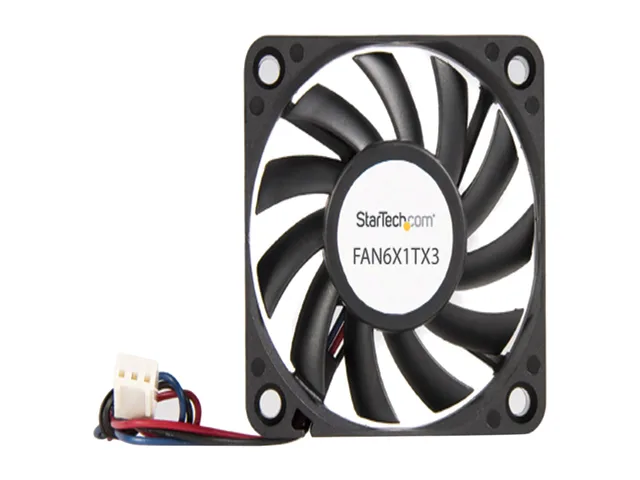

Black 60mm square case fan with 10mm frame and 3-pin connector

STARTECH

STARTECH FAN6X1TX3 60mm case fan 4000 RPM 15.49 CFM 28 dBA 3-pin

SKU CH-3KPT-AMFES MPN FAN6X1TX3

A 60mm ball-bearing case fan delivering 15.49 CFM at 4000 RPM with 28 dBA noise, plus a 3-pin to LP4 adapter included

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size60mm
  • Fan Thickness10mm

Fan Size 60mm

Struck-through versions exist but are not stocked here.

Model 60x10mmTX3 & LP4

  • 60x10mmTX3 & LP4
  • 70x10mmTX3
  • PWM
  • LP4
  • TX3 & LP4
  • TX3
  • TX3 - Quiet
  • TX3 - High Air Flow

Struck-through versions exist but are not stocked here.

  • Dual ball bearings extend fan life and reliability
  • 4000 RPM delivers 15.49 CFM airflow for chassis cooling
  • Quiet 28 dBA operation suits noise-sensitive builds
  • 3-pin TX3 and LP4 adapter fit multiple power headers
  • Compact 60mm x 10mm frame fits tight case mounts

Compact 60 mm chassis fan

The STARTECH FAN6X1TX3 is a single 60 mm case fan designed to add targeted airflow inside desktop computer cases. It suits builders who need a slim 10 mm profile to fit tight mounting points. The black frame and dual ball bearing construction aim for extended operating life. This unit is not intended for liquid-cooling radiators or high-static-pressure heatsinks.

Mounting and power flexibility

The fan installs in any standard 60 mm case opening and draws power from either a three-pin motherboard header or an LP4 Molex connector using the included adapter. The tachometer pin on the TX3 connector reports speed to the system for monitoring. No separate fan controller is required or included. Builders without a spare three-pin header or LP4 lead cannot use this fan without additional cabling.

Sustained operation characteristics

At full speed the fan spins at 4000 RPM and moves 15.49 CFM of air while producing 28 dBA of noise. Dual ball bearings maintain consistent performance during continuous running without the wear patterns seen in sleeve designs. The fixed rotational speed means airflow does not scale with temperature unless the motherboard provides voltage control. Users needing variable speed curves should verify header capabilities before purchase.

Highlights

  • Dual ball bearings extend fan life and reliability
  • 4000 RPM delivers 15.49 CFM airflow for chassis cooling
  • Quiet 28 dBA operation suits noise-sensitive builds
  • 3-pin TX3 and LP4 adapter fit multiple power headers
  • Compact 60mm x 10mm frame fits tight case mounts

Specifications

BrandStarTech.com
ModelFAN6X1TX3
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Size60mm
Fan Thickness10mm
Bearing TypeBall
RPM4000 RPM
Air Flow15.49 CFM
Noise Level28 dBA
Power Connector3 Pin
ColorBlack
FeaturesDual Ball Bearings in the cooling fan provides increased airflow, reliability and longer life
Includes a LP4 adapter
Tachometer pin on the TX3 motherboard connector provides system with fan operating status
Dimensions60 x 60 x 10mm
Package Contents39153C
Shipping weight0.05 kg
Package size84 × 64 × 30 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How long will the 4000 RPM ball bearing last under continuous load?

Dual ball bearings are rated for longer life and higher reliability than sleeve bearings at this speed.

Does the 28 dBA rating stay steady during all-day operation?

The fan runs at a fixed 4000 RPM so noise remains at the quoted 28 dBA as long as voltage is constant.

Will the 3-pin TX3 header on my motherboard power this 60 mm fan directly?

Yes, the 3-pin TX3 connector fits standard motherboard headers and the box includes a 3-pin to LP4 adapter for Molex power.
