Black 80mm square case fan with PWM connector and Ever Lubricate bearing

STARTECH

STARTECH FAN8025PWM 80mm PWM Case Fan 800-2500 RPM

SKU CH-Q0EK-R6CDH MPN FAN8025PWM

An 80 mm case fan with PWM control spins from 800 to 2500 RPM, moving 9.74 to 25.02 CFM at under 10 to 28 dBA

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size80mm
  • Fan Thickness25mm

Fan Size 80mm

Struck-through versions exist but are not stocked here.

Model PWM

Struck-through versions exist but are not stocked here.

  • Precise speed control via 4-pin PWM motherboard connector
  • Quiet operation from under 10 dBA at low speed
  • Adjustable airflow between 9.74 and 25.02 CFM
  • Reliable Ever Lubricate bearing for long service life
  • Compact 80 x 25 mm frame fits tight case spaces

80mm PWM Case Fan

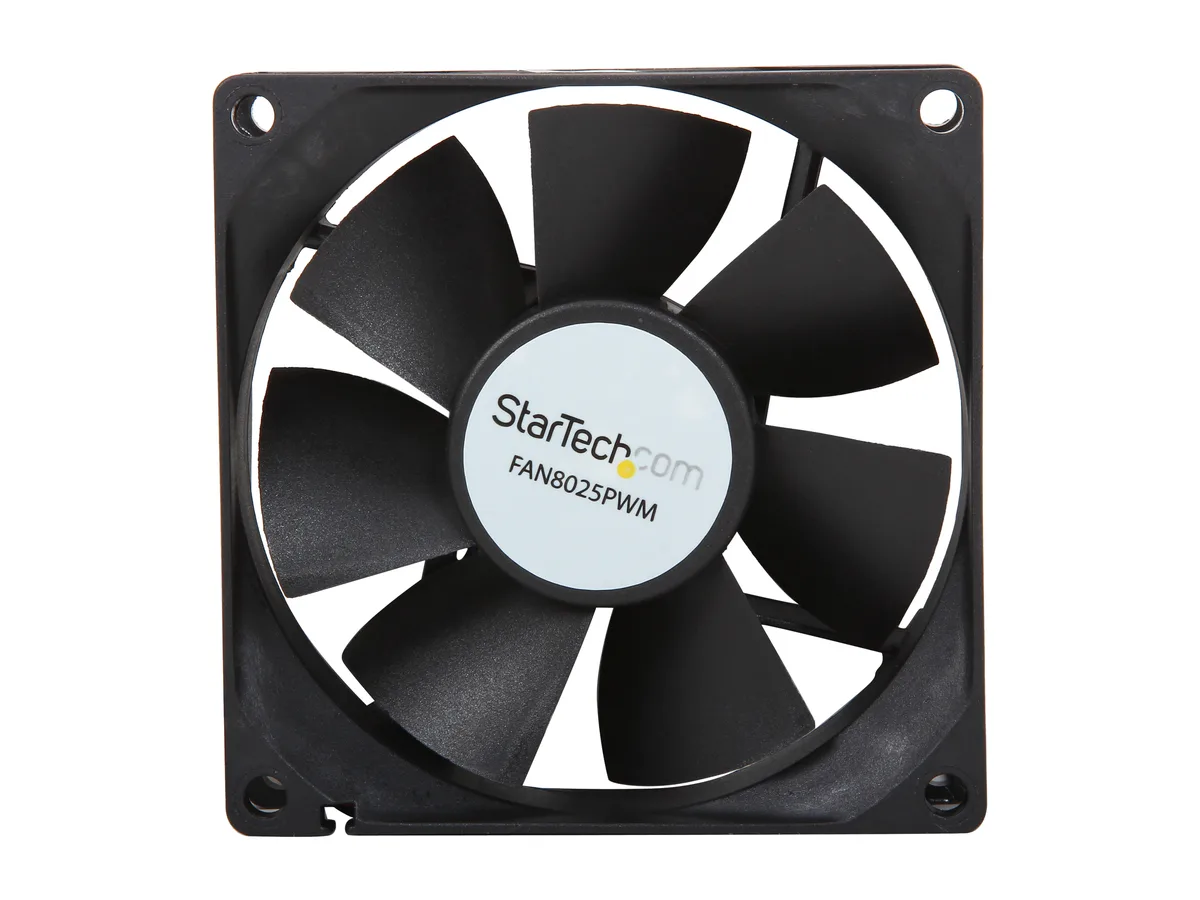

The StarTech FAN8025PWM is an 80 by 25 millimetre case fan that connects via a four-pin PWM Molex header for motherboard-controlled speed. It uses an Ever Lubricate bearing and spins between 800 and 2500 RPM to deliver 9.74 to 25.02 CFM of airflow. Noise stays under 10 dBA at low speed and reaches 28 dBA at maximum. A PWM Y-split cable is included for connecting two fans to one header.

Fits compact cases needing 80mm mounts

This fan suits builds that use 80mm mounting points and want variable speed control through PWM. It is not for cases that only accept larger fan sizes or for radiators demanding higher static pressure than this model provides. Buyers who need addressable RGB lighting or a bundled hardware controller should look elsewhere. The Ever Lubricate bearing aims for long service life in standard chassis positions.

PWM speed range 800 to 2500 RPM

The decisive specification is the PWM-controlled range of 800 to 2500 RPM, which lets the motherboard balance airflow against noise automatically. At the low end the fan runs below 10 dBA for quiet idle operation, while the high end pushes 25.02 CFM when thermal load rises. Matching this range to your motherboard's fan curve determines whether the cooling performance meets your needs.

Highlights

  • Precise speed control via 4-pin PWM motherboard connector
  • Quiet operation from under 10 dBA at low speed
  • Adjustable airflow between 9.74 and 25.02 CFM
  • Reliable Ever Lubricate bearing for long service life
  • Compact 80 x 25 mm frame fits tight case spaces

Specifications

BrandStarTech.com
ModelFAN8025PWM
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Size80mm
Fan Thickness25mm
Bearing TypeEver Lubricate
RPM800 ~ 2500 RPM
Air Flow9.74 ~ 25.02 CFM
Noise Level< 10dBA ~ 28 dBA
Power ConnectorMolex Fan (4 pin; PWM) Female
ColorBlack
FeaturesEnclosure Type: Plastic
Power:
Input Current: 160 mA
Input Voltage: 12 DC
4-pin Pulse Width Modulation (PWM) motherboard connector
Ever Lubricate Bearing design

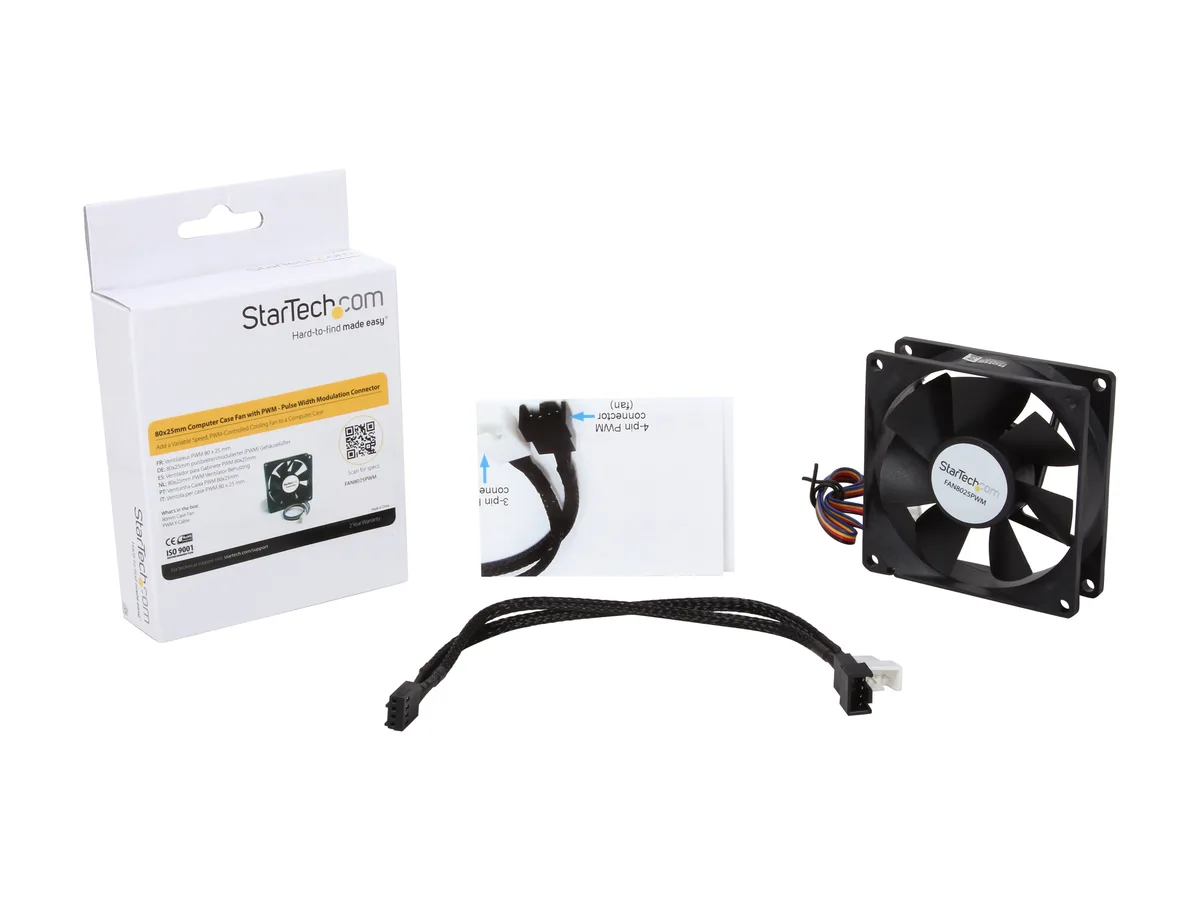

Includes a PWM Y-split cable
Dimensions80 x 80 x 25 mm
Shipping weight0.11 kg
Package size117 × 91 × 33 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does my motherboard need a 4-pin PWM header to control the fan speed?

Yes, the fan connects via a 4-pin PWM header for automatic speed control between 800 and 2500 RPM.

Will this 80mm fan fit in the same mounting holes as my current 80mm fan?

Yes, it uses the standard 80 x 80 mm frame with 25 mm thickness, matching common 80 mm case mounting points.

How can I confirm the fan is responding to PWM control after installation?

In BIOS or fan software, set a custom curve and verify the RPM changes smoothly from 800 to 2500 RPM as the duty cycle increases.
