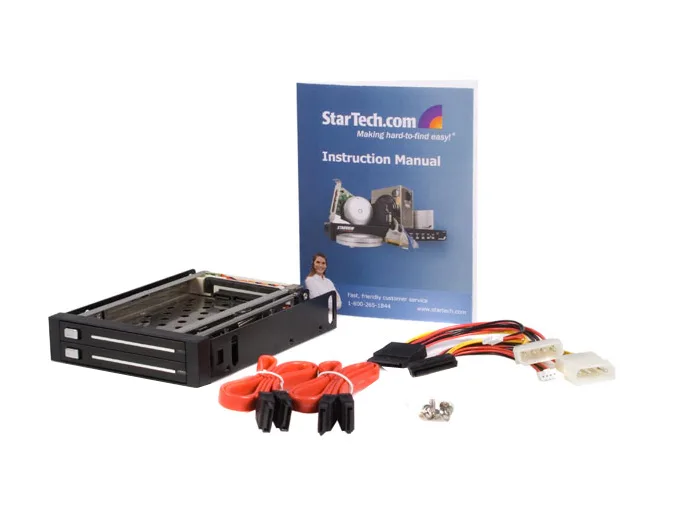

Black aluminum trayless hot-swap bay holding two 2.5in SATA drives in a 3.5in slot

STARTECH

STARTECH HSB220SAT25B 2-drive 2.5in SATA hot-swap bay for 3.5in slot hdd accessory

SKU CH-17C0-FX1PT MPN HSB220SAT25B

Adds two 2.5in SATA drives to a single 3.5in bay with trayless hot-swap and aluminium cooling

  • ColorBlack
  • Mobile Rack Drives SupportMulti 2.5" Drives to 3.5" Bay
  • Mobile Rack InterfaceSATA I/II/III
  • SpecificationsColor Black Enclosure Type Aluminum Hot Swap Capability Yes
  • FeaturesAluminum enclosure design to help with heat dissipation Driv
  • Hot-swap two 2.5in SATA drives without tools
  • Fits two drives into a single 3.5in front bay
  • Aluminium enclosure helps dissipate drive heat
  • Dual LEDs show power status and drive activity
  • Driver-free SATA I/II/III backplane works immediately

Dual 2.5in SATA hot-swap bay

This StarTech HSB220SAT25B fits two 2.5in SATA hard drives or SSDs into a single unused 3.5in front bay. It is aimed at system builders and technicians who need quick, tool-free access to storage without opening the case. The trayless design lets you slide drives in and out while the PC stays running.

Sustained-load behaviour

An aluminum enclosure acts as a passive heatsink so both drives stay cooler during long copy or backup sessions. Dual LEDs show power and per-drive activity at a glance. The SATA I/II/III backplane imposes no artificial throttle beyond the drives’ own limits.

Installation and common issues

No screws or trays are required; drives insert directly into the backplane like a cartridge. The bay occupies one standard 3.5in front opening and connects with two SATA data and two SATA power cables. Builders whose chassis lacks a free 3.5in front bay cannot use this product.

Highlights

  • Hot-swap two 2.5in SATA drives without tools
  • Fits two drives into a single 3.5in front bay
  • Aluminium enclosure helps dissipate drive heat
  • Dual LEDs show power status and drive activity
  • Driver-free SATA I/II/III backplane works immediately

Specifications

BrandStarTech.com
ModelHSB220SAT25B
ColorBlack
Mobile Rack Drives SupportMulti 2.5" Drives to 3.5" Bay
Mobile Rack InterfaceSATA I/II/III
SpecificationsColor Black
Enclosure Type Aluminum
Hot Swap Capability Yes
FeaturesAluminum enclosure design to help with heat dissipation
Driver free support and tool-less design for HD installation
Dual LED function: Power on, HD activity
Easily add two 2.5" SATA hard drives to your PC
Supports Hot Swapping
Supports SATA II and maximum data transfer rates up to 6.0 Gbps
Swinging latch able door makes it easy for inserting or removing hard drives
This 3.5in SATA hard drive hot-swap bay allows you to install two 2.5in SATA drives in an available/unused 3.5in floppy drive bay.Featuring a convenient "no mounting required /easy eject" feature (like a tape cartridge or
Shipping weight0.50 kg
Package size170 × 127 × 53 mm

Questions about this item

Does the aluminum enclosure keep the two 2.5in drives cool when the bay runs continuously?

The aluminum body acts as a heatsink, drawing heat away from both drives without needing a fan, so temperatures stay lower during all-day operation.

What host connection must my motherboard provide for this hot-swap bay to work?

A standard SATA data port and a SATA power connector from the power supply are required for each of the two drive slots.

Will my older 2.5in SATA hard drives work in this tray-less bay alongside a newer SSD?

Yes, any 2.5in drive with a SATA interface fits the trayless slots and the backplane passes the native SATA I, II or III signal through to the motherboard.
