STARTECH
STARTECH PEX1TO162 PCIe x1 to x16 low profile slot extension adapter expansion card
Connects low-profile PCIe x16 cards to an x1 slot while raising the bracket to full height
- TypePCI Express to PCI Card
- Data Transfer Rate2.5 Gbps
- SpecificationsConnectors: 1 x x1 PCI Express Male 1 x x16 PCI Express Fema
- FeaturesConnects a low profile multi-lane PCI Express card to a x1 s
- Dimensions4.99" x 1.74" x 0.33"
- Weight0.27 lb
- Installs low-profile x16 cards in x1 slots
- Extends bracket height from low-profile to full-profile
- Supports x2, x4, x8, x12 and x16 PCIe cards
- Provides 2.5 Gbps data transfer rate
- Compact 4.99" x 1.74" x 0.33" form factor

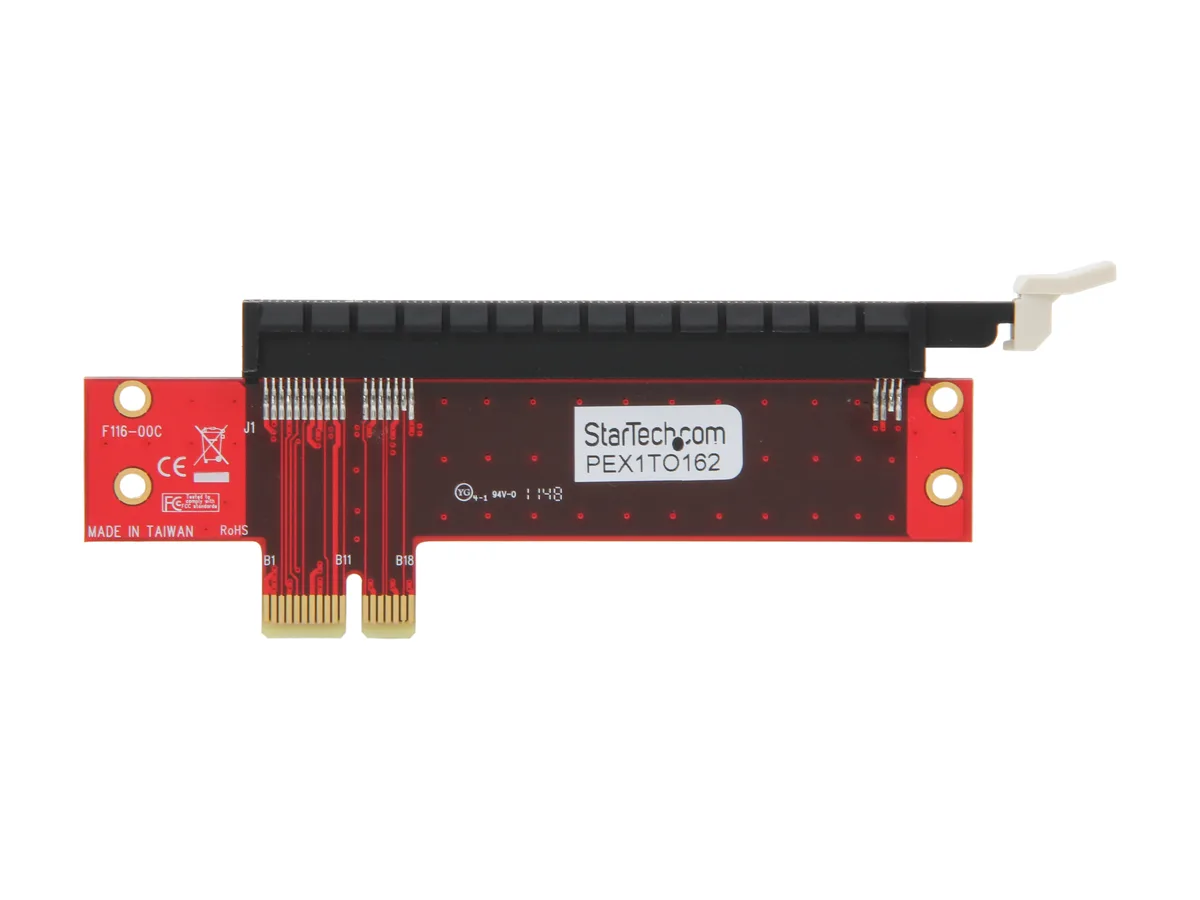

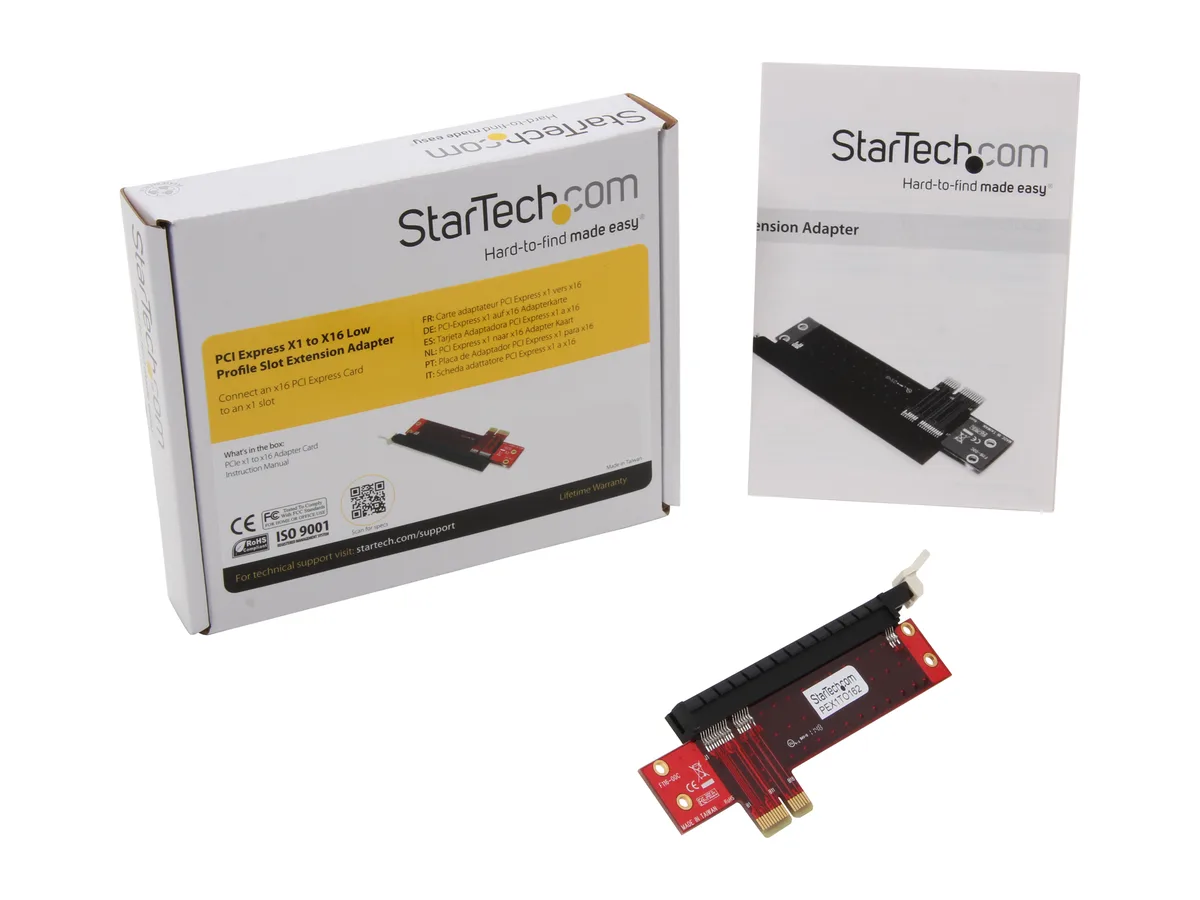

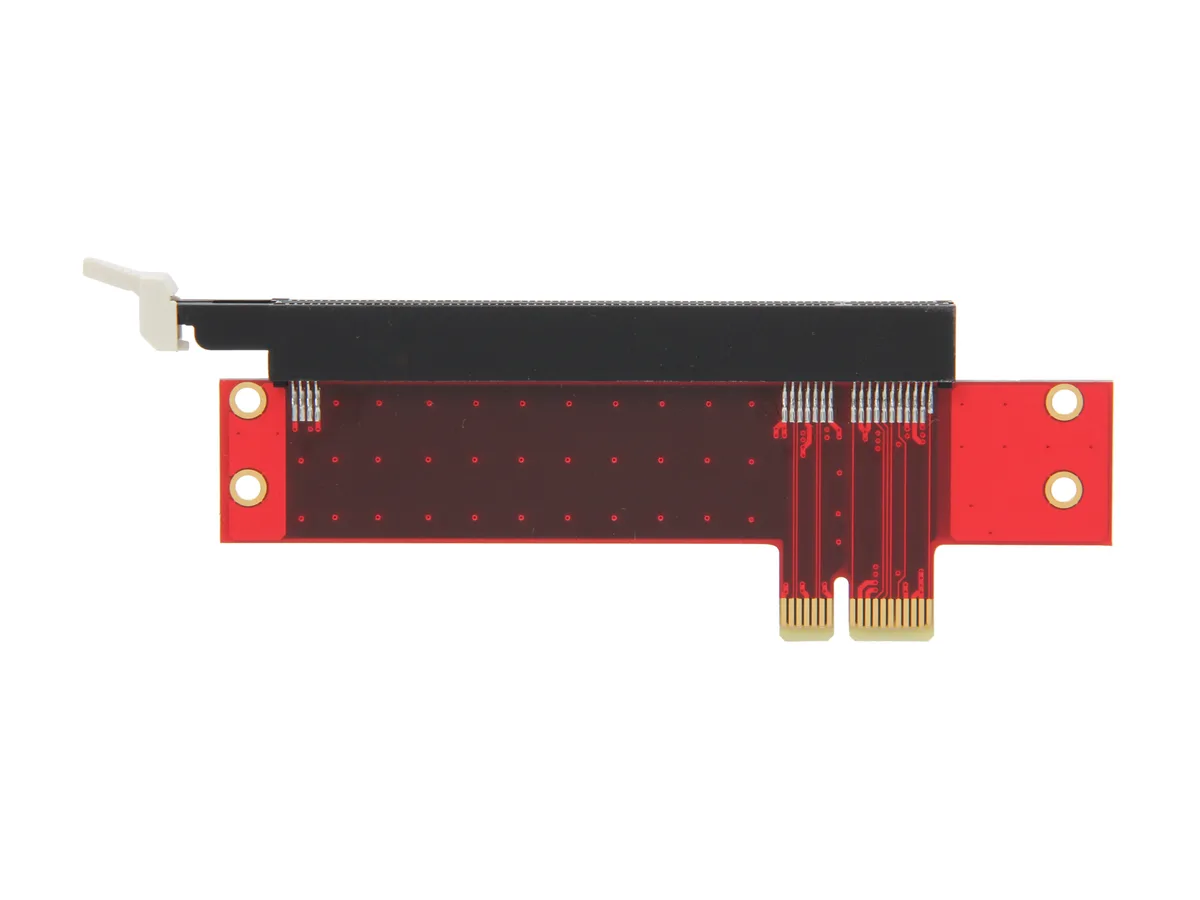

PCIe x1 to x16 low profile adapter
This StarTech.com PEX1TO162 adapter lets you install a low profile x16 PCI Express card into an x1 slot on your motherboard. It extends the low profile bracket to full profile height while maintaining a PCIe 2.5 Gbps data transfer rate. The card measures 4.99" x 1.74" x 0.33" and weighs 0.27 lb.
Builders with limited expansion slots
The adapter suits systems where a free x1 slot is the only option for adding a larger expansion card such as a capture card, network adapter or sound card. It does not suit installations that require full x16 electrical bandwidth or multi-lane throughput for sustained high-speed data transfer. The physical x16 connector accepts x2, x4, x8, x12 and x16 cards mechanically.
2.5 Gbps single-lane throughput
The electrical interface remains a single PCIe lane limited to 2.5 Gbps, so any card installed will operate at x1 speed regardless of its physical connector width. This specification determines whether your target expansion card can function within the available bandwidth. The adapter provides mechanical compatibility only.
Highlights
- Installs low-profile x16 cards in x1 slots
- Extends bracket height from low-profile to full-profile
- Supports x2, x4, x8, x12 and x16 PCIe cards
- Provides 2.5 Gbps data transfer rate
- Compact 4.99" x 1.74" x 0.33" form factor
Specifications
| Brand | StarTech.com |
|---|---|
| Model | PEX1TO162 |
| Type | PCI Express to PCI Card |
| Data Transfer Rate | 2.5 Gbps |
| Specifications | Connectors: 1 x x1 PCI Express Male 1 x x16 PCI Express Female |
| Features | Connects a low profile multi-lane PCI Express card to a x1 slot on your motherboard Extends the height of the low profile bracket to full profile height |
| Dimensions | 4.99" x 1.74" x 0.33" |
| Weight | 0.27 lb |
| Shipping weight | 0.07 kg |
| Package size | 175 × 145 × 33 mm |
Questions about this item
Will the 2.5 Gbps link become a bottleneck when I run a full-length x16 card in the x1 slot all day?
The adapter passes a single PCIe lane at 2.5 Gbps, so any x16 card will operate at x1 bandwidth; sustained throughput is limited to that rate.
Does the board generate noticeable heat or need extra cooling during continuous operation?
The passive adapter has no active components, draws negligible power from the slot, and runs at ambient temperature without a fan or heatsink.
What bracket height must my case support for this low-profile-to-full-profile adapter to fit?
The card extends the low-profile bracket to full-profile height, so the chassis needs a standard full-height expansion slot opening.
