STARTECH

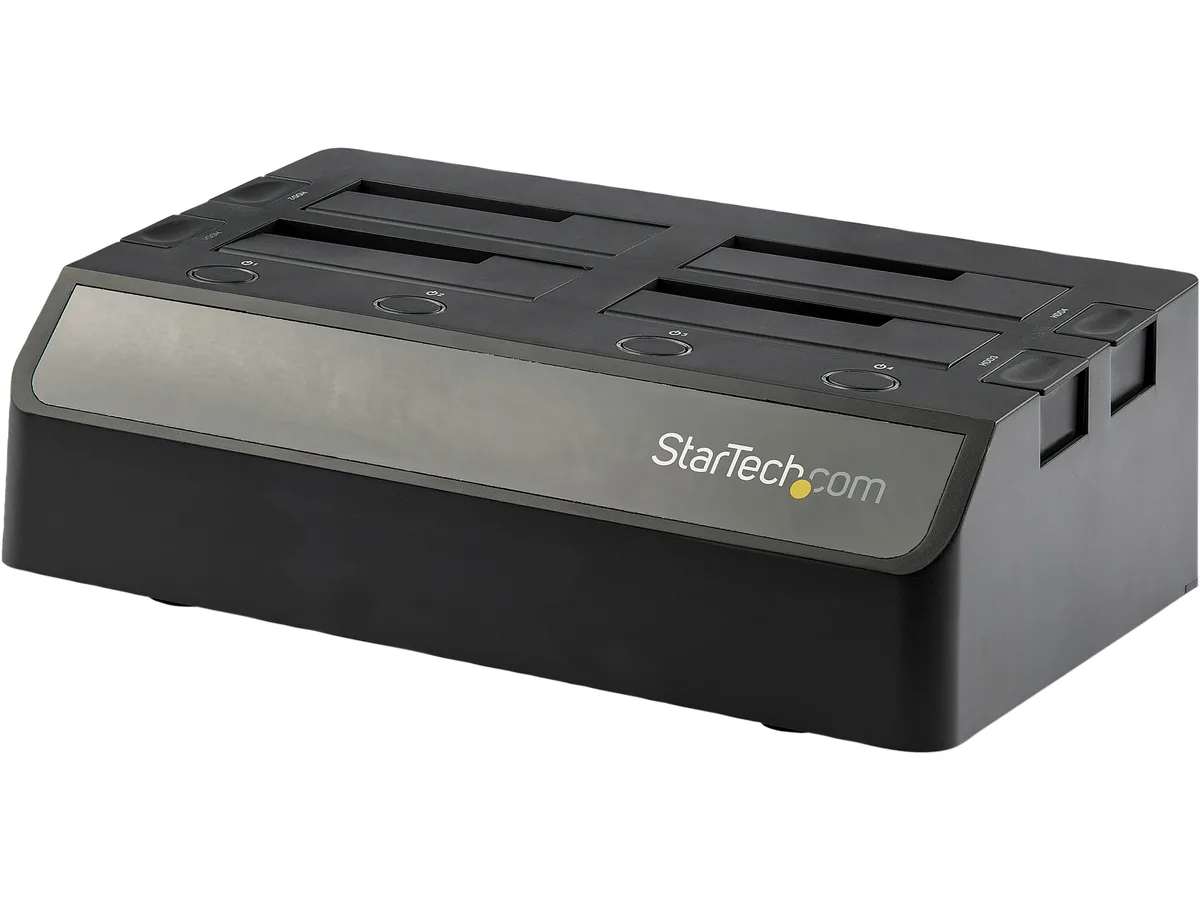

STARTECH SDOCK4U313 4-bay SATA drive enclosure USB 3.1 10Gbps USB-C USB-A
Four-bay SATA dock holds 2.5 and 3.5 inch drives, connects via USB 3.1 at 10Gbps with USB-C and USB-A cables, and includes dual 40mm fans for active cooling
- ColorBlack
- Size2.5" & 3.5"
- TypeDock
- AC AdapterYes
- MaterialPlastic
- Internal InterfaceSATA III
- Access four drives at once via top-loading bays
- Swap drives without powering down using hot-swap support
- Connect via USB-C or USB-A with included cables
- Dual 40 mm fans keep drives cool during operation
- Supports 2.5" and 3.5" SATA SSDs and HDDs
Four-bay SATA dock with USB 3.1 10Gbps
The StarTech SDOCK4U313 is a four-bay docking station that accepts up to four 2.5-inch or 3.5-inch SATA SSDs or hard drives simultaneously. It connects to a host via USB 3.1 Type-C at 10Gbps and includes both USB-C and USB-A cables for broad compatibility. Two built-in 40mm fans provide active cooling, and an included universal AC adapter powers the unit.
Suits multi-drive workflows.
This dock is aimed at technicians, archivists and power users who regularly rotate several SATA drives for imaging, recovery, duplication or bulk data transfer. Independent drive doors, controllers, power switches and ejection buttons let you hot-swap each bay without disturbing the others. Users who only ever access one drive at a time will find the four-bay capacity and 78W power supply unnecessary.
USB 3.1 10Gbps host interface
The single specification that decides fit is the USB 3.1 Gen 2 connection running at 10Gbps. It sets the maximum throughput ceiling for all four drives combined, so sustained transfers from multiple SATA III drives will share this bandwidth. If your workflow demands dedicated 6Gbps lanes per drive, a different topology is required.
Highlights
- Access four drives at once via top-loading bays
- Swap drives without powering down using hot-swap support
- Connect via USB-C or USB-A with included cables
- Dual 40 mm fans keep drives cool during operation
- Supports 2.5" and 3.5" SATA SSDs and HDDs
Specifications
| Brand | StarTech.com |
|---|---|
| Model | SDOCK4U313 |
| Color | Black |
| Size | 2.5" & 3.5" |
| Type | Dock |
| AC Adapter | Yes |
| Material | Plastic |
| Internal Interface | SATA III |
| External Interface | USB 3.1 Type-C |
| Number of Bay | 4 Bay |
| Fan | Fan Bearing Type: Sleeve Bearing Fans: 2 x 60mm fan |
| Power | Input Current: 2.0A Input Voltage: 100 ~ 240 AC Output Current: 6500mA Output Voltage: 12 DC Plug Type: 4-pin DIN Power Consumption (In Watts): 78W Power Source: AC Adapter Included |
| Specifications | Drive Connectors: 4 x 22 pin SATA Data & Power Combo Receptacle Host Connectors: 1 x USB Type-C (24 pin) USB 3.1 (10Gbps) Female 4Kn Support: Yes Hot Swap Capability: Yes Insertion Rating: 10000 Max Drive Capacity: Tested up to 10TB Maximum Data Transfer Rate: 10Gbps MTBF: 30000 hours Noise Level: 19.04 dBA S.M.A.R.T. Support: Yes TRIM Support: Yes Type and Rate: USB 3.1 Gen 2 - 10 Gbit/s, SATA III (6 Gbps) UASP Support: Yes |
| Operating Systems Supported | OS independent; No software or drivers required |
| Features | Quad-bay top-loading design with independent drive doors, drive controllers, power switching, and ejection buttons Access up to four 2.5"/3.5" SSDs/HDDs simultaneously over USB 3.1 (10Gbps), and hot swap drives USB Type-C and USB Type-A interface, backward compatible with USB 3.0, 2.0 and 1.x Support for SATA I, II and III (up to 6Gbps) SMART support to enable access to important drive data, such as hours in use, number of power cycles, disk health TRIM support 4Kn support Built-in dual 60 mm cooling fans help to maintain an optimum operating temperature UASP support for enhanced per |
| Dimensions | 3.40" x 6.70" x 11.50" |
| Weight | 2.20 lbs. |

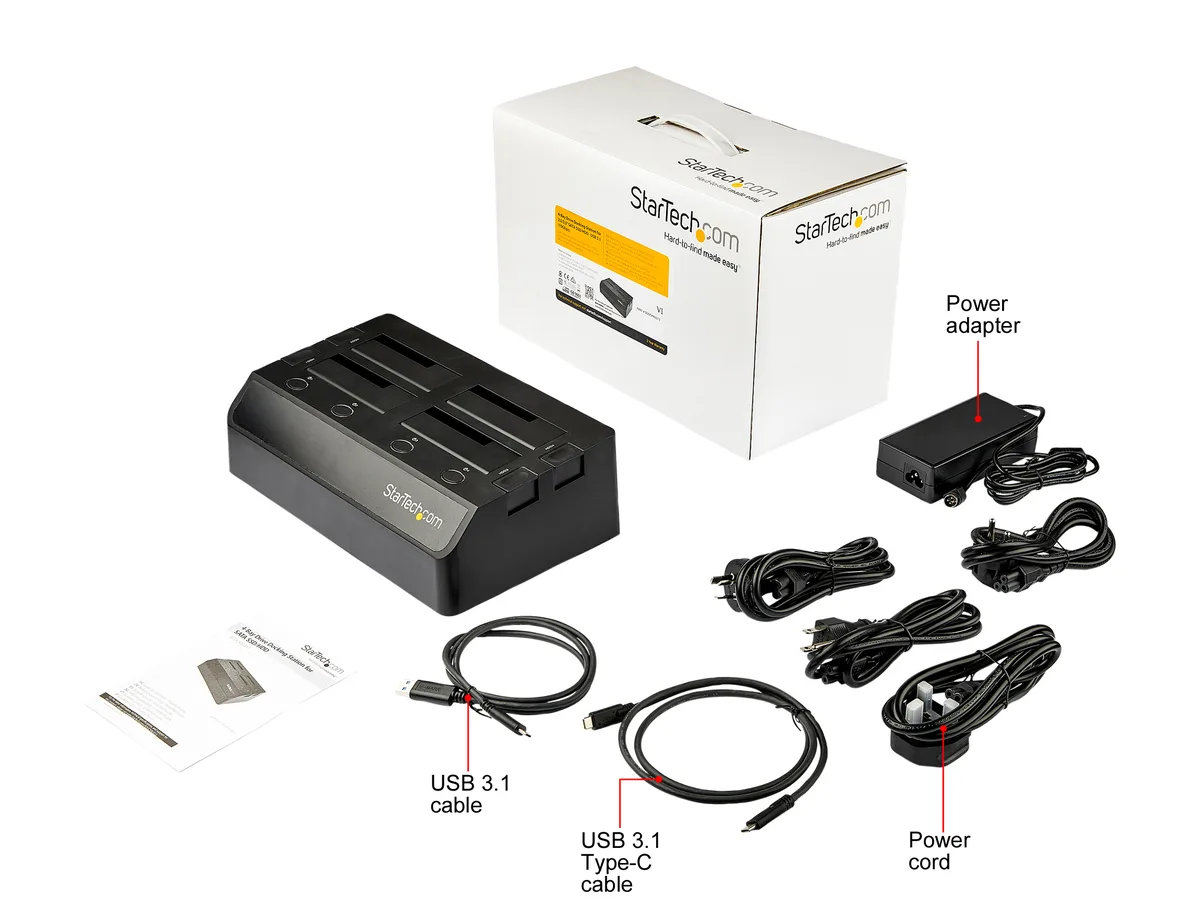

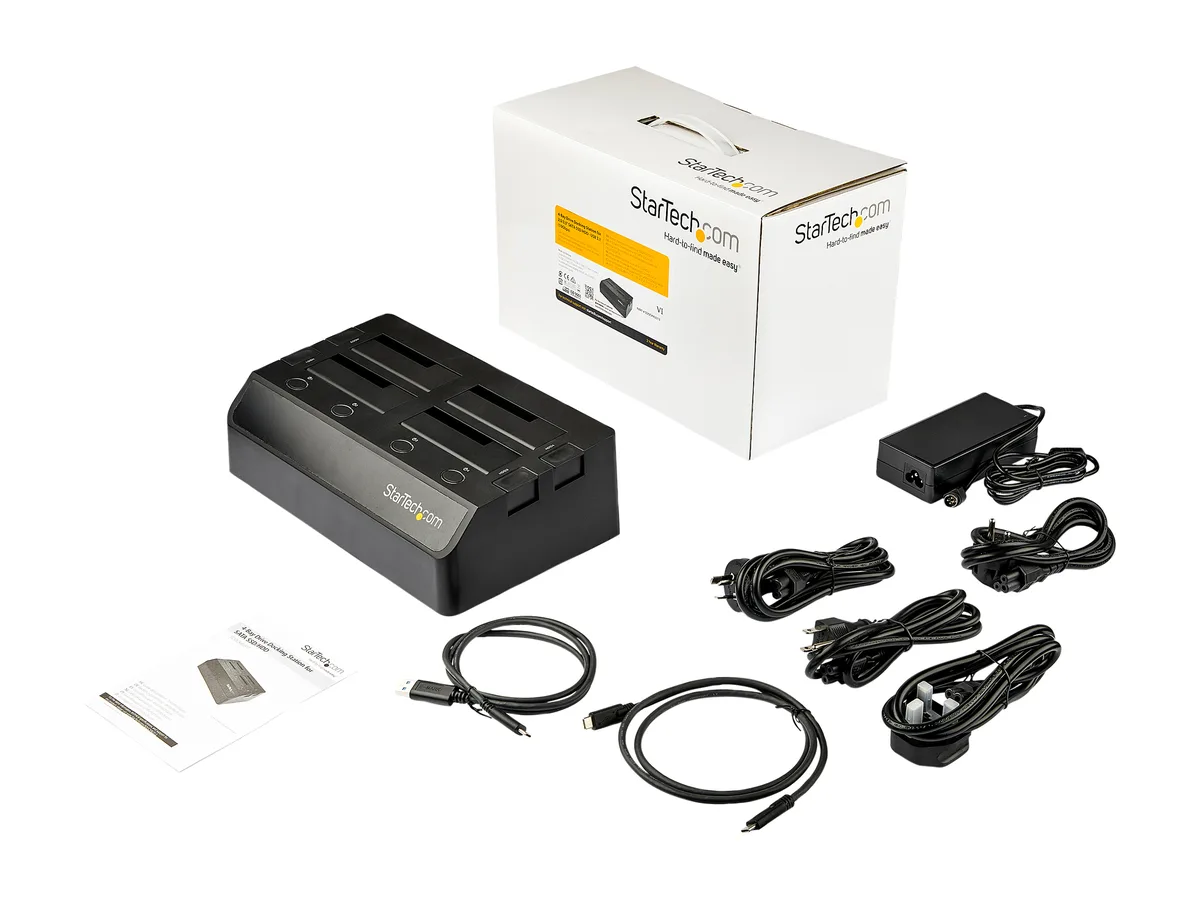

| Package Contents | 1 x docking station 1 x 3.3 ft [1 m] USB 3.1 (Type-C) cable 1 x 3.3 ft [1 m] USB 3.1 (Type-A) cable 1 x universal power adapter (NA/JP, UK, EU, ANZ) 1 x quick-start guide |
| Shipping weight | 2.41 kg |
| Package size | 340 × 216 × 173 mm |
Questions about this item
Will the two 40 mm sleeve-bearing fans need replacement after long-term use?
The enclosure uses two 40 mm sleeve-bearing fans; sleeve bearings can wear over time, so fan replacement may eventually be needed.
Does the USB 3.1 10 Gbps link or the SATA III 6 Gbps drive interface become the bottleneck first?
Each SATA III drive tops out at 6 Gbps, while the host link runs at 10 Gbps, so the SATA interface limits sustained throughput per drive.
How much heat and noise should I expect when all four bays are running continuously?
The unit draws up to 78 W from its 12 V DC supply and relies on dual 40 mm fans for cooling, so expect moderate airflow noise and warm exhaust under full load.
