Silver aluminium fanless HTPC case with 10mm front panel and side USB ports

Streacom

Streacom FC5S ALPHA OPT Fanless PC Case Silver

SKU CH-FH0Y-K5F4R

A fanless aluminium chassis that fits full ATX boards, holds up to three 3.5" drives and six 2.5" drives, and offers USB 3.0 ports on both sides

  • TypeATX Media Center / HTPC Case
  • ColorSilver
  • Case MaterialAluminum
  • Power SupplyNo
  • Motherboard CompatibilityMini-ITX, Micro-ATX and Full ATX
  • Internal 3.5" Drive BaysMaximum 3 x 3.5? , Depending on Configuration
  • Fanless operation from premium 6063 aluminium construction
  • 10 mm thick CNC front panel keeps profile at 55 mm
  • Supports Mini-ITX, Micro-ATX and full ATX boards
  • Up to six 2.5 inch and three 3.5 inch drives
  • Dual USB 3.0 ports on left and right sides via 19/20 pin header

Fanless aluminium chassis

The Streacom FC5S ALPHA OPT is a fanless PC case built from premium 6063 aluminium with a 10 mm thick CNC front panel. It supports Mini-ITX, Micro-ATX and full ATX motherboards inside a 55 mm profile designed for silent media-centre builds.

Passive cooling limits

Heat is dissipated through the case structure itself, so thermal headroom depends entirely on the components installed and the ambient environment. A flexible riser is required for the single full-height expansion slot, and the design includes no front audio, FireWire, eSATA or card-reader ports.

Storage capacity and headroom

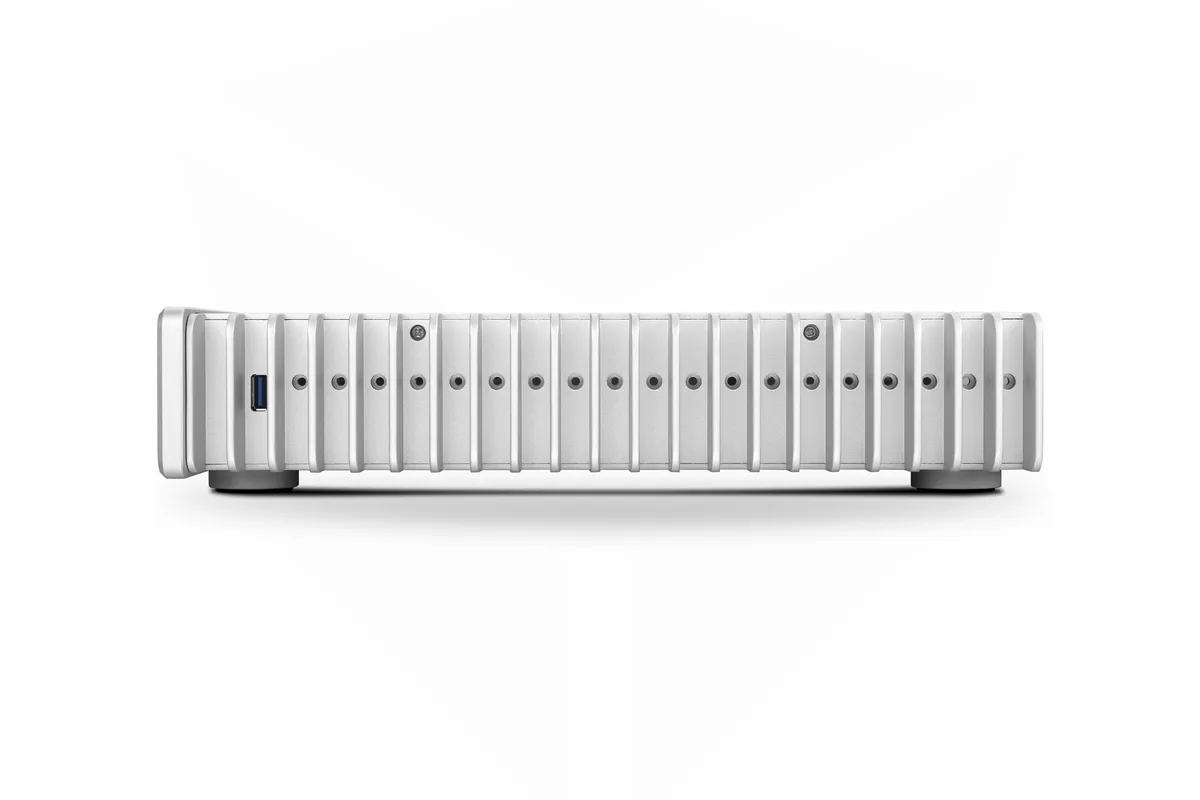

The chassis accommodates up to three 3.5" drives and six 2.5" drives depending on the internal layout chosen. Two USB 3.0 ports on the left and right sides use 19/20-pin headers for front-panel connectivity.

Highlights

  • Fanless operation from premium 6063 aluminium construction
  • 10 mm thick CNC front panel keeps profile at 55 mm
  • Supports Mini-ITX, Micro-ATX and full ATX boards
  • Up to six 2.5 inch and three 3.5 inch drives
  • Dual USB 3.0 ports on left and right sides via 19/20 pin header

Specifications

BrandStreacom
SeriesFanless
ModelFC5S ALPHA OPT
TypeATX Media Center / HTPC Case
ColorSilver
Case MaterialAluminum
Power SupplyNo
Motherboard CompatibilityMini-ITX, Micro-ATX and Full ATX
Internal 3.5" Drive BaysMaximum 3 x 3.5? , Depending on Configuration
Internal 2.5" Drive BaysMaximum 6 x 2.5?, Depending on Configuration
Expansion Slots1 x Full Height Expansion Card (Flexible Riser Required)
Front USB Ports2 x USB3.0, Left & Right Side, 19/20 PIN
Front FireWire PortsNo
Front Audio PortsNo
Front eSATA PortsNo
Front Card ReaderNo
Remote Control ModuleNo
Front DisplayNo
Side Air ductNo
FeaturesPremium Grade (6063) All Aluminium, 10mm Thick Front Panel, Fanless Chassis
Height23.5
Width171.17
Depth127.61
Weight9.26

Questions about this item

Should I pick the Mini-ITX, Micro-ATX or full ATX motherboard layout for my build?

The chassis accepts all three form factors, so choose the board that matches your CPU and feature needs; the case will fit whichever you select.

What does the 55 mm profile mean once the case is in my living-room rack?

At 55 mm thick the unit slides into tight AV cabinets and sits flush with other hi-fi components without protruding.

What do the 19/20-pin front USB 3.0 headers cap in real use?

They deliver native USB 3.0 speeds to the two side-mounted ports, limited only by the motherboard header and connected device.
