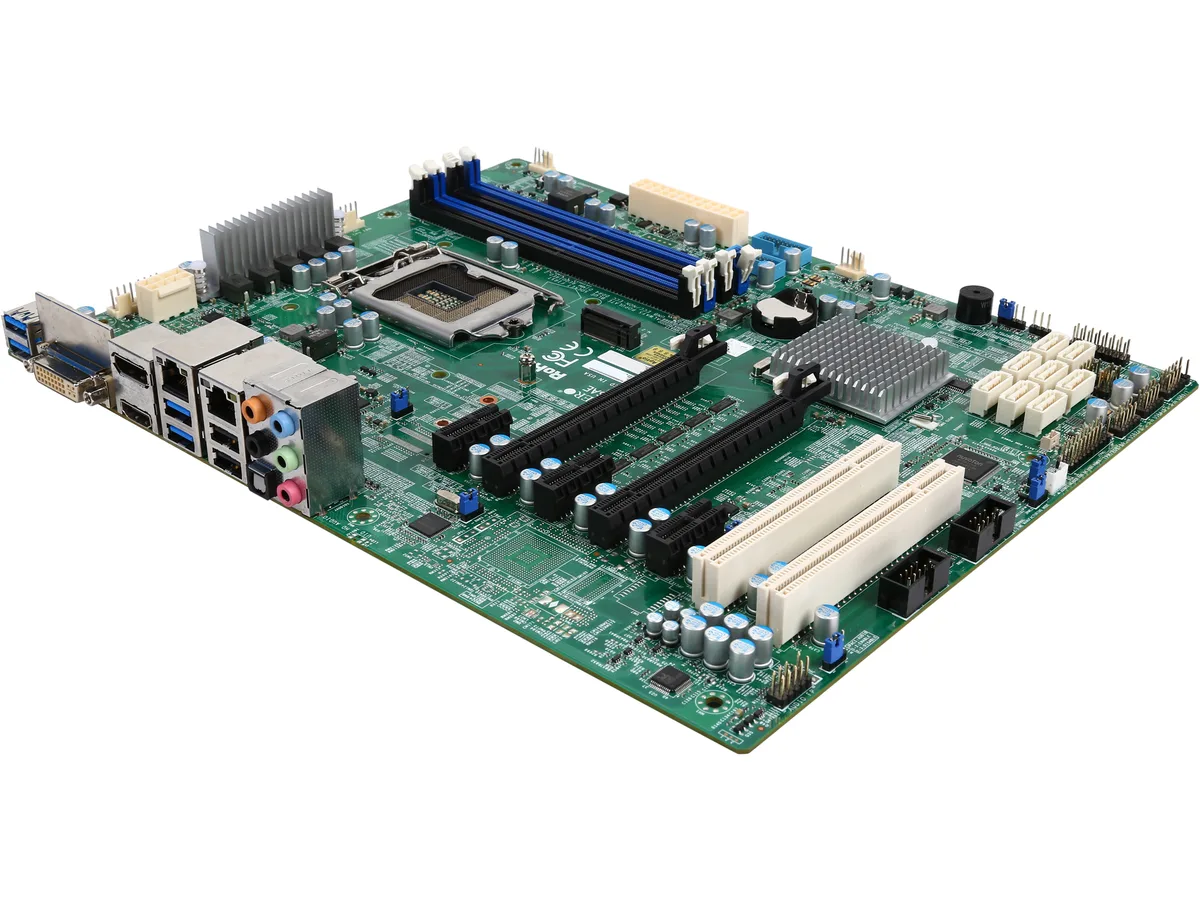

Green ATX server motherboard with four DDR4 slots and silver I/O shield

Supermicro

Supermicro MBD-X11SAE-O ATX server motherboard LGA 1151 64GB DDR4

SKU CH-ND6T-NS2ZX MPN MBD-X11SAE-O

ATX server motherboard with LGA 1151 socket, Intel C236 chipset, four DDR4 slots supporting 64 GB ECC memory, eight SATA 6.0 Gb/s ports with RAID, dual Gigabit LAN and multiple PCIe expansion slots

  • CPU Socket TypeLGA 1151
  • CPU TypeIntel Xeon processor E3-1200 v5, Intel 6th Gen Core i7 / i5
  • North BridgeIntel C236
  • Number of DDR4 Slots4 x 288-pin
  • DDR4 Standard2133 / 1866 / 1600 MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM
  • Maximum Memory Supported64GB
  • Supports Intel Xeon E3-1200 v5 and 6th Gen Core processors via LGA 1151 socket
  • Up to 64 GB DDR4 ECC memory across four 288-pin slots for data integrity
  • Dual Intel Gigabit LAN controllers provide redundant network connectivity
  • Eight SATA 6.0 Gb/s ports with RAID 0, 1, 5, 10 for flexible storage arrays
  • ATX form factor with multiple PCIe 3.0 x16, x1 and legacy PCI expansion slots

Single-socket ATX server board

The Supermicro MBD-X11SAE-O is an ATX motherboard for single-socket Intel Xeon E3-1200 v5 or 6th and 7th Generation Core i7, i5, i3, Pentium and Celeron processors up to 95 W TDP. It uses the Intel C236 chipset and provides four 288-pin DDR4 UDIMM slots supporting ECC and non-ECC memory up to 64 GB. The board fits standard ATX chassis measuring 12.0 by 9.6 inches.

Builders needing up to 64 GB DDR4 ECC

This board suits builders who need up to 64 GB of DDR4 ECC or non-ECC UDIMM memory at 2133, 1866 or 1600 MHz and dual Gigabit LAN with Intel i210-AT and i219LM controllers. It also provides eight SATA 6.0 Gbps ports with RAID 0, 1, 5, 10 and one PCIe M.2 slot for 2242, 2260 or 2280 drives. Buyers who require dual-socket configurations or processor TDPs above 95 W should look at other platforms.

LGA 1151 socket with 95 W limit

The LGA 1151 socket accepts only the Intel Xeon E3-1200 v5 series and 6th and 7th Generation Core, Pentium and Celeron processors with a maximum TDP of 95 W. Selecting a processor within this limit is the single specification that determines whether this motherboard will operate correctly.

Highlights

  • Supports Intel Xeon E3-1200 v5 and 6th Gen Core processors via LGA 1151 socket
  • Up to 64 GB DDR4 ECC memory across four 288-pin slots for data integrity
  • Dual Intel Gigabit LAN controllers provide redundant network connectivity
  • Eight SATA 6.0 Gb/s ports with RAID 0, 1, 5, 10 for flexible storage arrays
  • ATX form factor with multiple PCIe 3.0 x16, x1 and legacy PCI expansion slots

Specifications

BrandSUPERMICRO
ModelMBD-X11SAE-O
CPU Socket TypeLGA 1151
CPU TypeIntel Xeon processor E3-1200 v5, Intel 6th Gen Core i7 / i5 / i3 series processors
CPU TDP up to 95W
North BridgeIntel C236
Number of DDR4 Slots4 x 288-pin
DDR4 Standard2133 / 1866 / 1600 MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
Maximum Memory Supported64GB
Other Slots2x PCI-E 3.0 x16 slots (run at 16 / NA or 8 / 8)
3x PCI-E 3.0 x1 slots
2x 5V PCI 32bit slots
SATA8 x SATA 6.0Gb/s
SATA RAID0/1/5/10
Audio Channels7.1 Channels

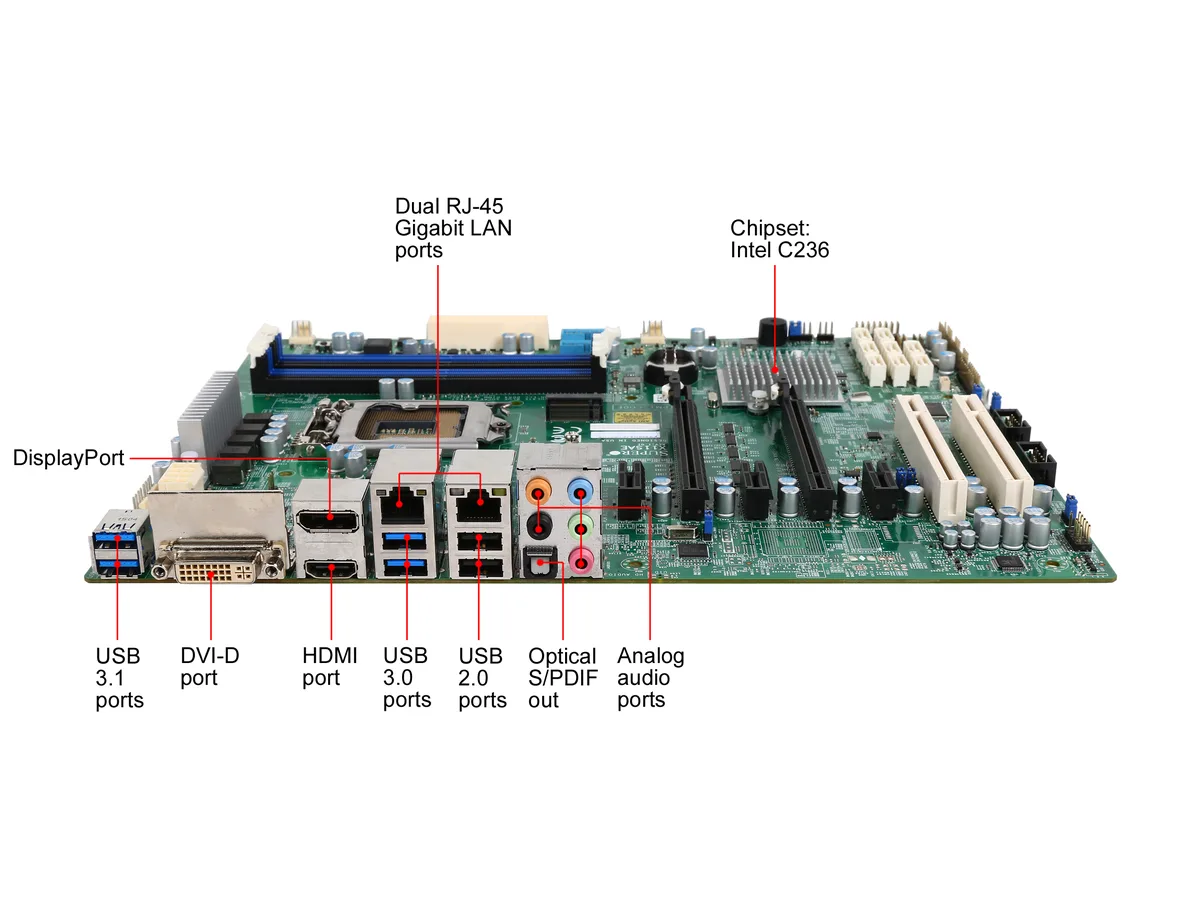

LAN ChipsetIntel I210-AT + Intel PHY i219LM Ethernet Controllers
LAN Speed10/100/1000Mbps
USB 1.1/2.02 x USB 2.0
USB 3.02 x USB 3.0

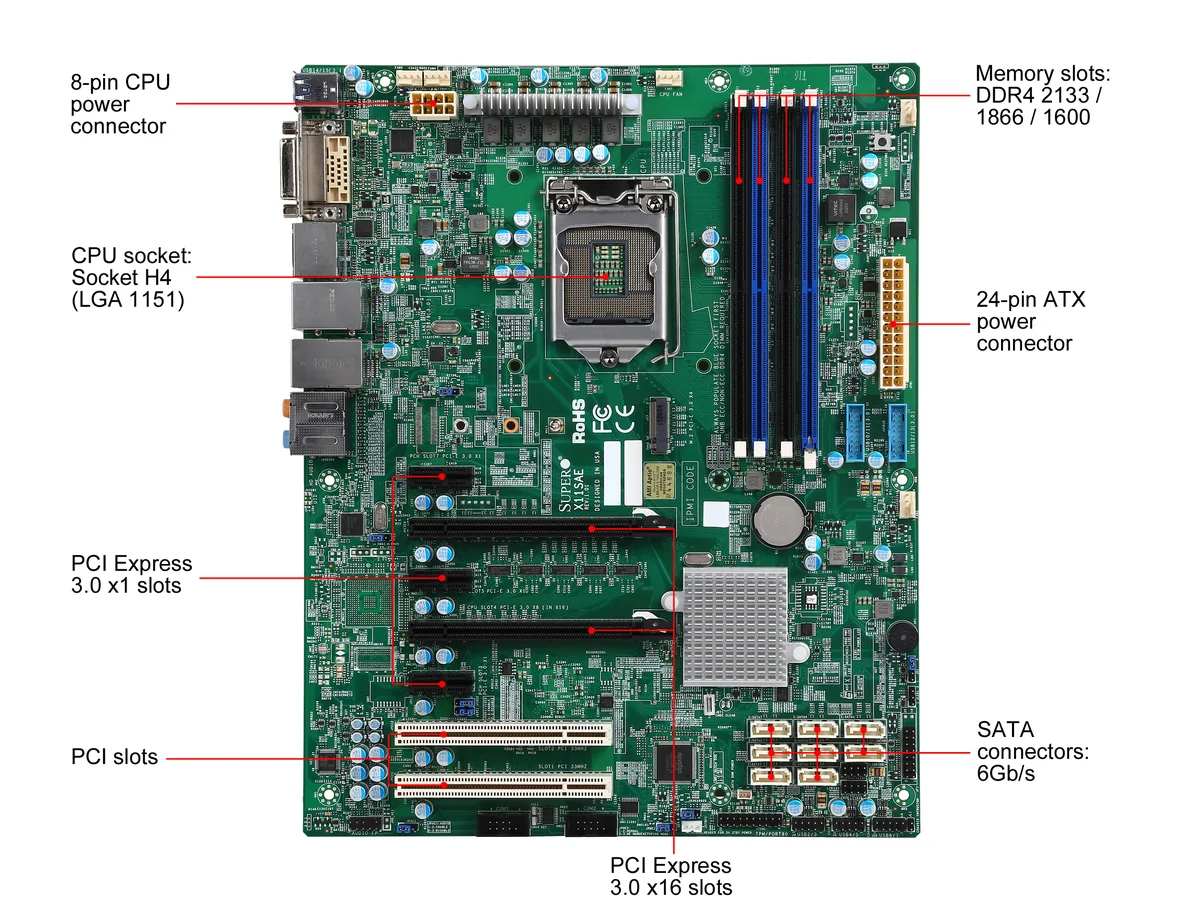

FeaturesSingle socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v5, Intel 6th Gen. Core i7 / i5 / i3 series
Intel C236 chipset
Up to 64GB Unbuffered ECC / non-ECC, UDIMM DDR4 2133 MHz; 4 x DIMM slots
2 PCI-E 3.0 x16 (run at 16 / NA or 8 / 8), 3 PCI-E 3.0 x1 (in x4), and 2 5V PCI 32-bit slots
Single GbE LAN with Intel i210-AT, Single GbE LAN with Intel i219LM
8 x SATA3 (6 Gbps) via C236; RAID 0, 1, 5, 10 + 1 PCIe M.2 (PCIe x4, 2242 / 2260 / 2280)
I/O: 2 x COM, TPM 1.2 header
2 x SuperDOM with built-in power
6 x USB 3.0 (2 rear + 4 via header), 8 x USB 2.0 (2 rear + 6 via headers), 2
Form FactorATX

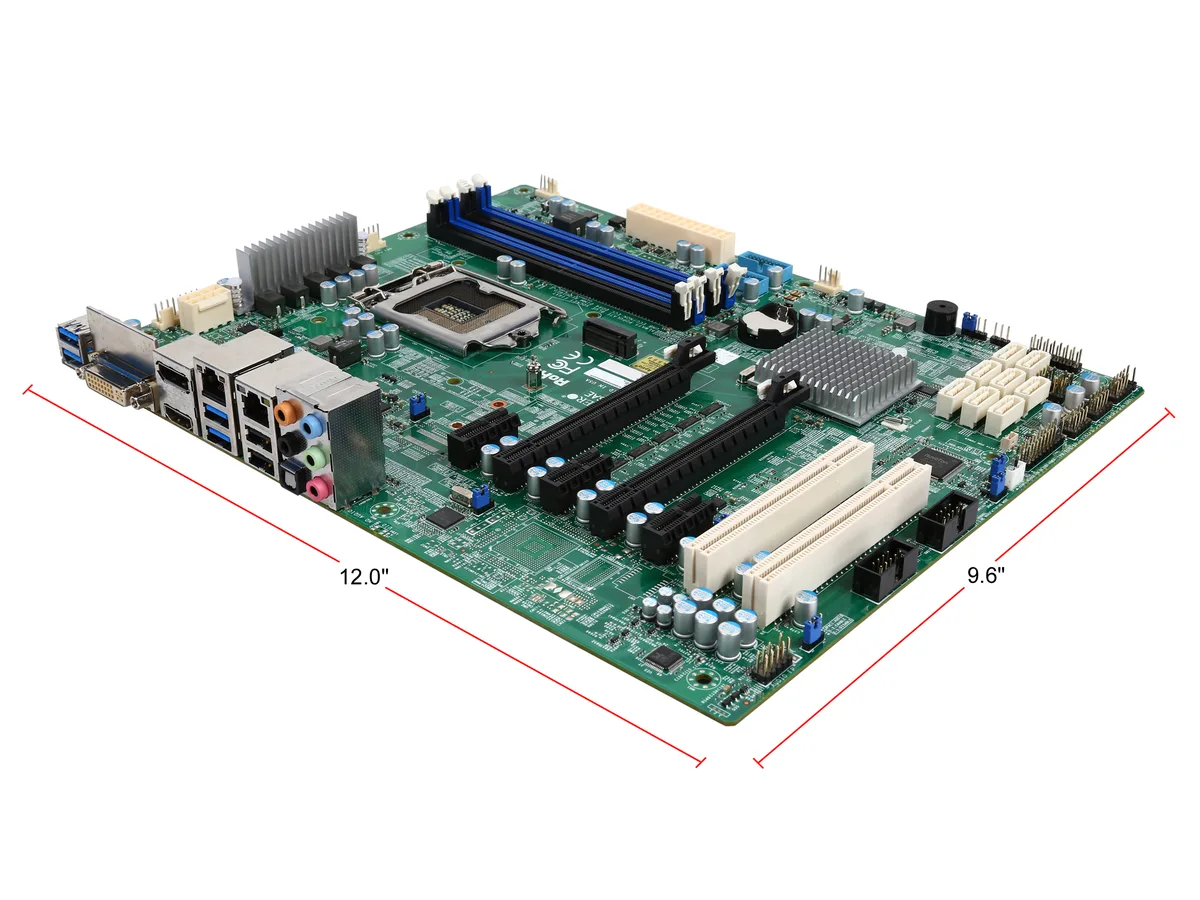

Dimensions (W x L)12.0" x 9.6"
Shipping weight1.13 kg
Package size335 × 262 × 71 mm

Questions about this item

What size case and mounting holes does this 12.0" x 9.6" ATX board need?

It fits any standard ATX chassis with matching standoffs; the board measures 30.5 cm by 24.4 cm and uses the usual ATX hole pattern.

Which CPU power connector must be seated for the board to post with a 95W TDP processor?

Plug the 8-pin EPS connector near the socket; the 24-pin ATX alone is not enough for Xeon or Core i7 parts.

When should the four 288-pin DDR4 slots be repopulated with fresh ECC UDIMMs?

Replace modules only if memory diagnostics report correctable errors or capacity drops below the 64 GB limit.
