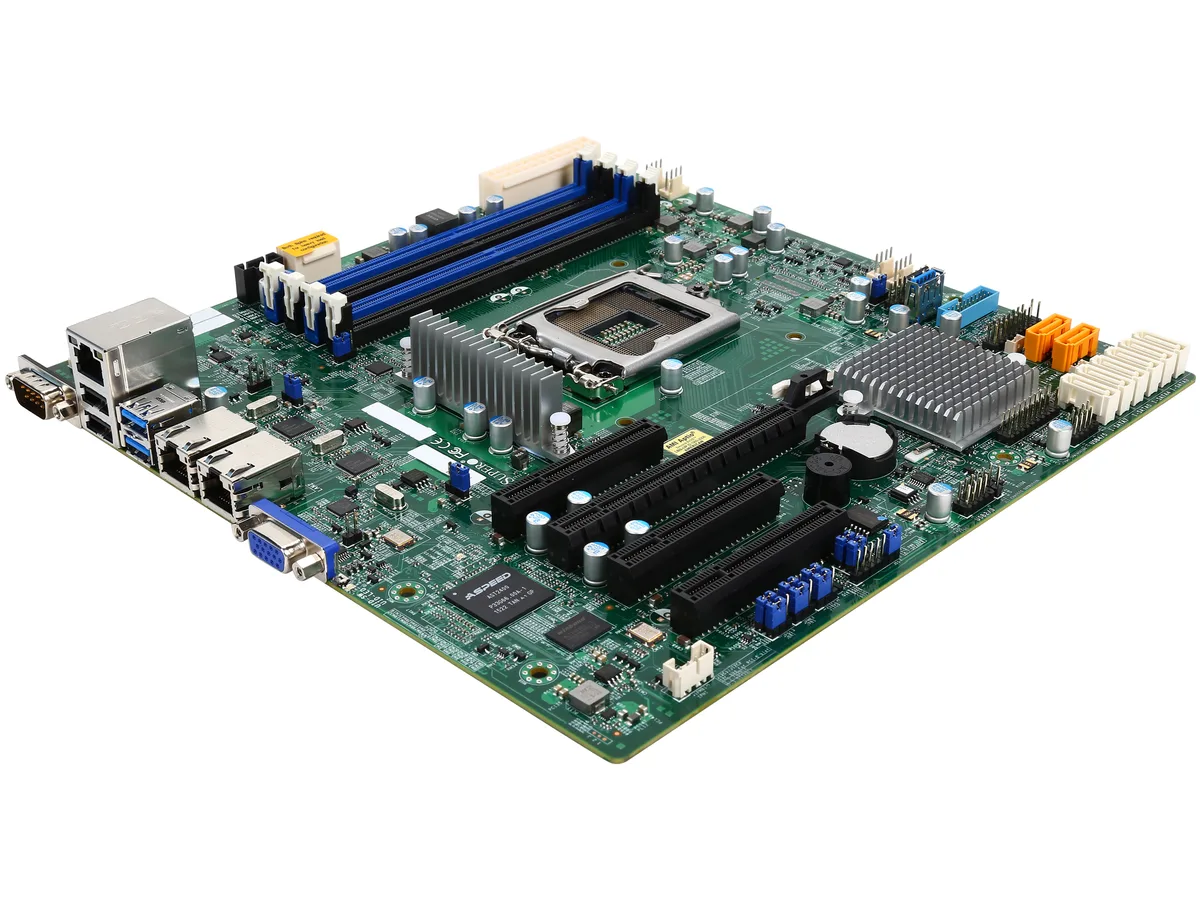

Green Micro ATX server motherboard with silver CPU socket and four black DDR4 slots

Supermicro

Supermicro MBD-X11SSM-F-O Micro ATX server motherboard LGA 1151 64GB DDR4

SKU CH-6RDS-KKJ91 MPN MBD-X11SSM-F-O

Micro ATX server motherboard with LGA 1151 socket, four DDR4 ECC slots up to 64 GB, eight SATA 6.0 Gb/s ports with RAID, dual 1 GbE LAN and IPMI remote management

  • CPU Socket TypeLGA 1151
  • CPU TypeSupports: Intel 7th/6th Generation Core i3 series Intel Xeon
  • North BridgeIntel C236
  • Number of DDR4 Slots4 x 288-pin
  • DDR4 StandardDDR4 2400 / 2133 / 1866 / 1600 MHz ECC
  • Maximum Memory Supported64GB
  • Supports up to 64GB DDR4 ECC memory for reliable data integrity
  • Eight SATA 6.0Gb/s ports with RAID 0, 1, 5, 10 for flexible storage arrays
  • Dual Intel I210-AT Gigabit LAN ports provide redundant network connectivity
  • Integrated Aspeed AST2400 BMC enables remote IPMI 2.0 and KVM management
  • Four PCI Express 3.0 slots (x8, x8, x4, x4) allow expansion card flexibility

Micro ATX Server Board for ECC Workloads

The Supermicro MBD-X11SSM-F-O is a Micro ATX motherboard built around the Intel C236 chipset and LGA 1151 socket. It accepts Intel Xeon E3-1200 v5 and v6 processors, 6th and 7th generation Core i3, Celeron and Pentium CPUs. Four 288-pin DDR4 slots support up to 64GB of unbuffered ECC UDIMM memory at speeds up to 2400 MHz.

Suited for Storage Servers.

This board fits builders who need eight SATA 6.0Gb/s ports with RAID 0, 1, 5 and 10 for local storage arrays. Dual Intel I210-AT controllers provide two 1Gbps Ethernet links and the Aspeed AST2400 BMC enables IPMI 2.0 remote management. Builders requiring full-length PCIe x16 bandwidth or more than three expansion slots should look elsewhere.

LGA 1151 Socket Decides CPU Choice

The single LGA 1151 socket restricts the platform to the processor families listed in the specifications. Selecting a compatible Xeon E3-1200 v5 or v6, Core i3, Celeron or Pentium CPU is the first step before adding ECC DDR4 modules and SATA drives.

Highlights

  • Supports up to 64GB DDR4 ECC memory for reliable data integrity
  • Eight SATA 6.0Gb/s ports with RAID 0, 1, 5, 10 for flexible storage arrays
  • Dual Intel I210-AT Gigabit LAN ports provide redundant network connectivity
  • Integrated Aspeed AST2400 BMC enables remote IPMI 2.0 and KVM management
  • Four PCI Express 3.0 slots (x8, x8, x4, x4) allow expansion card flexibility

Specifications

BrandSUPERMICRO
ModelMBD-X11SSM-F-O
CPU Socket TypeLGA 1151
CPU TypeSupports:
Intel 7th/6th Generation Core i3 series
Intel Xeon processor E3-1200 v6/v5
Intel Celeron
Intel Pentium
North BridgeIntel C236
Number of DDR4 Slots4 x 288-pin
DDR4 StandardDDR4 2400 / 2133 / 1866 / 1600 MHz ECC
Maximum Memory Supported64GB
ECC SupportedYes
PCI Express x81 x PCI-E 3.0 x8 (in x16 slot)
1 x PCI-E 3.0 x8
PCI Express x42 x PCI-E 3.0 x4 (in x8 slot)
SATA8 x SATA 6.0Gb/s
SATA RAID0/1/5/10
Onboard Video ChipsetAspeed AST2400 BMC
LAN ChipsetIntel I210-AT
Second LAN ChipsetIntel I210-AT
Max LAN Speed2 x 1Gbps
COM1
Video Ports1 x VGA
USB 1.1/2.02 x USB 2.0
USB 3.02 x USB 3.0
FeaturesSingle socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v6 / v5, Intel 7th / 6th Gen. Core i3 series, Intel Celeron and Intel Pentium
Intel C236 chipset
Up to 64GB Unbuffered ECC UDIMM DDR4 2400 MHz; 4 x DIMM slots
Expansion slots: 1 x PCI-E 3.0 x8 (in x16), 1 x PCI-E 3.0 x8, 2 x PCI-E 3.0 x4 (in x8)
Dual GbE LAN with Intel i210-AT
8 x SATA3 (6 Gbps) via C236; RAID 0, 1, 5, 10
I/O: 1 x VGA, 2 x COM, 2 x SuperDOM, and TPM header
5 x USB 3.0 (2 x rear, 2 x via header (s), 1 x Type A), 6 x USB 2.0 (2 x rear, 4 x via header (s))
Integrated IPMI 2.0 and KVM with Dedicated LAN
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Shipping weight0.89 kg
Package size282 × 272 × 58 mm

Questions about this item

How can I verify the IPMI 2.0 and KVM are functioning after assembly?

Connect the dedicated LAN port to your network, then open a browser to the IPMI address shown on the POST screen; the Aspeed AST2400 BMC will present a login prompt and a virtual console window if the firmware is running correctly.

What ships with the board and what must I source separately?

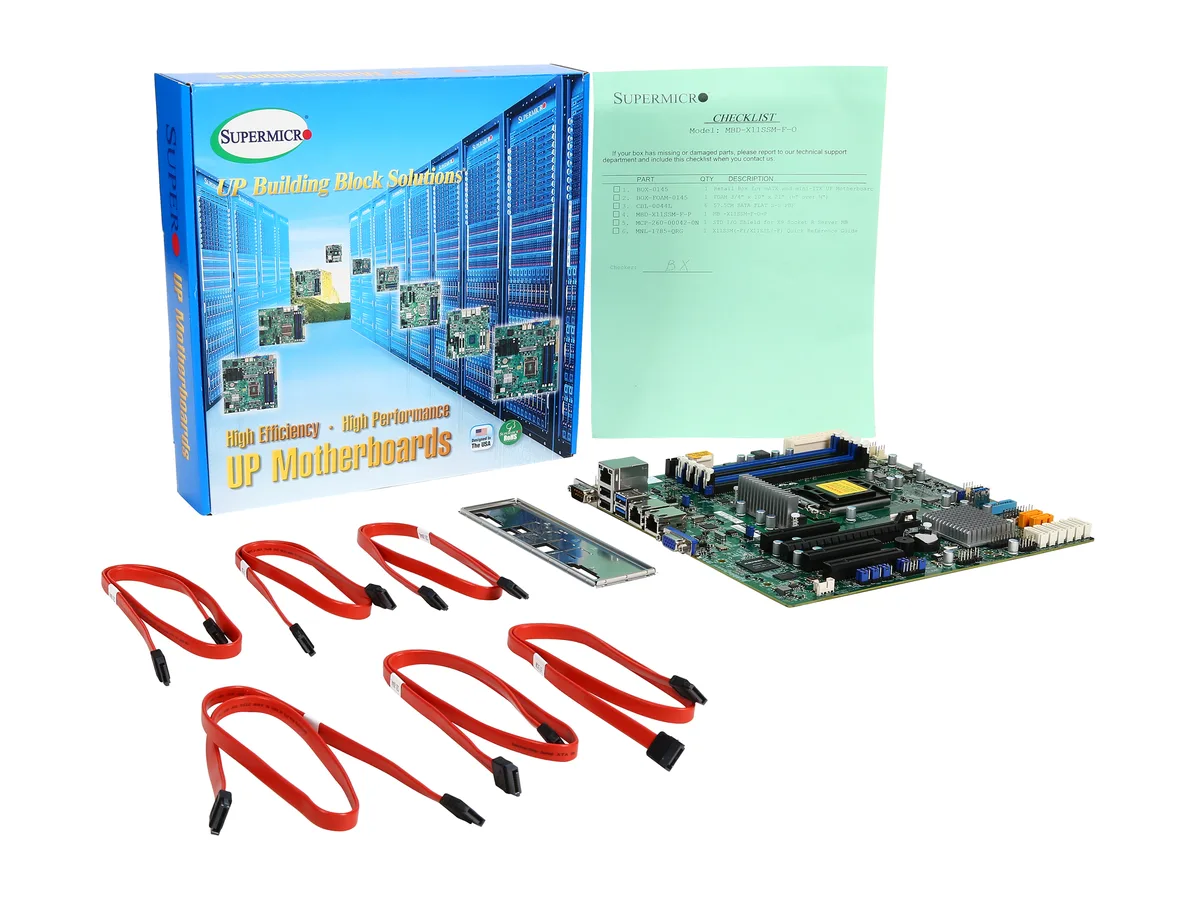

The motherboard, I/O shield and documentation are included; you must supply an LGA 1151 Xeon E3-1200 v5/v6, Core i3, Celeron or Pentium CPU, up to four DDR4 288-pin ECC UDIMMs, storage drives and an ATX power supply.

Which memory speed should I select for the four DDR4 slots?

The board supports DDR4 2400, 2133, 1866 and 1600 MHz ECC UDIMM; choose 2400 MHz modules for the highest rated throughput, or any lower speed if cost or availability dictates.
