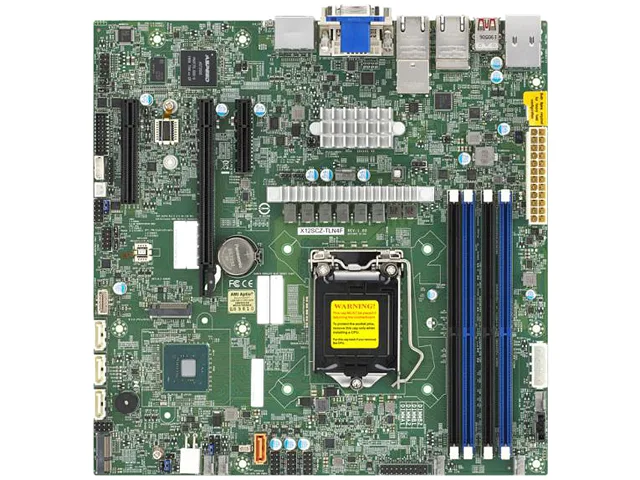

Green Micro ATX server motherboard with four DDR4 slots, dual 10GbE RJ45 ports, PCIe x16 and x4 slots, M.2 sockets and rear I/O panel

Supermicro

Supermicro MBD-X12SCZ-TLN4F-O server motherboard LGA 1200 DDR4 2933 10Gbps LAN

SKU CH-FRSB-83NDE MPN MBD-X12SCZ-TLN4F-O

Micro-ATX server board with LGA 1200 socket, four DDR4 slots up to 128 GB, dual 10 GbE and two GbE ports, plus M.2 and PCIe 3.0 expansion

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Generation Intel Core i9/Core i7/Core i5/Core
  • North BridgeIntel W480E
  • Number of DDR4 Slots4 x 288-pin
  • DDR4 StandardDDR4 2933
  • Maximum Memory SupportedUp to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4
  • Supports 10th Gen Intel Core and Xeon W-1200 CPUs via LGA 1200 socket
  • Up to 128GB DDR4-2933 ECC or non-ECC memory across four 288-pin slots
  • Dual 10Gbps and two 1Gbps LAN ports from Intel X550, I210-AT and I219LM controllers
  • Four SATA 6.0Gb/s ports with RAID 0/1/5/10 plus M.2 M-Key and E-Key slots for flexible storage
  • Aspeed AST2500 BMC graphics with VGA, dual DisplayPort and DVI-D video outputs

Micro ATX server board with 10 GbE

The Supermicro MBD-X12SCZ-TLN4F-O is a Micro ATX server motherboard built around the Intel W480E chipset and LGA 1200 socket. It supports 10th Generation Intel Core and Xeon W-1200 processors up to 125 W TDP. Four 288-pin DDR4 slots accept up to 128 GB of unbuffered ECC or non-ECC memory at 2933 MHz. Dual 10 Gbps and dual 1 Gbps LAN ports provide high-throughput networking for storage or virtualisation hosts.

Suits compact ECC builds.

This board fits builders who need ECC memory and 10 GbE in a Micro ATX form factor for file servers, hypervisors or workstations. The single PCIe 3.0 x16 slot plus two x4 slots limit multi-GPU or multi-NIC expansion. Buyers who need more than three PCIe devices or a larger ATX layout should look at a different platform.

One PCIe 3.0 x16 slot plus two x4 slots

The expansion layout centres on one full-length PCIe 3.0 x16 slot, one x4 slot wired through an x8 connector and a second x4 slot. This fixed lane allocation decides whether your add-in cards will fit and run at required bandwidth. Verify your GPU, HBA or NIC count against these three slots before purchasing.

Highlights

  • Supports 10th Gen Intel Core and Xeon W-1200 CPUs via LGA 1200 socket
  • Up to 128GB DDR4-2933 ECC or non-ECC memory across four 288-pin slots
  • Dual 10Gbps and two 1Gbps LAN ports from Intel X550, I210-AT and I219LM controllers
  • Four SATA 6.0Gb/s ports with RAID 0/1/5/10 plus M.2 M-Key and E-Key slots for flexible storage
  • Aspeed AST2500 BMC graphics with VGA, dual DisplayPort and DVI-D video outputs

Specifications

BrandSUPERMICRO
ModelMBD-X12SCZ-TLN4F-O
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Generation Intel Core i9/Core i7/Core i5/Core i3 Processor, Intel Xeon W-1200 Processors
North BridgeIntel W480E
Number of DDR4 Slots4 x 288-pin
DDR4 StandardDDR4 2933
Maximum Memory SupportedUp to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
PCI Express 3.0 x161
PCI Express x41 x PCI Express 3.0 x4 (in x8 slot), 1 x PCI Express 3.0 x4
SATA4 x SATA 6.0Gb/s
SATA RAID0/1/5/10
M.21 M.2 M-Key SATA/PCI-E 3.0 x4, 2280/22110
1 M.2 E-Key CNVi/PCI-E 3.0 x1, 2230
Onboard Video ChipsetAspeed AST2500
LAN ChipsetIntel X550
LAN Speed10Gbps
Second LAN ChipsetIntel I210-AT
Second LAN Speed10/100/1000Mbps
Third LAN ChipsetIntel PHY I219LM
Third LAN Speed10/100/1000Mbps
Max LAN Speed10Gbps
Back I/O Ports2 x RJ45 Gigabit Ethernet LAN ports
6 x USB 2.0 ports (6 via headers)
6 x USB 3.2 Gen2 ports (4 Rear Type A, 2 via headers)
1 x VGA D-Sub Connector port, 2 x DP++(Dual-Mode DisplayPort) ports, 1 x DVI - D port
1 x COM Port (1 header)
1 x TPM Header & Chip both
Form FactorMicro ATX

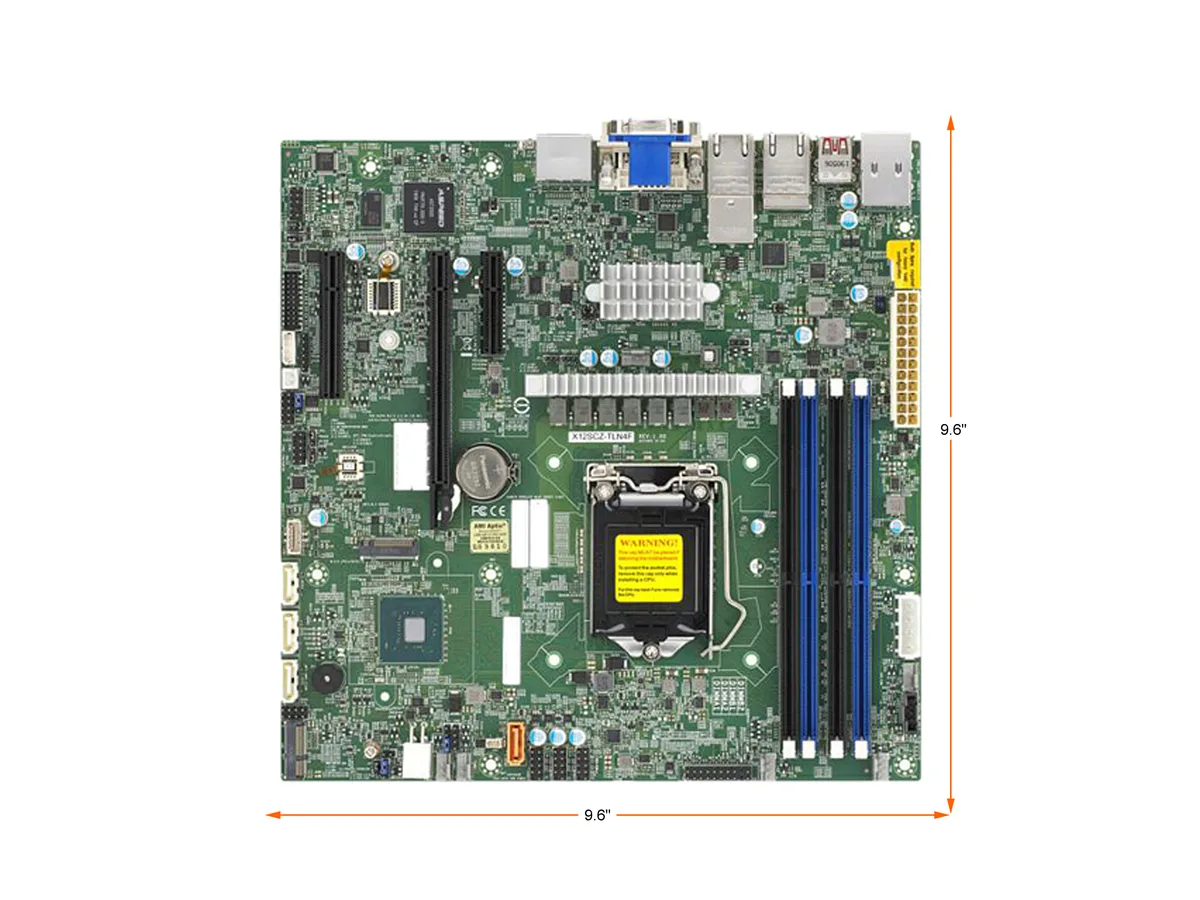

Dimensions (W x L)9.6" x 9.6"
Shipping weight2.27 kg
Package size305 × 305 × 127 mm

Questions about this item

Should I pick the Core i9, Xeon W-1200 or a lower Core model for this LGA 1200 board?

The board supports 10th Gen Core i9, i7, i5, i3 and Xeon W-1200 CPUs up to 125 W TDP, so choose based on core count, ECC need and power budget.

What does the 10 Gbps LAN figure mean once the board is in a real machine?

One Intel X550 port delivers up to 10 Gbps throughput, backed by two additional Gigabit ports from I210-AT and I219LM for management or backup traffic.

How does the PCI-E 3.0 x4 M.2 M-Key slot cap storage speed in practice?

The M.2 M-Key slot runs at PCI-E 3.0 x4 and accepts 2280 or 22110 modules, while a second E-Key slot provides CNVi or PCI-E 3.0 x1 for wireless add-in cards.
