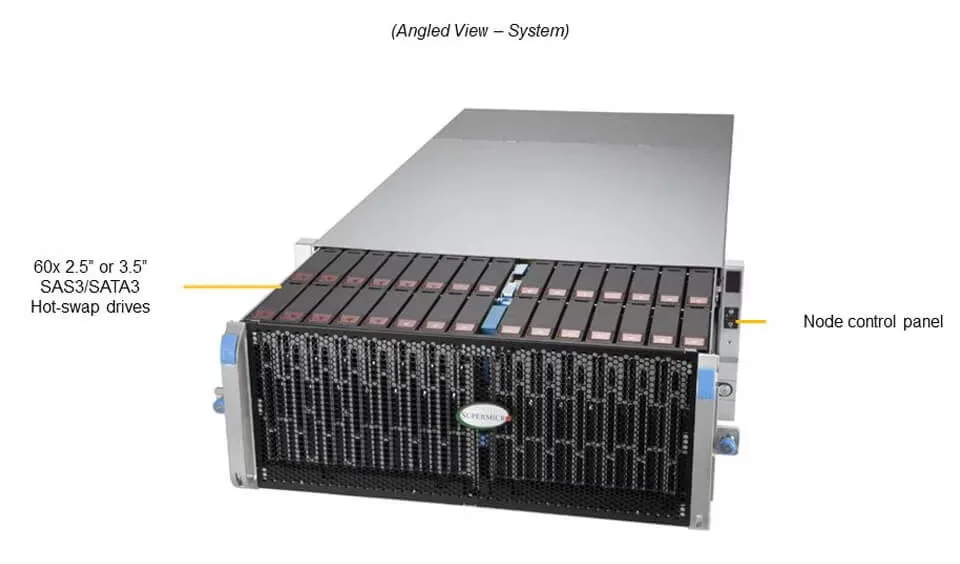

4U rack server chassis with front drive bays and silver front panel

Supermicro

Supermicro SSG-640SP-E1CR60-G1 rack server dual Xeon 4310 256GB 4×20TB 960GB NVMe

SKU CH-ACRC-VPKX7 MPN SSG-640SP-E1CR60-G1

4U rack server with dual 12-core Xeon processors, 256GB DDR4, four 20TB SATA drives and a 960GB NVMe boot drive

  • WorkloadGeneral Purpose Server
  • TypeRack
  • Rack Height4U
  • Hot-swap Fans6 Heavy Duty 8cm Fan(s)
  • CPU TypeIntel Xeon Silver
  • CPU Speed4310 (2.10 GHz)
  • Dual Xeon 4310 processors deliver 24 cores at 2.1 GHz
  • 256 GB DDR4-3200 memory supports heavy workloads
  • 4 × 20 TB SATA drives provide 80 TB raw capacity
  • 960 GB M.2 NVMe SSD accelerates boot and cache
  • Dual 10 GbE RJ45 ports enable high-speed networking

Dual Xeon 4310 storage server

The Supermicro SSG-640SP-E1CR60-G1 is a 4U rack system built for dense capacity workloads. Dual 12-core Intel Xeon Silver 4310 processors at 2.10 GHz provide 24 threads for parallel tasks. The chassis holds 256 GB of DDR4-3200 ECC memory across 16 slots with a 4 TB ceiling. Four 20 TB 3.5-inch SATA drives and a 960 GB M.2 NVMe boot drive ship installed.

Suits archive and backup workloads

This server suits teams that need massive raw capacity in a single 4U frame with hardware RAID via the Broadcom 3916 adapter supporting up to 240 devices. Dual onboard 10GbE RJ45 ports handle high-throughput replication. Buyers who need all-flash performance or GPU compute density should look elsewhere because the front bays target 3.5-inch mechanical drives and the platform lacks accelerator slots.

Straightforward rack integration

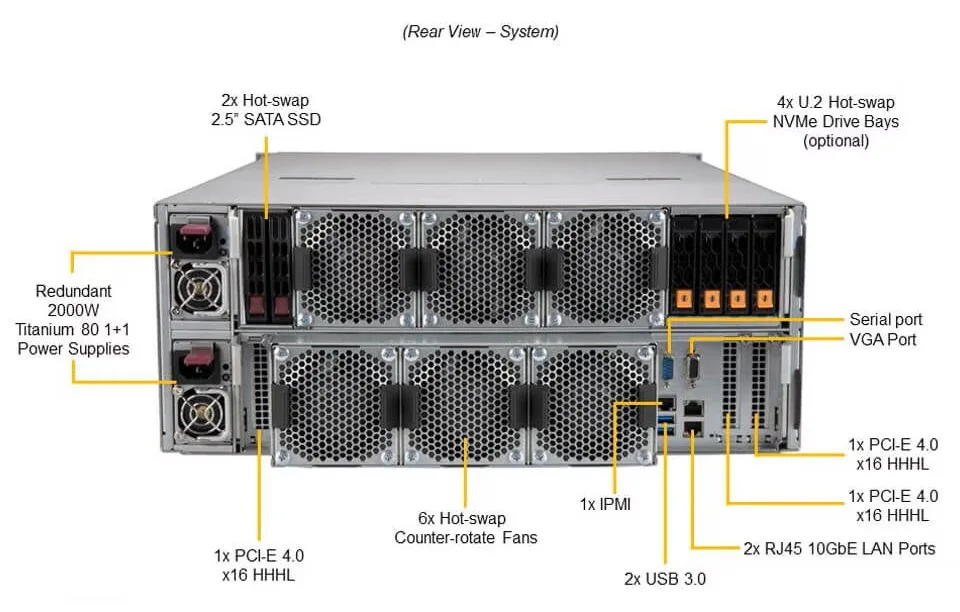

The unit slides into a standard 4U rack space and uses six hot-swap 8 cm fans for cooling redundancy. Dual 2000 W titanium power supplies share the load with hot-plug capability. Installation typically involves rack rails, power cords, and network cables. The most common issue is underestimating weight and airflow requirements for a fully populated 60-bay chassis.

Highlights

  • Dual Xeon 4310 processors deliver 24 cores at 2.1 GHz
  • 256 GB DDR4-3200 memory supports heavy workloads
  • 4 × 20 TB SATA drives provide 80 TB raw capacity
  • 960 GB M.2 NVMe SSD accelerates boot and cache
  • Dual 10 GbE RJ45 ports enable high-speed networking

Specifications

BrandSUPERMICRO
SeriesGold Series
ModelSSG-640SP-E1CR60-G1
WorkloadGeneral Purpose Server
TypeRack
Rack Height4U
Hot-swap Fans6 Heavy Duty 8cm Fan(s)
CPU TypeIntel Xeon Silver
CPU Speed4310 (2.10 GHz)
Number of CPU Cores12-Core Processor
Cache Memory18 MB
# of Processors Installed2
MAX Processors2
Installed Memory Size256GB
Memory TypeDDR4 3200
Max Memory Capacity4TB
Memory FeaturesMax Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Number of Memory Slots16
Hard Drive (Installed)4 x 20TB 3.5" SATA 7200RPM Hard Drive
Storage Controller1 x 16 Internal SAS3 Ports 12Gb/s PCIe 4.0 Internal RAID Adapter (Up to 240 Devices)
SSD (Installed)1 x 960GB M.2 NVMe (80mm) Solid State Drive
Ethernet Controller1 x On Board: 2 10GbE RJ45 LAN Ports
Expansion Bays2 rear hot-swap 2.5" SATA drive bays
4 rear hot-swap 2.5" NVMe* drive bays

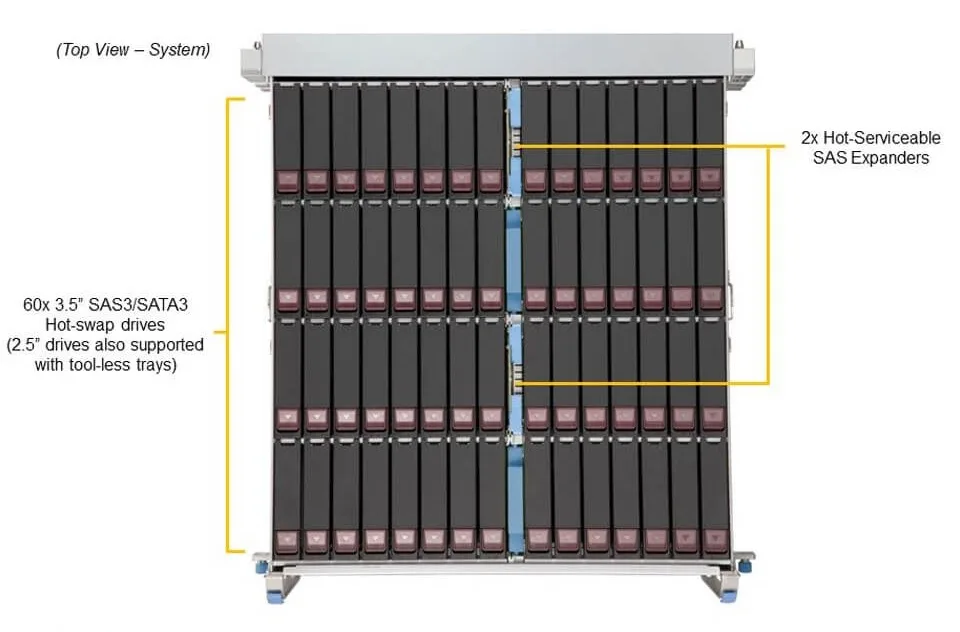

60 top-loading hot-swap 3.5"/2.5" SAS/SATA drive bays

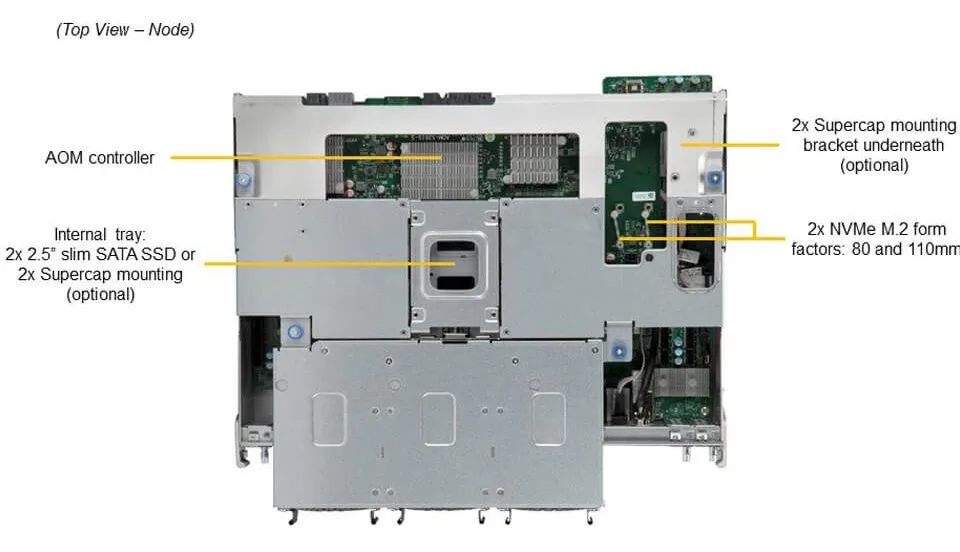

2 M.2 NVMe slots (M-key)
Power Characteristics2 x 2000W Titanium Level
TemperatureOperating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
HumidityOperating Relative Humidity: 8% to 90% (Non-Condensing)
Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
Dimensions6.96" x 17.6" x 32"
Weight107 lbs.
Shipping weight77.11 kg
Package size1321 × 737 × 381 mm

Questions about this item

What network infrastructure is needed to use the onboard dual 10GbE RJ45 LAN ports?

A 10GbE-capable switch and Cat6a or better cabling are required to run the two onboard RJ45 ports at their rated speed.

Can the 16 internal SAS3 ports on the Broadcom 3916 RAID adapter also attach existing SATA drives?

Yes, the 12Gb/s SAS3 ports are backward compatible with 6Gb/s and 3Gb/s SATA drives, so older 3.5" or 2.5" SATA disks can be connected directly.

How can I verify that the 960GB M.2 NVMe boot drive is recognised after installation?

Enter the system BIOS or UEFI setup; the 80mm M.2 NVMe device should appear in the storage device list with its 960GB capacity shown.
