Supermicro
Supermicro SSG-640SP-E1CR90-G1 4U rack server dual Xeon 4310 256GB 4×20TB 90-bay
A 4U rack server with dual 12-core Xeon 4310 CPUs, 256GB DDR4, four 20TB SATA drives and 90 hot-swap bays
- WorkloadGeneral Purpose Server
- TypeRack
- Rack Height4U
- Hot-swap Fans6 Heavy Duty 8cm Fan(s)
- CPU TypeIntel Xeon Silver
- CPU Speed4310 (2.10 GHz)
- Dual Xeon 4310 12-core CPUs deliver high throughput
- 256 GB DDR4-3200 memory scales to 4 TB
- 4 × 20 TB SATA drives provide 80 TB raw capacity
- 90 hot-swap 3.5" bays enable massive storage expansion
- Dual 10GbE RJ45 ports support fast network connectivity
Dual Xeon 4310 storage server

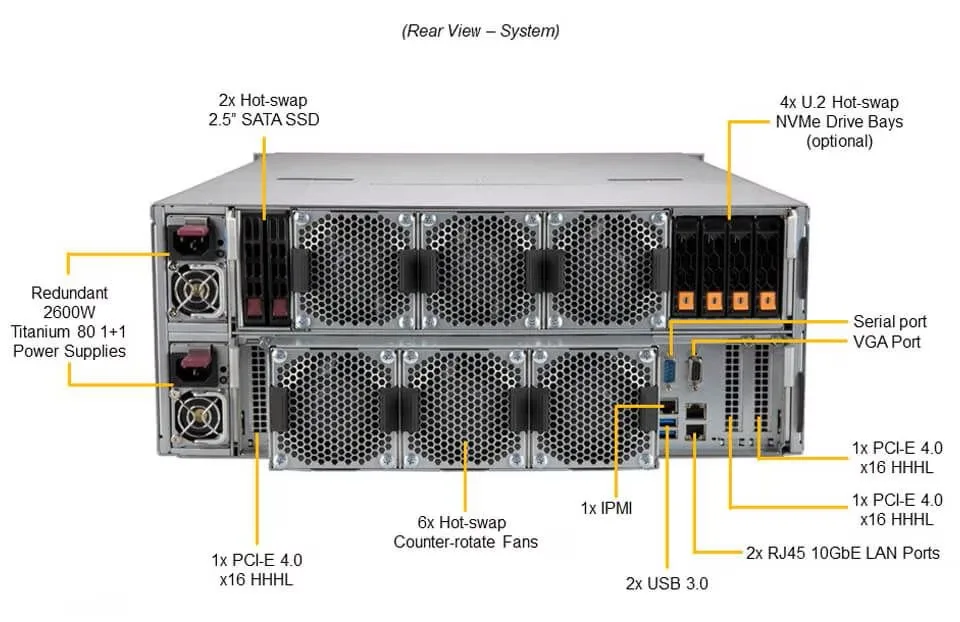

This 4U rack system ships with two Intel Xeon Silver 4310 processors, each providing 12 cores at 2.10 GHz, and 256 GB of DDR4-3200 ECC memory across 16 slots. It targets organisations that need a dense, general-purpose platform for virtualisation, database or backup workloads. The chassis includes six hot-swap 8 cm fans and dual 2600 W titanium power supplies for redundant cooling and power.

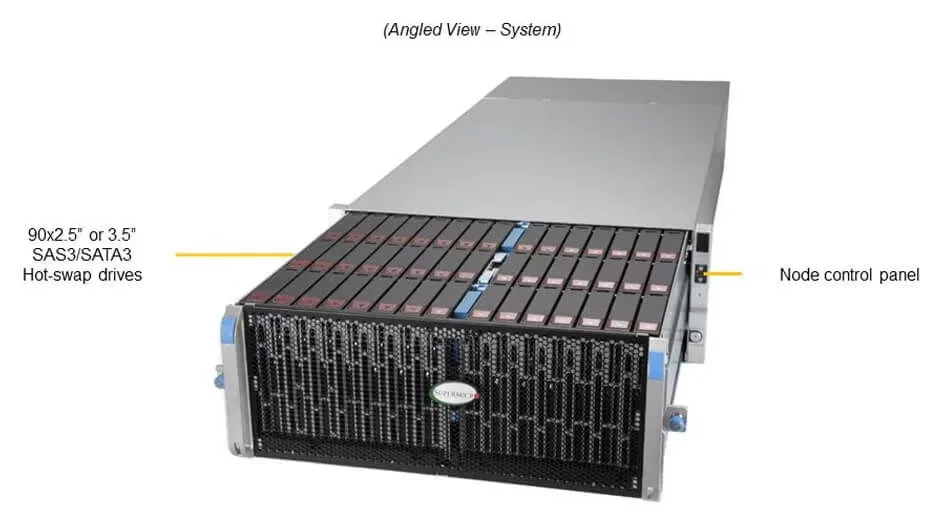

90-bay top-loading capacity

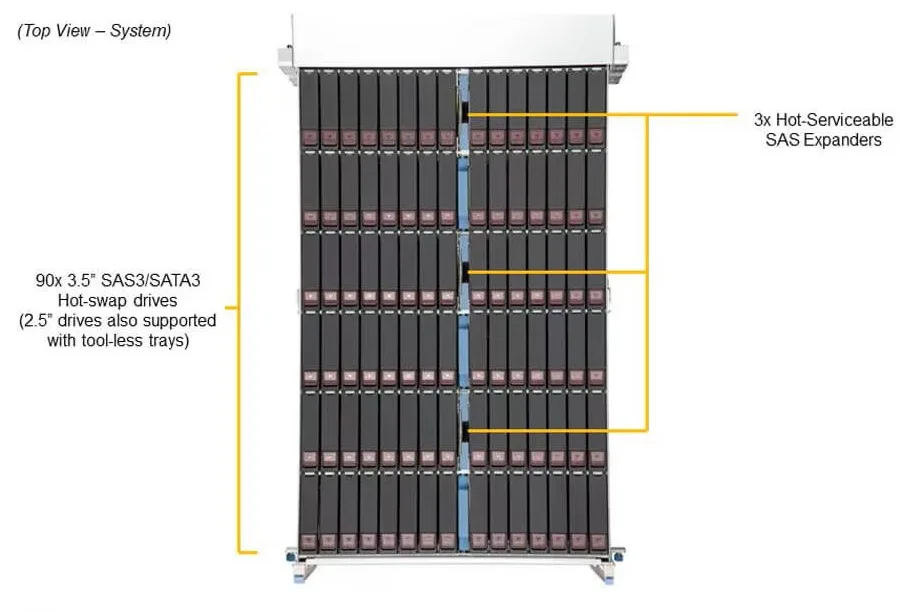

The defining specification is the 90 hot-swap 3.5" or 2.5" SAS/SATA drive bays accessed from the top of the chassis, plus four rear 2.5" NVMe bays and two rear 2.5" SATA bays. A Broadcom 3916 RAID adapter provides 16 internal SAS3 ports at 12 Gb/s over PCIe 4.0, supporting up to 240 devices. Four 20 TB SATA drives and one 960 GB M.2 NVMe SSD are factory-installed.

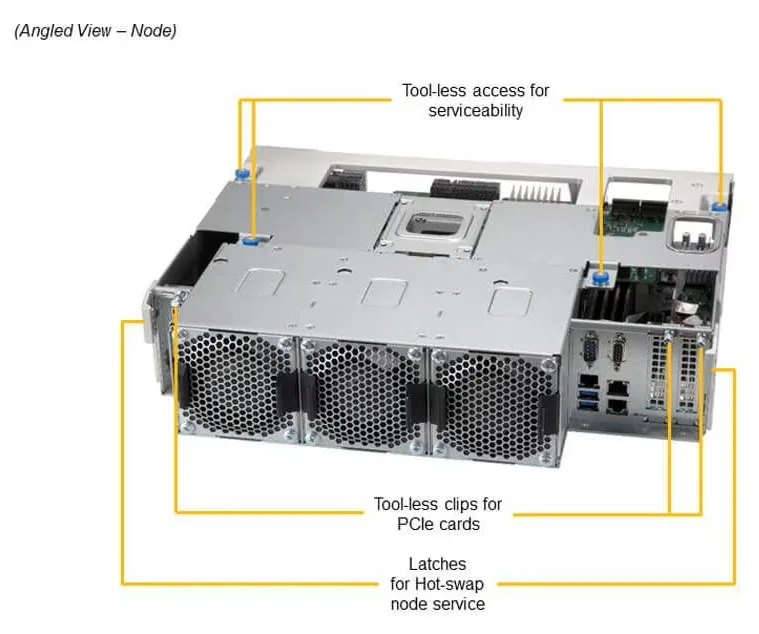

Tool-less drive installation

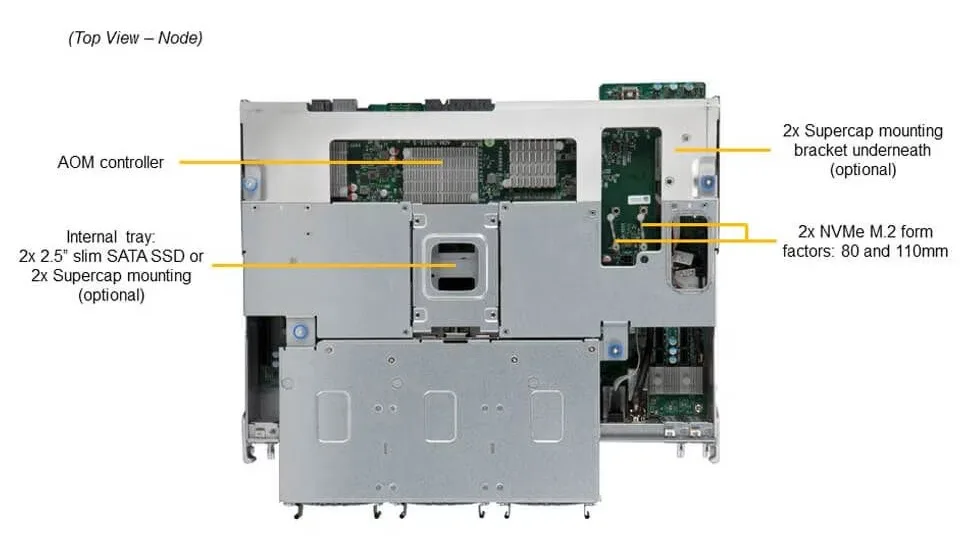

All 90 front bays and the six rear bays use tool-less carriers, so drives can be added or replaced without opening the chassis. The M.2 slots accept 80 mm modules and are accessible after removing the top cover. Installers must verify that the SAS backplane cabling matches the desired RAID topology before powering on, as mis-wired ports are the most common cause of unrecognised volumes.
Highlights
- Dual Xeon 4310 12-core CPUs deliver high throughput
- 256 GB DDR4-3200 memory scales to 4 TB
- 4 × 20 TB SATA drives provide 80 TB raw capacity
- 90 hot-swap 3.5" bays enable massive storage expansion
- Dual 10GbE RJ45 ports support fast network connectivity
Specifications
| Brand | SUPERMICRO |
|---|---|
| Series | Gold Series |
| Model | SSG-640SP-E1CR90-G1 |
| Workload | General Purpose Server |
| Type | Rack |
| Rack Height | 4U |
| Hot-swap Fans | 6 Heavy Duty 8cm Fan(s) |
| CPU Type | Intel Xeon Silver |
| CPU Speed | 4310 (2.10 GHz) |
| Number of CPU Cores | 12-Core Processor |
| Cache Memory | 18 MB |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 256GB |
| Memory Type | DDR4 3200 |
| Max Memory Capacity | 4TB |
| Memory Features | Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
| Number of Memory Slots | 16 |
| Hard Drive (Installed) | 4 x 20TB 3.5" SATA |
| Storage Controller | 1 x 16 Internal SAS3 Ports 12Gb/s PCIe 4.0 Internal RAID Adapter (Up to 240 Devices) |
| SSD (Installed) | 1 x 960GB M.2 NVMe (80mm) Solid State Drive |
| Ethernet Controller | 1 x On Board: 2 10GbE RJ45 LAN Ports |
| Expansion Bays | 2 rear hot-swap 2.5" SATA drive bays 4 rear hot-swap 2.5" NVMe* drive bays 90 top-loading hot-swap 3.5"/2.5" SAS/SATA drive bays 2 M.2 NVMe slots (M-key) |
| Power Characteristics | 2 x 2600W Titanium Level |
| Temperature | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Humidity | Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
| Dimensions | 6.96" x 17.6" x 43.3" |
| Weight | 130 lbs. |
| Shipping weight | 102.06 kg |
| Package size | 1321 × 737 × 381 mm |
Questions about this item
With two 12-core Xeon 4310 chips running at 2.1 GHz, what real-world throughput can I expect for multi-threaded workloads?
Twenty-four cores at 2.1 GHz with 18 MB cache each give strong parallel performance for virtualization, databases and rendering; actual throughput depends on your application and memory configuration.
The storage controller lists 16 internal SAS3 ports at 12 Gb/s over PCIe 4.0 — how many drives can it actually address?
The Broadcom 3916 adapter supports up to 240 devices, so it can address every bay in the 90-bay chassis plus the rear NVMe and SATA bays without an extra HBA.
What rack depth and mounting hardware are required for this 4U chassis with six hot-swap fans and dual 2600 W supplies?
The unit is a standard 4U rack-mount server; it needs a four-post rack deep enough for the chassis length and rails rated for the fully populated weight.
