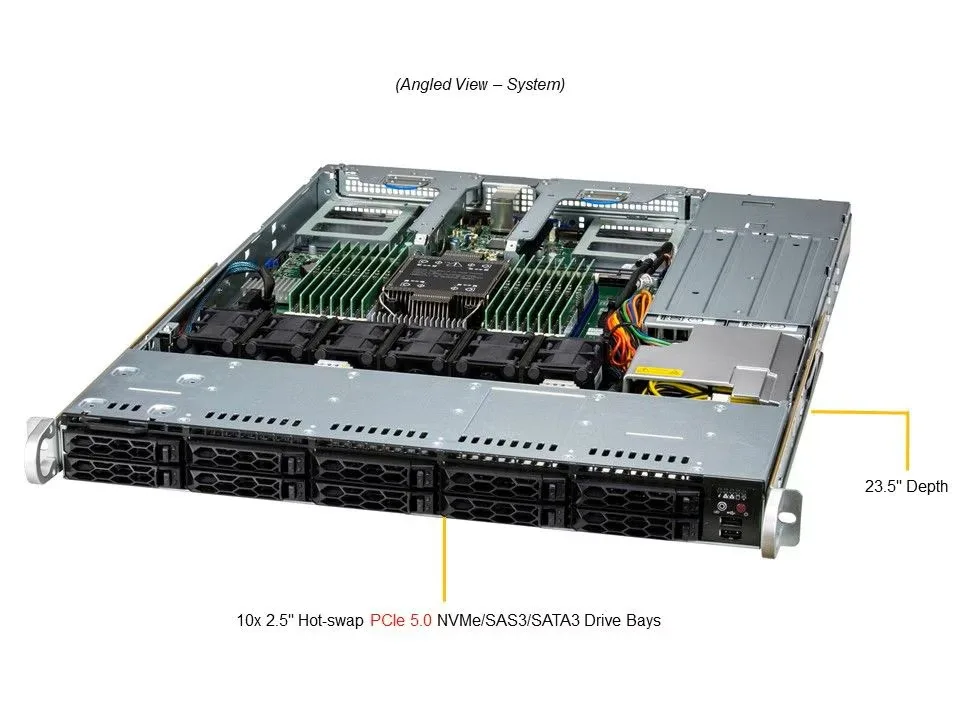

Silver 1U rack server front with ten drive bays and status LEDs

Supermicro

Supermicro SYS-111C-NR-G1 rack server Xeon Silver 4510 12C 128GB DDR5 2x960GB NVMe 10GbE 2x860W

SKU CH-06T5-X77KE MPN SYS-111C-NR-G1

1U rack server with 12-core Xeon Silver 4510, 128GB DDR5-5600, two 960GB NVMe SSDs, dual 10GbE RJ45, ten front 2.5" hot-swap bays and redundant 860W Titanium power

  • WorkloadGeneral Purpose Server
  • TypeRack
  • Rack Height1U
  • LEDsDrive activity Network activity Power status Universal Infor
  • Hot-swap Fans6 middle cooling PWM 40x40x56mm Fan(s)
  • CPU TypeIntel Xeon Silver
  • 12-core Xeon Silver 4510 handles parallel workloads
  • 128GB DDR5-5600 memory scales to 4TB capacity
  • Dual 960GB M.2 NVMe SSDs deliver fast boot and data access
  • Dual-port 10GbE adapter enables high-speed network connectivity
  • Redundant 860W Titanium power supplies maintain uptime

1U rack server for single-processor workloads

This 1U rack server ships with one Intel Xeon Silver 4510 processor delivering 12 cores at 2.40 GHz. It includes 128 GB of DDR5 5600 memory and two 960 GB M.2 NVMe SSDs. The system is built for general-purpose tasks that fit within a single-socket design.

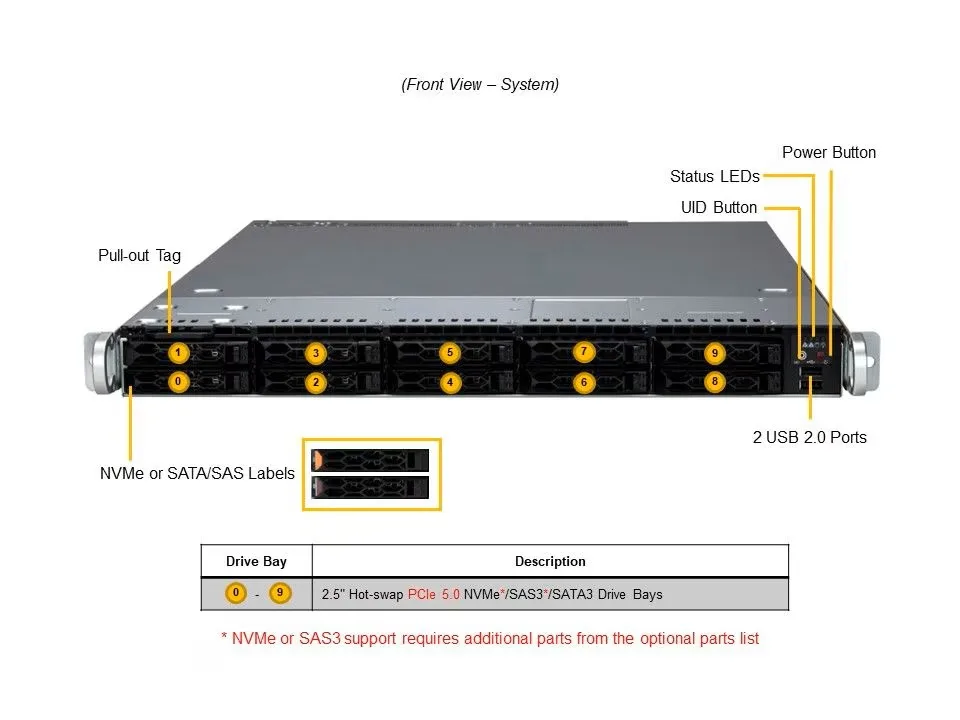

Front storage limited to ten 2.5-inch bays

The chassis provides 10 front hot-swap bays accepting 2.5-inch SAS or SATA drives. Only two M.2 PCIe 3.0 x2 NVMe slots are available, both populated by the installed SSDs. Builders who need more internal NVMe devices or additional 3.5-inch drive support cannot expand beyond these fixed bays.

Single-socket LGA 4677 platform caps processor

The motherboard supports a maximum of one processor in the LGA 4677 socket, so the installed Xeon Silver 4510 is the only CPU this system can ever run. Buyers who anticipate needing a second processor or a higher-core-count part must choose a different platform.

Highlights

  • 12-core Xeon Silver 4510 handles parallel workloads
  • 128GB DDR5-5600 memory scales to 4TB capacity
  • Dual 960GB M.2 NVMe SSDs deliver fast boot and data access
  • Dual-port 10GbE adapter enables high-speed network connectivity
  • Redundant 860W Titanium power supplies maintain uptime

Specifications

BrandSUPERMICRO
SeriesGold Series
ModelSYS-111C-NR-G1
WorkloadGeneral Purpose Server
TypeRack
Rack Height1U
LEDsDrive activity
Network activity
Power status
Universal Information
Hot-swap Fans6 middle cooling PWM 40x40x56mm Fan(s)
CPU TypeIntel Xeon Silver
CPU Speed4510 (2.40 GHz)
CPU SocketLGA 4677
Number of CPU Cores12-Core Processor
Cache Memory30MB Cache
# of Processors Installed1
MAX Processors1
Installed Memory Size128GB
Memory TypeDDR5 5600
Max Memory Capacity4TB
Memory FeaturesMax Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM
Number of Memory Slots16
SSD (Installed)2 x 960GB M.2 NVMe SSD
Ethernet ControllerSupermicro 10-Gigabit X710-AT2 (2 x RJ45) Ethernet Network Adapter
Expansion Bays10 front hot-swap 2.5" SAS*/SATA drive bays
2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110)

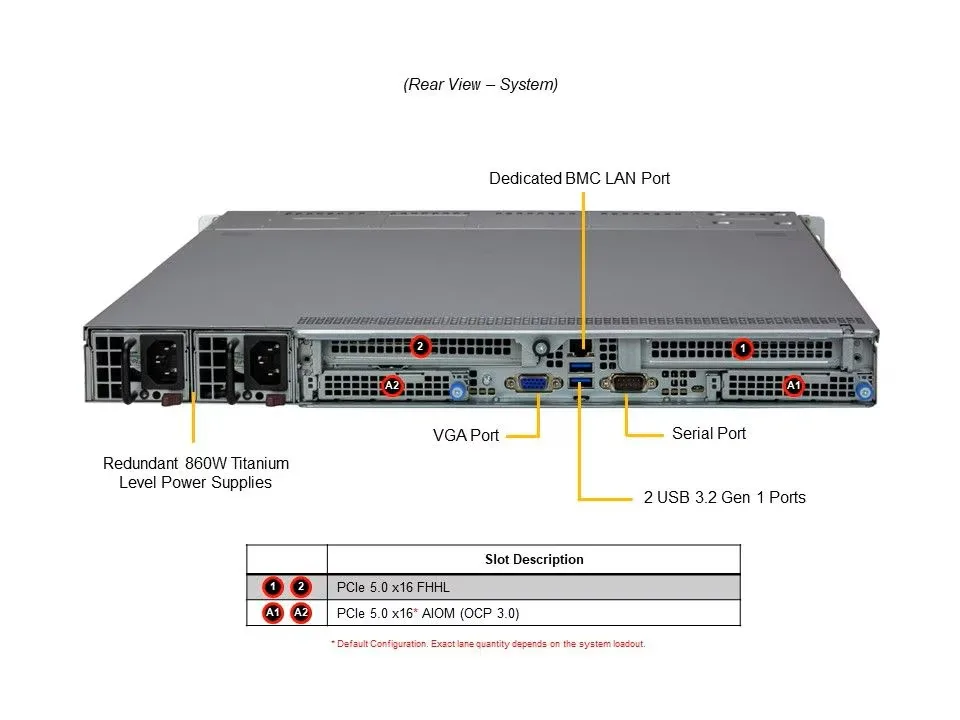

Power Characteristics2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies
TemperatureOperating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
HumidityOperating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing)
Dimensions1.7" x 17.2" x 23.5"
Weight25 lbs.
Shipping weight27.22 kg
Package size889 × 635 × 279 mm

Questions about this item

How do I decide between the single 12-core Xeon 4510 and adding a second processor?

This chassis supports a maximum of one processor, so the installed 12-core Xeon 4510 is the only CPU option.

What does the 2.40 GHz base clock mean for real-world throughput?

The 12 cores run at 2.40 GHz base frequency with 30 MB cache, delivering steady multi-threaded performance for general-purpose workloads.

How does the dual 10GbE RJ45 adapter connect to the system bus?

The Supermicro X710-AT2 uses a PCIe 3.0 interface, providing two 10 GbE RJ45 ports for high-speed networking.
