Supermicro
Supermicro SYS-510D-4C-FN6P-02-G1 rack server, Xeon D-1718T, 16GB DDR4, 960GB NVMe
Mini-1U edge server with a 2.6 GHz quad-core Xeon D-1718T, 16 GB DDR4-3200, 960 GB NVMe SSD and dual 25 GbE SFP28 plus four GbE ports
- WorkloadEdge Server
- TypeRack
- Rack HeightMini-1U
- LEDsFan Fail/System Over Heat LED HDD activity LED Network Activ
- Hot-swap Fans4x 4-PIN PWM 40x28mm Fan(s) (optional)
- CPU TypeIntel Xeon D
- Quad-core Xeon D-1718T at 2.60 GHz handles edge workloads
- 16 GB DDR4-3200 ECC memory supports up to 256 GB
- 960 GB PCIe 4.0 NVMe SSD delivers fast boot and data access

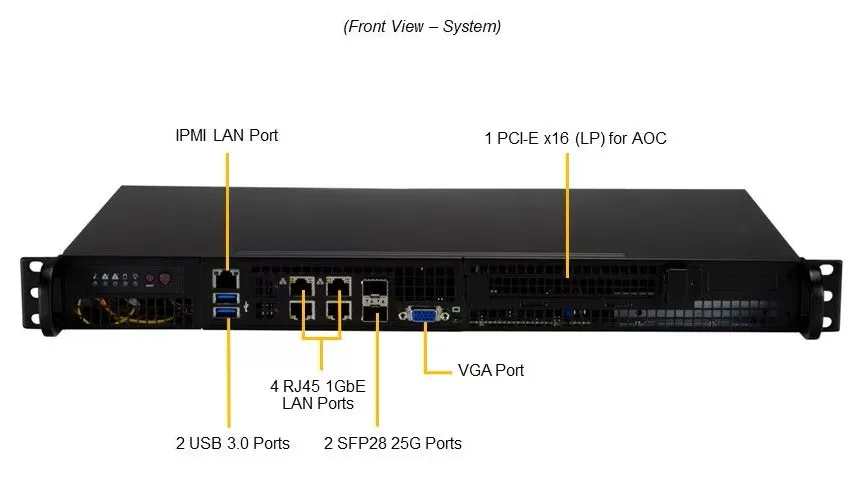

- Dual 25 GbE SFP28 plus four 1 GbE RJ45 ports for flexible networking
- Mini-1U rack form with 200 W Gold power supply fits dense deployments
Mini-1U Edge Server

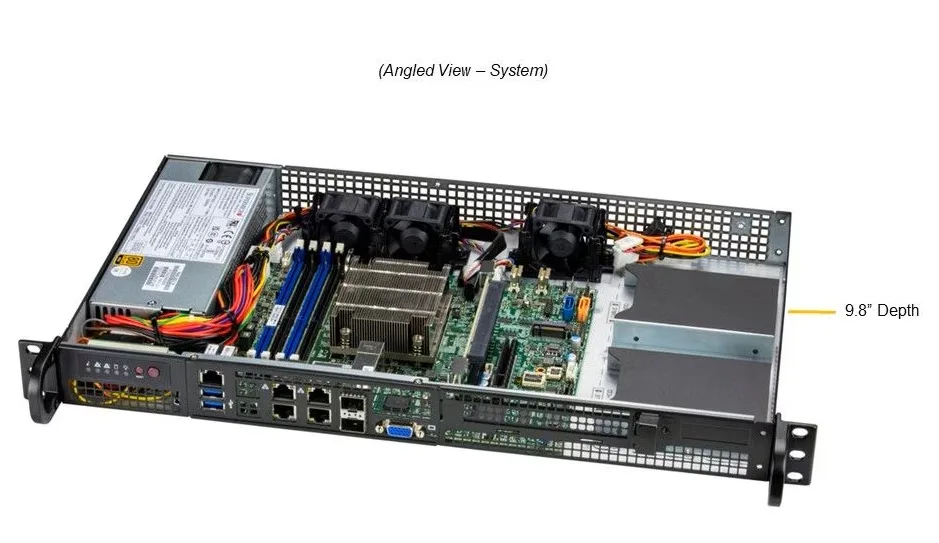

The Supermicro SYS-510D-4C-FN6P-02-G1 is a new Gold Series rack server built for edge workloads. It ships with a single Intel Xeon D-1718T quad-core processor running at 2.60 GHz and 16GB of DDR4-3200 memory. A 960GB M.2 7450 PRO NVMe drive provides boot and application storage. The 1U chassis includes four optional hot-swap fans and a 200W Gold Level power supply.
Target Deployment Fit
This system suits installations needing combined 25GbE SFP28 and 1GbE RJ45 connectivity in a compact rack form factor. The four memory slots support ECC DDR4 RDIMMs up to 256GB total capacity. It is not suited for deployments requiring dual-socket compute density, GPU acceleration or networking beyond the provided 25GbE and 1GbE ports.
Decisive Specification
The installed Xeon D-1718T delivers four cores with a 10 MB cache and a fixed 2.60 GHz base frequency. This single-socket design limits the platform to one processor and the memory controller to DDR4-2933 speeds at maximum capacity. Buyers needing higher core counts or multi-socket scaling must select a different server class.
Highlights
- Quad-core Xeon D-1718T at 2.60 GHz handles edge workloads
- 16 GB DDR4-3200 ECC memory supports up to 256 GB
- 960 GB PCIe 4.0 NVMe SSD delivers fast boot and data access
- Dual 25 GbE SFP28 plus four 1 GbE RJ45 ports for flexible networking
- Mini-1U rack form with 200 W Gold power supply fits dense deployments
Specifications
| Brand | SUPERMICRO |
|---|---|
| Series | Gold Series |
| Model | SYS-510D-4C-FN6P-02-G1 |
| Workload | Edge Server |
| Type | Rack |
| Rack Height | Mini-1U |
| LEDs | Fan Fail/System Over Heat LED HDD activity LED Network Activity LEDs Power status LED |
| Hot-swap Fans | 4x 4-PIN PWM 40x28mm Fan(s) (optional) |
| CPU Type | Intel Xeon D |
| CPU Speed | D-1718T (2.60 GHz) |
| Number of CPU Cores | Quad-Core Processor |
| Cache Memory | 10 MB |
| # of Processors Installed | 1 |
| MAX Processors | 1 |
| Installed Memory Size | 16GB |
| Memory Type | DDR4 3200 |
| Memory Features | Max Memory (2DPC): Up to 256GB 2933MT/s ECC DDR4 RDIMM |
| Number of Memory Slots | 4 |
| SSD (Installed) | 1 x 960GB M.2 7450 PRO NVMe (80mm) PCIe 4.0 Solid State Drive |
| Ethernet Controller | 1 x 2 25GbE SFP28 Ports + 2 1GbE RJ45 Ports + 2 1GbE RJ45 Ports |

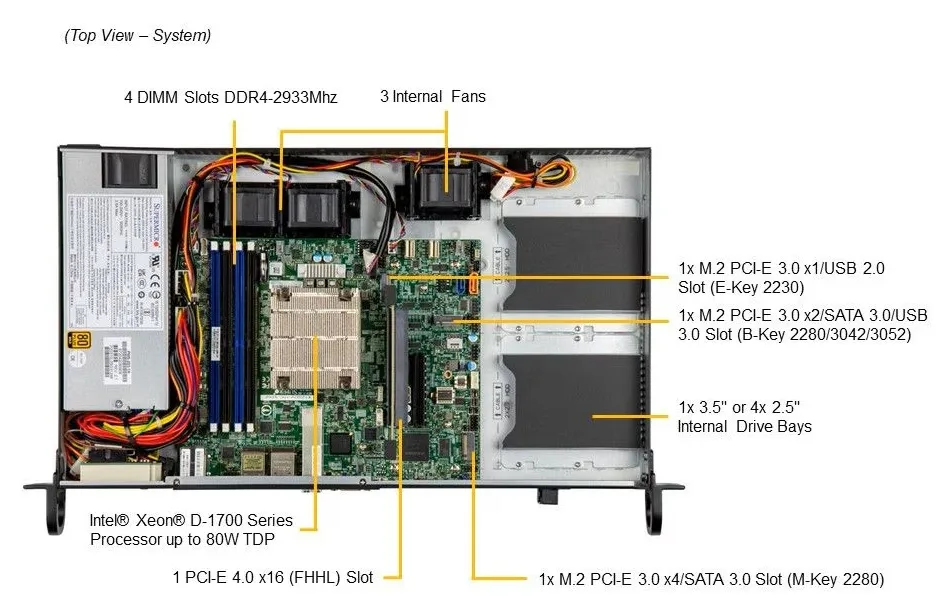

| Expansion Bays | 4 internal fixed 2.5" SATA drive bays 1 M.2 PCIe 3.0 x1 SATA slot (E-key 2230; USB 2.0) 1 M.2 PCIe 3.0 x2 SATA slot (B-key 2280/3042/3052; USB 3.0) 1 M.2 PCIe 3.0 x4 SATA slot (M-key 2280) |

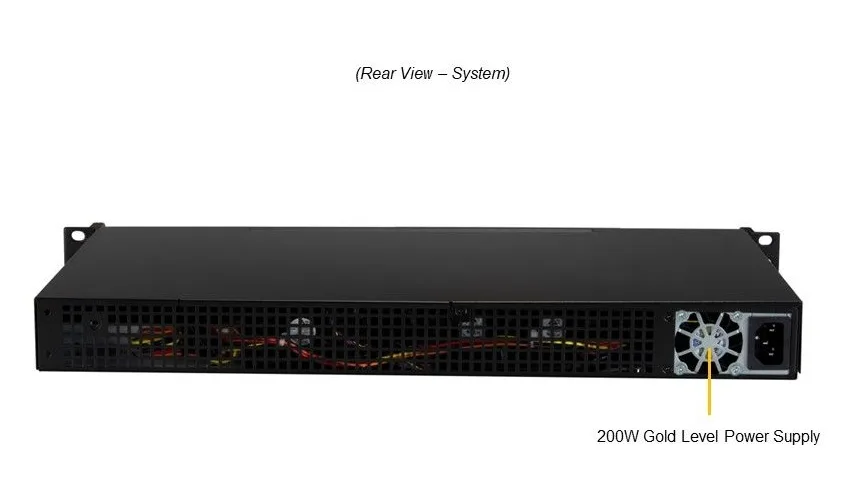

| Power Characteristics | 1 x 200W Gold Level |
| Temperature | Operating Temperature: 0°C to 40°C (32°F to 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Humidity | Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
| Dimensions | 1.7" x 17.2" x 9.8" |
| Weight | 10 lbs. |
| Shipping weight | 6.80 kg |
| Package size | 655 × 465 × 155 mm |
Questions about this item
How many 2.5-inch SATA drive bays does the SYS-510D-4C-FN6P-02-G1 provide for extra storage?
The chassis includes 4 internal fixed 2.5-inch SATA drive bays, so you can add up to four SATA SSDs or HDDs without an external enclosure.
What is the power draw of the single 200W Gold power supply under full load?
The installed 200W Gold-level supply delivers up to 200 watts to the Xeon D-1718T, memory, NVMe drive and all four 25GbE plus 1GbE ports.
Which DDR4 modules are required to reach the 256GB maximum capacity?
You need ECC DDR4 RDIMMs running at 2933MT/s, installed two per channel across the four slots to hit the 256GB limit.
