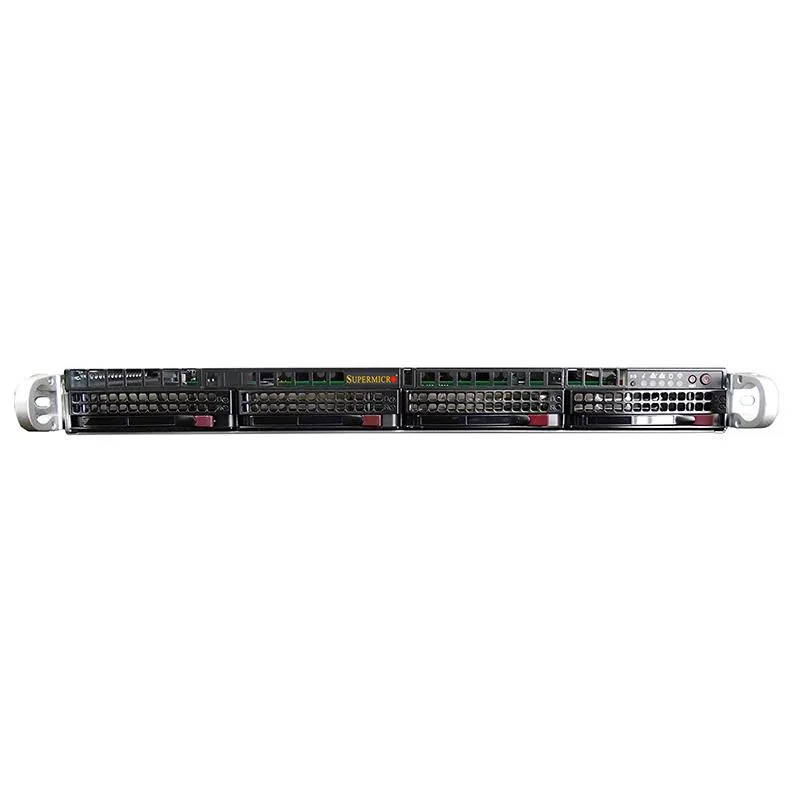

Black 1U rack server front panel with four 3.5 inch drive trays

Supermicro

Supermicro SYS-6018U-TR4T+ 1U rack server 2× Xeon E5-2680 v4 64GB DDR4 4× 3.5" trays 9361-8i X540 2× 750W

SKU CH-4CCW-R9R9B

A 1U rack server with dual 14-core Xeon E5-2680 v4 CPUs at 2.4 GHz, 64 GB DDR4 ECC memory, MegaRAID 9361-8i controller, four 3.5-inch hot-plug drive trays, quad 10GBase-T ports via Intel X540.

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.40 GHz
  • CPU SocketLGA 2011-3
  • Number of CPU Cores14-Core Processor
  • Dual 14-core Xeon E5-2680 v4 processors run at 2.4 GHz with 3.3 GHz turbo
  • 64 GB DDR4 2400 MHz registered ECC memory installed across four modules
  • MegaRAID 9361-8i controller supports RAID 0 1 5 6 10 50 60 with 1 GB cache and battery backup
  • Four 3.5-inch hot-plug drive trays accept SATA or SAS drives in a 1U chassis
  • Quad 10GBase-T ports via Intel X540 plus dedicated IPMI 2.0 LAN for remote KVM management

Dual Xeon E5-2680 v4 1U server

The Supermicro SYS-6018U-TR4T+ is a 1U rackmount server fitted with two Intel Xeon E5-2680 v4 processors running at 2.4 GHz with 14 cores each. It includes 64 GB of DDR4 2400 MHz registered ECC memory across four modules. The system targets virtualization, high-performance computing and cloud workloads that benefit from dual-socket density in a single rack unit.

4-bay 3.5" hot-plug limit

Only four 3.5-inch SATA or SAS drive bays are available, all hot-pluggable and served by the LSI MegaRAID 9361-8i controller with 1 GB cache and battery backup. RAID levels 0, 1, 5, 6, 10, 50 and 60 are supported, but the bay count caps raw capacity and spindle count. Buyers who need more storage bays must choose a different chassis.

Quad 10GBase-T networking

Connectivity is provided by a Supermicro AOC-UR-i4XT add-on card with an Intel X540 controller delivering four RJ45 10GBase-T ports. A dedicated RJ45 IPMI 2.0 port handles remote KVM and virtual media management. No other onboard network interfaces are present, so environments requiring additional 1 GbE or fibre links need extra expansion cards.

Highlights

  • Dual 14-core Xeon E5-2680 v4 processors run at 2.4 GHz with 3.3 GHz turbo
  • 64 GB DDR4 2400 MHz registered ECC memory installed across four modules
  • MegaRAID 9361-8i controller supports RAID 0 1 5 6 10 50 60 with 1 GB cache and battery backup
  • Four 3.5-inch hot-plug drive trays accept SATA or SAS drives in a 1U chassis
  • Quad 10GBase-T ports via Intel X540 plus dedicated IPMI 2.0 LAN for remote KVM management

Specifications

BrandSUPERMICRO
SeriesCSE-819U + X10DRU-i+
ModelSYS-6018U-TR4T+
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.40 GHz
CPU SocketLGA 2011-3
Number of CPU Cores14-Core Processor
# of Processors InstalledE5-2680 V4
Installed Memory Size64GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerSupermicro AOC-UR-i4XT - Intel X540 - 4x RJ45 10GBase-T Ports
Management PortRJ 45
Features4 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions about this item

Should I choose the 2.4 GHz 14-core Xeon E5-2680 v4 or a faster clock option?

This system ships with two Xeon E5-2680 v4 processors running at 2.4 GHz base and 3.3 GHz turbo; no alternative CPU configuration is offered for this model.

What does the 64 GB DDR4 2400 MHz memory mean for actual workloads?

The 64 GB (4×16 GB) registered ECC DDR4-2400 fills four of 24 DIMM slots, leaving room to expand toward the 1.5 TB maximum for memory-heavy virtualization or HPC tasks.

How fast can the four X540 10GBase-T ports move data in practice?

Each RJ45 port negotiates up to 10 Gb/s over twisted-pair copper; the quad-port AOC-UR-i4XT adapter connects via PCIe, so sustained throughput depends on the PCIe generation and lane width available on the X10DRU-i+ motherboard.
