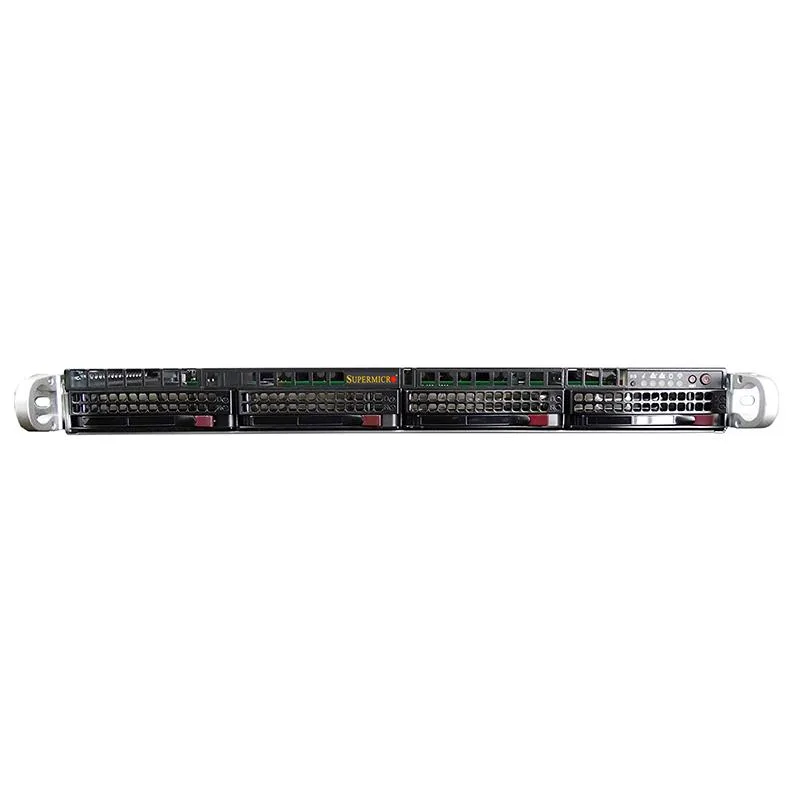

Silver 1U rack server front with four 3.5 inch drive bays

Supermicro

Supermicro SYS-6018U-TR4T+ 1U rack server dual Xeon E5-2699 v4 2.2GHz 22-core 16GB DDR4 4x 3.5" bays

SKU CH-M5JP-X88CE

1U rack server with dual 22-core Xeon E5-2699 v4 processors, 16GB DDR4 ECC memory, MegaRAID 9361-8i controller, four 3.5" hot-swap bays, quad 10GBase-T ports and IPMI 2.0 remote management

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.20 GHz
  • CPU SocketLGA 2011-3
  • Number of CPU Cores22-Core Processor
  • Dual Xeon E5-2699 v4 CPUs provide 22 cores each for heavy compute
  • 16GB DDR4 2400MHz ECC memory supports error-corrected data integrity
  • MegaRAID 9361-8i controller enables RAID 0/1/5/6/10/50/60 with 1GB cache
  • Four 10GBase-T Ethernet ports deliver high-speed network connectivity
  • Dual 750W platinum power supplies ensure redundant hot-swap operation

Dual 22-core Xeon 1U server

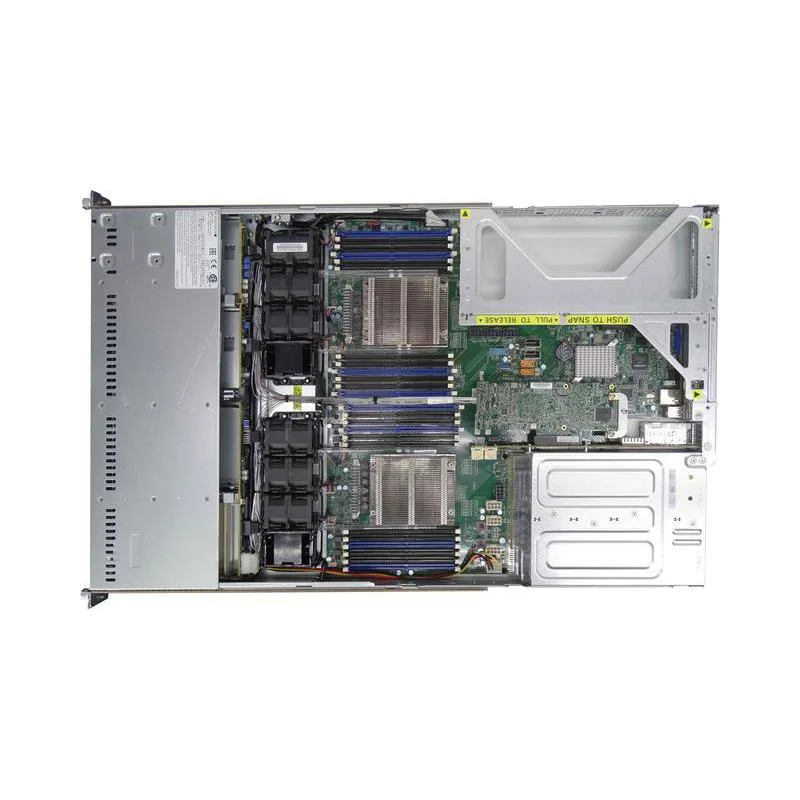

The Supermicro SYS-6018U-TR4T+ is a 1U rackmount server built around two Intel Xeon E5-2699 v4 processors. Each CPU runs at 2.2 GHz with 22 cores and reaches 3.6 GHz turbo frequency. The system ships with 16 GB of DDR4 2400 MHz registered ECC memory installed across 24 available DIMM slots. It targets virtualization, HPC and cloud workloads that demand high thread density in a single rack unit.

LSI MegaRAID 9361-8i controller

Storage is managed by an LSI MegaRAID 9361-8i 8-port SAS 12 Gb/s PCIe RAID controller with 1 GB cache and battery backup. The board supports RAID 0, 1, 5, 6, 10, 50 and 60 across four front-accessible 3.5-inch hot-plug SATA/SAS drive bays. No drives are included. The controller’s cache protection and broad RAID level support make it the decisive component for workloads that require data redundancy and sustained throughput.

Redundant 750 W platinum power

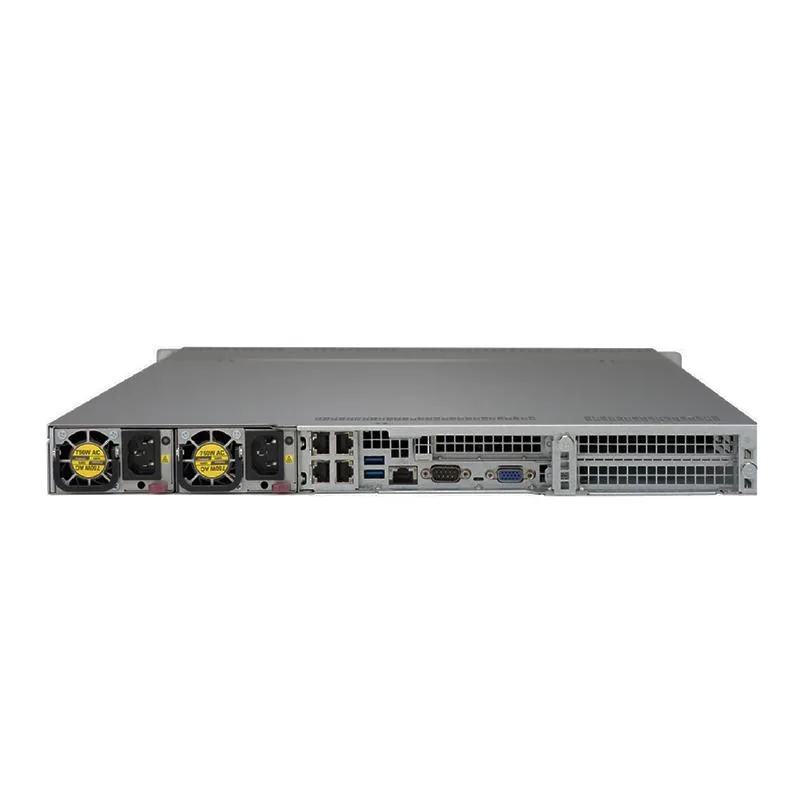

Two 750 watt platinum-efficiency hot-swap power supplies deliver N+1 redundancy for continuous operation. The 1U chassis uses advanced thermal management to maintain stable temperatures under sustained multi-core load. Quad 10GBase-T ports from the Intel X540 controller and a dedicated IPMI 2.0 LAN port with KVM-over-LAN ensure remote management and high-bandwidth connectivity remain available during extended duty cycles.

Highlights

  • Dual Xeon E5-2699 v4 CPUs provide 22 cores each for heavy compute
  • 16GB DDR4 2400MHz ECC memory supports error-corrected data integrity
  • MegaRAID 9361-8i controller enables RAID 0/1/5/6/10/50/60 with 1GB cache
  • Four 10GBase-T Ethernet ports deliver high-speed network connectivity
  • Dual 750W platinum power supplies ensure redundant hot-swap operation

Specifications

BrandSUPERMICRO
SeriesCSE-819U + X10DRU-i+
ModelSYS-6018U-TR4T+
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.20 GHz
CPU SocketLGA 2011-3
Number of CPU Cores22-Core Processor
# of Processors InstalledE5-2699 V4
Installed Memory Size16GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet ControllerSupermicro AOC-UR-i4XT - Intel X540 - 4x RJ45 10GBase-T Ports
Management PortRJ 45
Features4 x 3.5" SATA/SAS Hot-Plug Drive Bays
