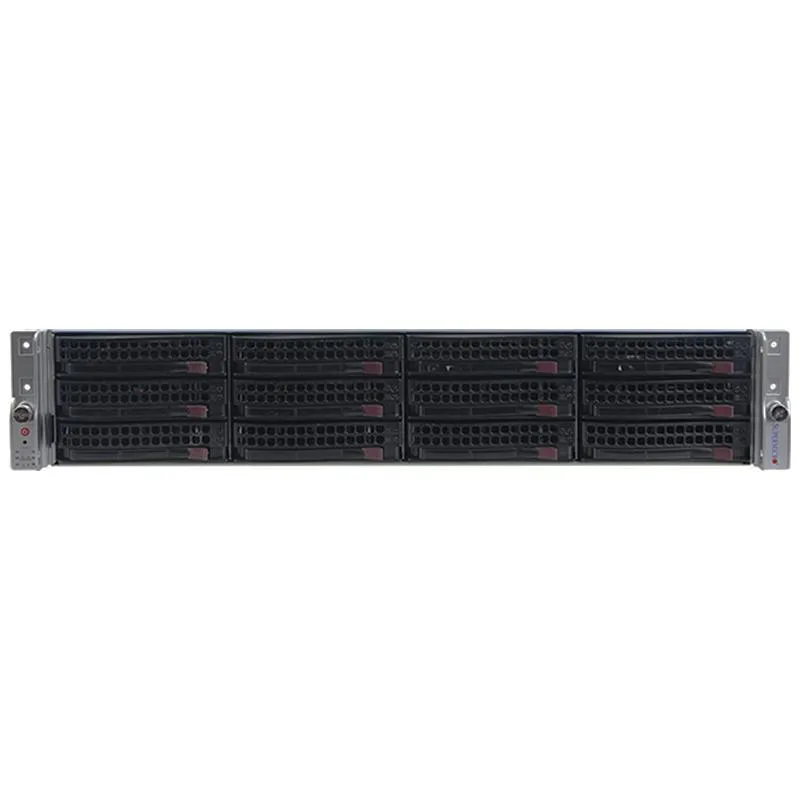

Silver 2U rack server front with twelve 3.5-inch drive bays

Supermicro

Supermicro SYS-6029U-E1CR4T 2U rack server 2x Xeon Platinum 8160 2.1GHz 24-core 64GB DDR4 12x 3.5" bays

SKU CH-0KJY-FRJ3T

A 2U rack server with dual 24-core Xeon Platinum 8160 CPUs, 64GB DDR4, twelve 3.5" hot-swap bays, MegaRAID 9361-8i, and four 10GBase-T ports

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores24-Core Processor
  • Dual Xeon Platinum 8160 CPUs provide 24 cores each at 2.1 GHz base and 3.7 GHz turbo for compute-intensive tasks
  • 64 GB DDR4-2666 ECC registered memory installed across four 16 GB modules for reliable capacity
  • MegaRAID 9361-8i controller supports RAID 0, 1, 5, 6, 10, 50, 60 with 1 GB cache and battery backup
  • Twelve hot-swap 3.5" SAS/SATA drive bays enable high-density storage expansion without downtime
  • Four 10GBase-T ports via Intel X710 plus dedicated IPMI 2.0 LAN give fast networking and remote management

Enterprise 2U Server

The Supermicro SYS-6029U-E1CR4T is a 2U rackmount server system built for virtualization, hyper-converged storage and cloud workloads. Dual Intel Xeon Platinum 8160 processors run at 2.1 GHz with 24 cores each and 3.7 GHz turbo. Sixty-four gigabytes of DDR4-2666 ECC registered memory are installed across four 16 GB modules. A MegaRAID 9361-8i controller provides eight SAS 12 Gb/s ports with 1 GB cached battery backup.

Virtualisation and Storage Buyers

This configuration suits teams that need dense 3.5-inch drive capacity and dual 10 GbE networking in a 2U form factor. Twelve hot-swap bays accept SATA or SAS drives and four bays can be converted to NVMe with an add-on card. Buyers who require front bezel or rack rails included should look elsewhere. Organisations needing GPU compute or fibre-channel connectivity will not find those interfaces here.

Twelve 3.5-Inch Hot-Swap Bays

The chassis provides twelve 3.5-inch SATA/SAS hot-plug drive bays as its defining storage constraint. Four hybrid bays support NVMe SSDs when a compatible storage add-on card is fitted. This bay count and hybrid flexibility determine whether the platform matches your capacity and performance targets.

Highlights

  • Dual Xeon Platinum 8160 CPUs provide 24 cores each at 2.1 GHz base and 3.7 GHz turbo for compute-intensive tasks
  • 64 GB DDR4-2666 ECC registered memory installed across four 16 GB modules for reliable capacity
  • MegaRAID 9361-8i controller supports RAID 0, 1, 5, 6, 10, 50, 60 with 1 GB cache and battery backup
  • Twelve hot-swap 3.5" SAS/SATA drive bays enable high-density storage expansion without downtime
  • Four 10GBase-T ports via Intel X710 plus dedicated IPMI 2.0 LAN give fast networking and remote management

Specifications

BrandSUPERMICRO
SeriesCSE-829U2E1C4-R1K02-T-X11DPU
ModelSYS-6029U-E1CR4T
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 3647
Number of CPU Cores24-Core Processor
# of Processors InstalledPlatinum 8160
Installed Memory Size64GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T ports via Intel X710 (AOC-2UR66-i4XTF)
Management PortRJ 45
Features12 x 3.5" SATA/SAS Hot-Plug Drive Bays
