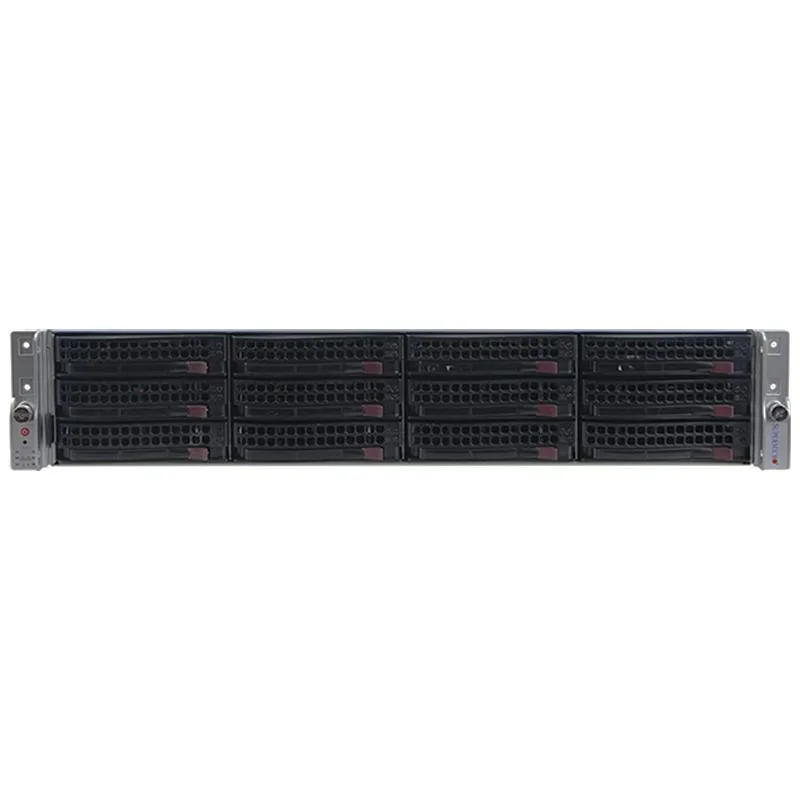

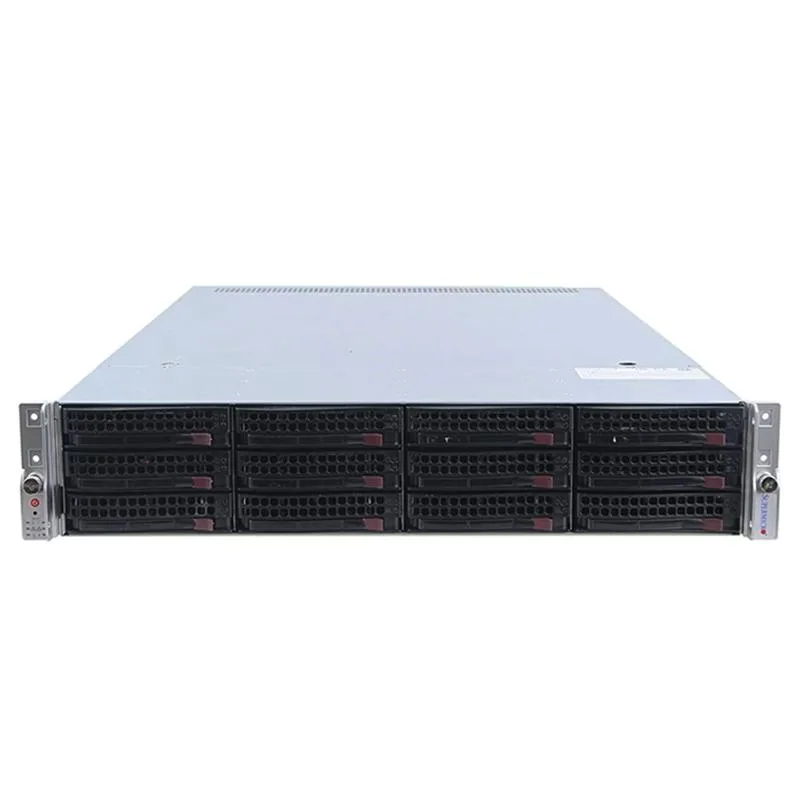

Silver 2U rack server with twelve front 3.5-inch drive bays

Supermicro

Supermicro SYS-6029U-E1CR4T 2U rack server 2x Xeon Silver 4110 2.1GHz 8-core 256GB DDR4 12x 3.5" bays

SKU CH-XZQF-CJ1AS

2U rack server with dual Xeon Silver 4110 2.1GHz 8-core CPUs, 256GB DDR4 ECC memory, LSI MegaRAID 9361-8i controller, twelve 3.5-inch hot-swap drive bays, four 10GBase-T ports and IPMI 2.0 management

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores8-Core Processor
  • Dual Xeon Silver 4110 CPUs deliver 16 total cores at 2.1GHz
  • 256GB DDR4 2400MHz ECC memory supports heavy virtualization workloads
  • MegaRAID 9361-8i controller enables RAID 0/1/5/6/10/50/60 with 1GB cache
  • Twelve 3.5" hot-swap bays provide high-density SAS/SATA storage capacity
  • Four 10GBase-T ports via Intel X710 plus dedicated IPMI 2.0 management LAN

Dual Xeon Silver 4110 2U server

This 2U rack system ships with two Intel Xeon Silver 4110 processors at 2.1 GHz and 256 GB of DDR4 ECC memory. Twelve front 3.5-inch hot-plug bays accept SATA or SAS drives, while an LSI MegaRAID 9361-8i controller provides hardware RAID 0, 1, 5, 6, 10, 50 and 60. Dual 1000 W redundant power supplies and IPMI 2.0 with dedicated LAN complete the platform.

Virtualisation hosts and storage clusters

The dual-socket design and 24 DIMM slots suit workloads that scale across many cores and large memory footprints, such as hypervisors, hyper-converged storage or database nodes. Four 10GBase-T ports and six full-height PCIe 3.0 slots give ample I/O headroom. Buyers needing GPU compute or front NVMe bays without extra cards should evaluate other chassis.

12-bay 3.5-inch hot-plug capacity

Twelve 3.5-inch trays set the raw storage ceiling and determine whether the chassis fits the intended disk count. No drives are included, so the buyer must supply SATA or SAS disks to populate the backplane.

Highlights

  • Dual Xeon Silver 4110 CPUs deliver 16 total cores at 2.1GHz
  • 256GB DDR4 2400MHz ECC memory supports heavy virtualization workloads
  • MegaRAID 9361-8i controller enables RAID 0/1/5/6/10/50/60 with 1GB cache
  • Twelve 3.5" hot-swap bays provide high-density SAS/SATA storage capacity
  • Four 10GBase-T ports via Intel X710 plus dedicated IPMI 2.0 management LAN

Specifications

BrandSUPERMICRO
SeriesCSE-829U2E1C4-R1K02-T-X11DPU
ModelSYS-6029U-E1CR4T
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 3647
Number of CPU Cores8-Core Processor
# of Processors InstalledSilver 4110
Installed Memory Size256GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T ports via Intel X710 (AOC-2UR66-i4XTF)
Management PortRJ 45
Features12 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions about this item

Do the 12 hot-swap 3.5-inch bays accept SATA drives?

Yes, the bays support SATA and SAS drives through the MegaRAID 9361-8i controller.

Can the server run with just one Xeon Silver 4110 installed?

The system ships with two processors installed; single-CPU operation is not described in the specifications.

How do I confirm the 256 GB of DDR4 memory is detected?

Check the BIOS memory map or the IPMI 2.0 sensor readings after power-on.
