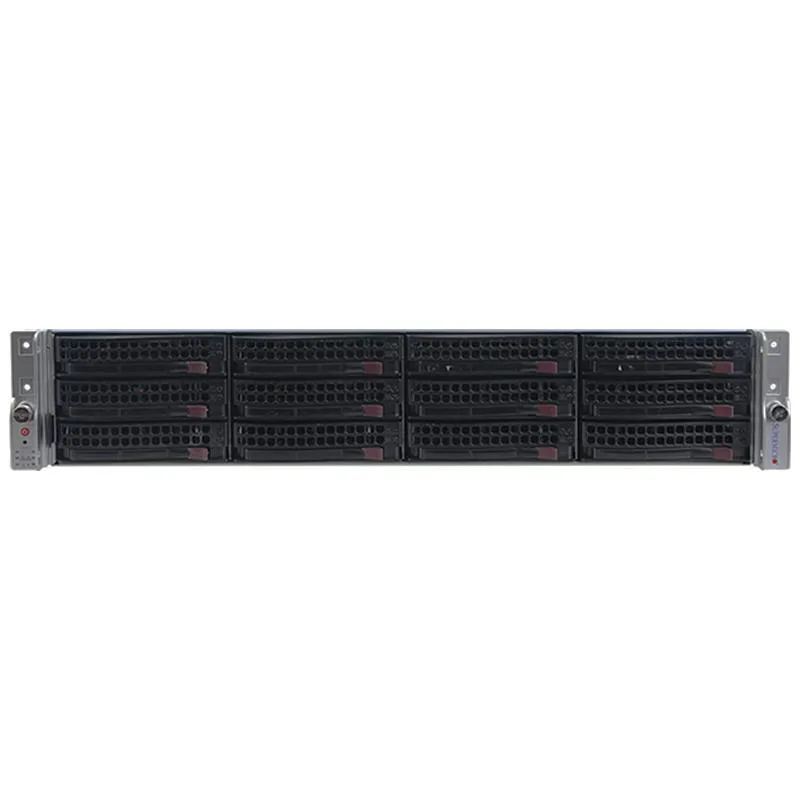

Silver 2U rack server with twelve front 3.5-inch drive trays

Supermicro

Supermicro SYS-6029U-E1CR4T rack server 2x Xeon Silver 4110 32GB DDR4 12x 3.5

SKU CH-SADM-NPRRK

A 2U rack server with dual 8-core Xeon Silver 4110 CPUs, 32 GB DDR4 ECC memory, a MegaRAID 9361-8i controller and twelve hot-swap 3.5-inch drive bays

  • Rack Height1U
  • Redundant Hot-swap PowerYes
  • CPU TypeIntel Xeon
  • CPU Speed2.10 GHz
  • CPU SocketLGA 3647
  • Number of CPU Cores8-Core Processor
  • Dual 8-core Xeon Silver 4110 CPUs deliver 16 threads at 2.1 GHz base clock
  • 32 GB registered ECC DDR4-2400 memory protects data integrity for critical workloads
  • MegaRAID 9361-8i controller enables RAID 0, 1, 5, 6, 10, 50, 60 across 12 hot-swap 3.5" bays
  • Four 10GBase-T ports via Intel X710 provide high-throughput networking for virtualization and storage traffic
  • Dual 1000 W titanium-efficiency hot-swap power supplies maintain uptime during module replacement

Dual Xeon Silver 4110 2U server

The Supermicro SYS-6029U-E1CR4T is a 2U rackmount system built around two Intel Xeon Silver 4110 processors. Each CPU delivers 8 cores at 2.1 GHz with a 3.0 GHz turbo frequency. The platform targets virtualization hosts, hyper-converged storage clusters and cloud workloads that need dense 3.5-inch drive capacity in a compact chassis. It ships with 32 GB of DDR4-2400 registered ECC memory across four modules.

Sustained multi-threaded throughput

Dual 8-core processors provide 16 threads that maintain 2.1 GHz base clocks under continuous load, while turbo can lift all cores toward 3.0 GHz within the 205 W TDP envelope per socket. The MegaRAID 9361-8i controller with 1 GB cached battery-backed write acceleration keeps RAID 0, 1, 5, 6, 10, 50 or 60 arrays responsive during extended write-heavy phases. Four 10GBase-T ports from the Intel X710 adapter sustain high packet rates for storage replication or VM migration without saturating the PCIe 3.0 x8 links.

Thermals and power in normal operation

Redundant 1000 W titanium-efficiency power supplies share the load, reducing per-unit stress and fan speed during typical utilisation. Hot-swap drive bays and the front-to-rear airflow path keep 12 spinning drives within spec without requiring maximum fan curves. The dedicated IPMI 2.0 port with KVM-over-LAN lets administrators monitor temperatures, power draw and fan RPM remotely, so thermal headroom can be verified without physical access.

Highlights

  • Dual 8-core Xeon Silver 4110 CPUs deliver 16 threads at 2.1 GHz base clock
  • 32 GB registered ECC DDR4-2400 memory protects data integrity for critical workloads
  • MegaRAID 9361-8i controller enables RAID 0, 1, 5, 6, 10, 50, 60 across 12 hot-swap 3.5" bays
  • Four 10GBase-T ports via Intel X710 provide high-throughput networking for virtualization and storage traffic
  • Dual 1000 W titanium-efficiency hot-swap power supplies maintain uptime during module replacement

Specifications

BrandSUPERMICRO
SeriesCSE-829U2E1C4-R1K02-T-X11DPU
ModelSYS-6029U-E1CR4T
Rack Height1U
Redundant Hot-swap PowerYes
CPU TypeIntel Xeon
CPU Speed2.10 GHz
CPU SocketLGA 3647
Number of CPU Cores8-Core Processor
# of Processors InstalledSilver 4110
Installed Memory Size32GB
Storage ControllerLSI MegaRAID 9361-8i Controller
HDD InterfaceSATA/SAS
SSD (Installed)No
Raid LevelRAID 0/1/5/6/10/50/60
GPU TypeMatrox G200
Video Memory8MB
Ethernet Controller4x 10GBase-T ports via Intel X710 (AOC-2UR66-i4XTF)
Management PortRJ 45
Features12 x 3.5" SATA/SAS Hot-Plug Drive Bays

Questions about this item

How much heat do the dual 1000 W Titanium supplies add to a 2U rack running all day?

Two 1000 W Titanium supplies share the load efficiently; exact thermal output depends on actual draw from the dual Xeon Silver 4110 CPUs and twelve drive bays.

Which cables or rails must I already have to mount and cable the twelve 3.5" hot-swap bays?

Front bezel and rack-mount rails are not included; you supply rails and SATA or SAS cables for the twelve drive trays.

Can the LSI MegaRAID 9361-8i controller manage a mixed array of legacy SATA disks and newer SAS drives?

The 9361-8i supports RAID 0, 1, 5, 6, 10, 50, 60 across SATA and SAS interfaces on the twelve 3.5" bays.
