Supermicro
Supermicro SYS-621C-TN12R-02-G1 2U rack server dual Xeon 4516Y+ 1TB DDR5
2U rack server with dual 24-core Xeon 4516Y+ processors and 1TB DDR5-5600 memory
- WorkloadGeneral Purpose Server
- TypeRack
- Rack Height2U
- LEDsDrive activity Network activity Power status Universal Infor
- Hot-swap Fans3x 8cm heavy duty fans with optimal fan speed control
- SecurityTrusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT
- Dual Xeon 4516Y+ 24-core CPUs provide high thread count for parallel workloads
- 1TB DDR5-5600 ECC memory installed with capacity up to 4TB
- 240GB SATA SSD and dual 1GbE RJ45 networking ready for deployment
- Two 1200W Titanium power supplies with hot-swap fans for efficient cooling
- TPM 2.0, Silicon Root of Trust and signed firmware secure the platform

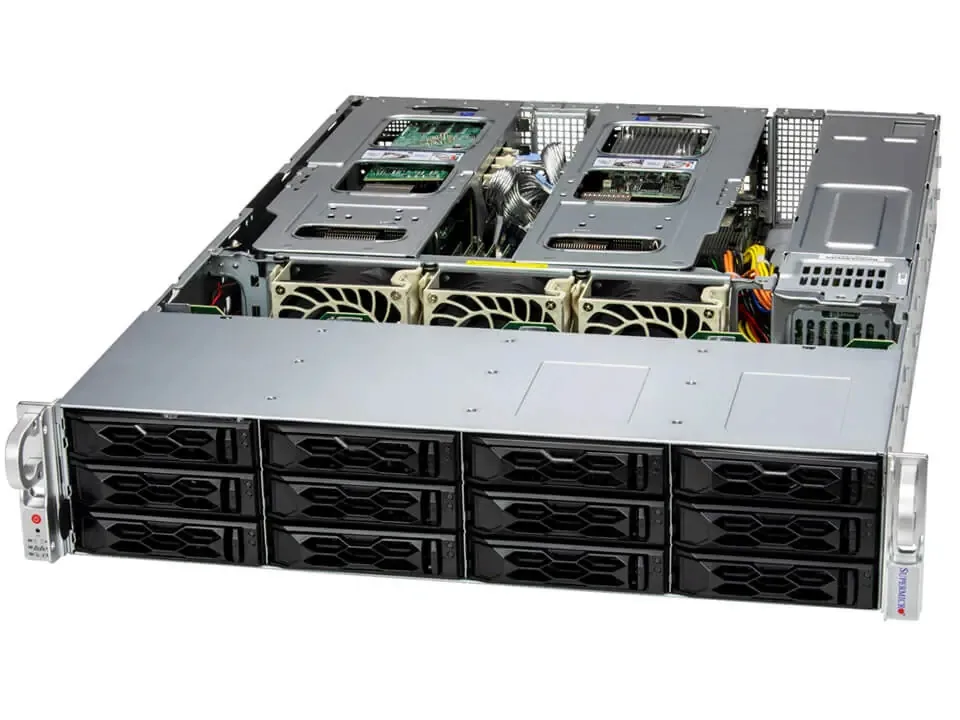

Dual Xeon 4516Y+ 2U server
This 2U rack system ships with two Intel Xeon 4516Y+ processors, each running at 2.20 GHz with 24 cores and 45 MB of L3 cache. It targets organisations that need a dense, general-purpose platform for virtualisation, database or cloud workloads where dual-socket performance and hardware root-of-trust security are required.
1 TB DDR5-5600 with 4 TB ceiling
The server arrives with 1 TB of ECC DDR5-5600 RDIMM installed across 16 slots, leaving headroom to reach the 4 TB maximum when all channels are populated at one DIMM per channel. Memory bandwidth scales with the 5600 MT/s rate, while the single 240 GB SATA SSD covers only the boot volume; additional storage bays must be filled for data capacity.
Dual 1200 W Titanium power supplies
Two hot-swap 1200 W Titanium-level units provide redundant, high-efficiency power for the dual-CPU configuration and fully populated memory. The platform tops out at two processors, so buyers needing four-socket scaling or GPU-dense acceleration should evaluate alternative chassis.
Highlights
- Dual Xeon 4516Y+ 24-core CPUs provide high thread count for parallel workloads
- 1TB DDR5-5600 ECC memory installed with capacity up to 4TB
- 240GB SATA SSD and dual 1GbE RJ45 networking ready for deployment
- Two 1200W Titanium power supplies with hot-swap fans for efficient cooling
- TPM 2.0, Silicon Root of Trust and signed firmware secure the platform
Specifications
| Brand | SUPERMICRO |
|---|---|
| Series | SuperServer |
| Model | SYS-621C-TN12R-02-G1 |
| Workload | General Purpose Server |
| Type | Rack |
| Rack Height | 2U |
| LEDs | Drive activity Network activity Power status Universal Information (UID) |
| Hot-swap Fans | 3x 8cm heavy duty fans with optimal fan speed control |
| Security | Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) - NIST 800-193 Compliant Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| CPU Type | Intel Xeon |
| CPU Speed | 4516Y+ (2.20 GHz) |
| Number of CPU Cores | 24-Core Processor |
| Cache Memory | 45 MB L3 Cache |
| # of Processors Installed | 2 |
| MAX Processors | 2 |
| Installed Memory Size | 1TB |
| Memory Type | DDR5-5600 |
| Max Memory Capacity | 4TB |
| Memory Features | Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM |
| Number of Memory Slots | 16 |
| SSD (Installed) | 2.5" SATA 240GB 1DWPD TLC E, SED/TCG 7mm |
| Ethernet Controller | Supermicro 1-Gigabit i350 (2 x RJ45) Ethernet Network Adapter |
| Expansion Slots | 4 PCIe 5.0 x8 (in x16) FHFL double-width slots 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) |
| Expansion Bays | 12 front hot-swap 3.5" NVMe*/SAS*/SATA* drive bays 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280(default); VROC required for RAID) |
| Other ports | 1 RJ45 1 GbE Dedicated BMC LAN port 2 USB 3.2 Gen1 Type-A ports(rear) 1 VGA port 1 COM port(rear) 1 TPM header |
| Power Characteristics | 2 x 1200W Redundant Titanium Level (96%) Hot-plug power supplies |
| Temperature | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) |
| Humidity | Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing) Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing) |
| Dimensions | 3.5" x 17.2" x 25.5" |
| Weight | 33 lbs. |
| Shipping weight | 27.22 kg |
| Package size | 889 × 635 × 279 mm |
Questions about this item
Will the dual Xeon 4516Y+ processors fit into a rack that currently holds single-socket servers?
The system occupies a standard 2U rack height, so it installs in the same space as any other 2U chassis; the dual-socket design does not change the external dimensions.
How can I confirm the 1 TB DDR5-5600 memory is running at full speed after first boot?
Check the BIOS memory information screen or the BMC dashboard — both report the configured DDR5 frequency per channel.
Does the box include rails for a four-post rack and extra drive caddies for the remaining bays?
The unit ships with the 240 GB SATA SSD installed, two 1200 W titanium power supplies, three hot-swap fans, and the TPM 2.0 module; rails and additional caddies are sold separately.
