SXDOOL
SXDOOL 80mm Slim Hydraulic Case Fan DJT80RBAS3-S04 2400RPM 12V 0.09A
An 80 mm slim hydraulic case fan spinning at 2400 RPM on 12 V for quiet, targeted airflow
- TypeCase Fan
- Fan Size80mm
- Bearing TypeHydraulic
- RPM2000-2499 RPM
- ColorBlack
- LEDNon-LED
- 80 mm slim profile fits tight 15 mm bays
- Hydraulic bearings deliver quiet 2400 RPM airflow
- 12 V 0.09 A draw keeps power use low

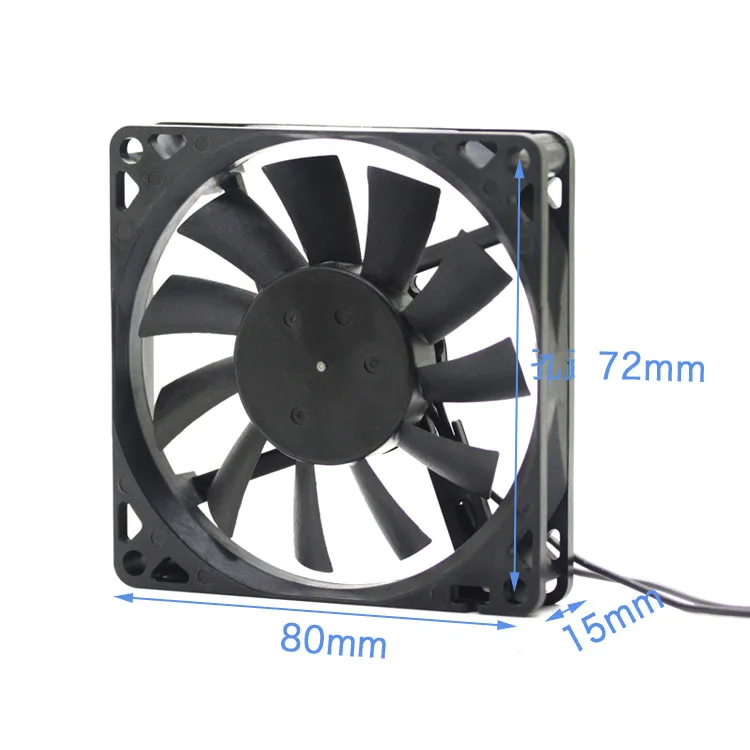

- 72 mm mounting holes match standard 80 mm frames
- 4 m twin leads allow flexible routing
80 mm slim hydraulic case fan
This 80 mm slim fan uses a hydraulic bearing and spins at 2400 rpm from a 12 V supply drawing 0.09 A. It targets builders who need a low-profile 15 mm thick cooler for tight chassis or replacement of an 8015-size unit. The black frame carries no LEDs.

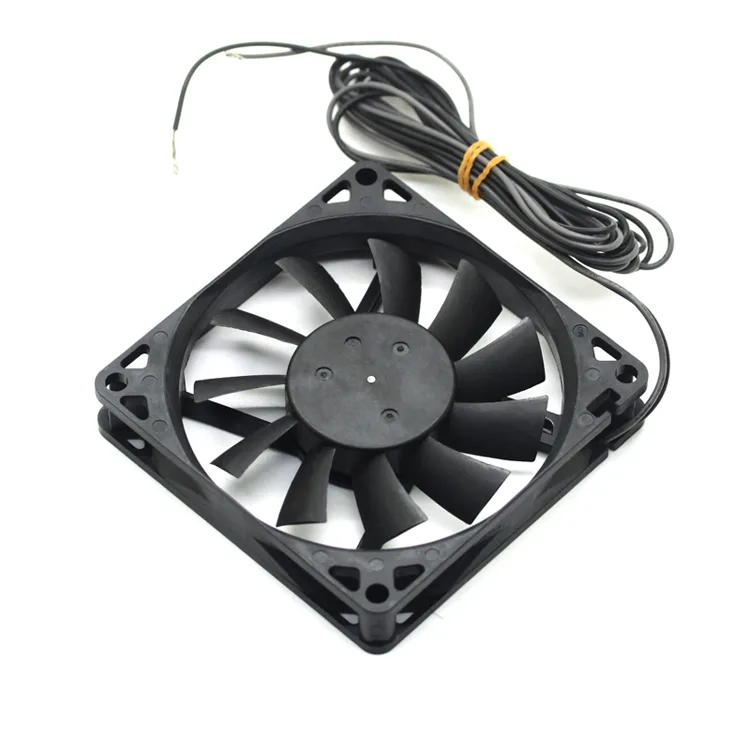

Two-wire 1.4 m leads install without a connector
The fan ships with bare two-wire leads roughly 1.4 m long, so you must crimp or solder a suitable header for your board or controller. Mounting holes sit on a 72 mm square pitch, matching standard 80 mm patterns, but the missing plug adds a wiring step.
Moves air in slim 15 mm spaces at 2400 rpm
At full speed the fan delivers airflow suited to restricted 15 mm gaps such as compact servers or small-form-factor cases. Headroom ends when static pressure exceeds what a 12 V 0.09 A hydraulic bearing can sustain, limiting use in dense radiator stacks.
Highlights
- 80 mm slim profile fits tight 15 mm bays
- Hydraulic bearings deliver quiet 2400 RPM airflow
- 12 V 0.09 A draw keeps power use low
- 72 mm mounting holes match standard 80 mm frames
- 4 m twin leads allow flexible routing
Specifications
| Type | Case Fan |
|---|---|
| Fan Size | 80mm |
| Bearing Type | Hydraulic |
| RPM | 2000-2499 RPM |
| Color | Black |
| LED | Non-LED |
Questions about this item
How can I verify the 80mm hydraulic fan is spinning at the rated 2400 RPM after installation?
Enter the BIOS or use a monitoring utility to read the fan header speed; it should report close to 2400 RPM when the fan is powered from the 12 V line.
What comes in the box and what must I supply myself for the DJT80RBAS3-S04?
The fan with two bare wires roughly 1.4 m long is included; you must provide a 3-pin or 4-pin connector or solder the leads directly to a 12 V source.
Which version of this 80 mm slim fan should I choose for a standard 72 mm mounting pattern?
The DJT80RBAS3-S04 matches the 72 × 72 mm hole spacing, runs on 12 V at 0.09 A and fits the 80 × 80 × 15 mm Nidec 8015 form factor.
