Synology Inc.
Synology DiskStation DS1621xs+ NAS Xeon D-1527 2.2GHz 32GB 24TB 10GbE
- 6-Bay
- Intel Xeon
$4,057.99
0.05162706BTC
In stock
Synology Inc.
Synology DiskStation DS1621xs+ NAS Xeon D-1527 32GB 108TB
A 6-bay desktop NAS with a Xeon D-1527 4-core 2.2 GHz processor, 32 GB DDR4 ECC memory, 108 TB of SATA storage and a 10 GbE port for demanding workloads
- Form Factor6-Bay
- ProcessorIntel Xeon
- Installed Memory32GB
- Included HDD Capacity108TB (6 x 18TB)
Included HDD Capacity 108TB (6 x 18TB)
- 24TB (6 x 4TB)
- 60TB (6 x 10TB)
- 108TB (6 x 18TB)
- Enterprise-grade Xeon D-1527 CPU handles intensive multi-user workloads
- 32GB DDR4 ECC memory protects data integrity during critical operations
- 108TB raw capacity from six 18TB SATA drives stores massive datasets
- 10GbE LAN port with link aggregation accelerates file transfers and VM traffic
- Synology DSM software delivers iSCSI, backup, surveillance and virtualization services
Compact 6-bay NAS for business workloads

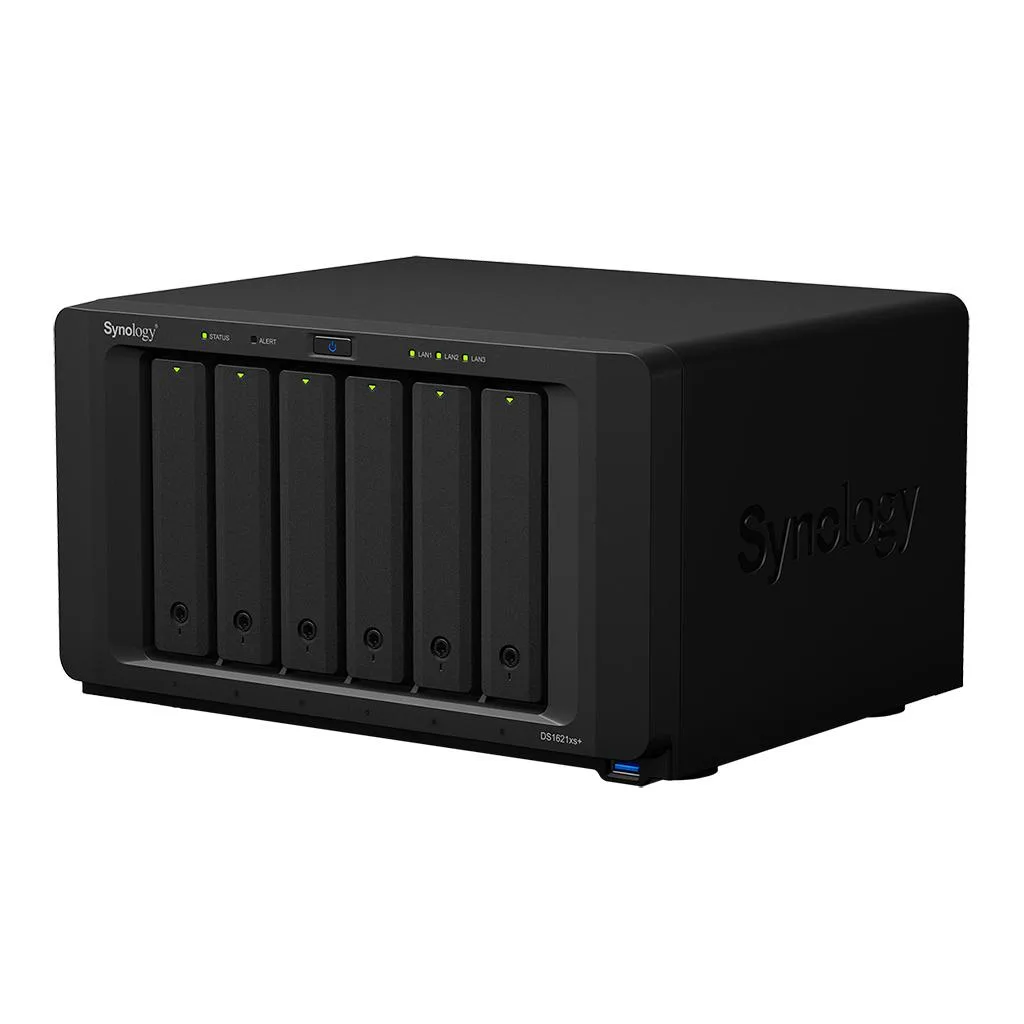

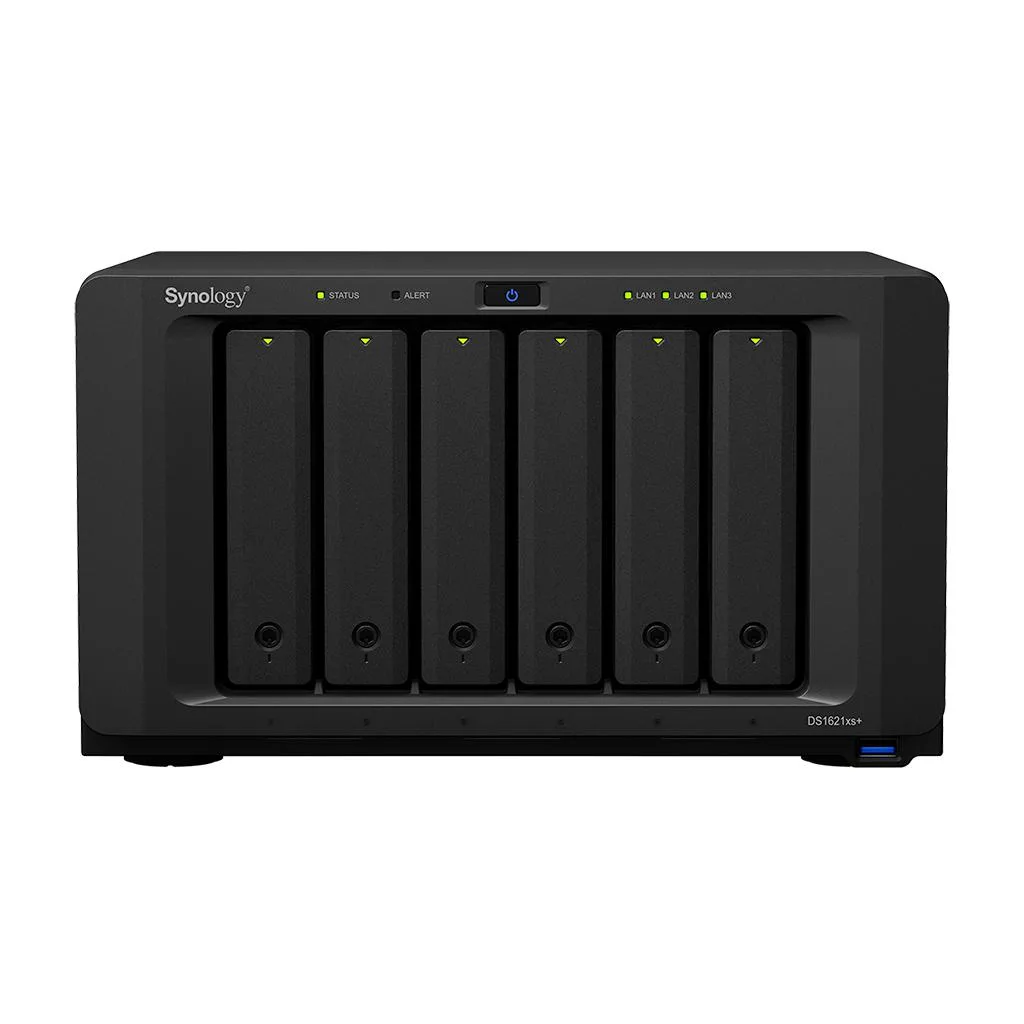

The Synology DiskStation DS1621xs+ is a desktop NAS built around a Xeon D-1527 4-core 2.2 GHz processor with 32 GB DDR4 ECC memory. It ships with 108 TB of raw storage across six 18 TB SATA 3.5-inch drives and a 1 TB M.2 NVMe SSD. The DSM operating system supports iSCSI targets, file storage, email servers, domain controllers, VM and container storage, and large-scale surveillance recording.
Assembly required for drives and memory
The chassis arrives sealed; the six 3.5-inch hard drives and memory upgrades are packaged separately and must be installed before first use. Drive bays use tool-less trays for 3.5-inch SATA disks, while the M.2 slot accepts a 2280 NVMe module. Connectivity includes two 1 GbE ports, one 10 GbE port with link aggregation and failover, three USB 3.2 ports and two eSATA ports. A single power supply feeds the unit.
SATA throughput and single-supply limits
The six SATA drive bays share the backplane bandwidth, so sustained sequential performance is bounded by the SATA interface rather than the 10 GbE uplink. The single power supply means no redundancy if that module fails. Btrfs provides advanced LUN iSCSI features and snapshots, while the Xeon D-1527 tops out at 2.7 GHz turbo for compute-heavy tasks. Buyers needing dual power supplies or PCIe expansion cards should look elsewhere.
Highlights
- Enterprise-grade Xeon D-1527 CPU handles intensive multi-user workloads
- 32GB DDR4 ECC memory protects data integrity during critical operations
- 108TB raw capacity from six 18TB SATA drives stores massive datasets
- 10GbE LAN port with link aggregation accelerates file transfers and VM traffic
- Synology DSM software delivers iSCSI, backup, surveillance and virtualization services
Specifications
| Form Factor | 6-Bay |
|---|---|
| Processor | Intel Xeon |
| Installed Memory | 32GB |
| Included HDD Capacity | 108TB (6 x 18TB) |
Other versions of this model
2 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Synology Inc.
Synology DiskStation DS1621xs+ NAS Xeon D-1527 2.2GHz 32GB 60TB
- 6-Bay
- Intel Xeon
$4,357.99
0.05544375BTC
In stockQuestions about this item
How do I verify the Xeon D-1527 CPU is running at 2.2GHz base and 2.7GHz turbo after setup?
Open Synology DSM Control Panel, go to Info Center, and check the processor details shown there; it will display the Xeon D-1527 with its base and turbo frequencies.
What ships in the box and what must I install myself?
The sealed chassis arrives with 32GB DDR4 ECC SODIMM and six 18TB 3.5" SATA drives included separately; you must install the memory modules and all six drives before first boot.
Which capacity matches the 108TB raw total shown in the title?
The 108TB figure comes from six 18TB SATA drives supplied with this unit; no other drive count or capacity combination is included.
