Compact white two-bay desktop NAS with front drive bays

Synology Inc.

Synology Inc. DS223 2-Bay NAS 2GB DDR4

SKU CH-2ZNB-S3J14 MPN DS223

Two-bay desktop NAS with quad-core 1.7 GHz CPU, 2GB DDR4, and 36TB maximum capacity for centralized storage and private cloud access

  • TypeDesktop NAS
  • Ports1 x 1GbE / 3 x USB 3.2 Gen 1
  • Port RJ-451 x 1GbE
  • Port USB3 x USB 3.2 Gen 1 ports
  • HDD Interface2 x SATA (2 x Bay)
  • Form Factor2-Bay

Form Factor 2-Bay

Option DS223

  • Centralised private cloud stores up to 36 TB of data
  • Quad-core 1.7 GHz CPU handles backup and media streaming
  • Low 17.3 W power draw keeps running costs down
  • Three USB 3.2 Gen 1 ports connect external drives and peripherals
  • Btrfs file system adds snapshots and data integrity protection

Private cloud for home and small office

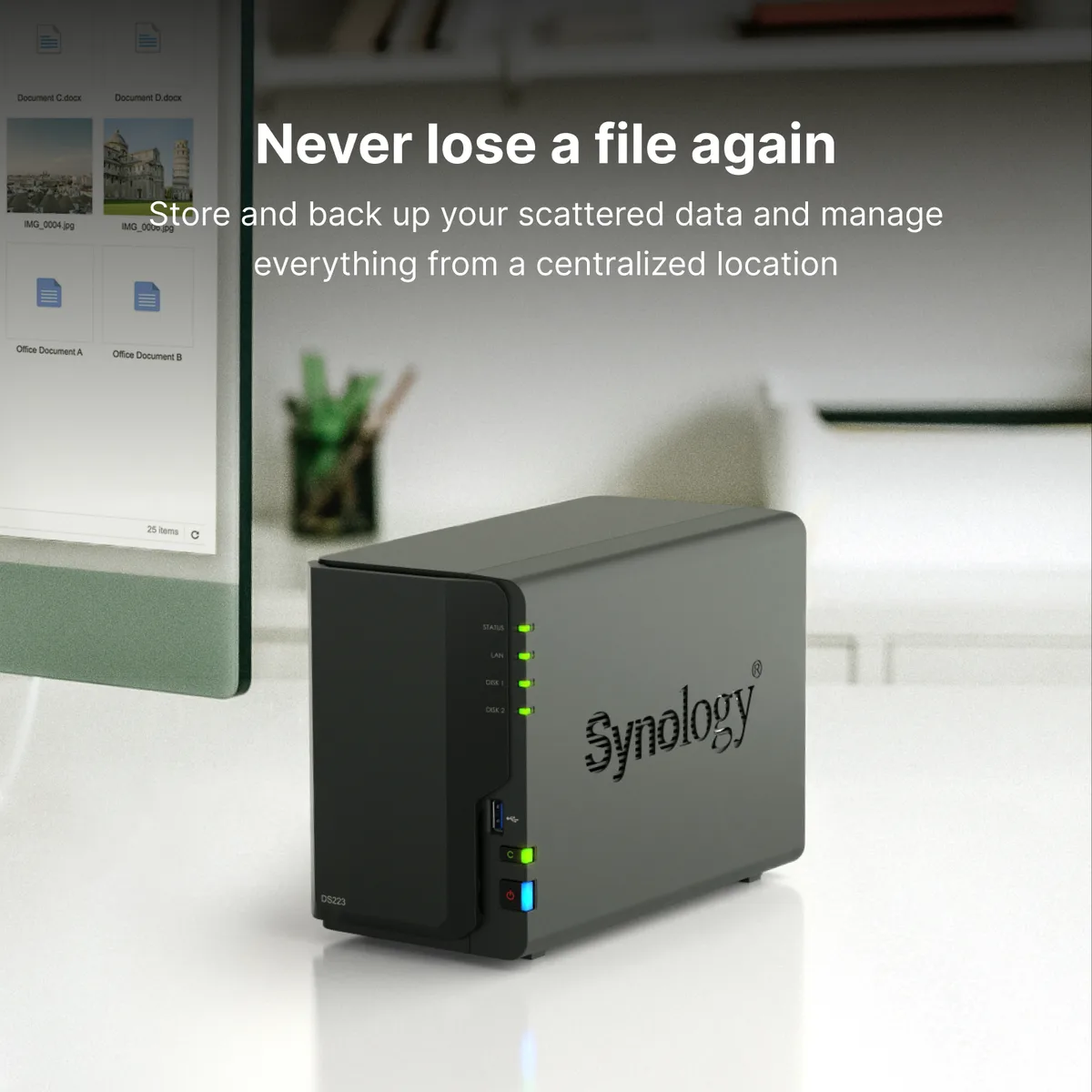

The Synology DS223 is a two-bay desktop NAS that arrives without drives and supports up to 36 TB of raw capacity. It runs a quad-core Realtek RTD1619B processor at 1.7 GHz with 2 GB of DDR4 memory. One 1 GbE port and three USB 3.2 Gen 1 ports handle network and external storage connections. The unit targets households and small teams that want a personal cloud for backup, file sharing and media streaming.

Upgrade from single-drive or USB storage

Moving from a single external drive or basic USB enclosure to the DS223 adds RAID redundancy, centralized access protocols such as SMB, NFS and iSCSI, and on-demand sync with public cloud services. The jump is worth it when data protection, multi-device access and scheduled backups become daily requirements rather than occasional tasks. The 14 % faster import rate noted by the manufacturer helps migrate existing libraries more quickly.

Sustained operation at low power

Under continuous access the system draws 17.343 W, dropping to 4.08 W when the installed drives enter hibernation. The fanless design keeps acoustic output minimal during long backup windows or overnight media indexing. Operating temperature range spans 0 °C to 40 °C, so the chassis remains stable in typical office or closet environments without active cooling.

Highlights

  • Centralised private cloud stores up to 36 TB of data
  • Quad-core 1.7 GHz CPU handles backup and media streaming
  • Low 17.3 W power draw keeps running costs down
  • Three USB 3.2 Gen 1 ports connect external drives and peripherals
  • Btrfs file system adds snapshots and data integrity protection

Specifications

BrandSynology
ModelDS223
TypeDesktop NAS
Ports1 x 1GbE / 3 x USB 3.2 Gen 1
Port RJ-451 x 1GbE
Port USB3 x USB 3.2 Gen 1 ports
HDD Interface2 x SATA (2 x Bay)
Form Factor2-Bay
ProcessorRealtek RTD1619B
Installed Memory2GB DDR4
Included HDD CapacityDiskless System
Max Capacity36TB
Drive Compatibility2 x 3.5" or 2.5" SATA SSD/HDD (drives not included)
Supported ProtocolsSMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP,
OpenVPN™, L2TP
Power100-240 VAC 50/60Hz
Power Consumption17.343 W (Access)
4.08 W (HDD Hibernation)
TemperatureOperating environment
• Temperature: 0°C to 40°C (32°F to 104°F)
Storage environment
• Temperature: -20°C to 60°C (-5°F to 140°F)
HumidityOperating environment
• Relative humidity: 8% to 80% RH
Storage environment
• Relative humidity: 5% to 95% R
Features•Centralized Data Storage
• Easy Sharing & Syncing
• Simple Data Protection
• Intelligent Surveillance
UsageBackup & stream media through personal cloud
Package Contents• 1 x DS223 main unit
• 1 x Quick Installation Guide
• 1 x Accessory pack
• 1 x AC power cord
• 1 x AC power adapter
• 1 x RJ-45 LAN cable
Shipping weight2.18 kg
Package size286 × 273 × 121 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Which drive sizes fit the DS223's two SATA bays?

The unit accepts two 3.5-inch or 2.5-inch SATA hard drives or SSDs, giving a maximum raw capacity of 36 TB.

How do I install drives in the DS223, and what step is often missed?

Slide each drive into a bay until it clicks, then secure it with the provided screws; the step people skip is tightening those screws, which prevents vibration and connection issues.

What ongoing maintenance does the DS223 require?

Keep the operating temperature between 0 °C and 40 °C, clean dust from the ventilation openings periodically, and replace any drive that SMART reports as failing.
