Synology Inc.
Synology Inc. RS2423+ 12-Bay Rackmount NAS 16GB 96TB 1.6TB Cache
A 12-bay rackmount NAS pre-loaded with 96TB of enterprise drives, 16GB RAM, and 1.6TB cache for immediate deployment
- Port RJ-452 x RJ-45 1GbE (with Link Aggregation / Failover support) 1
- Port USB2 x USB 3.2 Gen 1 Port
- Form FactorRackmount
- ProcessorAMD Ryzen
- Installed Memory16GB
- Included HDD Capacity96TB (12 x 8TB)
- 12-bay capacity scales storage to 96 TB with enterprise drives
- 6 TB Synology cache accelerates random read and write IOPS
- AMD Ryzen processor delivers 3,500 MB/s sequential read throughput
- Dual 1GbE plus 10GbE ports enable link aggregation and failover
- Fully assembled and tested so the system is deployment-ready
Ready-to-run 12-bay rack NAS

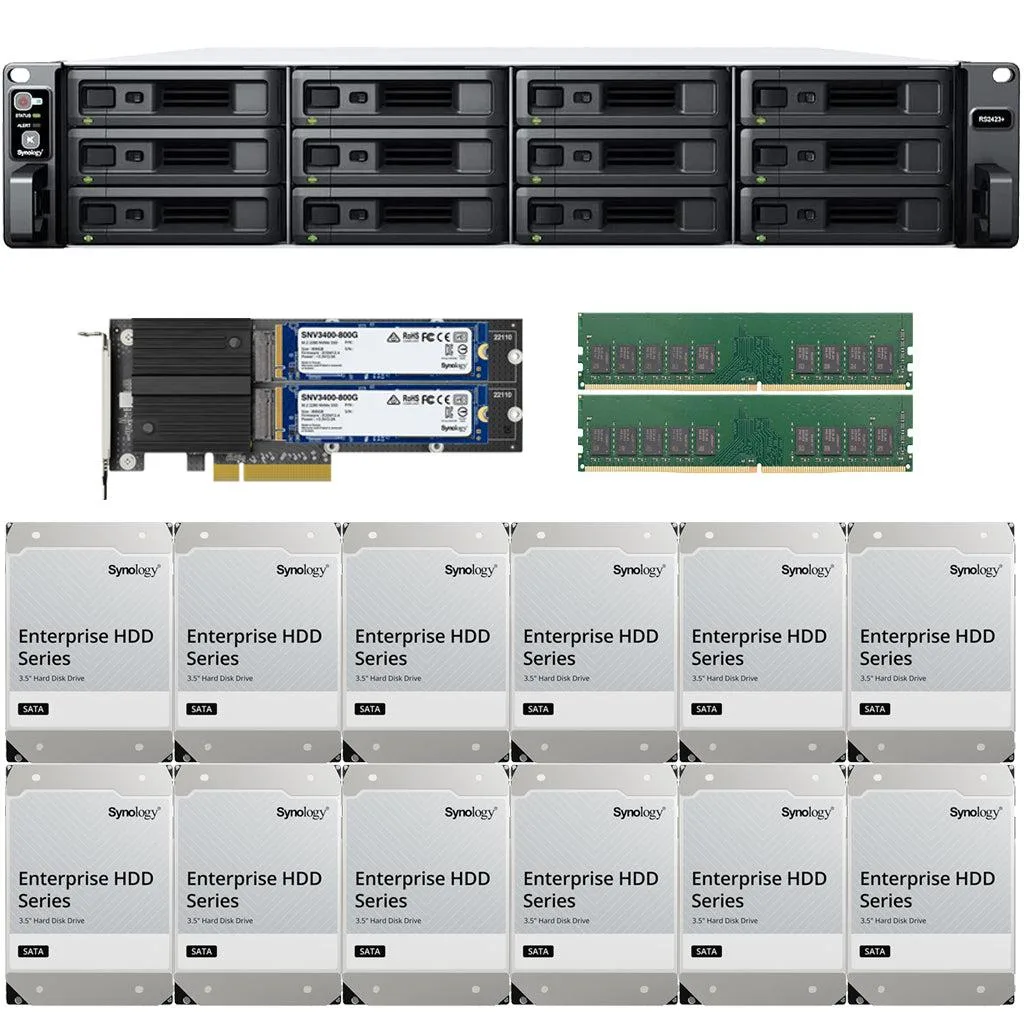

This Synology RS2423+ arrives fully assembled with twelve 8 TB enterprise drives for 96 TB of raw capacity and 16 GB of installed memory. Two 800 GB cache modules on an M2D20 adapter accelerate frequent workloads. The 2U chassis includes dual 1 GbE ports with link aggregation, a single 10 GbE port and two USB 3.2 Gen 1 ports for external storage or backup targets.
10 GbE uplink for high-throughput file access
The onboard 10 GbE RJ-45 port delivers up to 3 500 MB/s sequential read and 1 700 MB/s sequential write throughput with over 155 K random read IOPS and 79 K random write IOPS. This single interface determines whether the unit can saturate modern workgroup links without adding an expansion card.
Suits SMBs needing turnkey capacity and cache
Organisations that want a pre-tested, rack-ready appliance with integrated flash acceleration will benefit. Buyers who require redundant power supplies, more than one 10 GbE port or a different drive count should evaluate other configurations.
Highlights
- 12-bay capacity scales storage to 96 TB with enterprise drives
- 6 TB Synology cache accelerates random read and write IOPS
- AMD Ryzen processor delivers 3,500 MB/s sequential read throughput
- Dual 1GbE plus 10GbE ports enable link aggregation and failover
- Fully assembled and tested so the system is deployment-ready
Specifications
| Brand | Synology |
|---|---|
| Model | RS2423+ |
| Part Number | RS2423+ |
| Port RJ-45 | 2 x RJ-45 1GbE (with Link Aggregation / Failover support) 1 x RJ-45 10GbE |
| Port USB | 2 x USB 3.2 Gen 1 Port |
| Form Factor | Rackmount |
| Processor | AMD Ryzen |
| Installed Memory | 16GB |
| Included HDD Capacity | 96TB (12 x 8TB) |
| Management | Web-Based, DHCP Client |
| Power | 100-240 VAC 50/60Hz |
| Temperature | 0°C - 35 °C |
| Humidity | 5-95% R.H |
| Dimensions | 88 mm x 482 mm x 552 mm |
| Weight | 11.5 kg (DISKLESS) |
| Package Contents | Main Unit X 1 Accessory Pack X 1 AC Power Cord X 1 Quick Installation Guide X 1 |
Questions about this item
What does 155K random read IOPS mean when the RS2423+ is running real workloads?
The 155K figure is a peak random-read benchmark; actual IOPS will depend on the workload mix, file sizes and the 12 x 8TB enterprise drives installed.
How does the single 10GbE port limit network throughput in practice?
The one 10GbE RJ-45 port caps peak sequential transfers at roughly 3,500 MB/s read and 1,700 MB/s write, while the two 1GbE ports handle lighter traffic or failover.
What rack space and depth does the RS2423+ need to mount?
It occupies 2U of height (88 mm) and requires a rack at least 552 mm deep, weighing 11.5 kg without drives.
