Seagate
Seagate Cheetah NS ST3400755SSProduct 400 GB 3.5" SAS internal hard drive
- SLC
$23.99
0.00030521BTC
In stock
Synology Inc.
Synology Inc. RS3626xs rackmount NAS Xeon D-1726 48GB 1.6TB cache 240TB (12x20TB)
12-bay 2U rackmount NAS with Xeon D-1726 CPU, 48GB DDR4, 1.6TB cache and 240TB of enterprise drives pre-installed
- Port RJ-452 x RJ-45 10GbE LAN Port 1 x Out-of-Band Management LAN Port
- Port USB2 x USB 3.2 Gen 1 Ports
- Form Factor12-Bay
- ProcessorIntel Xeon
- Installed Memory48GB
- Included HDD Capacity240TB (12 x 20TB)
- 12-bay capacity scales to 240TB raw storage
- 48GB DDR4 ECC memory handles virtualization workloads
- 6TB Synology Enterprise cache accelerates frequent data access
- Dual 10GbE ports enable link aggregation and failover
- 2U rackmount form factor fits standard server cabinets

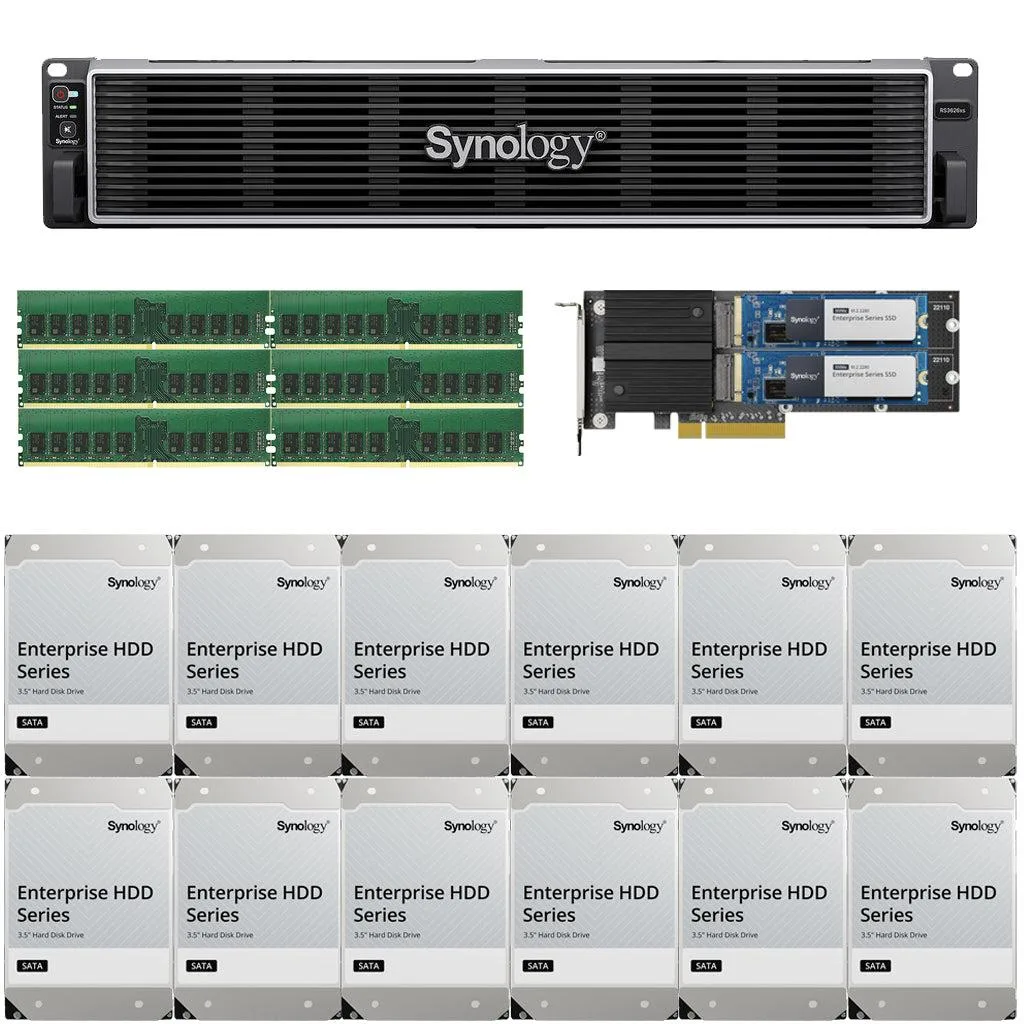

Synology RS3626xs 12-bay rackmount NAS
The Synology RS3626xs is a 2U rackmount network-attached storage server with twelve drive bays. It ships fully assembled and tested with twelve 20TB enterprise drives providing 240TB of raw capacity. An Intel Xeon D-1726 processor and 48GB of DDR4 memory power the platform for business workloads.
Suited for high-capacity centralised storage
This unit fits organisations that need a single appliance for large-scale file storage, backup, virtualization or surveillance. Buyers who require more than twelve drive bays or higher single-thread CPU performance for specialised compute tasks should evaluate alternative configurations.
Dual 10GbE RJ-45 ports with Link Aggregation
Two integrated 10GbE RJ-45 ports support Link Aggregation for increased throughput, load balancing and network failover. Sequential read performance exceeds 6,300 MB/s and write exceeds 3,700 MB/s under vendor test conditions. Two PCIe Gen 4 x8 slots allow future network or cache upgrades.
Highlights
- 12-bay capacity scales to 240TB raw storage
- 48GB DDR4 ECC memory handles virtualization workloads
- 6TB Synology Enterprise cache accelerates frequent data access
- Dual 10GbE ports enable link aggregation and failover
- 2U rackmount form factor fits standard server cabinets
Specifications
| Brand | Synology |
|---|---|
| Model | RS3626xs |
| Port RJ-45 | 2 x RJ-45 10GbE LAN Port 1 x Out-of-Band Management LAN Port |
| Port USB | 2 x USB 3.2 Gen 1 Ports |
| Form Factor | 12-Bay |
| Processor | Intel Xeon |
| Installed Memory | 48GB |
| Included HDD Capacity | 240TB (12 x 20TB) |
| Management | Web-Based, DHCP Client |
| LEDs | Power, HDD (Hard Disk Drive), LAN (10/100) |
| Power | 100-240 VAC 50/60Hz |
| Temperature | 0°C to 35°C (32°F to 95°F) |
| Humidity | 8% to 80% RH |
| Dimensions | 88 mm × 482 mm × 724 mm |
| Weight | 14.5 kg |
| Package Contents | Main Unit × 1 Accessory Pack × 1 C13 to C14 power cord × 2 Front Cover × 1 All Configuration Items |
Questions about this item
What rack space and power connections does the RS3626xs need to operate?
The RS3626xs occupies a 2U rack space and requires two C13 to C14 power cords connected to 100-240 VAC 50/60Hz sources.
Can the twelve 20TB Synology Enterprise NAS drives be mixed with older SATA drives in the same volume?
The RS3626xs supports twelve 3.5-inch SATA HDDs or 2.5-inch SATA SSDs; mixing drive types is possible but volume performance will follow the slowest drive.
How do I confirm the 1.6TB cache and 10GbE ports are active after setup?
In DSM Storage Manager verify the two 800GB cache drives show as Read-Write cache, and in Control Panel Network check both 10GbE RJ-45 ports report link speeds of 10Gbps.
