Black 12-bay 2U rackmount chassis with dual 500W redundant power supplies

Synology Inc.

Synology Inc. RX1217RP 12-bay rackmount NAS (2×500W)

SKU CH-V0S0-ZB0RV MPN RX1217RP

Twelve SATA drive bays add raw capacity to a Synology RackStation with redundant 500 W power supplies for continuous uptime

  • HDD Interface12 x SATA (12 x Bay)
  • PowerPower Supply Unit / Adapter: 2 x 500W AC Input Power Voltage
  • FeaturesPlug-n-use design for seamless storage space upgrade Online
  • TemperatureOperating Temperature: 5 ~ 35 degree Celsius (40 ~ 95 degree
  • Humidity5-95% R.H

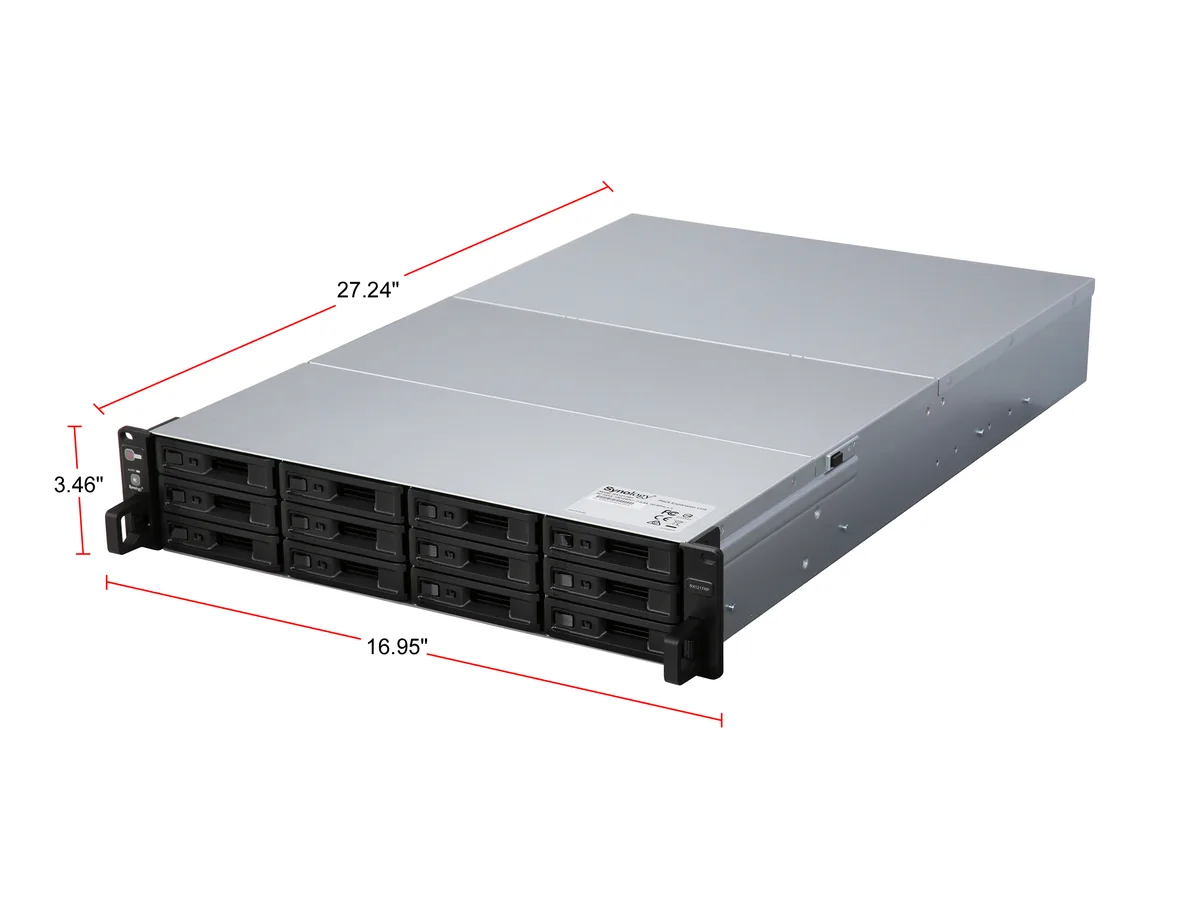

  • Dimensions3.46" x 16.95" x 27.24"

Option RX1217RP

  • 12 drive bays expand rackmount storage instantly
  • Dual 500W redundant power supplies protect uptime
  • Plug-and-use design adds capacity without reformatting
  • Online volume expansion grows storage on the fly
  • Managed centrally through Synology DiskStation Manager

Expansion Unit for Synology RackStation

The Synology RX1217RP is a twelve-bay rackmount expansion unit that attaches to a compatible Synology RackStation to add raw storage capacity. It ships without drives and draws power from two 500 W redundant supplies that accept 100 to 240 V AC at 50 or 60 Hz. The unit connects through a single Infiniband expansion cable and is managed entirely through the host's DiskStation Manager.

Ideal for RackStation owners needing more bays

This unit suits administrators who have a supported Synology RackStation with an available expansion port and want to add up to twelve SATA drives without reformatting existing volumes. It is not for buyers who need a standalone NAS, direct-attached storage via USB, or expansion for non-Synology servers because the unit requires a specific host connection and DSM management.

Twelve SATA drive bays with redundant power

The chassis provides twelve SATA 6 Gb/s drive bays and dual 500 W power supplies for automatic failover. Online volume expansion lets you grow storage on the fly while the system stays online. Operating temperature range is 5 to 35 °C.

Highlights

  • 12 drive bays expand rackmount storage instantly
  • Dual 500W redundant power supplies protect uptime
  • Plug-and-use design adds capacity without reformatting
  • Online volume expansion grows storage on the fly
  • Managed centrally through Synology DiskStation Manager

Specifications

BrandSynology
ModelRX1217RP
HDD Interface12 x SATA (12 x Bay)
PowerPower Supply Unit / Adapter: 2 x 500W
AC Input Power Voltage: 100V to 240V AC
Power Frequency: 50/60 Hz, Single Phase
FeaturesPlug-n-use design for seamless storage space upgrade
Online volume expansion on the fly
Redundant power supplies ensure service uptime (RX1217RP only)
Managed from Synology DiskStation Manager (DSM)
TemperatureOperating Temperature: 5 ~ 35 degree Celsius (40 ~ 95 degree Fahrenheit)
Storage Temperature: -20 ~ 60 degree Celsius (-5 ~ 140 degree Fahrenheit)
Humidity5-95% R.H
Dimensions3.46" x 16.95" x 27.24"
Weight29.54 lbs.
Package Contents1 x Main Unit
1 x Accessory Pack
1 x AC Power Cord
2 x AC Power Cord
Expansion Cable: 1 x Infiniband
1 x Quick Installation Guide
Shipping weight18.71 kg
Package size853 × 620 × 229 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud or hot does the RX1217RP get when running 24/7 with both 500W supplies active?

The unit operates between 5 and 35°C ambient temperature; redundant 500W supplies share the load and automatically fail over if one fails, keeping the enclosure within that range during continuous use.

What existing Synology RackStation and cable are required before the RX1217RP can be used?

It connects via the included Infiniband expansion cable to a compatible Synology RackStation managed through DiskStation Manager; no reformatting of existing drives is needed.

Will the twelve SATA bays work with older 3Gb/s or 6Gb/s drives I already own?

Yes, the twelve SATA 6Gb/s bays accept existing SATA drives and the system supports online volume expansion so you can add them without downtime.
