Synology Inc.

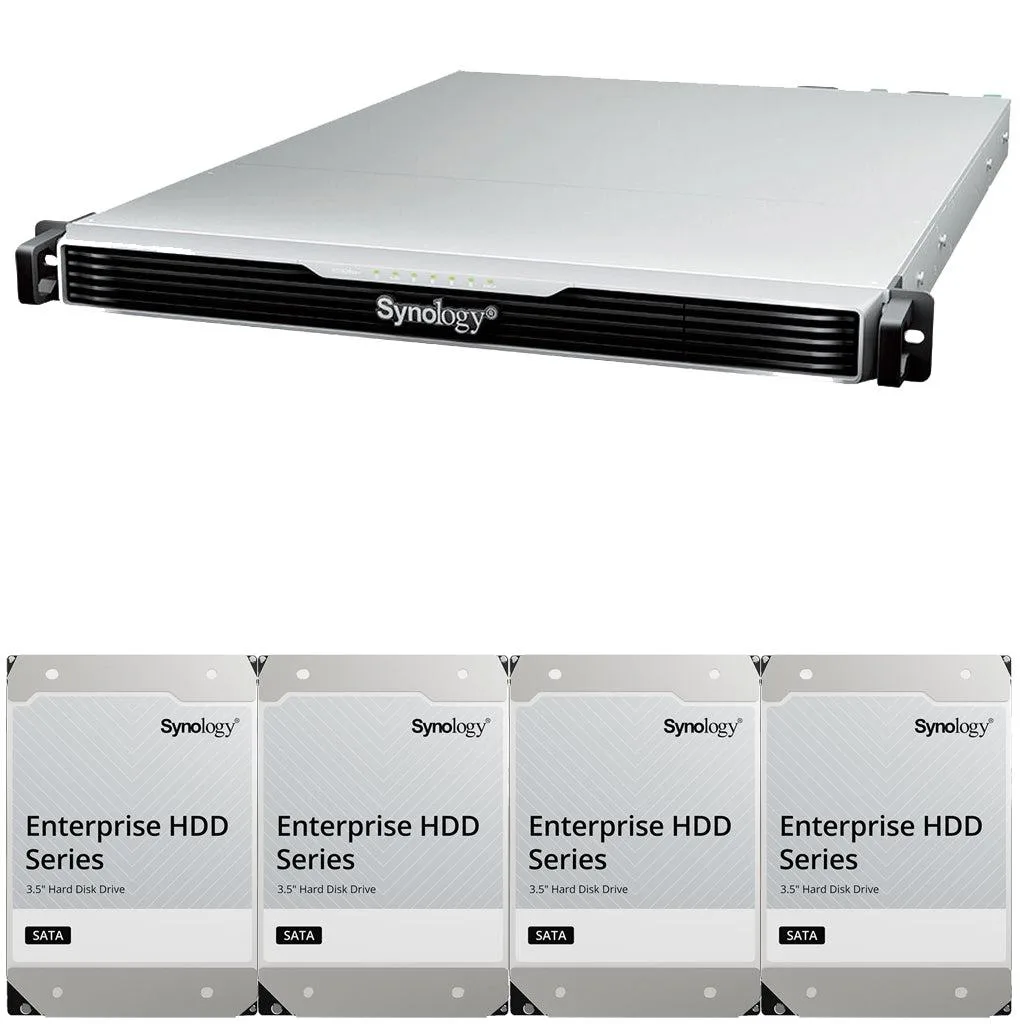

Synology RS1626xs+ Intel Xeon D-1726 4-Bay Rackmount NAS 16GB RAM 80TB
A 4-bay 1U rackmount NAS with Intel Xeon D-1726 processor, 16GB DDR4 ECC memory, dual 10GbE ports, and 80TB of enterprise drives pre-installed
- Port RJ-452 x RJ-45 10GbE LAN Port 1 x Out-of-Band Management LAN Port
- Port USB2 x USB 3.2 Gen 1 Ports
- Form Factor4-Bay
- ProcessorIntel Xeon
- Installed Memory16GB
- Included HDD Capacity80TB (4 x 20TB)
- Intel Xeon D-1726 6-core processor handles virtualization workloads
- Dual 10GbE RJ-45 ports deliver high-speed network connectivity
- 16GB DDR4 ECC memory protects data integrity under load
- 80TB Synology Enterprise drives provide mission-critical storage capacity
- PCIe Gen4 x8 slot enables future expansion flexibility
4-bay enterprise rack NAS
The Synology RS1626xs+ is a 1U rackmount network-attached storage server built for businesses that require high-throughput file services, virtualization hosting and backup consolidation. It ships fully assembled with an Intel Xeon D-1726 processor, 16GB DDR4 ECC memory and four 20TB enterprise drives delivering 80TB raw capacity.
Dual 10GbE and expansion slot
Two onboard 10GbE RJ-45 ports provide high-speed LAN connectivity without extra cards, while a dedicated out-of-band management port keeps administration separate. A PCIe Gen4 x8 slot and dual M.2 NVMe slots allow cache or networking upgrades, and a compatible expansion unit can extend the system to sixteen drive bays.
80TB raw with 64GB memory ceiling
The installed 80TB array handles large media libraries, VM datastores and multi-site replication workloads. Memory can be expanded to 64GB for heavier virtualization or deduplication tasks. Builds that need more than four drives or higher single-thread performance will require a larger chassis or a different processor class.
Highlights
- Intel Xeon D-1726 6-core processor handles virtualization workloads
- Dual 10GbE RJ-45 ports deliver high-speed network connectivity
- 16GB DDR4 ECC memory protects data integrity under load
- 80TB Synology Enterprise drives provide mission-critical storage capacity
- PCIe Gen4 x8 slot enables future expansion flexibility
Specifications
| Brand | Synology |
|---|---|
| Model | RS1626xs+ |
| Port RJ-45 | 2 x RJ-45 10GbE LAN Port 1 x Out-of-Band Management LAN Port |
| Port USB | 2 x USB 3.2 Gen 1 Ports |
| Form Factor | 4-Bay |
| Processor | Intel Xeon |
| Installed Memory | 16GB |
| Included HDD Capacity | 80TB (4 x 20TB) |
| Management | Web-Based, DHCP Client |
| LEDs | Power, HDD (Hard Disk Drive), LAN (10/100) |
| Power | 100-240 VAC 50/60Hz |
| Temperature | 5°C - 35 °C |
| Humidity | 8% to 80% RH |
| Dimensions | 44 mm × 481.9 mm × 668.5 mm |
| Weight | 9.5 kg |
| Package Contents | Main Unit × 1 Accessory Pack × 1 C13 to C14 power cord × 2 Front Cover × 1 All Configuration Items |
Questions about this item
What is the first thermal limit the RS1626xs+ hits during sustained workloads?
The operating temperature range tops out at 35°C, so sustained heavy loads will reach that ceiling before any other limit.
How much noise and heat does the 9.5 kg 1U chassis produce when running 24/7?
Dual 10GbE ports, dual M.2 NVMe slots and a PCIe Gen4 x8 slot draw continuous power, so the twin fans run steadily and exhaust measurable heat into the rack.
Which drives must already be installed for the 80TB array to work out of the box?
Four 20TB Synology Enterprise NAS drives come pre-fitted, so no additional drives are required to start using the full capacity.
