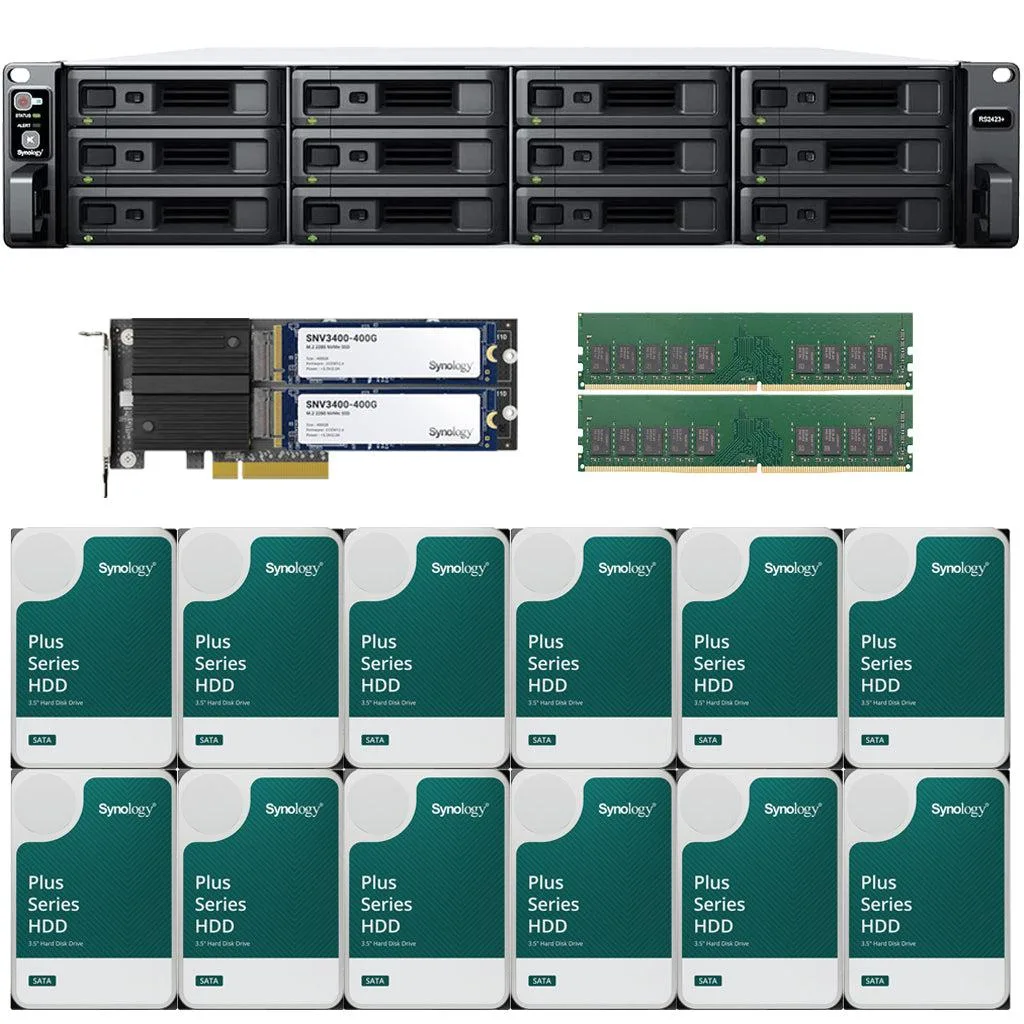

Black 12-bay rackmount NAS unit with front drive trays and rear ports

Synology Inc.

Synology RS2423+ 12-Bay Rackmount NAS 32GB 48TB Plus Series 800GB Cache

SKU CH-S7HH-F9MHP

A 12-bay rackmount NAS with 48 TB of storage, 32 GB RAM, 800 GB cache and 10 GbE connectivity for SMB file sharing and backup

  • Port RJ-452 x RJ-45 1GbE (with Link Aggregation / Failover support) 1
  • Port USB2 x USB 3.2 Gen 1 Port
  • Form FactorRackmount
  • ProcessorAMD Ryzen
  • Installed Memory32GB
  • Included HDD Capacity48TB (12 x 4TB)

Installed Memory 32GB

Included HDD Capacity 48TB (12 x 4TB)

  • 12 drive bays deliver 48 TB of ready-to-use storage
  • AMD Ryzen processor powers 155 K random read IOPS
  • 32 GB installed memory handles heavy workloads
  • 800 GB Synology cache accelerates frequent data access
  • Two 1 GbE ports plus one 10 GbE port enable link aggregation

12-Bay Rackmount NAS for SMBs

The Synology RS2423+ is a 12-bay rackmount network-attached storage server designed for small and medium businesses needing centralised file management and backup. It arrives fully assembled with twelve 4TB Plus Series drives providing 48TB of raw capacity, 32GB of installed memory, and an M2D20 adapter populated with two 400GB cache modules totalling 800GB.

Network limits and throughput

Connectivity relies on two 1GbE RJ-45 ports supporting link aggregation and failover plus a single 10GbE RJ-45 port for higher-speed uplinks. The system delivers up to 3,500 MB/s sequential read and 1,700 MB/s sequential write throughput, with random performance reaching 155K read IOPS and 79K write IOPS under test conditions.

Installation notes and common issues

The unit mounts in a standard rack using the included accessory pack and connects via a universal 100-240 VAC power cord; a quick installation guide covers initial web-based setup and DHCP configuration. Operators must keep the ambient temperature between 0°C and 35°C with humidity up to 95% non-condensing, as exceeding these environmental limits is the most frequent cause of early hardware faults.

Highlights

  • 12 drive bays deliver 48 TB of ready-to-use storage
  • AMD Ryzen processor powers 155 K random read IOPS
  • 32 GB installed memory handles heavy workloads
  • 800 GB Synology cache accelerates frequent data access
  • Two 1 GbE ports plus one 10 GbE port enable link aggregation

Specifications

BrandSynology
ModelRS2423+
Part NumberRS2423+
Port RJ-452 x RJ-45 1GbE (with Link Aggregation / Failover support)
1 x RJ-45 10GbE
Port USB2 x USB 3.2 Gen 1 Port
Form FactorRackmount
ProcessorAMD Ryzen
Installed Memory32GB
Included HDD Capacity48TB (12 x 4TB)
ManagementWeb-Based, DHCP Client
Power100-240 VAC 50/60Hz
Temperature0°C - 35 °C
Humidity5-95% R.H
Dimensions88 mm x 482 mm x 552 mm
Weight11.5 kg (DISKLESS)
Package ContentsMain Unit X 1
Accessory Pack X 1
AC Power Cord X 1
Quick Installation Guide X 1

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How many drive bays does the RS2423+ have and what total raw capacity is included?

The chassis provides twelve bays and ships with twelve 4 TB Synology Plus Series drives for 48 TB of raw storage.

What sequential throughput can the RS2423+ deliver with this drive set?

Up to 3,500 MB/s sequential read and 1,700 MB/s sequential write, plus 155 K random read and 79 K random write IOPS.

Which network ports are on the RS2423+ and what speeds do they support?

Two 1 GbE RJ-45 ports with link aggregation or failover, plus one 10 GbE RJ-45 port for higher bandwidth.
