Synology Inc.
Synology RS3626xs 12-Bay Rackmount NAS 16GB 96TB 10GbE
Twelve-bay rackmount NAS with Intel Xeon D-1726, 16 GB DDR4, dual 10GbE ports and 96 TB of enterprise drives pre-installed
- Port RJ-452 x RJ-45 10GbE LAN Port 1 x Out-of-Band Management LAN Port
- Port USB2 x USB 3.2 Gen 1 Ports
- Form Factor12-Bay
- ProcessorIntel Xeon
- Installed Memory16GB
- Included HDD Capacity96TB (12 x 8TB)
- Intel Xeon D-1726 powers demanding workloads
- 16 GB DDR4 ECC memory handles virtualization smoothly
- Two 10GbE RJ-45 ports deliver high-speed network throughput
- Twelve 8 TB enterprise drives provide 96 TB raw capacity
- Redundant power supplies protect service from single failure

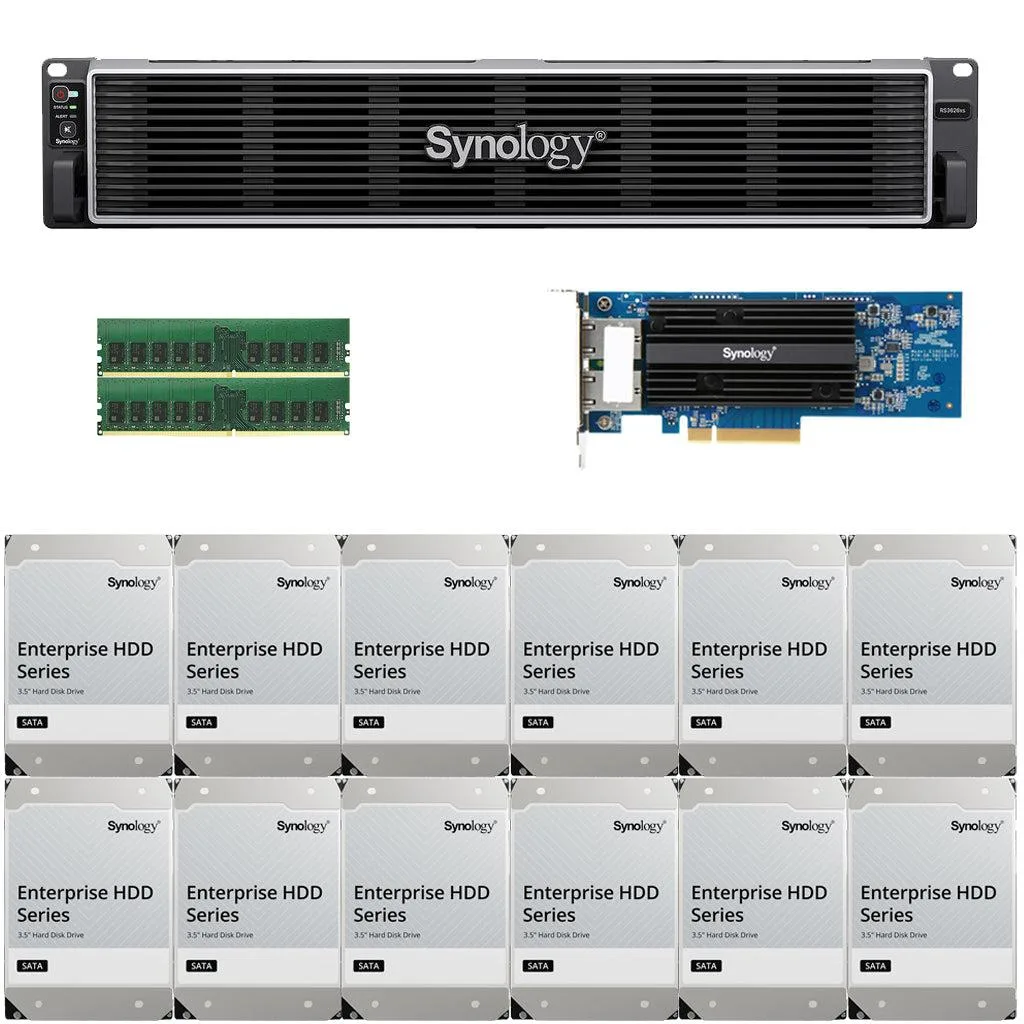

12-bay rackmount NAS with 96 TB
The Synology RS3626xs is a 2U rackmount network-attached storage server that arrives fully assembled with twelve 8 TB enterprise hard drives for 96 TB of raw capacity. An Intel Xeon D-1726 processor and 16 GB of DDR4 ECC memory drive file, virtualization and surveillance workloads. Redundant power supplies protect uptime.
Who this suits and who should look elsewhere
IT teams needing high-capacity, rack-dense storage with 10 GbE connectivity and room to expand via PCIe Gen 4 slots will find a ready-to-run platform. Buyers who want more than twelve drive bays or who require 25 GbE or Fibre Channel adapters out of the box should evaluate other models.
96 TB of pre-installed enterprise drives
Twelve Synology 8 TB SATA HDDs are installed and tested, delivering 96 TB before RAID configuration. The Xeon D-1726 and 16 GB DDR4 ECC memory support demanding multi-user access. Two 10GBASE-T ports and two PCIe Gen 4 x8 slots provide network and caching expansion.
Highlights
- Intel Xeon D-1726 powers demanding workloads
- 16 GB DDR4 ECC memory handles virtualization smoothly
- Two 10GbE RJ-45 ports deliver high-speed network throughput
- Twelve 8 TB enterprise drives provide 96 TB raw capacity
- Redundant power supplies protect service from single failure
Specifications
| Brand | Synology |
|---|---|
| Model | RS3626xs |
| Port RJ-45 | 2 x RJ-45 10GbE LAN Port 1 x Out-of-Band Management LAN Port 2 x 10GbE 10GBASE-T |
| Port USB | 2 x USB 3.2 Gen 1 Ports |
| Form Factor | 12-Bay |
| Processor | Intel Xeon |
| Installed Memory | 16GB |
| Included HDD Capacity | 96TB (12 x 8TB) |
| Management | Web-Based, DHCP Client |
| LEDs | Power, HDD (Hard Disk Drive), LAN (10/100) |
| Power | 100-240 VAC 50/60Hz |
| Temperature | 0°C to 35°C (32°F to 95°F) |
| Humidity | 8% to 80% RH |
| Dimensions | 88 mm × 482 mm × 724 mm |
| Weight | 14.5 kg |
| Package Contents | Main Unit × 1 Accessory Pack × 1 C13 to C14 power cord × 2 Front Cover × 1 All Configuration Items |
Questions about this item
What rack depth and power supply are required to install the RS3626xs?
The 2U chassis measures 724 mm deep and needs two C13-to-C14 cords fed from a 100-240 VAC 50/60 Hz source.
Can the existing 1 GbE switch ports be used with the 10GBASE-T interfaces?
Yes, the two 10GBASE-T RJ-45 ports auto-negotiate down to 1 GbE so they work with current copper switches.
Which front-panel LEDs confirm the RS3626xs is operating normally after power-on?
The Power LED stays solid, each drive bay LED shows steady or blinking green for healthy RAID activity, and the LAN LEDs light for link and blink for traffic.
