Synology Inc.
Synology RS3626xs 12-Bay rackmount NAS Xeon D-1726 8GB 288TB (12 x 24TB)
A 12-bay rackmount NAS holding 288 TB across twelve 24 TB drives, powered by a Xeon D-1726 with 8 GB DDR4 and dual 10 GbE ports
- Port RJ-452 x RJ-45 10GbE LAN Port 1 x Out-of-Band Management LAN Port
- Port USB2 x USB 3.2 Gen 1 Ports
- Form Factor12-Bay
- ProcessorIntel Xeon
- Installed Memory8GB
- Included HDD Capacity288TB (12 x 24TB)
- Ready for deployment with 288TB pre-installed
- 12-core Xeon D-1726 handles heavy workloads
- Dual 10GbE ports enable Link Aggregation
- Two PCIe Gen 4 x8 slots for future expansion
- Redundant power supplies protect uptime
Enterprise 12-bay rackmount NAS

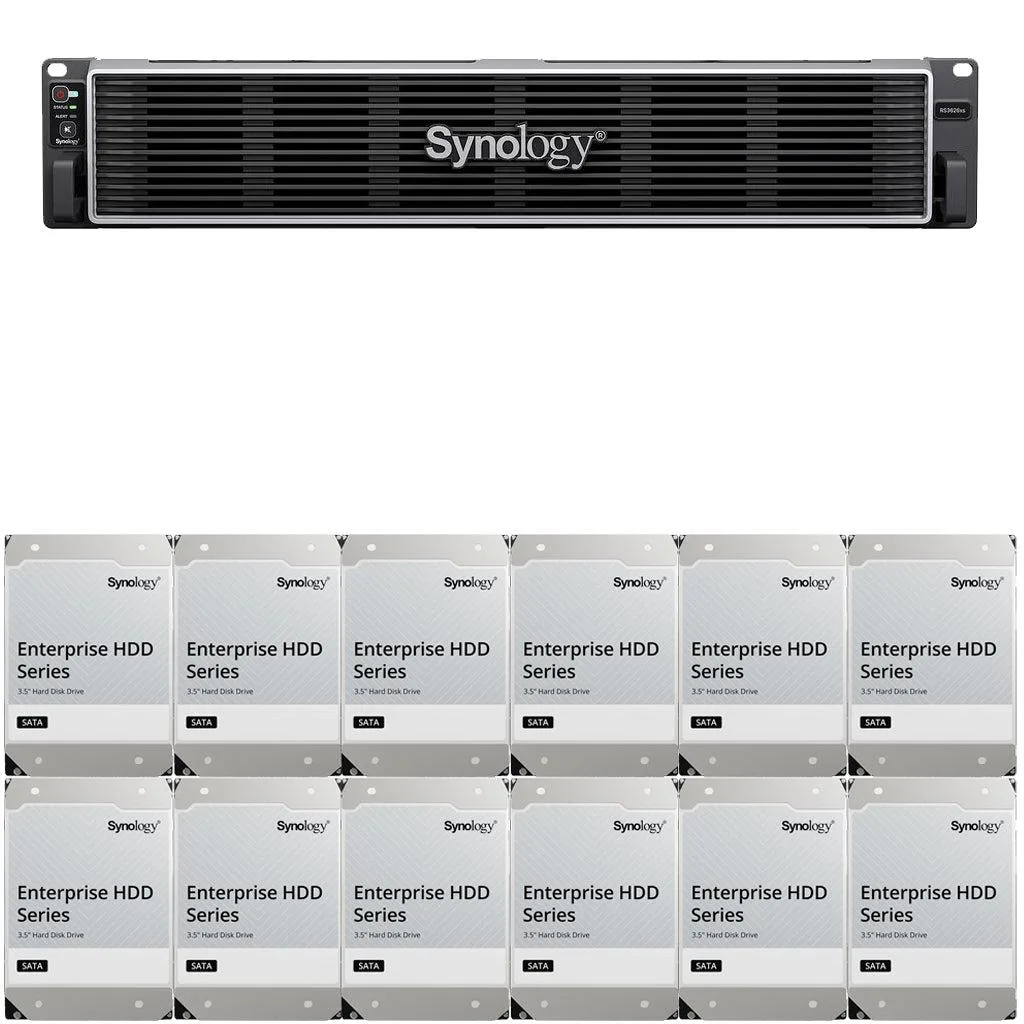

The Synology RS3626xs is a 2U rackmount network-attached storage server built for organisations that need high-capacity, centralised file storage and data protection. It arrives fully assembled with twelve 24 TB Synology Enterprise drives for 288 TB of raw capacity. A 6-core Intel Xeon D-1726 processor and 8 GB of DDR4 ECC memory provide a dependable platform for virtualization, surveillance and multi-site collaboration workloads.
Thermals noise and power draw
The unit operates within a 0 °C to 35 °C temperature range and 8 % to 80 % relative humidity. Redundant power supplies accept 100-240 VAC at 50/60 Hz and protect service availability from a single power-supply failure. Front-panel LEDs show power, drive and 10/100 LAN status for quick health checks during normal operation.
Build integration and expansion
Twelve 3.5-inch SATA drive bays support HDDs or 2.5-inch SATA SSDs, while two PCIe Gen 4 x8 slots allow the addition of compatible 10GbE or 25GbE network adapters, Fibre Channel connectivity or SSD caching hardware. Two integrated 10GbE RJ-45 ports support Link Aggregation for bandwidth scaling and failover, and an out-of-band management port simplifies remote administration.
Highlights
- Ready for deployment with 288TB pre-installed
- 12-core Xeon D-1726 handles heavy workloads
- Dual 10GbE ports enable Link Aggregation
- Two PCIe Gen 4 x8 slots for future expansion
- Redundant power supplies protect uptime
Specifications
| Brand | Synology |
|---|---|
| Model | RS3626xs |
| Port RJ-45 | 2 x RJ-45 10GbE LAN Port 1 x Out-of-Band Management LAN Port |
| Port USB | 2 x USB 3.2 Gen 1 Ports |
| Form Factor | 12-Bay |
| Processor | Intel Xeon |
| Installed Memory | 8GB |
| Included HDD Capacity | 288TB (12 x 24TB) |
| Management | Web-Based, DHCP Client |
| LEDs | Power, HDD (Hard Disk Drive), LAN (10/100) |
| Power | 100-240 VAC 50/60Hz |
| Temperature | 0°C to 35°C (32°F to 95°F) |
| Humidity | 8% to 80% RH |
| Dimensions | 88 mm × 482 mm × 724 mm |
| Weight | 14.5 kg |
| Package Contents | Main Unit × 1 Accessory Pack × 1 C13 to C14 power cord × 2 Front Cover × 1 All Configuration Items |
Questions about this item
How do I install the twelve 24TB drives into the 12-bay chassis, and which step is commonly missed?
Slide each drive into its tray until the latch clicks, then insert trays until they lock; the step often missed is confirming every drive appears in DSM before creating a storage pool.
What maintenance will the pre-installed 24TB Synology Enterprise drives need later?
Monitor SMART health in DSM, replace any drive that reports reallocated sectors or excessive bad blocks, and keep firmware current via DSM updates.
What limit appears first under sustained heavy workloads on this Xeon D-1726 system?
The 8GB DDR4 ECC memory ceiling is reached first; DSM will swap to disk once active workloads exceed the installed 8GB.
