Synology Inc.

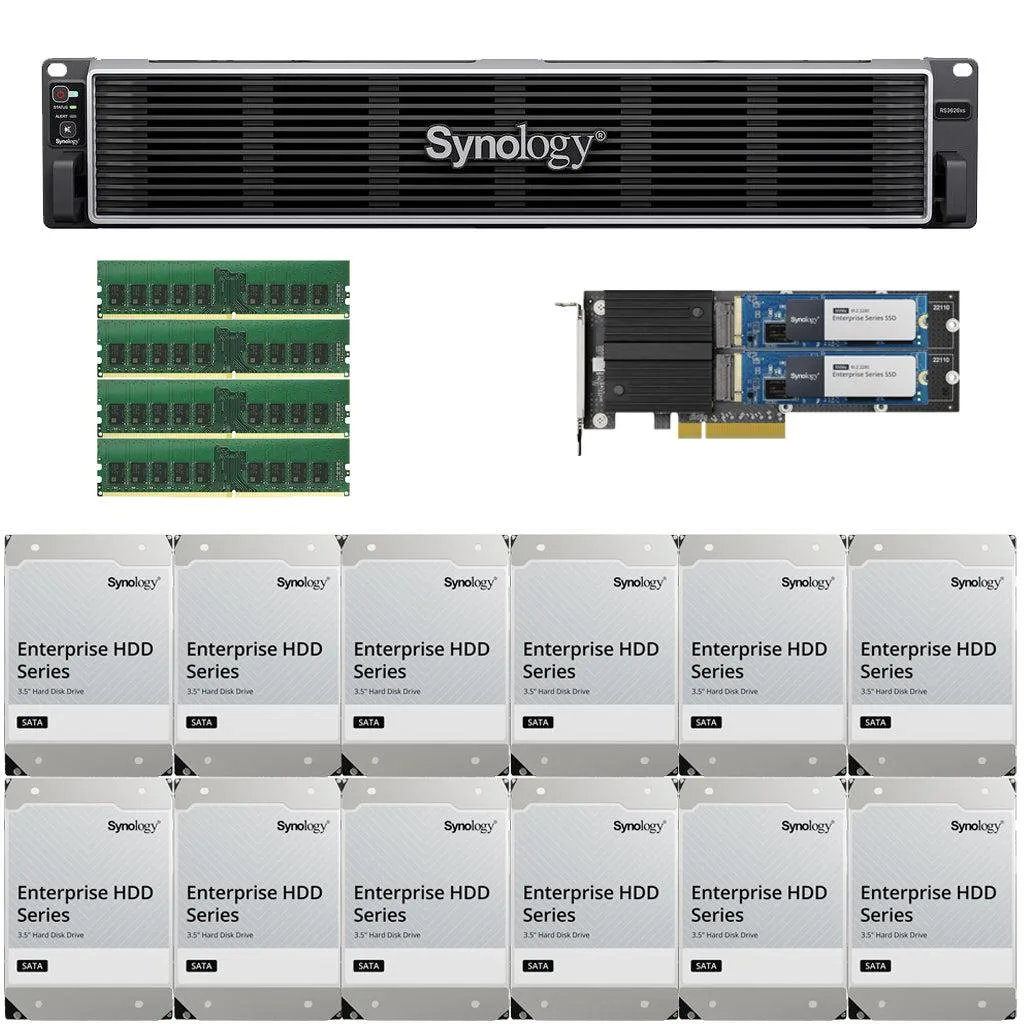

Synology RS3626xs Intel Xeon D-1726 12-Bay Rackmount NAS 32GB RAM 800GB Cache 192TB Drives
A 12-bay rackmount NAS with 192 TB of pre-installed enterprise drives, 32 GB DDR4 memory, 800 GB cache and dual 10GbE ports
- Port RJ-452 x RJ-45 10GbE LAN Port 1 x Out-of-Band Management LAN Port
- Port USB2 x USB 3.2 Gen 1 Ports
- Form Factor12-Bay
- ProcessorIntel Xeon
- Installed Memory32GB
- Included HDD Capacity192TB (12 x 16TB)
- 12-bay rackmount design scales storage to 192TB
- Intel Xeon D-1726 6-core processor powers demanding workloads
- 32GB DDR4 ECC memory handles multi-tasking smoothly
- 800GB Synology Enterprise cache accelerates frequent data access
- Dual 10GbE RJ-45 ports enable high-speed network throughput
12-Bay Rackmount NAS with Xeon D-1726
The Synology RS3626xs is a 2U, 12-bay enterprise NAS powered by a 6-core Intel Xeon D-1726 processor. It ships fully assembled with 32GB DDR4 ECC memory, 800GB of enterprise cache, and twelve 16TB Synology drives providing 192TB total capacity. Designed for centralised file storage, virtualisation, and multi-site collaboration.
Suits teams needing integrated 10GbE
Two built-in 10GbE RJ-45 ports support link aggregation and failover for high-throughput workloads. Two PCIe Gen 4 x8 slots allow adding 25GbE, Fibre Channel, or additional caching cards. Organisations requiring higher compute density or GPU acceleration should evaluate alternative platforms.
192TB raw capacity with 800GB cache tier
The array delivers 192TB raw storage across twelve 3.5-inch SATA bays populated with Synology Enterprise drives. A dedicated 800GB cache layer accelerates frequent read and write operations. Buyers needing larger single volumes or different drive formats must plan expansion separately.
Highlights
- 12-bay rackmount design scales storage to 192TB
- Intel Xeon D-1726 6-core processor powers demanding workloads
- 32GB DDR4 ECC memory handles multi-tasking smoothly
- 800GB Synology Enterprise cache accelerates frequent data access
- Dual 10GbE RJ-45 ports enable high-speed network throughput
Specifications
| Brand | Synology |
|---|---|
| Model | RS3626xs |
| Port RJ-45 | 2 x RJ-45 10GbE LAN Port 1 x Out-of-Band Management LAN Port |
| Port USB | 2 x USB 3.2 Gen 1 Ports |
| Form Factor | 12-Bay |
| Processor | Intel Xeon |
| Installed Memory | 32GB |
| Included HDD Capacity | 192TB (12 x 16TB) |
| Management | Web-Based, DHCP Client |
| LEDs | Power, HDD (Hard Disk Drive), LAN (10/100) |
| Power | 100-240 VAC 50/60Hz |
| Temperature | 0°C to 35°C (32°F to 95°F) |
| Humidity | 8% to 80% RH |
| Dimensions | 88 mm × 482 mm × 724 mm |
| Weight | 14.5 kg |
| Package Contents | Main Unit × 1 Accessory Pack × 1 C13 to C14 power cord × 2 Front Cover × 1 All Configuration Items |
Questions about this item
How do I verify the RS3626xs is operating correctly after installation?
Check the front-panel Power, HDD and LAN LEDs for normal activity, then log into the web-based management console to confirm all twelve 16 TB drives, the 800 GB cache and 32 GB DDR4 memory are detected and healthy.
What ships with the RS3626xs and what must I source separately?
The box contains the main unit, accessory pack, two C13-to-C14 power cords, a front cover and all configuration items; additional drives, expansion cards or memory upgrades are not included.
Which memory capacity should I select for the Xeon D-1726 model?
The unit arrives with 32 GB DDR4 ECC installed and supports expansion up to 48 GB; choose 48 GB if you plan heavy virtualization or multi-site collaboration workloads.
