Synology Inc.
Synology RS3626xs Xeon D-1726 12-Bay rackmount NAS 32GB 3.2TB cache 240TB
A 12-bay rackmount NAS with Xeon D-1726 processor, 32GB DDR4 RAM, 3.2TB SSD cache and 240TB of enterprise SATA drives, fully assembled and tested
- Port RJ-452 x RJ-45 10GbE LAN Port 1 x Out-of-Band Management LAN Port
- Port USB2 x USB 3.2 Gen 1 Ports
- Form Factor12-Bay
- ProcessorIntel Xeon
- Installed Memory32GB
- Included HDD Capacity240TB (12 x 20TB)
- 12-bay rackmount design scales to 240TB raw capacity
- Xeon D-1726 six-core CPU handles virtualization and heavy workloads
- 32GB DDR4 ECC memory protects data integrity under load
- 2TB enterprise SSD cache accelerates frequent read/write access
- Dual 10GbE RJ-45 ports with link aggregation boost network throughput
Enterprise 12-bay rackmount NAS

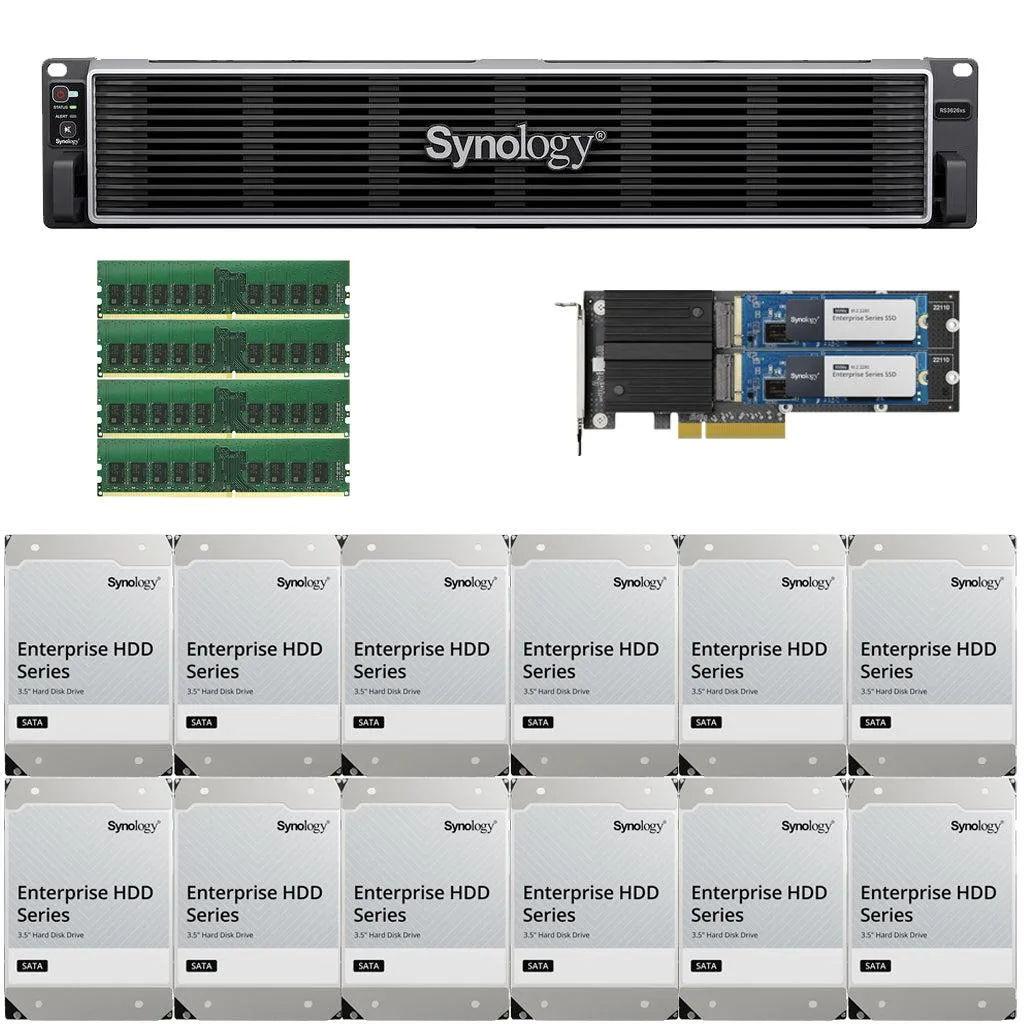

The Synology RS3626xs is a 2U rackmount network-attached storage server built for organisations that need centralised file storage, virtualisation and multi-site collaboration. It ships fully assembled with twelve 20 TB enterprise drives providing 240 TB of raw capacity, 32 GB of DDR4 memory and a 3.2 TB Synology Enterprise cache. A 6-core Intel Xeon D-1726 processor handles demanding business workloads.
Redundant power and 10GbE connectivity
Dual redundant power supplies protect service availability from a single power-supply failure. Two integrated 10GbE RJ-45 LAN ports support link aggregation for increased bandwidth and network failover, while a dedicated out-of-band management port simplifies remote administration. Two USB 3.2 Gen 1 ports and two PCIe Gen 4 x8 slots allow future expansion with additional network adapters or caching hardware. Twelve 3.5-inch drive bays accept SATA HDDs or SSDs.
Rack-optimised thermal envelope
The 88 mm high chassis operates between 0 °C and 35 °C with humidity from 8 % to 80 % RH, drawing 100-240 VAC at 50/60 Hz. Front-panel LEDs give immediate status for power, drive activity and 10GbE links. Web-based management with DHCP client support enables configuration without a dedicated console. The unit weighs 14.5 kg and measures 482 mm wide by 724 mm deep for standard rack mounting.
Highlights
- 12-bay rackmount design scales to 240TB raw capacity
- Xeon D-1726 six-core CPU handles virtualization and heavy workloads
- 32GB DDR4 ECC memory protects data integrity under load
- 2TB enterprise SSD cache accelerates frequent read/write access
- Dual 10GbE RJ-45 ports with link aggregation boost network throughput
Specifications
| Brand | Synology |
|---|---|
| Model | RS3626xs |
| Port RJ-45 | 2 x RJ-45 10GbE LAN Port 1 x Out-of-Band Management LAN Port |
| Port USB | 2 x USB 3.2 Gen 1 Ports |
| Form Factor | 12-Bay |
| Processor | Intel Xeon |
| Installed Memory | 32GB |
| Included HDD Capacity | 240TB (12 x 20TB) |
| Management | Web-Based, DHCP Client |
| LEDs | Power, HDD (Hard Disk Drive), LAN (10/100) |
| Power | 100-240 VAC 50/60Hz |
| Temperature | 0°C to 35°C (32°F to 95°F) |
| Humidity | 8% to 80% RH |
| Dimensions | 88 mm × 482 mm × 724 mm |
| Weight | 14.5 kg |
| Package Contents | Main Unit × 1 Accessory Pack × 1 C13 to C14 power cord × 2 Front Cover × 1 All Configuration Items |
Questions about this item
What real-world throughput do the two 10GbE RJ-45 ports deliver?
Synology reports sequential performance exceeding 6,300 MB/s read and 3,700 MB/s write under its test conditions.
What are the exact rack dimensions and weight of the RS3626xs?
The unit is 88 mm high, 482 mm wide, 724 mm deep and weighs 14.5 kg.
How is the 3.2 TB cache installed and what step is often missed?
The cache consists of two 1.6 TB Synology Enterprise modules supplied pre-installed; the step often missed is enabling the SSD cache in DSM Storage Manager after the first boot.
