Synology Inc.
Synology RS3626xs Xeon D-1726 12-Bay Rackmount NAS 48GB 3.2TB Cache 144TB Drives
Twelve-bay rackmount NAS with Xeon D-1726 processor, 48GB DDR4, 3.2TB cache and 144TB of Synology enterprise drives
- Port RJ-452 x RJ-45 10GbE LAN Port 1 x Out-of-Band Management LAN Port
- Port USB2 x USB 3.2 Gen 1 Ports
- Form Factor12-Bay
- ProcessorIntel Xeon
- Installed Memory48GB
- Included HDD Capacity144TB (12 x 12TB)
- 12-bay density scales storage to 144 TB
- Xeon D-1726 six-core CPU drives demanding workloads
- 48 GB DDR4 ECC memory handles virtualization and databases
- 2 TB Synology Enterprise cache accelerates frequent data access
- Dual 10GbE RJ-45 ports with link aggregation boost throughput

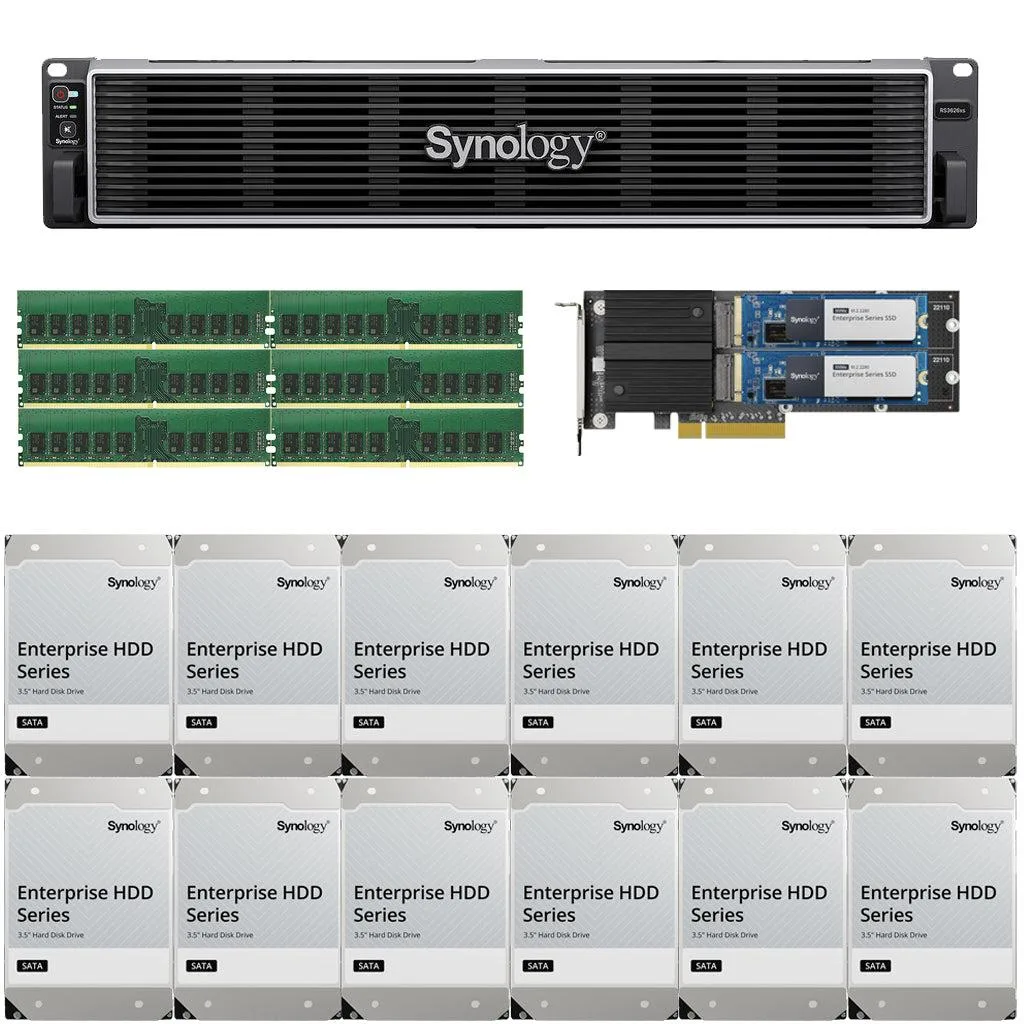

Enterprise 12-Bay Rackmount NAS
The Synology RS3626xs is a 2U rackmount storage server populated with twelve 12 TB enterprise drives for 144 TB raw capacity. A 6-core Intel Xeon D-1726 processor and 48 GB of DDR4 ECC memory drive virtualization, surveillance and multi-site collaboration workloads. Dual 10GbE RJ-45 ports and an out-of-band management LAN provide high-throughput connectivity.
Upgrade from Direct-Attached or Smaller NAS
This unit replaces slower direct-attached arrays or lower-bay appliances when sequential throughput above 6,300 MB/s read and 3,700 MB/s write is required. The jump is worth it for teams consolidating file services, backup targets and VM storage onto a single platform with redundant power supplies. Two PCIe Gen 4 x8 slots allow future 25GbE or Fibre Channel adapters as demand grows.
Sustained Load with 3.2 TB Enterprise Cache
Under continuous multi-user access the 3.2 TB dual-drive SSD cache absorbs write bursts and accelerates hot data without throttling. Redundant power supplies keep the chassis online during a single module failure. Operating limits of 0 °C to 35 °C and 8 % to 80 % humidity suit standard server rooms.
Highlights
- 12-bay density scales storage to 144 TB
- Xeon D-1726 six-core CPU drives demanding workloads
- 48 GB DDR4 ECC memory handles virtualization and databases
- 2 TB Synology Enterprise cache accelerates frequent data access
- Dual 10GbE RJ-45 ports with link aggregation boost throughput
Specifications
| Brand | Synology |
|---|---|
| Model | RS3626xs |
| Port RJ-45 | 2 x RJ-45 10GbE LAN Port 1 x Out-of-Band Management LAN Port |
| Port USB | 2 x USB 3.2 Gen 1 Ports |
| Form Factor | 12-Bay |
| Processor | Intel Xeon |
| Installed Memory | 48GB |
| Included HDD Capacity | 144TB (12 x 12TB) |
| Management | Web-Based, DHCP Client |
| LEDs | Power, HDD (Hard Disk Drive), LAN (10/100) |
| Power | 100-240 VAC 50/60Hz |
| Temperature | 0°C to 35°C (32°F to 95°F) |
| Humidity | 8% to 80% RH |
| Dimensions | 88 mm × 482 mm × 724 mm |
| Weight | 14.5 kg |
| Package Contents | Main Unit × 1 Accessory Pack × 1 C13 to C14 power cord × 2 Front Cover × 1 All Configuration Items |
Questions about this item
What rack depth does the 88 mm × 482 mm × 724 mm chassis require for installation?
The unit is 724 mm deep, so the rack must provide at least that much usable depth plus clearance for the two C13 to C14 power cords and front cover.
Which drive bays and cache modules come pre-installed, and what is the correct order to seat them?
Twelve 12 TB SATA drives fill every 3.5-inch bay, and the two 1.6 TB cache modules occupy the designated SSD slots; install drives first, then cache, before powering on.
When should the 48 GB of DDR4 ECC memory and the 3.2 TB cache be replaced or upgraded?
Memory is soldered to the Xeon D-1726 platform and not user-replaceable; the 1.6 TB cache drives are hot-swappable and should be swapped when SMART health drops below threshold.
