Synology Inc.

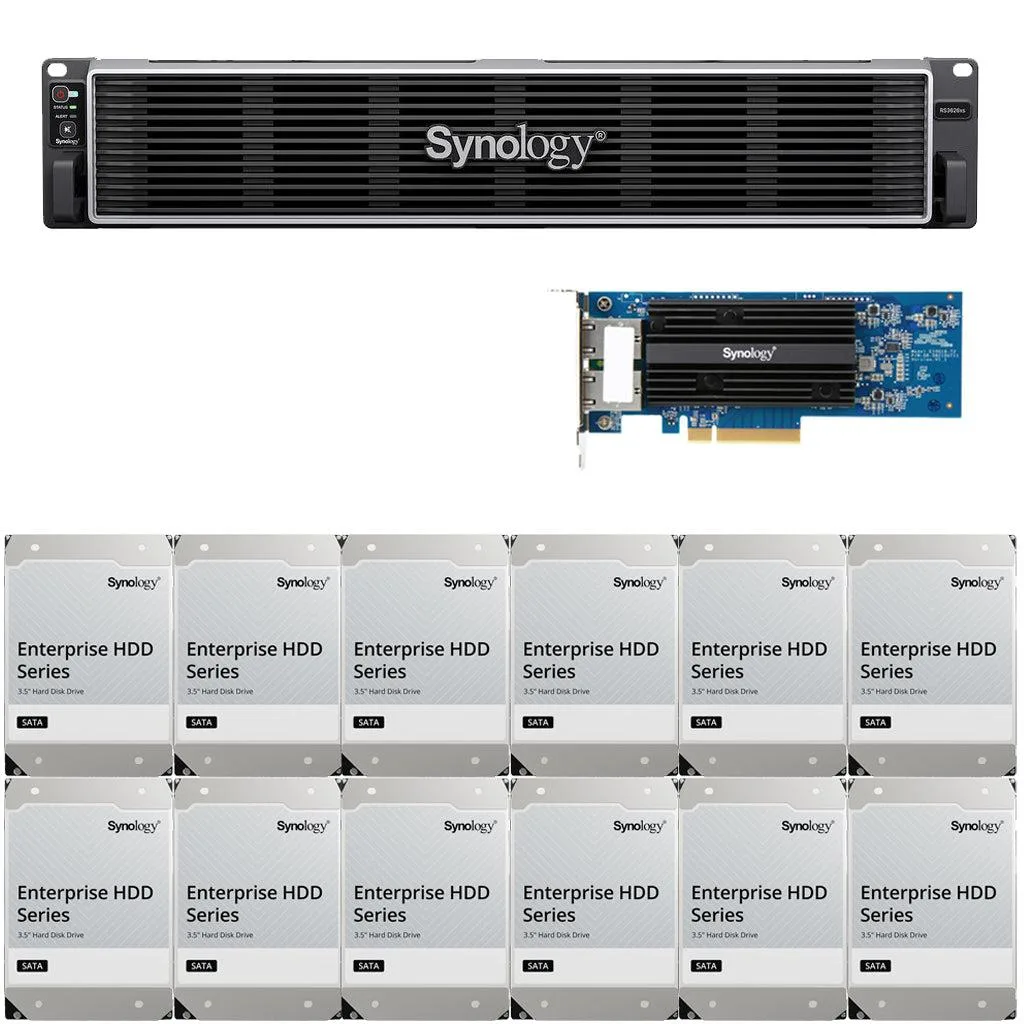

Synology RS3626xs Xeon D-1726 12-bay rackmount NAS 8GB 240TB (12×20TB) 10GbE adapter
A 12-bay rackmount NAS holding 240 TB across twelve 20 TB drives, powered by a Xeon D-1726 with 8 GB DDR4 and dual 10GbE ports
- Port RJ-452 x RJ-45 10GbE LAN Port 1 x Out-of-Band Management LAN Port
- Port USB2 x USB 3.2 Gen 1 Ports
- Form Factor12-Bay
- ProcessorIntel Xeon
- Installed Memory8GB
- Included HDD Capacity240TB (12 x 20TB)
- 12-bay 2U form factor fits dense rack deployments
- Intel Xeon D-1726 6-core processor handles demanding workloads
- 8 GB DDR4 ECC memory expandable to 48 GB
- Dual 10GbE RJ-45 ports with Link Aggregation support
- 240 TB raw capacity from twelve 20 TB enterprise drives
12-bay Xeon D-1726 rackmount NAS
The Synology RS3626xs is a 2U rackmount network-attached storage server built around a six-core Intel Xeon D-1726 processor. It ships fully assembled with 8 GB of DDR4 ECC memory and twelve 20 TB enterprise hard drives providing 240 TB of raw capacity. Two onboard 10GbE RJ-45 ports and a dedicated out-of-band management port handle network connectivity.
Teams needing dense 3.5-inch SATA storage with 10GbE
This unit suits organisations that want a ready-to-rack appliance for file services, backup targets, virtualization storage or surveillance archives using twelve 3.5-inch SATA drives. Buyers who need more than twelve drive bays, 25GbE or Fibre Channel connectivity without adding expansion cards, or a higher default memory configuration should evaluate other platforms.
240 TB raw capacity across twelve enterprise drives
The defining specification is the included drive set: twelve Synology 20 TB enterprise SATA hard drives pre-installed and tested, delivering 240 TB of raw storage in a single 2U chassis. This capacity determines whether the system matches the dataset size and retention requirements of the deployment.
Highlights
- 12-bay 2U form factor fits dense rack deployments
- Intel Xeon D-1726 6-core processor handles demanding workloads
- 8 GB DDR4 ECC memory expandable to 48 GB
- Dual 10GbE RJ-45 ports with Link Aggregation support
- 240 TB raw capacity from twelve 20 TB enterprise drives
Specifications
| Brand | Synology |
|---|---|
| Model | RS3626xs |
| Port RJ-45 | 2 x RJ-45 10GbE LAN Port 1 x Out-of-Band Management LAN Port 2 x 10GbE 10GBASE-T |
| Port USB | 2 x USB 3.2 Gen 1 Ports |
| Form Factor | 12-Bay |
| Processor | Intel Xeon |
| Installed Memory | 8GB |
| Included HDD Capacity | 240TB (12 x 20TB) |
| Management | Web-Based, DHCP Client |
| LEDs | Power, HDD (Hard Disk Drive), LAN (10/100) |
| Power | 100-240 VAC 50/60Hz |
| Temperature | 0°C to 35°C (32°F to 95°F) |
| Humidity | 8% to 80% RH |
| Dimensions | 88 mm × 482 mm × 724 mm |
| Weight | 14.5 kg |
| Package Contents | Main Unit × 1 Accessory Pack × 1 C13 to C14 power cord × 2 Front Cover × 1 All Configuration Items |
Questions about this item
What rack space and power connections does the RS3626xs need?
The 2U chassis measures 88 mm high, 482 mm wide and 724 mm deep, weighs 14.5 kg and ships with two C13 to C14 power cords for redundant 100-240 VAC supplies.
Can the 12-bay unit mix 3.5-inch HDDs and 2.5-inch SSDs on the same SATA backplane?
Yes, the twelve drive bays accept both 3.5-inch SATA HDDs and 2.5-inch SATA SSDs in any combination, so existing 2.5-inch drives can stay installed.
Which LED indicators confirm the 10GbE ports and drives are active after power-on?
Front-panel LEDs show Power status, per-bay HDD activity, and LAN link lights for the two 10GbE RJ-45 ports and the out-of-band management port.
