Seagate
Seagate Cheetah NS ST3400755SSProduct 400 GB 3.5" SAS internal hard drive
- SLC
$23.99
0.00030521BTC
In stock
Synology Inc.

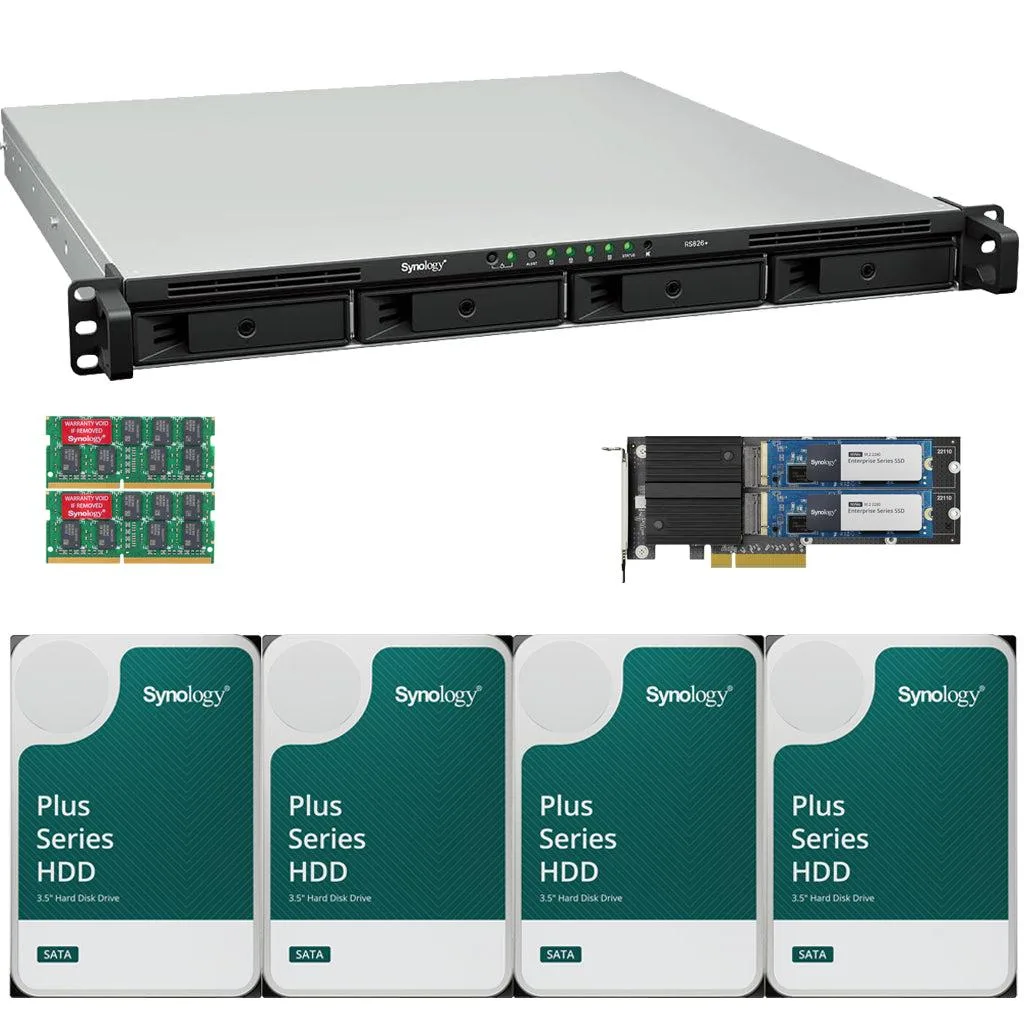

Synology RS826+ AMD Ryzen V1500B 4-Bay Rackmount NAS 16GB RAM 3.2TB Cache 16TB Drives
A 1U rackmount NAS with four drive bays, an AMD Ryzen V1500B processor, 16GB DDR4 ECC memory, 3.2TB enterprise cache and four 4TB Synology Plus drives, fully assembled and tested
- Port RJ-454 x 10/100/1000M
- Port USB2 x USB 3.2 Gen 1 Ports
- Form Factor4-Bay
- ProcessorAMD Ryzen
- Installed Memory16GB
- Included HDD Capacity16TB (4 x 4TB)
- Ready to deploy with pre-installed drives and cache
- 16 GB DDR4 ECC memory supports heavy workloads
- AMD Ryzen V1500B four-core processor handles demanding tasks
- Four 1 GbE ports enable link aggregation and failover
- PCIe Gen3 slot allows future 10 GbE or 25 GbE upgrades
Compact 1U rackmount NAS for edge and remote offices
The Synology RS826+ is a 1U rackmount network-attached storage server built for edge locations and growing business environments. It ships fully assembled with 16 GB of DDR4 ECC memory, 3.2 TB of enterprise cache on two 1.6 TB modules, and four 4 TB Synology Plus drives installed. An AMD Ryzen V1500B four-core processor running at 2.2 GHz provides the compute foundation.
Four-bay chassis with four 1GbE ports and PCIe
The 4-bay chassis accepts 3.5-inch or 2.5-inch SATA drives and includes four RJ-45 ports operating at 10/100/1000 Mbps with link aggregation and failover support. Two USB 3.2 Gen 1 ports allow direct peripheral attachment. A PCIe Gen3 slot is available for adding 10 GbE or 25 GbE adapters as network demands increase. The unit measures 44 mm high, 480 mm wide and 492.6 mm deep, weighing 6.4 kg.
Replaces standalone file servers
This configuration replaces standalone file servers or smaller desktop NAS units when a rackmount form factor, ECC memory and integrated cache are required. The jump is worth it for organisations needing sequential read performance above 2,000 MB/s and write performance above 1,300 MB/s under test conditions, plus the ability to expand memory to 32 GB. Buyers who need more than four drive bays or built-in 10 GbE without an add-in card should consider larger models.
Highlights
- Ready to deploy with pre-installed drives and cache
- 16 GB DDR4 ECC memory supports heavy workloads
- AMD Ryzen V1500B four-core processor handles demanding tasks
- Four 1 GbE ports enable link aggregation and failover
- PCIe Gen3 slot allows future 10 GbE or 25 GbE upgrades
Specifications
| Brand | Synology |
|---|---|
| Model | RS826+ |
| Port RJ-45 | 4 x 10/100/1000M |
| Port USB | 2 x USB 3.2 Gen 1 Ports |
| Form Factor | 4-Bay |
| Processor | AMD Ryzen |
| Installed Memory | 16GB |
| Included HDD Capacity | 16TB (4 x 4TB) |
| Management | Web-Based, DHCP Client |
| LEDs | Power, HDD (Hard Disk Drive), LAN (10/100) |
| Power | 100-240 VAC 50/60Hz |
| Temperature | 0°C - 35 °C |
| Humidity | 5-95% R.H |
| Dimensions | 44 mm × 480 mm × 492.6 mm |
| Weight | 6.4 kg |
| Package Contents | Main Unit × 1 Accessory Pack × 1 AC Power Cord × 1 All Configuration Items |
Questions about this item
What network speed do the four RJ-45 ports support and how does Link Aggregation affect throughput?
Each of the four RJ-45 ports runs at 1 GbE. Link Aggregation combines them for load balancing and automatic failover, but a single connection still caps at 1 GbE.
What drive sizes fit in the four bays and what are the unit dimensions for rack planning?
The bays accept 3.5-inch SATA hard drives or 2.5-inch SATA SSDs. The chassis measures 44 mm high, 480 mm wide and 492.6 mm deep for a standard 1U rack slot.
How is the PCIe expansion card installed and which orientation mistake is common?
Remove the chassis cover, insert the compatible 10GbE or 25GbE adapter into the PCIe Gen3 slot, secure the bracket screw, then replace the cover. A common error is leaving the bracket screw loose, which causes the card to lose contact under vibration.
