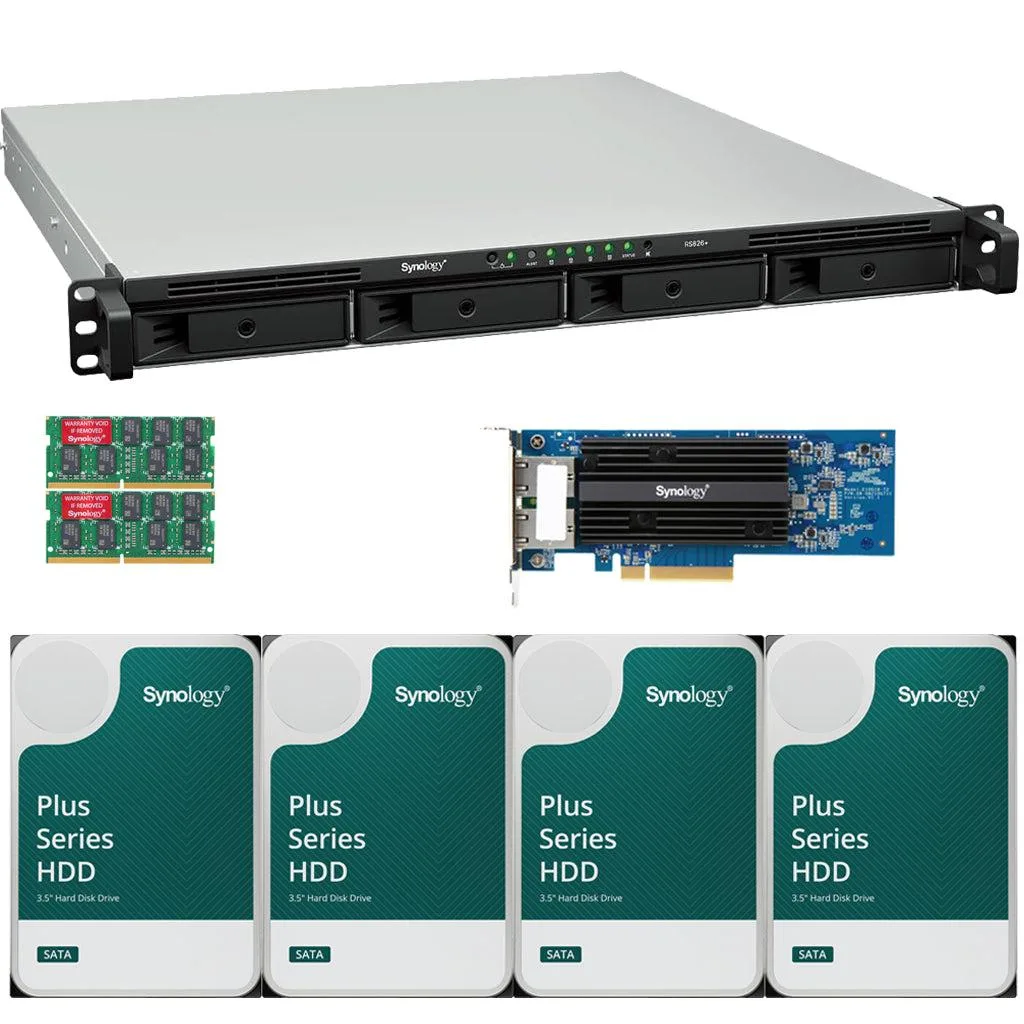

Black 1U rackmount NAS with four front drive bays and status LEDs

Synology Inc.

Synology RS826+ AMD Ryzen V1500B 4-Bay Rackmount NAS 32GB 80TB (4 x 20TB) 2-Port 10GbE Adapter

SKU CH-091B-V4CVC

A compact 1U rackmount NAS with four bays, an AMD Ryzen V1500B processor, 32GB DDR4 memory, four 20TB drives for 80TB total capacity, and a dual-port 10GbE adapter installed

  • Port RJ-454 x 10/100/1000M 2 x 10GbE 10GBASE-T
  • Port USB2 x USB 3.2 Gen 1 Ports
  • Form Factor4-Bay
  • ProcessorAMD Ryzen
  • Installed Memory32GB
  • Included HDD Capacity80TB (4 x 20TB)
  • AMD Ryzen V1500B 2.2 GHz four-core processor handles demanding workloads
  • 32 GB DDR4 ECC memory supports virtualisation and multi-user access
  • Four 20 TB Synology Plus drives deliver 80 TB raw capacity out of the box
  • Two-port 10GbE adapter provides 10 Gbps network throughput for rapid file transfer
  • 1U rackmount form factor fits standard cabinets for space-efficient deployment

Compact 1U rackmount NAS for edge and remote offices

The Synology RS826+ is a 4-bay 1U rackmount NAS built for edge locations, remote offices and growing business storage environments. It ships fully assembled and tested with 32 GB of DDR4 ECC memory and four 20 TB Synology Plus drives for 80 TB of raw capacity. A 2.2 GHz AMD Ryzen V1500B four-core, eight-thread processor handles file services and virtualization workloads.

Thermals noise and power in normal use

The unit operates from 0 °C to 35 °C and 5 % to 95 % relative humidity on 100–240 VAC 50/60 Hz power. Four integrated 1 GbE RJ-45 ports support Link Aggregation for load balancing and automatic failover. A PCIe Gen3 slot is available for a compatible 10 GbE or 25 GbE adapter if higher throughput is required later.

80 TB of pre-installed Synology Plus drives

The appliance includes four 20 TB 3.5-inch SATA hard drives configured and validated by the assembler. Drive bays also accept 2.5-inch SATA SSDs for mixed media deployments. Buyers who need more than four drive bays or a different drive capacity must choose another platform.

Highlights

  • AMD Ryzen V1500B 2.2 GHz four-core processor handles demanding workloads
  • 32 GB DDR4 ECC memory supports virtualisation and multi-user access
  • Four 20 TB Synology Plus drives deliver 80 TB raw capacity out of the box
  • Two-port 10GbE adapter provides 10 Gbps network throughput for rapid file transfer
  • 1U rackmount form factor fits standard cabinets for space-efficient deployment

Specifications

BrandSynology
ModelRS826+
Port RJ-454 x 10/100/1000M
2 x 10GbE 10GBASE-T
Port USB2 x USB 3.2 Gen 1 Ports
Form Factor4-Bay
ProcessorAMD Ryzen
Installed Memory32GB
Included HDD Capacity80TB (4 x 20TB)
ManagementWeb-Based, DHCP Client
LEDsPower, HDD (Hard Disk Drive), LAN (10/100)
Power100-240 VAC 50/60Hz
Temperature0°C - 35 °C
Humidity5-95% R.H
Dimensions44 mm × 480 mm × 492.6 mm
Weight6.4 kg
Package ContentsMain Unit × 1
Accessory Pack × 1
AC Power Cord × 1
All Configuration Items

Questions about this item

How do I install the Synology 2-Port 10GbE Adapter into the RS826+ and what step is often missed?

Insert the adapter into the PCIe Gen3 slot before racking the 1U unit, then connect the 10GBASE-T cables; the step often missed is enabling the new ports in DSM Control Panel so the 10GbE links actually pass traffic.

Which components in this RS826+ will need replacement first and what are their ratings?

The four 20TB Synology Plus drives carry a 3-year warranty and a 1M-hour MTBF; the DDR4 ECC memory and Ryzen V1500B processor are solid-state with no scheduled replacement, while the 100-240 VAC power supply is rated for continuous operation at 35 °C ambient.

What thermal or throughput limit appears first when the RS826+ runs sustained workloads?

The operating ceiling is 35 °C; if intake air exceeds this the system throttles the Ryzen V1500B to protect itself, so sustained 2,000 MB/s sequential reads or 1,300 MB/s writes are only guaranteed while the rack stays within the 0-35 °C range.
