Synology Inc.
Synology RS826RP+ AMD Ryzen V1500B 4-Bay Rackmount NAS 16GB 32TB
Four-bay rackmount NAS with AMD Ryzen processor, 16GB DDR4 RAM, and 32TB of Synology Plus drives pre-installed
- Port RJ-454 x 10/100/1000M
- Port USB2 x USB 3.2 Gen 1 Ports
- Form Factor4-Bay
- ProcessorAMD Ryzen
- Installed Memory16GB
- Included HDD Capacity32TB (4 x 8TB)
- Quad-core Ryzen V1500B at 2.2 GHz powers demanding workloads
- 16 GB DDR4 memory handles multi-user services smoothly
- 32 TB raw capacity with four 8 TB Synology Plus drives
- Four 1 GbE ports support link aggregation and failover
- PCIe Gen3 slot adds 10 GbE or M.2 SSD expansion

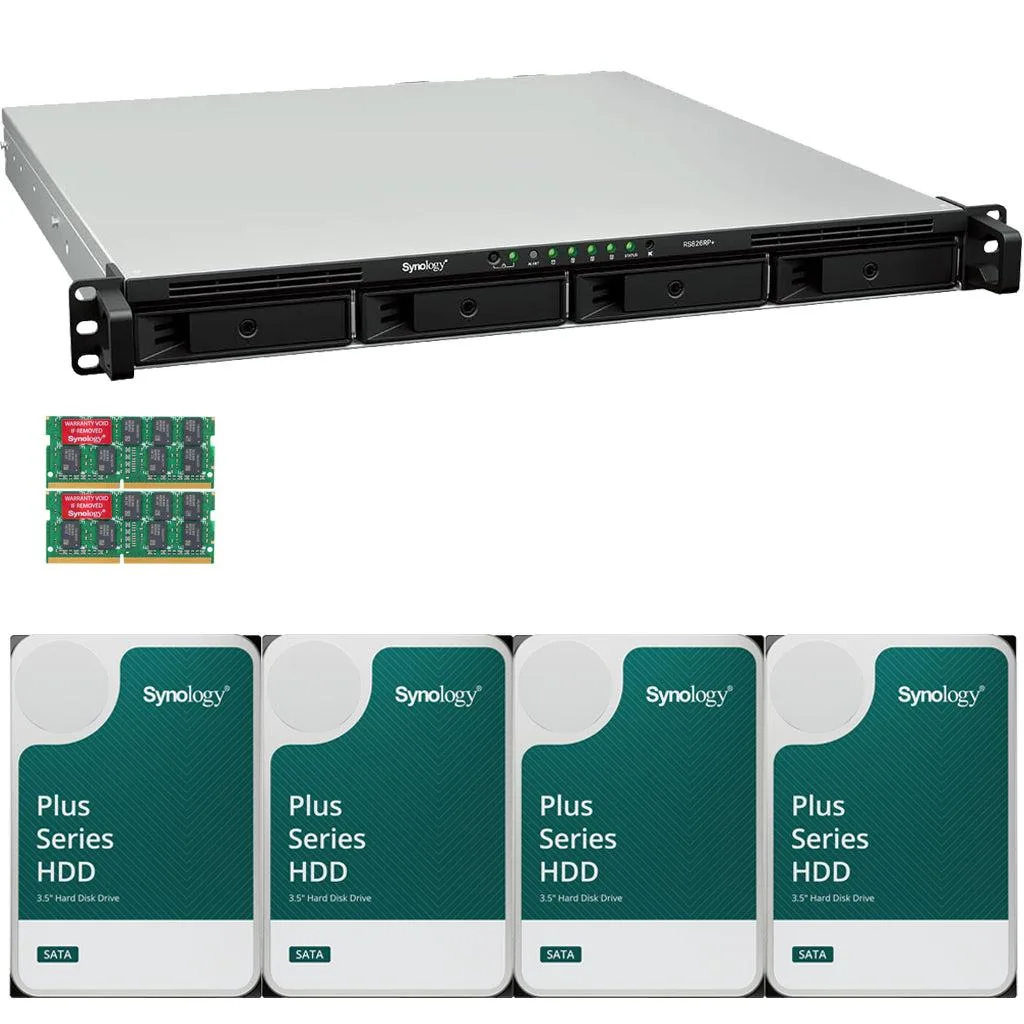

Compact 1U rackmount NAS with AMD Ryzen V1500B
The Synology RS826RP+ is a 1U rackmount network-attached storage system powered by an AMD Ryzen V1500B processor. It arrives fully assembled and tested with 16GB of DDR4 memory and four 8TB drives providing 32TB of raw capacity. Four integrated 1GbE ports support Link Aggregation for bandwidth and failover. A PCIe Gen3 slot allows adding 10GbE, 25GbE or M.2 adapters for flexible I/O expansion.
Suited for edge sites
This unit fits organisations that want redundant power supplies and hot-swappable bays in a shallow 1U chassis. The four 1GbE ports and expansion slot support link aggregation and faster networking cards for demanding file shares or virtualisation storage. Buyers who require more than four internal drive bays without adding an RX426 expansion unit should consider a larger chassis. Environments needing native 10GbE or 25GbE ports out of the box will need to install an adapter card.
32 TB raw capacity from four pre-installed 8 TB
The appliance ships with four Synology Plus 8TB drives installed, delivering 32TB of raw storage before RAID overhead. Drives are hot-swappable 3.5-inch SATA units and the system accepts compatible 2.5-inch SATA SSDs for caching. Connecting a Synology RX426 expansion unit doubles the bay count to eight and supports up to 192TB of raw capacity with supported 24TB drives.
Highlights
- Quad-core Ryzen V1500B at 2.2 GHz powers demanding workloads
- 16 GB DDR4 memory handles multi-user services smoothly
- 32 TB raw capacity with four 8 TB Synology Plus drives
- Four 1 GbE ports support link aggregation and failover
- PCIe Gen3 slot adds 10 GbE or M.2 SSD expansion
Specifications
| Brand | Synology |
|---|---|
| Model | RS826RP+ |
| Port RJ-45 | 4 x 10/100/1000M |
| Port USB | 2 x USB 3.2 Gen 1 Ports |
| Form Factor | 4-Bay |
| Processor | AMD Ryzen |
| Installed Memory | 16GB |
| Included HDD Capacity | 32TB (4 x 8TB) |
| Management | Web-Based, DHCP Client |
| LEDs | Power, HDD (Hard Disk Drive), LAN (10/100) |
| Power | 100-240 VAC 50/60Hz |
| Temperature | 0°C - 35 °C |
| Humidity | 5-95% R.H |
| Dimensions | 44 mm × 480 mm × 492.6 mm |
| Weight | 8.0 kg |
| Package Contents | Main Unit × 1 Accessory Pack × 1 AC Power Cord × 1 All Configuration Items |
Questions about this item
What rack depth does the 44 mm high RS826RP+ require for the 492.6 mm deep chassis?
The unit is 492.6 mm deep; allow extra depth behind the rear panel for power cords and the four RJ-45 cables so the rack rails must provide at least that much usable depth.
Which drive sizes fit the four hot-swappable bays and how are they secured?
The bays accept 3.5-inch SATA hard drives and 2.5-inch SATA SSDs; each drive slides into a tray that locks with a keyed latch — push the tray fully home until the latch clicks, otherwise the drive will not connect to the backplane.
When should the four pre-installed 8 TB Synology Plus drives be replaced and what capacity is supported?
Replace any drive that reports a SMART error or exceeds the 0 – 35 °C operating range; the system supports up to 24 TB per bay for a maximum raw capacity of 192 TB when an RX426 expansion unit is added.
