Synology Inc.

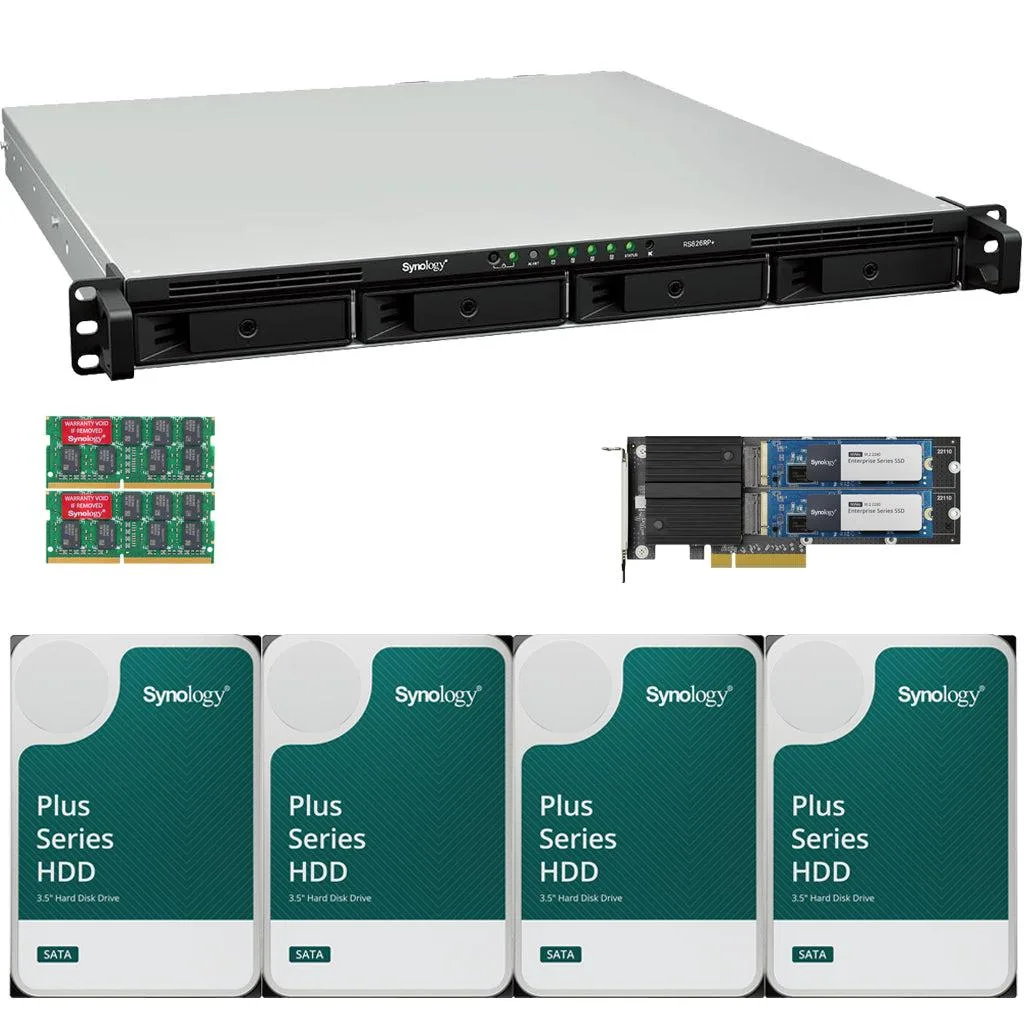

Synology RS826RP+ rackmount NAS AMD Ryzen V1500B 8GB RAM 800GB cache 80TB (4 x 20TB) drives
A compact 1U rackmount NAS with quad-core AMD Ryzen V1500B processor, 8GB DDR4 RAM, 800GB enterprise cache and 80TB of Synology Plus drives pre-installed
- Port RJ-454 x 10/100/1000M
- Port USB2 x USB 3.2 Gen 1 Ports
- Form Factor4-Bay
- ProcessorAMD Ryzen
- Installed Memory8GB
- Included HDD Capacity80TB (4 x 20TB)
- Quad-core AMD Ryzen V1500B processor at 2.2 GHz drives over 2,000 MB/s sequential read
- Four 1GbE ports with Link Aggregation boost bandwidth and provide automatic network failover
- Hot-swappable 3.5-inch and 2.5-inch SATA bays allow drive changes without downtime
- PCIe Gen3 slot accepts 10GbE or 25GbE adapters and M.2 SSD adapters for flexible expansion
- Dual redundant 100-240 VAC power supplies keep the system running if one unit fails
Compact 1U rackmount NAS for edge
The Synology RS826RP+ is a four-bay rackmount NAS built around a quad-core AMD Ryzen V1500B processor running at 2.2 GHz. It ships with 8GB of DDR4 memory and four 20TB Synology Plus drives installed, delivering 80TB of raw capacity. Four integrated 1GbE ports support Link Aggregation for bandwidth and failover.
Pre-installed cache and drives accelerate HDD arrays
The unit includes 800GB of Synology Enterprise cache across two 400GB modules to reduce latency and improve IOPS on the hard-drive storage. Drives arrive hot-swappable and pre-configured, so the system is ready for file sharing, backup, or virtualization workloads without additional setup.
Redundant power and expansion slot add deployment
Dual redundant power supplies operate on 100-240 VAC and fit a standard 1U rack footprint of 44 mm height. A PCIe Gen3 slot accepts 10GbE or 25GbE adapters, M.2 SSD adapters, or combined cards. One RX426 expansion unit can be attached to grow the bay count to eight.
Highlights
- Quad-core AMD Ryzen V1500B processor at 2.2 GHz drives over 2,000 MB/s sequential read
- Four 1GbE ports with Link Aggregation boost bandwidth and provide automatic network failover
- Hot-swappable 3.5-inch and 2.5-inch SATA bays allow drive changes without downtime
- PCIe Gen3 slot accepts 10GbE or 25GbE adapters and M.2 SSD adapters for flexible expansion
- Dual redundant 100-240 VAC power supplies keep the system running if one unit fails
Specifications
| Brand | Synology |
|---|---|
| Model | RS826RP+ |
| Port RJ-45 | 4 x 10/100/1000M |
| Port USB | 2 x USB 3.2 Gen 1 Ports |
| Form Factor | 4-Bay |
| Processor | AMD Ryzen |
| Installed Memory | 8GB |
| Included HDD Capacity | 80TB (4 x 20TB) |
| Management | Web-Based, DHCP Client |
| LEDs | Power, HDD (Hard Disk Drive), LAN (10/100) |
| Power | 100-240 VAC 50/60Hz |
| Temperature | 0°C - 35 °C |
| Humidity | 5-95% R.H |
| Dimensions | 44 mm × 480 mm × 492.6 mm |
| Weight | 8.0 kg |
| Package Contents | Main Unit × 1 Accessory Pack × 1 AC Power Cord × 1 All Configuration Items |
Questions about this item
When will the 400 GB cache SSDs need replacement?
The 800 GB cache consists of two 400 GB Synology Enterprise SSDs; replace them when SMART health monitoring reports degraded endurance or the DSM storage manager flags a drive warning.
What throughput limit appears first during continuous heavy transfers?
The four 1 GbE RJ-45 ports cap sustained network throughput at roughly 1 Gbps per port, or higher with Link Aggregation, before the AMD Ryzen V1500B CPU or drive array becomes the bottleneck.
How much heat and noise does the unit produce running 24/7?
Operating temperature range is 0 °C to 35 °C; the 1U chassis uses internal fans to keep components within spec, and the 100-240 VAC supply draws only what the AMD Ryzen V1500B, 8 GB DDR4, four 20 TB drives and two 400 GB cache SSDs require.
