Synology Inc.

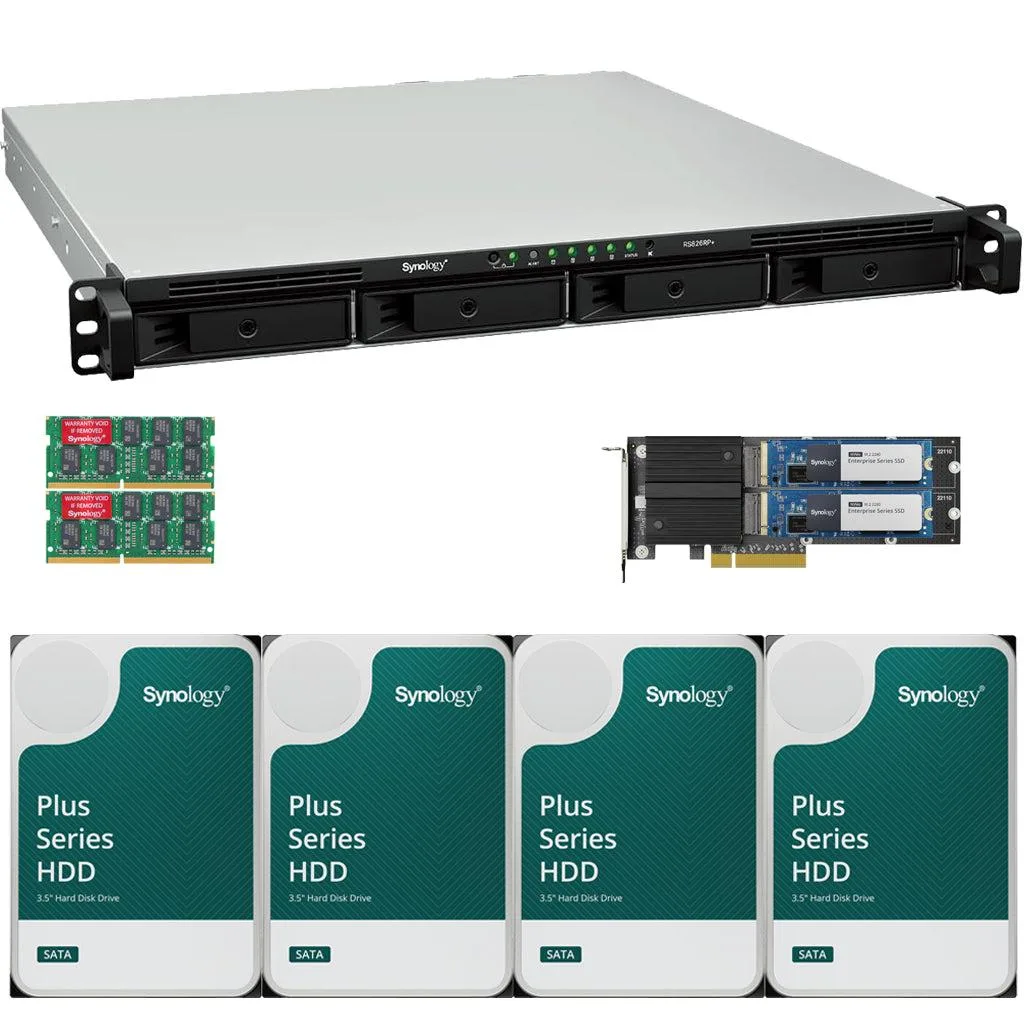

Synology RS826RP+ Ryzen V1500B 4-Bay Rackmount NAS 16GB 800GB Cache 64TB Drives
A 4-bay rackmount NAS with an AMD Ryzen V1500B processor, 16GB DDR4 memory, 800GB cache and 64TB of pre-installed SATA drives, fully assembled and tested
- Port RJ-454 x 10/100/1000M
- Port USB2 x USB 3.2 Gen 1 Ports
- Form Factor4-Bay
- ProcessorAMD Ryzen
- Installed Memory16GB
- Included HDD Capacity64TB (4 x 16TB)
- Quad-core Ryzen V1500B at 2.2 GHz powers demanding workloads
- 16 GB DDR4 memory handles simultaneous applications smoothly
- 800 GB enterprise cache accelerates frequent data access
- 64 TB raw capacity from four 16 TB drives stores large datasets
- Four 1 GbE ports with Link Aggregation boost network throughput
Compact 1U Rackmount NAS for Edge Deployments
The Synology RS826RP+ is a 1U rackmount network-attached storage system built for edge locations, branch offices, and remote business workloads. It ships fully assembled with an AMD Ryzen V1500B processor running at 2.2 GHz, 16GB of DDR4 memory, and four pre-installed 16TB Synology Plus drives totalling 64TB of raw capacity. Two 400GB enterprise cache SSDs provide 800GB of read-write acceleration for latency-sensitive applications.
Upgrade Path via Expansion Unit and PCIe Slot
The four-bay chassis supports 3.5-inch SATA hard drives and 2.5-inch SATA SSDs with hot-swap capability. Adding one RX426 expansion unit doubles the bay count to eight and raises the maximum raw capacity to 192TB using supported 24TB drives. A PCIe Gen3 slot accepts 10GbE or 25GbE network adapters, an M.2 SSD adapter, or a combined M.2 and 10GbE card for connectivity and caching upgrades.
Capacity Headroom and Operational Limits
The 64TB of included storage and 800GB cache handle multi-user file sharing, backup targets, and virtualization datastores with room for growth via the expansion unit. Sequential throughput exceeds 2,000 MB/s read and 1,300 MB/s write under the vendor tested configuration. Four 1GbE RJ-45 ports support Link Aggregation for bandwidth pooling and automatic failover. The system operates between 0°C and 35°C and is not suited for environments exceeding that temperature range.
Highlights
- Quad-core Ryzen V1500B at 2.2 GHz powers demanding workloads
- 16 GB DDR4 memory handles simultaneous applications smoothly
- 800 GB enterprise cache accelerates frequent data access
- 64 TB raw capacity from four 16 TB drives stores large datasets
- Four 1 GbE ports with Link Aggregation boost network throughput
Specifications
| Brand | Synology |
|---|---|
| Model | RS826RP+ |
| Port RJ-45 | 4 x 10/100/1000M |
| Port USB | 2 x USB 3.2 Gen 1 Ports |
| Form Factor | 4-Bay |
| Processor | AMD Ryzen |
| Installed Memory | 16GB |
| Included HDD Capacity | 64TB (4 x 16TB) |
| Management | Web-Based, DHCP Client |
| LEDs | Power, HDD (Hard Disk Drive), LAN (10/100) |
| Power | 100-240 VAC 50/60Hz |
| Temperature | 0°C - 35 °C |
| Humidity | 5-95% R.H |
| Dimensions | 44 mm × 480 mm × 492.6 mm |
| Weight | 8.0 kg |
| Package Contents | Main Unit × 1 Accessory Pack × 1 AC Power Cord × 1 All Configuration Items |
Questions about this item
What rack space and depth does the 1U RS826RP+ need?
The unit measures 44 mm high, 480 mm wide and 492.6 mm deep, fitting a standard 19-inch rack and requiring at least 492.6 mm of clear depth for the chassis and cabling.
How are the four 16 TB drives and the two 400 GB cache modules installed, and what step is often missed?
Drives slide into the front hot-swap bays and the cache modules occupy the internal SSD slots; the step often missed is creating the SSD cache volume in DSM before the system can use the 800 GB cache for acceleration.
Which components will need replacement first, and what are the compatible capacities?
The four 16 TB SATA drives and the two 400 GB SATA cache modules are the field-replaceable parts; drives can be swapped for any supported 3.5-inch SATA HDD up to 24 TB, and cache modules for compatible 2.5-inch SATA SSDs.
