Synology Inc.
Synology SA3600 12-bay SAS rackmount NAS 16 GB DDR4 ECC
A 2U rackmount NAS holding 12 SAS or SATA drives with a 12-core Xeon D-1567 processor and 16 GB DDR4 ECC memory
- Port RJ-452 x 10GbE RJ-45 (10GBASE-T) 4 x Gigabit RJ-45
- Port USB2 x USB3.0
- HDD Interface12 x 3.5" or 2.5" SAS/SATA HDD/SSD (drives not included)
- Port Others2 x USB 3.0 port 1 x Expansion port
- Form Factor2U
- ProcessorIntel Xeon D-1567 12-core 2.1 GHz, Turbo Boost up to 2.7 GHz
- 12-bay SAS/SATA support scales storage for video and surveillance workloads
- Intel Xeon D-1567 12-core 2.1 GHz processor handles intensive multi-user tasks
- 16 GB DDR4 ECC memory protects data integrity during heavy operations
- Dual 10GbE and quad Gigabit ports deliver high-throughput network connectivity
- 2U rackmount form factor fits standard cabinets for dense deployment

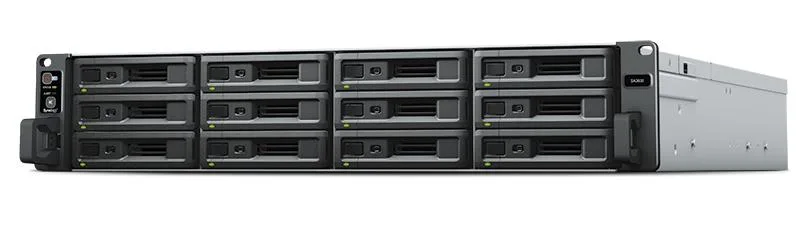

12-bay SAS rackmount NAS
The Synology SA3600 is a 2U rackmount network-attached storage server designed for organisations that need high-capacity, scalable storage. It targets video post-production teams and large surveillance deployments requiring flexible drive support and multi-protocol file access.
12-core Xeon D-1567 processor
The system is powered by an Intel Xeon D-1567 12-core processor running at 2.1 GHz with Turbo Boost up to 2.7 GHz. This CPU determines whether the unit can handle concurrent transcoding, virtualisation or heavy iSCSI workloads in your environment.
0°C to 35°C operating range
The chassis operates between 0°C and 35°C with humidity from 5% to 95% RH. Dual AC power inputs accept 100V to 240V at 50/60 Hz, and front-panel LEDs report power, drive and PSU status for quick health checks.
Highlights
- 12-bay SAS/SATA support scales storage for video and surveillance workloads
- Intel Xeon D-1567 12-core 2.1 GHz processor handles intensive multi-user tasks
- 16 GB DDR4 ECC memory protects data integrity during heavy operations
- Dual 10GbE and quad Gigabit ports deliver high-throughput network connectivity
- 2U rackmount form factor fits standard cabinets for dense deployment
Specifications
| Brand | Synology |
|---|---|
| Model | SA3600 |
| Port RJ-45 | 2 x 10GbE RJ-45 (10GBASE-T) 4 x Gigabit RJ-45 |
| Port USB | 2 x USB3.0 |
| HDD Interface | 12 x 3.5" or 2.5" SAS/SATA HDD/SSD (drives not included) |
| Port Others | 2 x USB 3.0 port 1 x Expansion port |
| Form Factor | 2U |
| Processor | Intel Xeon D-1567 12-core 2.1 GHz, Turbo Boost up to 2.7 GHz |
| Installed Memory | 16 GB DDR4 ECC RDIMM (expandable up to 128 GB) |
| Included HDD Capacity | Diskless System |
| Supported Protocols | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP) |
| LEDs | Power indicator Drive status indicator PSU indicator |
| Power | 100V to 240V AC, 50/60 Hz, single phase |
| Features | A rackmount NAS with storage scalability, suitable for video post-production and massive surveillance deployment Total cost of ownership (TCO)-optimized storage companion, offering flexible support for both SAS and SATA drives Intel Xeon-D 12-core 2.1 GHz processor and 16 GB DDR4 ECC RDIMM, expandable up to 128 GB Scale up to 180/96 drives when connected with 7 RX2417sas/RX1217sas Elastic expandability with dual PCIe 3.0 x8 slots for installing additional 10/25/40GbE network interface cards Effortless data protection for your physical server, virtual machines, and cloud services thro |
| Temperature | Operating temperature: 0°C to 35°C (32°F to 95°F) Storage temperature: -20°C to 60°C (-5°F to 140°F) |
| Humidity | 5% to 95% RH |
| Dimensions | • 88 x 430.5 x 692 mm • 88 x 482 x 724 mm (with server ears) |
| Package Contents | 1 x SA3600 main unit 1 x Quick Installation Guide 1 x Accessory pack 2 x AC power cord |
Questions about this item
How does the 12-core 2.1 GHz Xeon processor perform in a real machine?
The Intel Xeon D-1567 delivers 12 cores at 2.1 GHz with Turbo Boost up to 2.7 GHz, providing strong multi-threaded throughput for video post-production and large surveillance deployments.
What does the 10GBASE-T interface cap in practice?
Two 10GbE RJ-45 ports run at 10GBASE-T speeds, while four additional Gigabit RJ-45 ports handle standard Ethernet traffic, giving a combined 20 Gbps of 10G uplinks plus 4 Gbps of 1G links.
What rack depth and clearance does the 2U chassis need to fit?
The unit measures 88 mm high, 430.5 mm wide and 692 mm deep, or 724 mm deep with server ears fitted, requiring a standard 2U rack space and sufficient rear clearance for cables and airflow.
