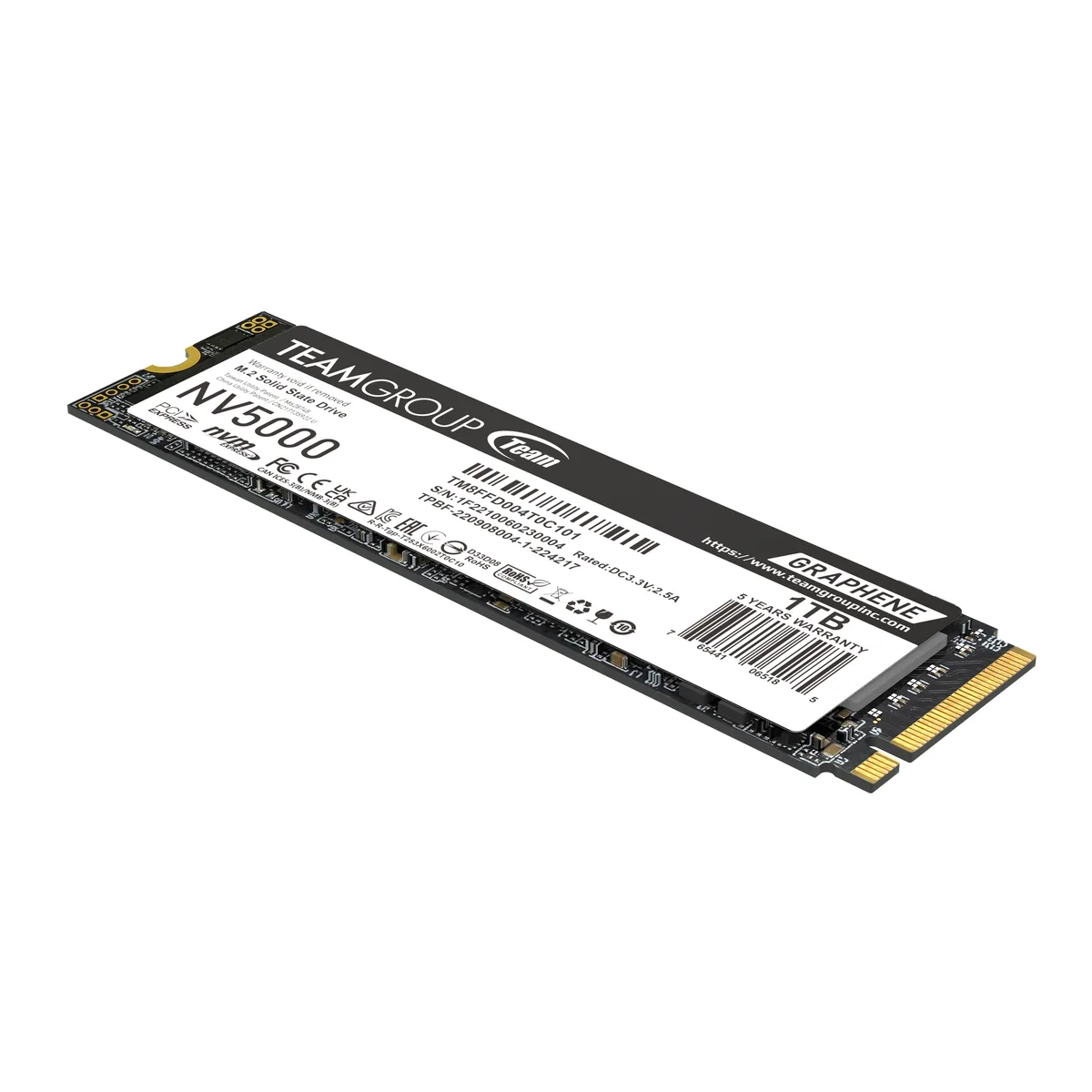

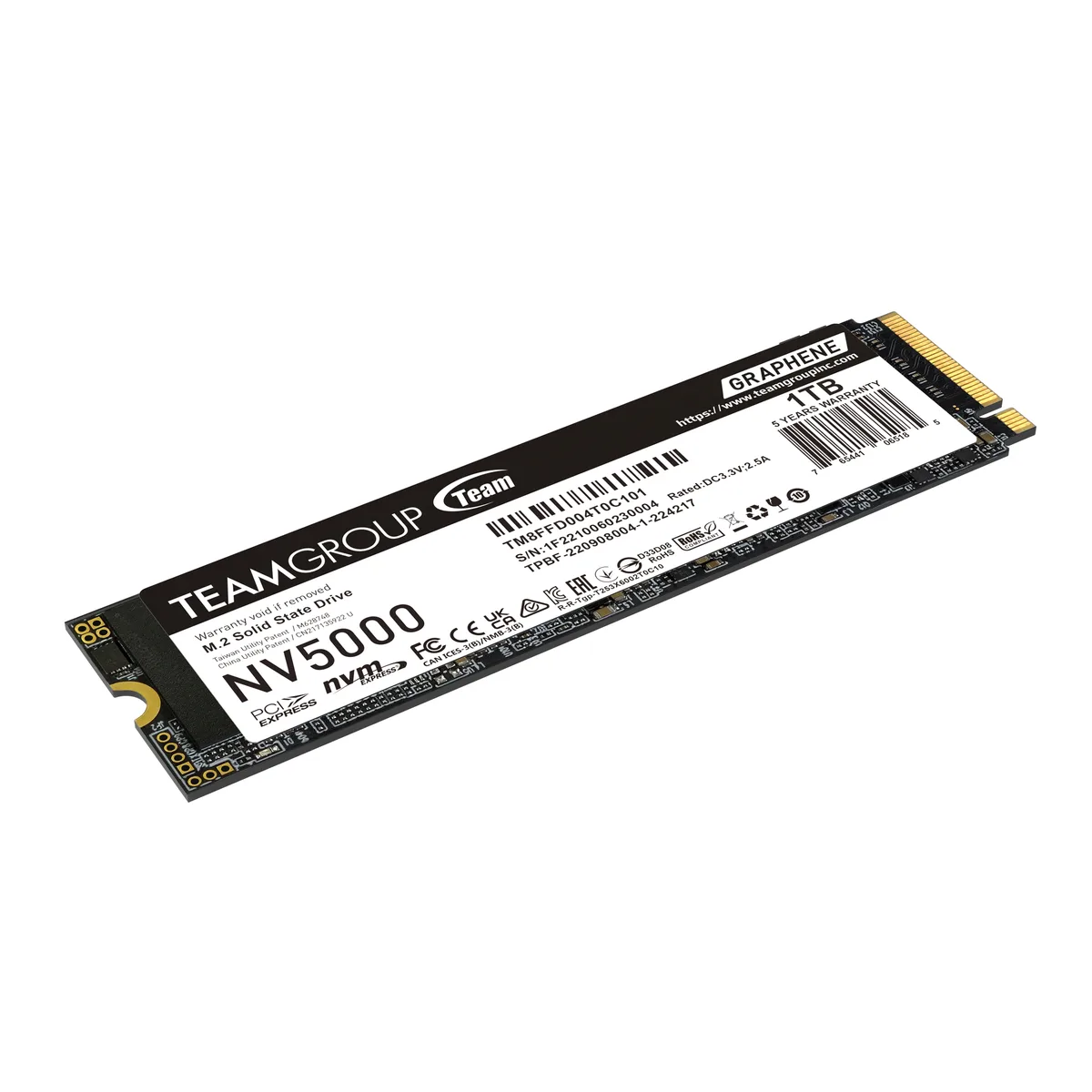

M.2 2280 internal SSD with black graphene heatsink label

Team Group

Team Group NV5000 TM8FGM001T0C101 1TB M.2 2280 internal SSD

SKU CH-FQNY-57HXN MPN TM8FGM001T0C101

A 1TB PCIe 4.0 x4 NVMe SSD with graphene heat-sink delivering up to 4500 MBps read and 1900 MBps write

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • InterfacePCIe 4.0 x4 with NVMe
  • ProtocolNVMe

Capacity 1TB

  • Fast load times from up to 4500 MBps sequential read
  • Sustained writes during heavy jobs via up to 1900 MBps sequential write
  • Long endurance with 320 TBW rated lifespan
  • Reliable operation backed by 2,000,000 hours MTBF
  • Cool under load with included heatsink and graphene label

Built for everyday computing

The NV5000 TM8FGM001T0C101 is a consumer-class internal SSD with 1TB capacity and an M.2 2280 form factor. It connects through a PCIe 4.0 x4 interface using the NVMe protocol. The drive uses a DRAM-less design with host memory buffer support. Sequential reads reach up to 4500 MBps and writes up to 1900 MBps.

Graphene label handles thermals

A patented graphene cooling label sits on the controller to dissipate heat without adding bulk. The drive measures 3.70mm in height, fitting standard M.2 slots in laptops and desktops. It is rated for operation from 0°C to 70°C and storage from -40°C to 85°C. Shock resistance is specified at 1500G for 0.5ms and vibration resistance at 80Hz to 2000Hz at 20G.

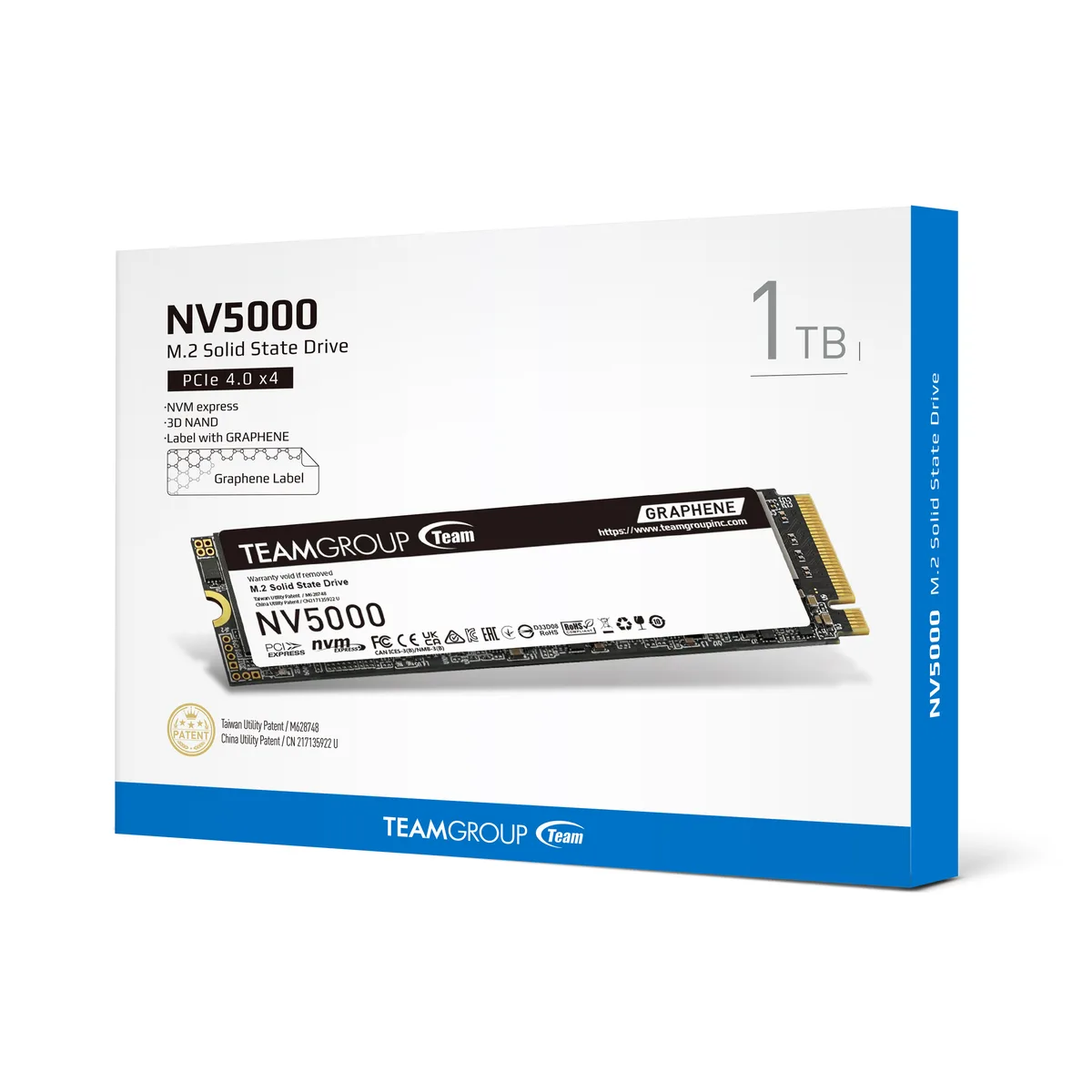

SMART monitoring and recycled box

The drive supports S.M.A.R.T. health monitoring so you can track wear and temperature in software. Packaging uses recycled materials to reduce environmental impact. Endurance is rated at 320TBW with a mean time between failures of 2000000 hours. The graphene label design is protected by Taiwan utility patent M628748.

Highlights

  • Fast load times from up to 4500 MBps sequential read
  • Sustained writes during heavy jobs via up to 1900 MBps sequential write
  • Long endurance with 320 TBW rated lifespan
  • Reliable operation backed by 2,000,000 hours MTBF
  • Cool under load with included heatsink and graphene label

Specifications

BrandTeam Group
SeriesNV5000
ModelTM8FGM001T0C101
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
InterfacePCIe 4.0 x4 with NVMe
ProtocolNVMe
CacheNo DRAM (HMB)
Max Sequential ReadUp to 4500 MBps
Max Sequential WriteUp to 1900 MBps
Terabytes Written (TBW)320TBW
MTBF2,000,000 hours
HeatSinkwith HeatSink
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1,500G/0.5ms
Max Vibration Resistance80Hz~2,000Hz/20G
Height3.70mm
Width22mm
Depth80mm
Weight7g
Shipping weight0.05 kg
Package size124 × 94 × 1 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What maximum sequential read speed does the PCIe 4.0 x4 interface cap at in practice?

The PCIe 4.0 x4 interface delivers up to 4500 MBps sequential read and up to 1900 MBps sequential write under typical workloads.

What clearance does the 3.70 mm height with integrated heatsink need in an M.2 2280 slot?

The drive measures 3.70 mm tall including the graphene heatsink label, so the motherboard M.2 slot must accommodate at least that height without pressing on the label.

How is the TM8FGM001T0C101 installed, and which step is often missed?

Insert the M.2 2280 card at an angle into the keyed slot, press it flat, and secure it with the single motherboard screw; the step often missed is removing any pre-installed motherboard heatsink that would collide with the drive's own graphene label.
