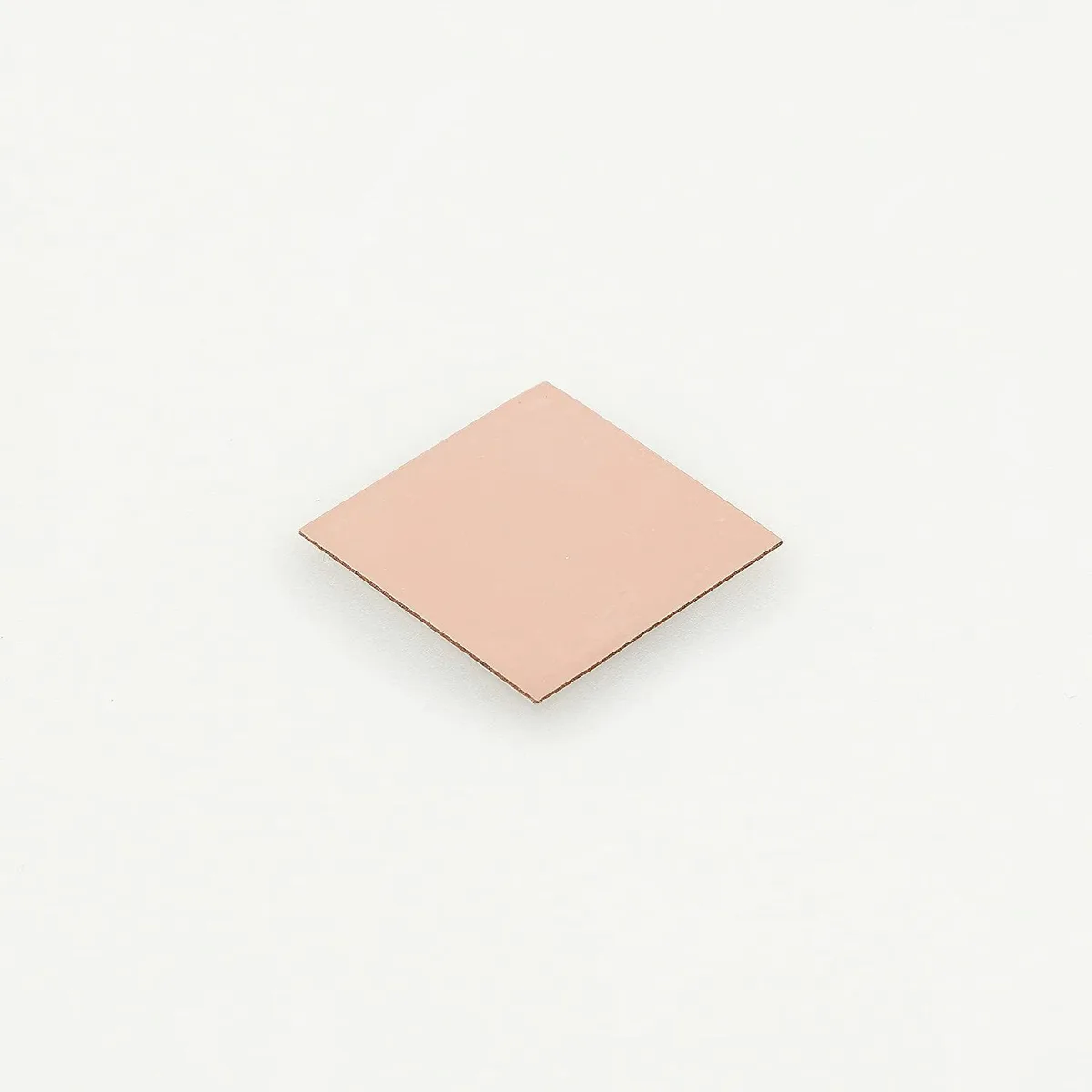

Square pink thermal pad, 30 by 30 by 0.5 mm, soft flexible silicone finish

Thermal Grizzly

Thermal Grizzly Minus Pad 8 30×30×0.5 mm thermal pad

SKU CH-29PK-NF5WA

A 30 × 30 × 0.5 mm silicone thermal pad rated at 8.0 W/mK, electrically insulating to 8 kV/mm and usable from −100 °C to +250 °C

  • Thermal Conductivity8.0 W/mK
  • Long Term Operating Temperature-100 °C to +250 °C
  • FeaturesDescription: Thermal Grizzly Minus Pad is a thermal pad made
  • High thermal conductivity with 8.0 W/mK rating
  • Flexible Shore 00-60 pad conforms to uneven surfaces
  • Electrically insulating up to 8KV/mm for safe use
  • V-0 flammability rating meets strict safety standards
  • Wide -100°C to +250°C operating temperature range

Precision fit for tight gaps

This 30×30×0.5 mm thermal pad targets builders who need a thin, compliant interface for memory modules, VRM heatsinks or console motherboards. The Shore 00-60 material conforms to uneven surfaces with minimal pressure and stays stable from –100 °C to +250 °C.

Not for thick-gap or paste-replacement jobs

Buyers who need to bridge gaps larger than half a millimetre should choose a thicker variant from the same series. The pad is not a substitute for thermal paste on CPU dies or GPU cores where a sub-millimetre bond line is required.

8.0 W/mK conductivity at 0.5 mm thickness

The single figure that decides fit is the 8.0 W/mK rating combined with the 0.5 mm profile; together they set the thermal resistance budget for the specific component you are cooling.

Highlights

  • High thermal conductivity with 8.0 W/mK rating
  • Flexible Shore 00-60 pad conforms to uneven surfaces
  • Electrically insulating up to 8KV/mm for safe use
  • V-0 flammability rating meets strict safety standards
  • Wide -100°C to +250°C operating temperature range

Specifications

BrandThermal Grizzly
SeriesMinus Pad 8
ModelTG-MP8-30-30-05 1R
Part NumberTG-MP8-30-30-05-1R
Thermal Conductivity8.0 W/mK
Long Term Operating Temperature-100 °C to +250 °C
FeaturesDescription: Thermal Grizzly Minus Pad is a thermal pad made from modified silicone. The silicone is filled with metal oxides, thus ensuring remarkable thermal conductivity.
Properties: The Thermal Grizzly Minus Pad 8 is a soft gap filler, which is adhesive but easy to remove. The Thermal Grizzly Minus Pad 8 is insulating and sports very high thermal conductivity, even with very little contact pressure.
Standard Colour: The colour is a red-brown.
Shipping: The Thermal Grizzly Minus Pad 8 is currently available for end users in the following sizes: 100mm x 100mm, 120mm x 20mm and 30mm

Questions about this item

Will this 30×30 mm pad cover the GPU memory modules on my graphics card?

The pad measures 30×30 mm, so it will cover a square area of that size on any component; measure your module cluster to confirm fit.

Can the 0.5 mm thickness bridge the gap between my original heatsink and the replacement cooler?

At 0.5 mm thick and Shore 00-60 softness, the pad compresses to fill small uneven gaps between a heatsink and a heating element.

How do I verify the pad is transferring heat properly after installation?

Monitor component temperatures under load; a drop toward the expected thermal range for your cooler indicates the 8.0 W/mK pad is working.
