White 140mm case fan with four concentric RGB light rings and nine blades

Thermaltake

Thermaltake CL-F101-PL14SW-C Riing Quad 140mm RGB case fan

SKU CH-7JRY-W9WB4 MPN CL-F101-PL14SW-C

A 140 mm case or radiator fan with four LED rings, 54 addressable LEDs, hydraulic bearing and PWM control from 500 to 1500 RPM

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan, Radiator Fan
  • CompatibilityCase / Radiator
  • Fan Size140mm
  • Fan Thickness25mm

LED RGB

  • RGB
  • ARGB

Struck-through versions exist but are not stocked here.

Model Riing Quad

  • Riing Trio
  • Riing Quad

Struck-through versions exist but are not stocked here.

Option Single Pack w/o Controller

  • 3 Packs
  • Single Pack w/o Controller

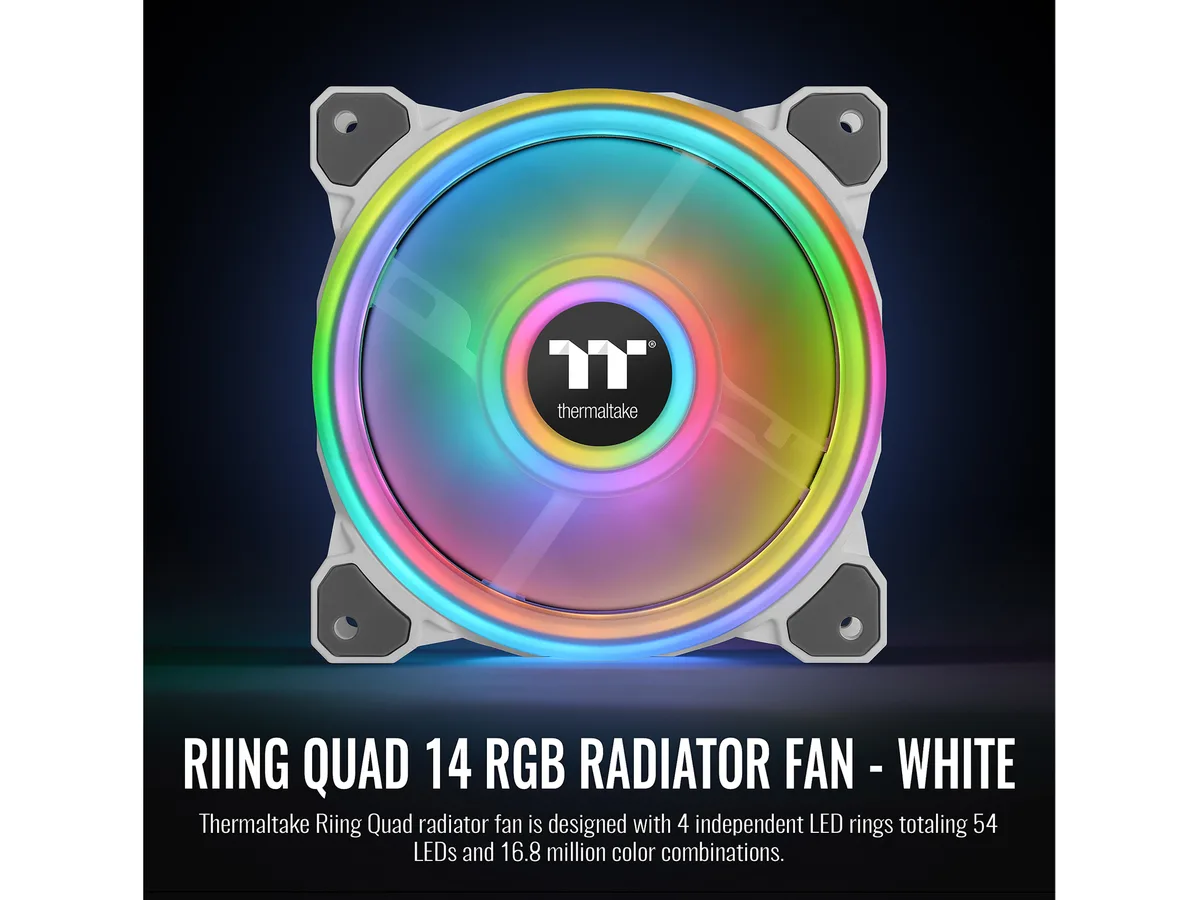

  • Four light rings with 54 addressable LEDs create vivid RGB effects
  • NeonMaker software enables custom lighting profiles and downloadable creator designs
  • Hydraulic bearing self-lubricates for quiet 25 dBA operation at 60.17 CFM
  • PWM control adjusts speed between 500 and 1500 RPM for balanced cooling
  • Anti-vibration rubber pads reduce resonance when mounted on cases or radiators

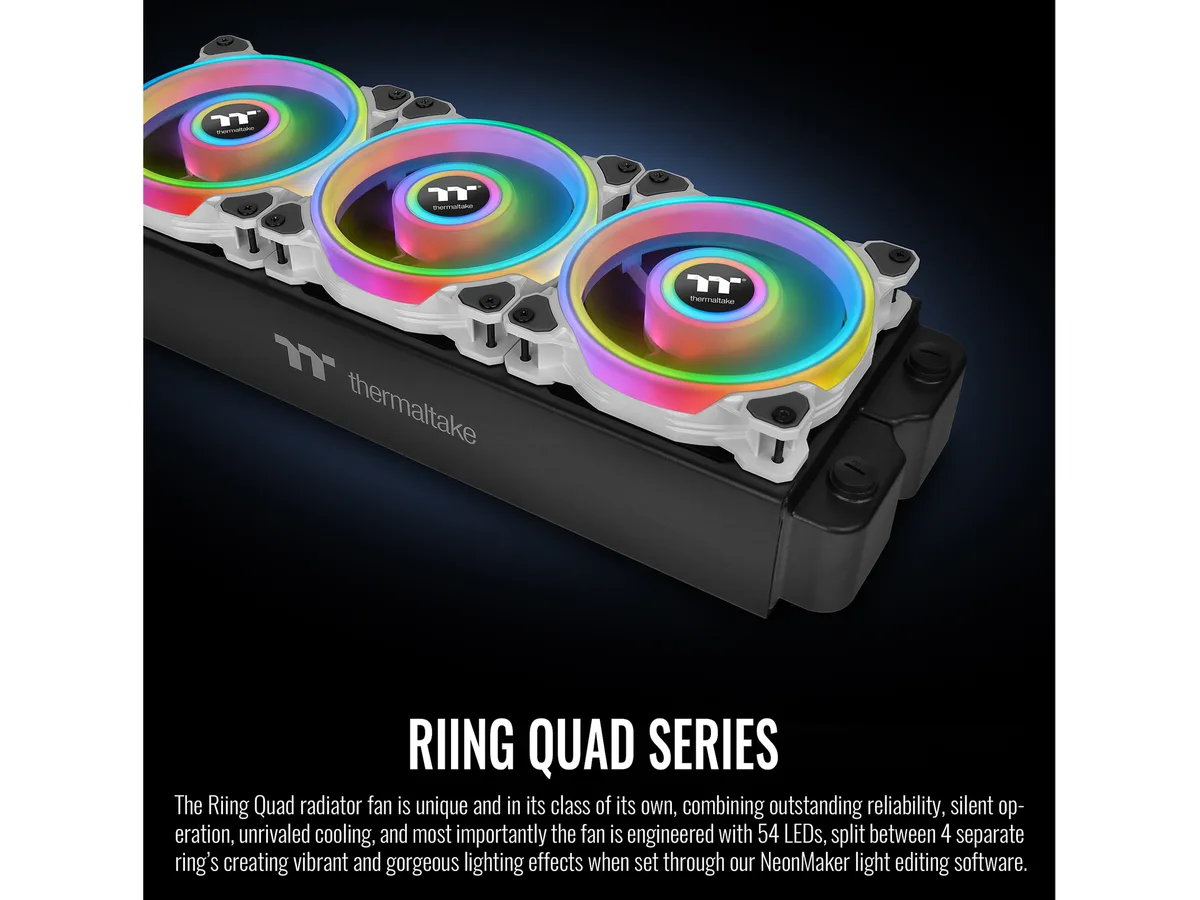

140 mm radiator fan with four LED rings

This single white fan fits 140 mm case or radiator mounts and uses a hydraulic bearing for low-noise operation. Four concentric rings hold 54 addressable LEDs in total, driven by NeonMaker software and compatible with motherboard RGB sync. PWM control spans 500 to 1500 RPM for adjustable airflow. No controller or cables are included in the pack.

Mounts with standard screws and anti-vibration pads

The fan uses ordinary 140 mm mounting holes and ships with rubber anti-vibration pads to reduce resonance. Power and lighting run through a 9-pin USB 2.0 connector that plugs into a compatible header or hub; without a separate controller the LEDs will not function. Builders must supply their own PWM header and RGB ecosystem to enable control.

60.17 CFM airflow at 25 dBA

The hydraulic bearing delivers 60.17 CFM across the 500 to 1500 RPM range while keeping noise to 25 dBA. This single figure determines whether the fan meets the cooling target for a given radiator or case layout. Buyers needing higher static pressure or greater airflow should look elsewhere.

Highlights

  • Four light rings with 54 addressable LEDs create vivid RGB effects
  • NeonMaker software enables custom lighting profiles and downloadable creator designs
  • Hydraulic bearing self-lubricates for quiet 25 dBA operation at 60.17 CFM
  • PWM control adjusts speed between 500 and 1500 RPM for balanced cooling
  • Anti-vibration rubber pads reduce resonance when mounted on cases or radiators

Specifications

BrandThermaltake
SeriesRiing Quad 14 RGB Radiator Fan TT Premium Edition Single Fan Pack - White
ModelCL-F101-PL14SW-C
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan, Radiator Fan
CompatibilityCase / Radiator
Fan Size140mm
Fan Thickness25mm
Bearing TypeHydraulic Bearing
RPMPWM 500 - 1500 R.P.M
Air Flow60.17 CFM
Noise Level25 dBA
Power ConnectorUSB 2.0 Connectors (9 Pin)
ColorWhite
LEDRGB

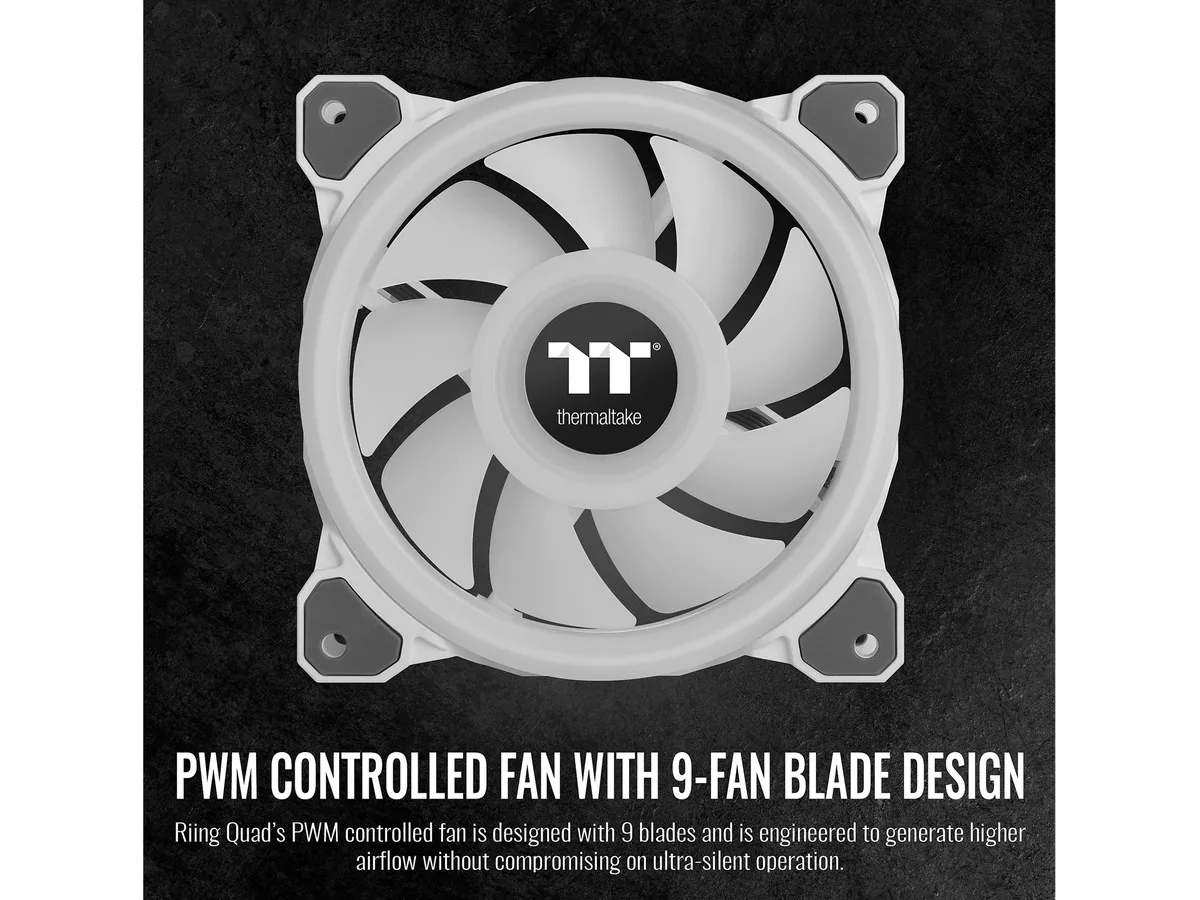

FeaturesPWM Controlled Fan with 9 Fan Blade Design
Low-Noise Hydraulic Bearing
Anti-Vibration Mounting System
NeonMaker & TT RGB Plus Support
Sync with Motherboard RGB Software
Dimensions140 x 140 x 25 mm
Shipping weight0.29 kg
Package size199 × 145 × 29 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I confirm the Riing Quad 140mm fan is running correctly after installation?

The PWM fan should spin between 500 and 1500 RPM, deliver 60.17 CFM airflow and stay at or below 25 dBA; the four LED rings with 54 addressable LEDs should light up and respond to NeonMaker or TT RGB Plus software commands.

What comes in the single pack and what must I buy separately?

The box contains one white 140 mm hydraulic-bearing fan with anti-vibration mounts; no cables, USB 2.0 9-pin connectors or controller are included, so those must be purchased separately.

Which version of the Riing Quad 140mm fan should I choose for my build?

This single-pack white model (CL-F101-PL14SW-C) is the only version listed; select it if you need one 140 mm PWM radiator fan with four LED rings and 54 addressable LEDs.
