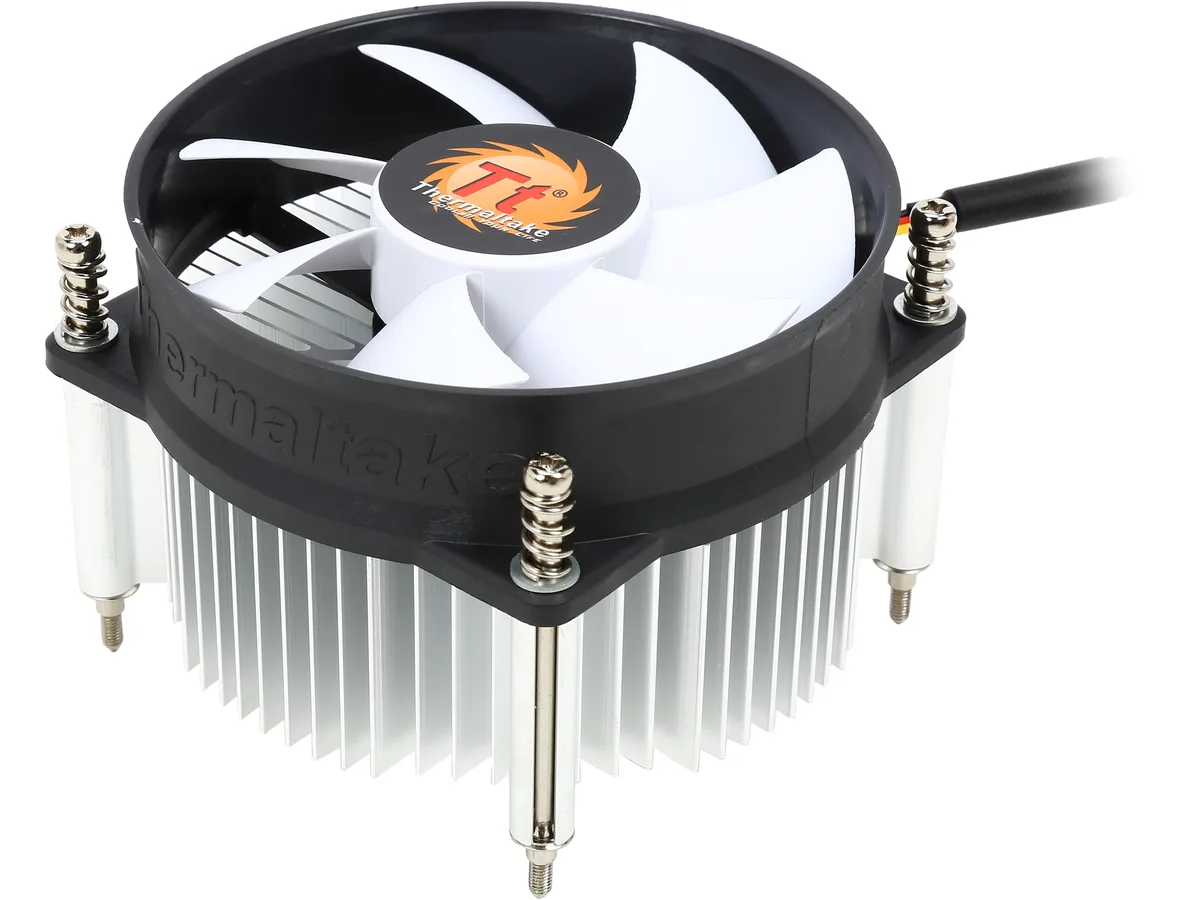

White low-profile CPU air cooler with 92 mm fan and aluminum extrusion heatsink

Thermaltake

Thermaltake CLP0556-D CPU cooler 92 mm 3-pin 1800 RPM

SKU CH-FQ9H-XH4AK MPN CLP0556-D

Low-profile aluminium heatsink with a 92 mm fan delivers 31.3 CFM at 21.3 dBa for Intel LGA 1200, 1150, 1155 and 1156 sockets

  • ColorWhite
  • Fan Size92mm
  • CPU Socket CompatibilitySocket LGA 1200 / 1156 / 1155 / 1150
  • RPM1800 RPM
  • Air Flow31.343 CFM
  • Noise Level21.3 dBa

Model Intel

Options 95W

Option 3 pin PWM

  • Low-profile 63 mm height fits compact cases
  • 92 mm fan delivers 31.3 CFM airflow at 1800 RPM
  • Quiet 21.3 dBa noise level for silent operation
  • 3-pin PWM connector enables automatic speed control
  • Supports Intel LGA 1150, 1151, 1155, 1156, 1200 sockets

Low-profile cooler for LGA 115x/1200

The Thermaltake CLP0556-D is a compact aluminium heatsink with a 92 mm fan rated at 1800 RPM. It targets Intel sockets LGA 1156, 1155, 1150 and 1200 with a maximum cooler height of 63 mm. The unit weighs 0.71 lb and suits low-TDP builds where space is limited.

Check socket and case clearance

Verify that your motherboard uses one of the listed LGA sockets before ordering. Measure the available height above the CPU socket; the cooler stands 63 mm tall including the fan. Ensure the 3-pin power header on your board can reach the fan connector without strain.

Thermals noise and power

The 7-bladed fan delivers 31.343 CFM at a quoted 21.3 dBa noise level. Aluminium extrusion construction keeps the profile slim at 95.8 mm square while dissipating heat from compatible Intel Core i3, i5 and i7 processors. A 4.6-year rated lifespan is specified by the manufacturer.

Highlights

  • Low-profile 63 mm height fits compact cases
  • 92 mm fan delivers 31.3 CFM airflow at 1800 RPM
  • Quiet 21.3 dBa noise level for silent operation
  • 3-pin PWM connector enables automatic speed control
  • Supports Intel LGA 1150, 1151, 1155, 1156, 1200 sockets

Specifications

BrandThermaltake
ModelCLP0556-D
ColorWhite
Fan Size92mm
CPU Socket CompatibilitySocket LGA 1200 / 1156 / 1155 / 1150
RPM1800 RPM
Air Flow31.343 CFM
Noise Level21.3 dBa
Power Connector3 Pin
Heatsink MaterialAluminum
Fan Mounting Types to HeatsinkVertical
Max CPU Cooler Height63 mm
Fan DimensionsØ92 x 25 mm
Heatsink Dimensions63 x 95.8 x 95.8mm (H x W x L)
Weight0.71 lb.
Shipping weight0.36 kg
Package size108 × 105 × 98 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the box include mounting hardware for LGA 1200 or must I buy a separate bracket?

The cooler ships with mounting hardware for LGA 1200, 1156, 1155 and 1150 sockets; no extra bracket is required for those platforms.

Should I choose this 92 mm model or a larger 120 mm cooler for my build?

This 92 mm cooler fits a 63 mm height limit and handles up to 95 W TDP; pick a larger cooler only if your case allows more height and your CPU exceeds that thermal rating.

Will the 1800 RPM fan be loud inside a quiet PC case?

At 1800 RPM the fan produces 21.3 dBA, a low noise level that stays unobtrusive in most quiet builds.
