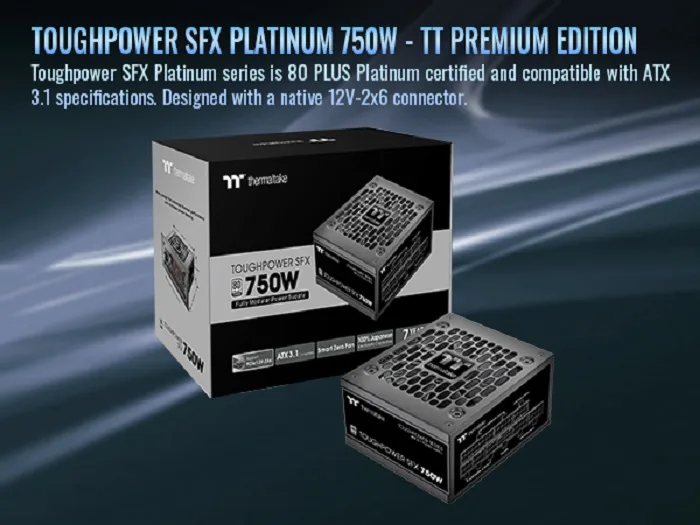

Compact black SFX power supply with 90mm fan and modular cables

Thermaltake

Thermaltake PS-STP-0750FNFAPU-1 750W SFX power supply

SKU CH-PRQS-BAJ89 MPN PS-STP-0750FNFAPU-1

Compact SFX unit delivers 750 W with full modular cables, 80 PLUS Platinum efficiency and an ATX 3.1 compliant 12V-2x6 connector

  • ColorBlack
  • TypeATX 12V 3.1
  • Maximum Power750 W
  • Fans9cm FDB Fan
  • PFCActive
  • PCI-Express Connector2 x 6+2-Pin

Options SFX 750W ATX 3.1 Platinum

  • 80 PLUS Platinum efficiency at 115 V input

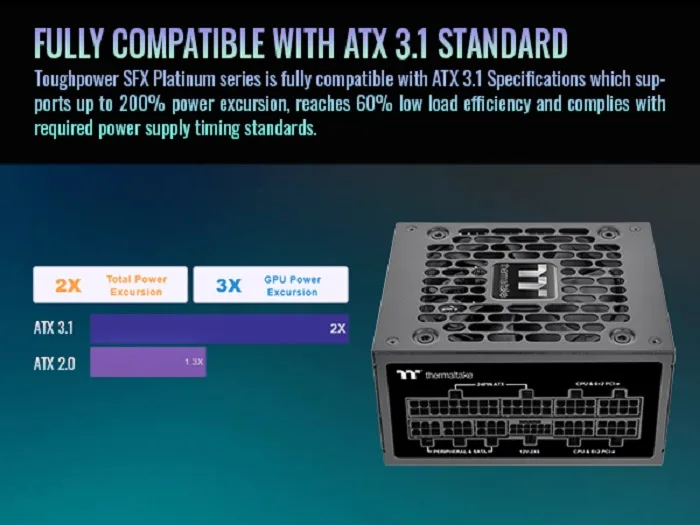

  • ATX 3.1 compliant with 200 % power excursion support

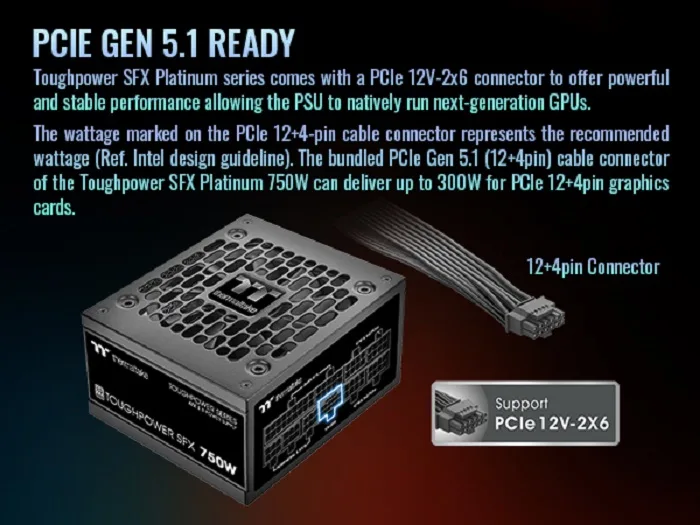

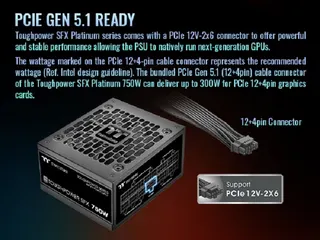

  • Native 12V-2x6 connector for modern GPUs
  • Full modular cabling for tidy SFX builds
  • SFX-to-ATX bracket included for case flexibility

Compact SFX power supply for small-form-factor

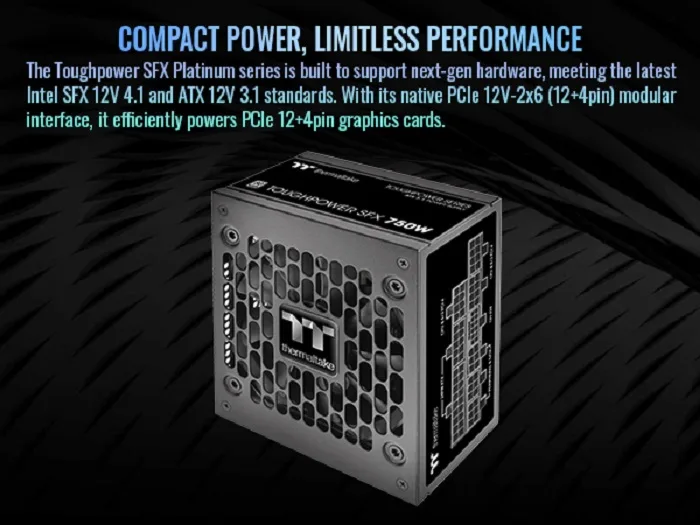

This Thermaltake Toughpower SFX unit delivers 750 W from a 125 mm deep chassis that fits SFX bays. An included SFX-to-ATX adapter bracket lets the same PSU work in standard ATX cases as well. It targets builders who need high output in a minimal footprint.

90 mm fluid-dynamic-bearing fan runs under 80

At 115 V input the supply meets Platinum efficiency, reducing waste heat and fan speed in typical loads. Active PFC and a 100–150 ms power-good signal keep voltage stable. The fan diameter and bearing type are chosen for quiet operation at normal desktop power levels.

Full modular cabling with native 12V-2x6 connector

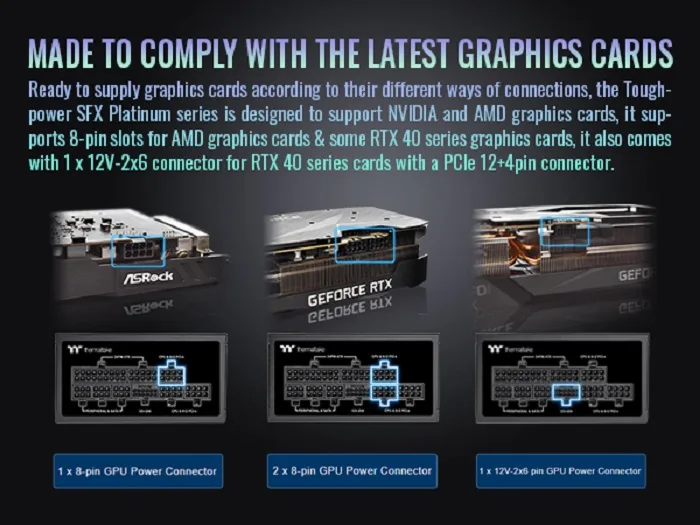

Only the cables you need stay in the case, freeing space for airflow and cable routing. Two 6+2-pin PCIe connectors serve conventional graphics cards while the 12V-2x6 interface supports newer 12+4-pin GPUs. The 125 mm length leaves room in tight layouts.

Highlights

  • 80 PLUS Platinum efficiency at 115 V input
  • ATX 3.1 compliant with 200 % power excursion support
  • Native 12V-2x6 connector for modern GPUs
  • Full modular cabling for tidy SFX builds
  • SFX-to-ATX bracket included for case flexibility

Specifications

BrandThermaltake
SeriesToughpower SFX
ModelSFX-0750AH8FLP
Part NumberPS-STP-0750FNFAPU-1
ColorBlack
TypeATX 12V 3.1
Maximum Power750 W
Fans9cm FDB Fan
PFCActive
PCI-Express Connector2 x 6+2-Pin
Max PSU Length125 mm
ModularFull Modular
Power Good Signal100-150 msec
EfficiencyMeet 80 PLUS® Platinum at 115Vac input.
Energy-Efficient80 PLUS PLATINUM Certified
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current15A - 8A
MTBF>100,000 Hours
ApprovalsCE/UKCA/FCC/ICES/CB/TUV/cTUVus/LVD/CCC/BSMI/S-MARK/EAC/RCM
Hold-up Time> 17msec at 80% load

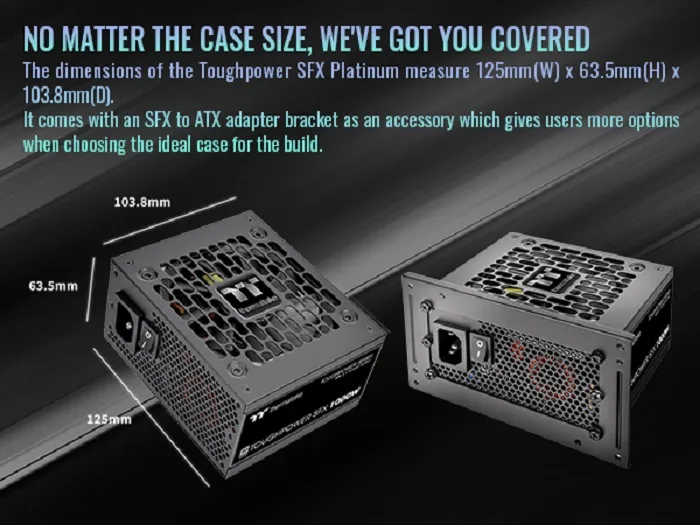

Dimensions125mm(W)x63.5mm(H)x103.8mm(D)
Shipping weight2.09 kg
Package size254 × 178 × 114 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the SFX unit in a standard ATX case, and which bracket step is often missed?

Mount the 125 mm long SFX body using the included SFX-to-ATX adapter bracket; the step often missed is securing all four bracket screws before sliding the PSU into the case.

What maintenance or replacement will the 9 cm FDB fan need later?

The fluid-dynamic-bearing fan is rated for over 100,000 hours MTBF; under normal use it rarely needs replacement, but if noise rises a direct 9 cm FDB swap is the only service item.

At what point does the 80 PLUS Platinum efficiency limit appear under sustained load?

Efficiency is certified at 115 V input; the first limit under sustained use is thermal — the 90 mm fan must move enough air to keep internal temperatures within the Platinum spec.
