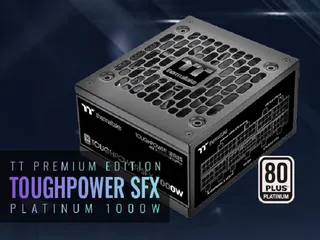

Compact black SFX power supply with 90mm fan and full modular cables

Thermaltake

Thermaltake Toughpower SFX 1000W 80 Plus Platinum ATX 3.1 PS-STP-1000FNFAPU-1 power supply

SKU CH-AQSR-0RS3G MPN PS-STP-1000FNFAPU-1

SFX form-factor unit delivers 1000 W with full modular cabling and 80 PLUS Platinum efficiency at 115 V input

  • ColorBlack
  • TypeATX 12V 3.1
  • Maximum Power1000 W
  • Fans9cm FDB Fan
  • PFCActive
  • PCI-Express Connector4 x 6+2-Pin

Options SFX 1000W ATX 3.1 Platinum

  • Platinum efficiency cuts waste heat and lowers running cost

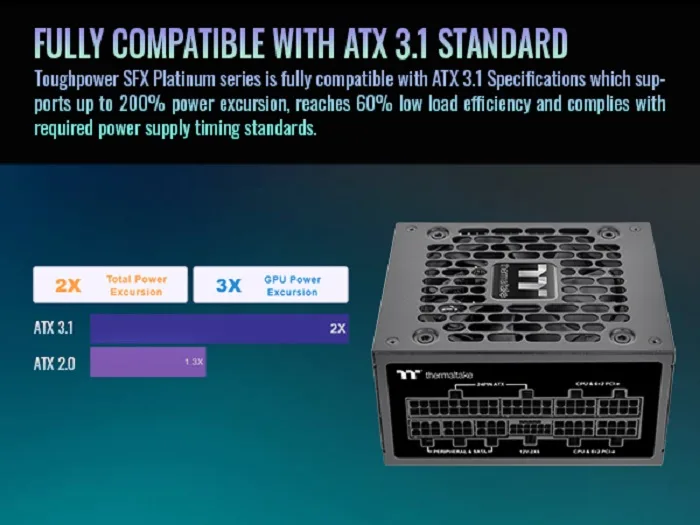

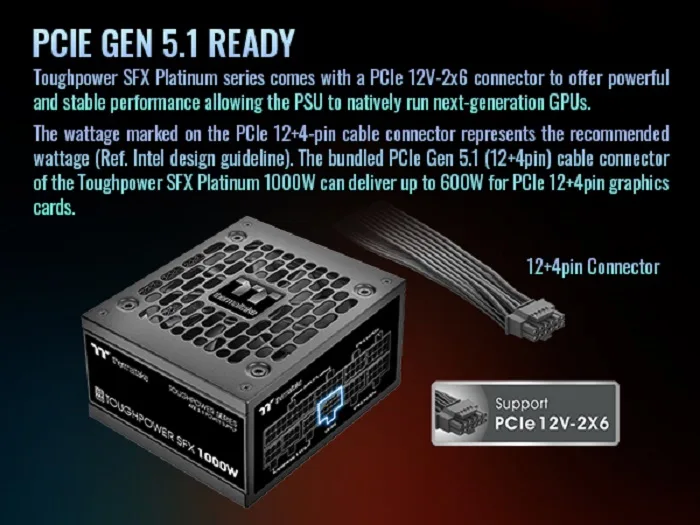

  • ATX 12V 3.1 with 600 W 12V-2x6 connector powers modern GPUs directly
  • Full modular cabling keeps the build clean and airflow unobstructed
  • 90 mm fluid-dynamic-bearing fan runs quietly under load
  • Compact 125 mm SFX body fits small-form-factor cases

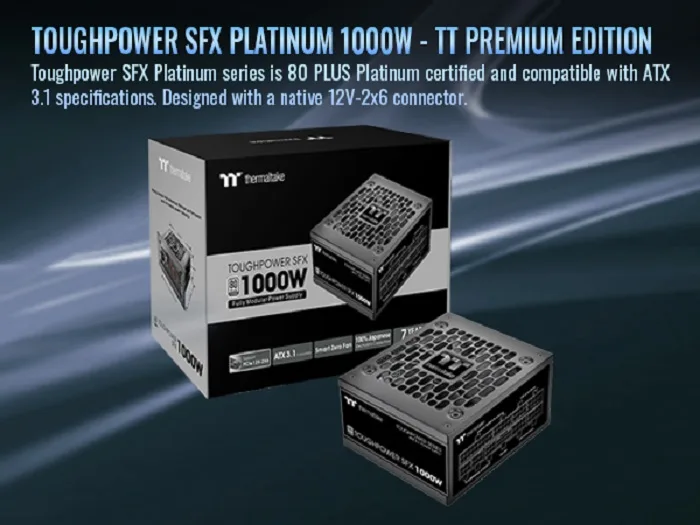

Thermaltake Toughpower SFX 1000W ATX 3.1

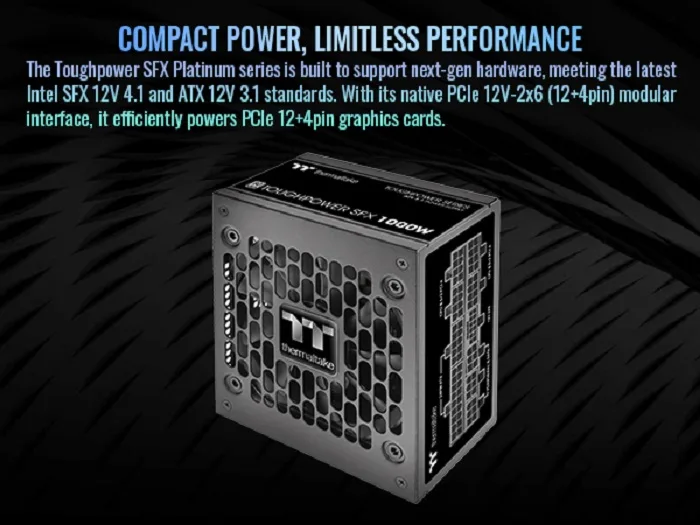

This SFX form-factor power supply delivers 1000 W through a full-modular design. It targets compact-system builders who need high output in a 125 mm chassis. The unit meets 80 Plus Platinum efficiency at 115 V input and supports the ATX 12V 3.1 standard. A native 12V-2x6 connector is included for modern graphics cards.

Build quality and daily connectors

A 9 cm fluid-dynamic-bearing fan provides cooling inside the black enclosure. Full-modular cabling lets you attach only the leads required, reducing clutter in tight cases. Four 6+2-pin PCIe connectors handle multiple GPUs or high-draw add-in cards. Active PFC and a 100-150 ms power-good signal contribute to stable rail delivery. Approvals cover CE, UKCA, FCC and other major safety marks.

Check before ordering

Verify that your case accepts a 125 mm deep SFX supply and that the 9 cm fan orientation matches your airflow path. Confirm the motherboard requires an ATX 12V 3.1 compliant unit with a 12V-2x6 connector. Ensure the four 6+2-pin PCIe leads satisfy every graphics card or accelerator you plan to install. Input range is 100-240 V at 50/60 Hz for worldwide use.

Highlights

  • Platinum efficiency cuts waste heat and lowers running cost
  • ATX 12V 3.1 with 600 W 12V-2x6 connector powers modern GPUs directly
  • Full modular cabling keeps the build clean and airflow unobstructed
  • 90 mm fluid-dynamic-bearing fan runs quietly under load
  • Compact 125 mm SFX body fits small-form-factor cases

Specifications

BrandThermaltake
SeriesToughpower SFX
ModelSFX-1000AH8FLP
Part NumberPS-STP-1000FNFAPU-1
ColorBlack
TypeATX 12V 3.1
Maximum Power1000 W
Fans9cm FDB Fan
PFCActive
PCI-Express Connector4 x 6+2-Pin
Max PSU Length125 mm
ModularFull Modular
Power Good Signal100-150 msec
EfficiencyMeet 80 PLUS® Platinum at 115Vac input.
Energy-Efficient80 PLUS PLATINUM Certified
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current15A - 8A
MTBF>100,000 Hours
ApprovalsCE/UKCA/FCC/ICES/CB/TUV/cTUVus/LVD/CCC/BSMI/S-MARK/EAC/RCM
Hold-up Time> 17msec at 80% load

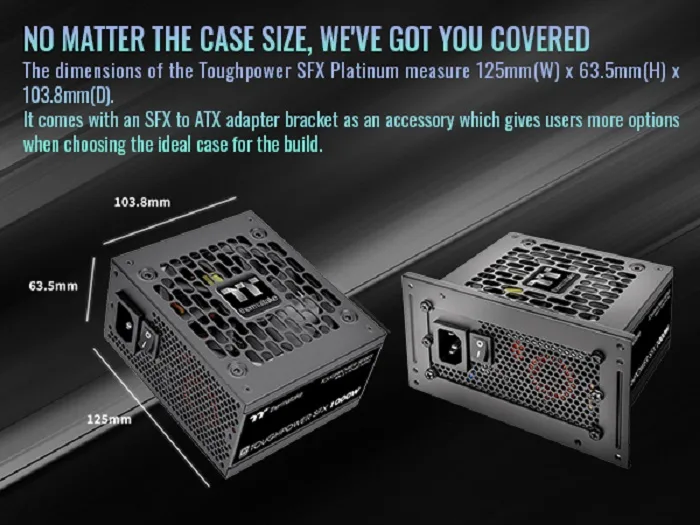

Dimensions125mm(W)x63.5mm(H)x103.8mm(D)
Shipping weight2.09 kg
Package size254 × 178 × 114 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the ATX 12V 3.1 standard mean for the 12V-2x6 connector on this unit?

The ATX 12V 3.1 design lets the included 12V-2x6 connector deliver up to 600 W to a compatible graphics card, while the full unit is rated for 1000 W total output.

Will the 125 mm length fit my SFX case?

The power supply measures 125 mm long, so it fits standard SFX bays; verify your chassis clearance before ordering.

How do I install the fully modular cables without missing a connection?

Plug only the cables your build needs into the unit’s modular sockets, then route each to the motherboard, GPU and drives; a common mistake is leaving the 12V-2x6 or 4+4-pin CPU connector unseated.
