Rectangular black ATX power supply unit with 120mm hydraulic fan and modular cable sockets

Thermaltake

Thermaltake PS-TPD-0850FNFAGU-P 850W power supply

SKU CH-8G7W-5BZC9 MPN PS-TPD-0850FNFAGU-P

Fully modular ATX supply delivers 850 W continuous power with 80 PLUS Gold efficiency, a 120 mm hydraulic-bearing fan and smart zero-RPM mode for silent low-load operation

  • TypeATX 12V v2.4 / EPS v2.92
  • Maximum Power850 W
  • Fans120mm Hydraulic Bearing Fan
  • PFCActive
  • Main Connector24Pin
  • +12V RailsSingle

Options 850W

  • 850 W continuous power backed by 80 PLUS Gold efficiency

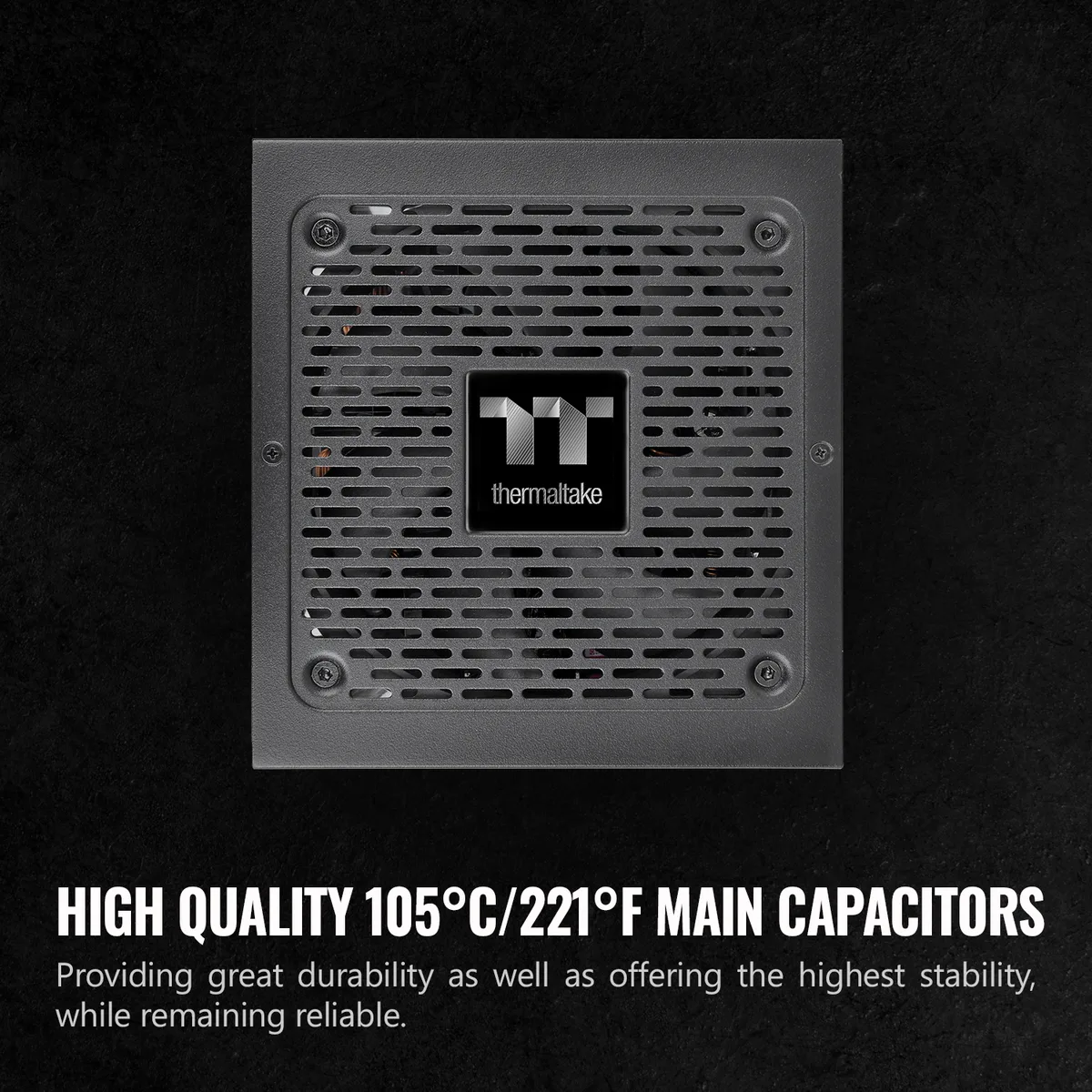

  • 105 °C Japanese capacitors for long-term reliability

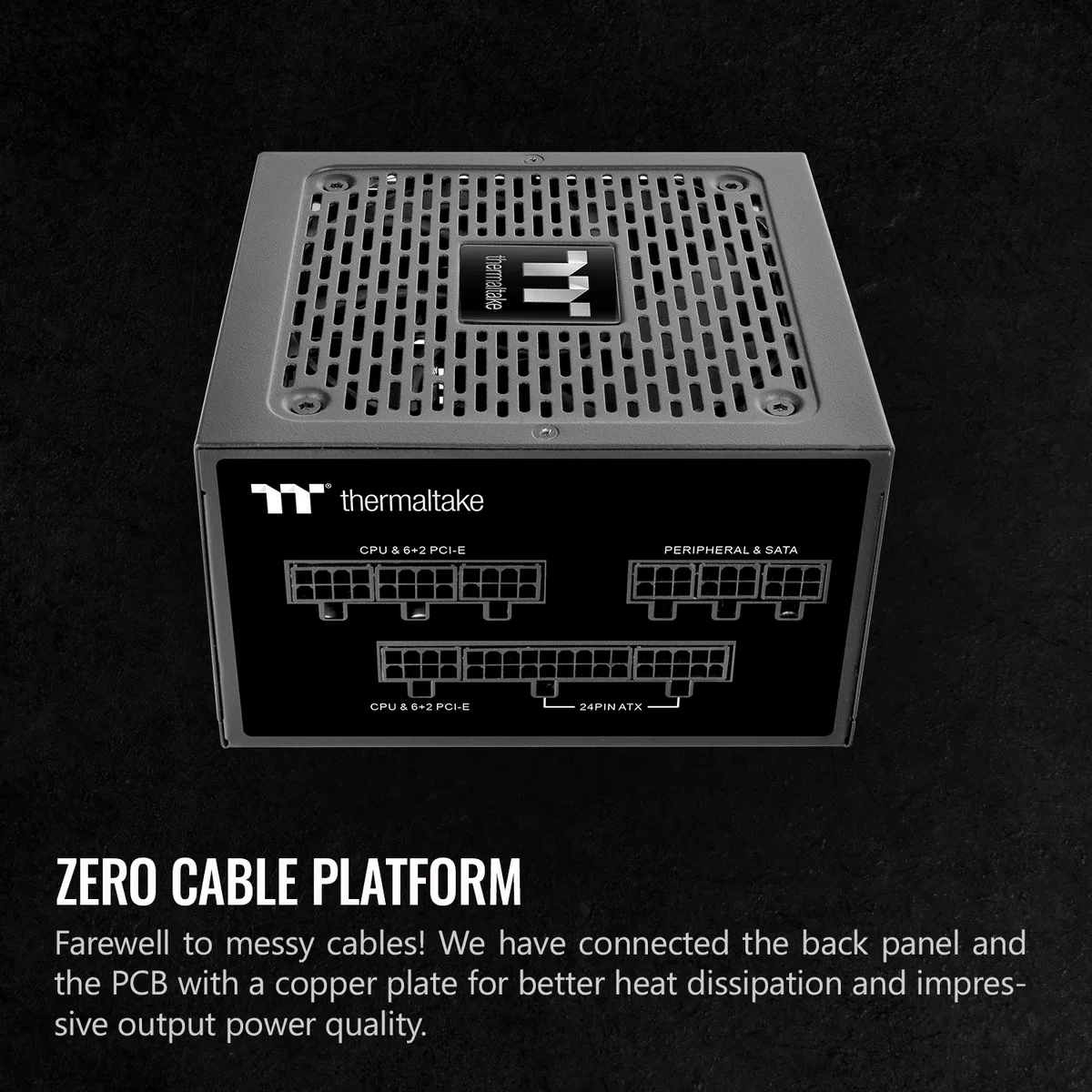

  • Fully modular flat black cables simplify build routing

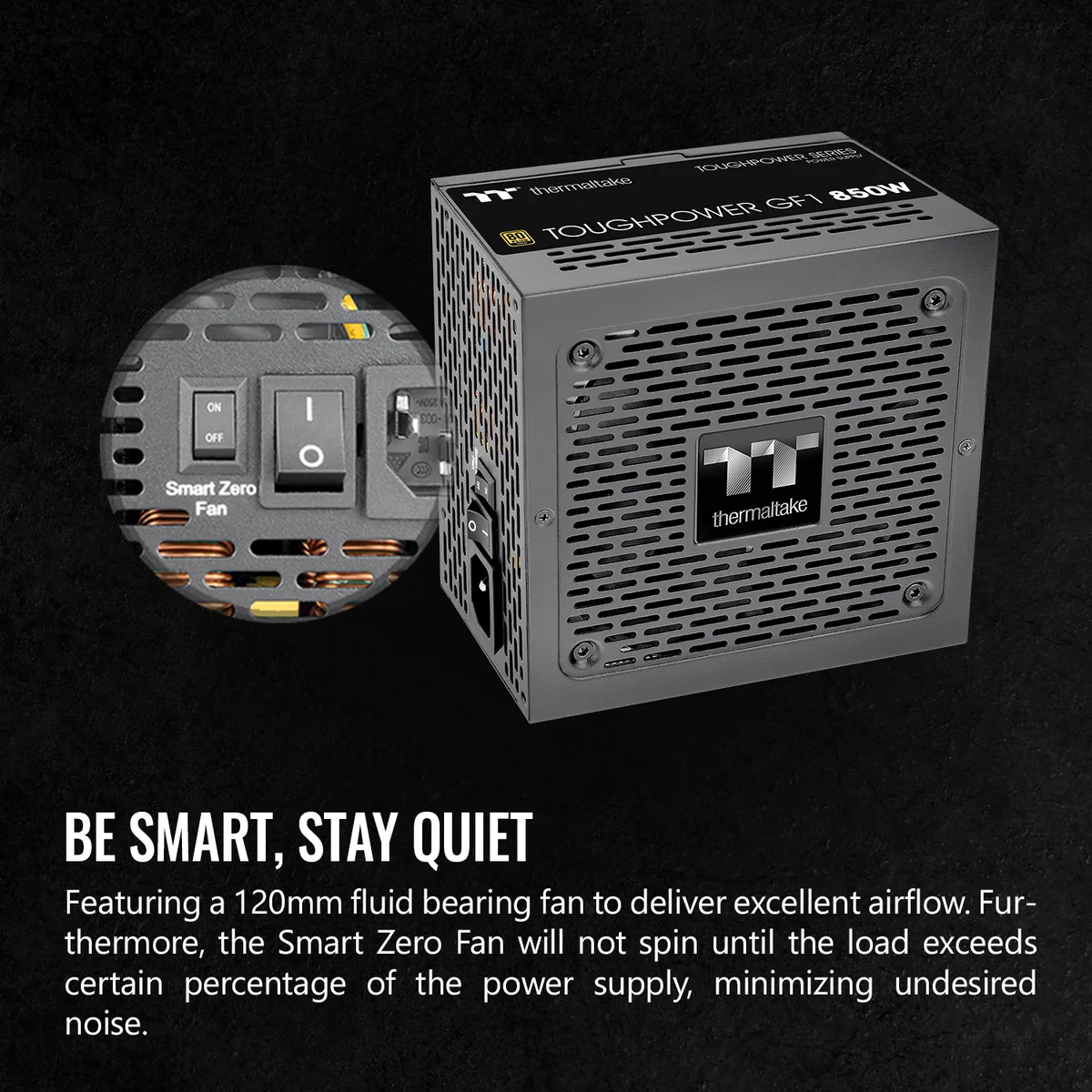

  • Smart Zero Fan stops below load threshold for silent idle
  • Single +12 V rail with

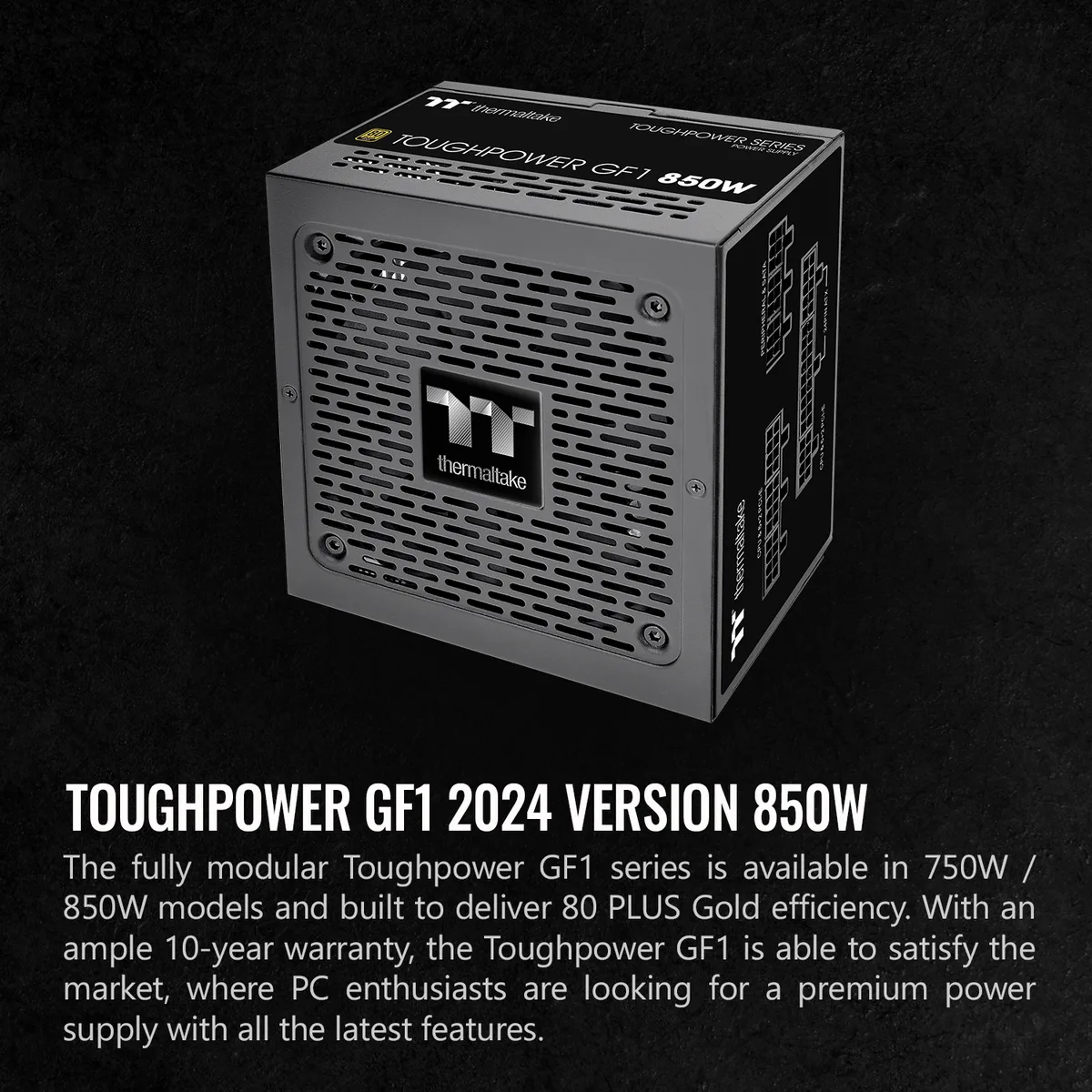

Fully Modular ATX 850W Gold PSU

This fully modular ATX power supply delivers 850W continuous output with 80 PLUS Gold certified efficiency. It uses a single +12V rail design with Japanese 105°C capacitors and a 120mm hydraulic bearing fan. The unit supports ATX 12V v2.4 and EPS v2.92 standards.

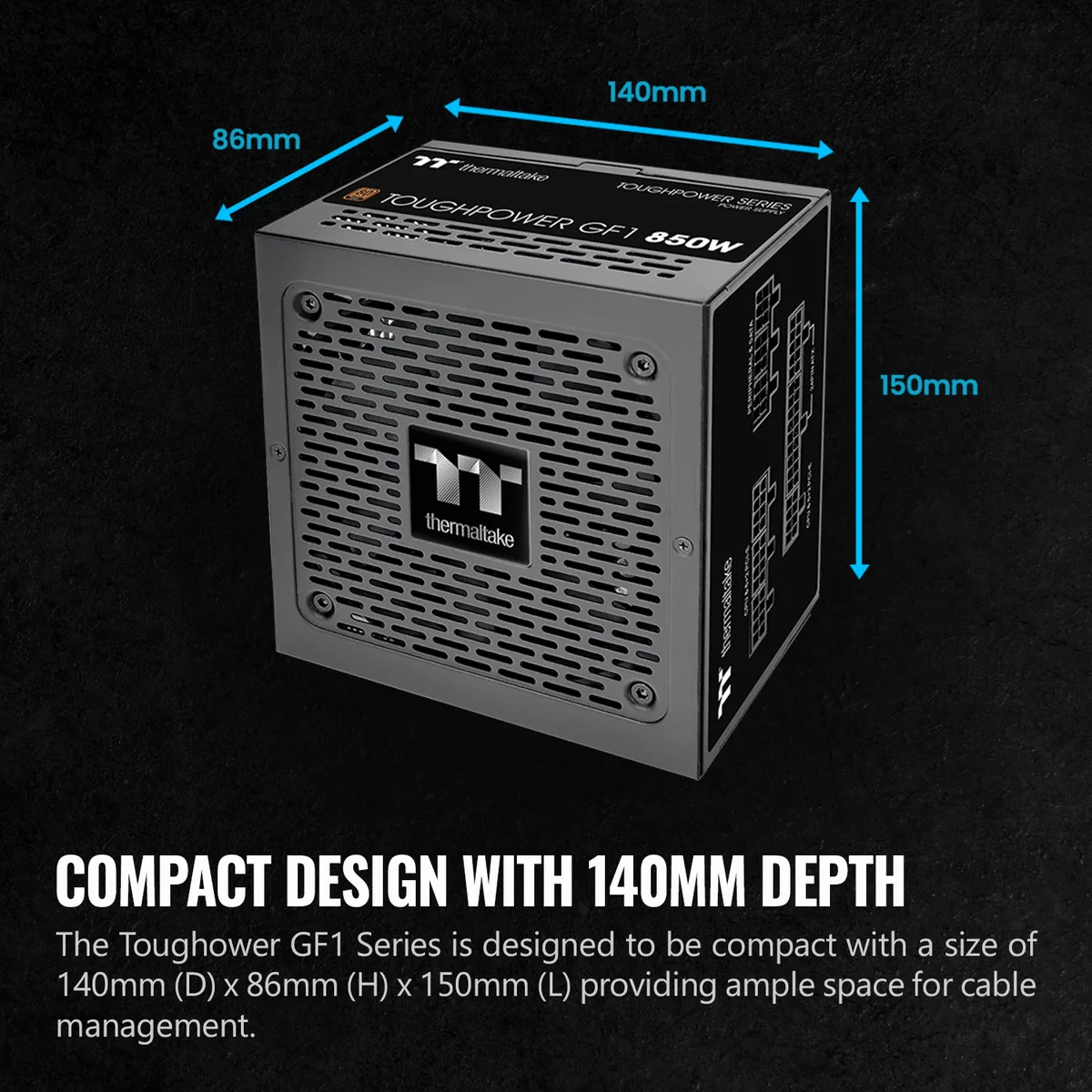

Compact 150mm Depth for Enthusiast Builds

The 150mm length suits compact cases where cable space is limited. Fully modular flat black cables simplify routing and improve airflow. The Smart Zero Fan mode stops the fan at low loads for silent operation. Builders needing higher wattage or different form factors should consider other models.

Single +12V Rail with 16AWG PCIe Cables

A high-amperage single +12V rail provides stable power for modern GPUs through six 6+2-pin PCIe connectors. Upgraded 16AWG CPU and PCIe cables reduce voltage drop under heavy load. This rail design is the key factor for multi-GPU or high-end single-GPU configurations.

Highlights

  • 850 W continuous power backed by 80 PLUS Gold efficiency
  • 105 °C Japanese capacitors for long-term reliability
  • Fully modular flat black cables simplify build routing
  • Smart Zero Fan stops below load threshold for silent idle
  • Single +12 V rail with

Specifications

BrandThermaltake
SeriesToughpower GF1 2024 Series
ModelPS-TPD-0850FNFAGU-P
TypeATX 12V v2.4 / EPS v2.92
Maximum Power850 W
Fans120mm Hydraulic Bearing Fan
PFCActive
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector6 x 6+2-Pin
SATA Power Connector8
Haswell SupportYes
Max PSU Length150 mm
ModularFull Modular
Energy-Efficient80 PLUS GOLD Certified
ProtectionOCP/OVP/UVP/OPP/SCP/OTP
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current12A max
Output+3.3V@22A, +5V@22A, [email protected] , [email protected] , +5VSB@3A
MTBF120,000 Hours Minimum
ApprovalsCE/cTUVus/TUV/FCC/BSMI/EAC
ConnectorsMain Power Connector (24pin) x 1
ATX 12V / EPS 12V (8pin/4+4pin) x 2
SATA (5pin) x 8
PCI-E (6+2pin) x 6
Peripheral (4pin) x 4
Features850W continuous output at 80Plus Gold efficiency
100% high quality Japanese 105°C/221°F capacitor
Fully modular with low-profile flat black cables
<30mV low ripple noise design & strict voltage regulation <±2%
Upgraded CPU/PCI-E main cables (16AWG wires)
Smart Zero Fan: auto-regulated fan speed based on power consumption for a quiet and efficient operation
Ultra quiet 120mm hydraulic bearing fan
High amperage single +12V rail design
Intel C6/C7 states & ErP ready
Dimensions5.9" x 3.4" x 5.5"
Weight3.3 lbs
Shipping weight2.86 kg
Package size318 × 229 × 152 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this unit fit in a case that only accepts power supplies up to 150 mm deep?

The chassis measures 140 mm wide, 86 mm tall and 150 mm deep, so it matches the maximum depth you specified.

Does the 850 W rating represent continuous output or a peak figure?

The 850 W rating is continuous output at 80 PLUS Gold efficiency.

Can I run a graphics card that needs three 8-pin PCIe connectors with this supply?

Yes, the unit provides six 6+2-pin PCIe connectors, enough for three 8-pin cables.
