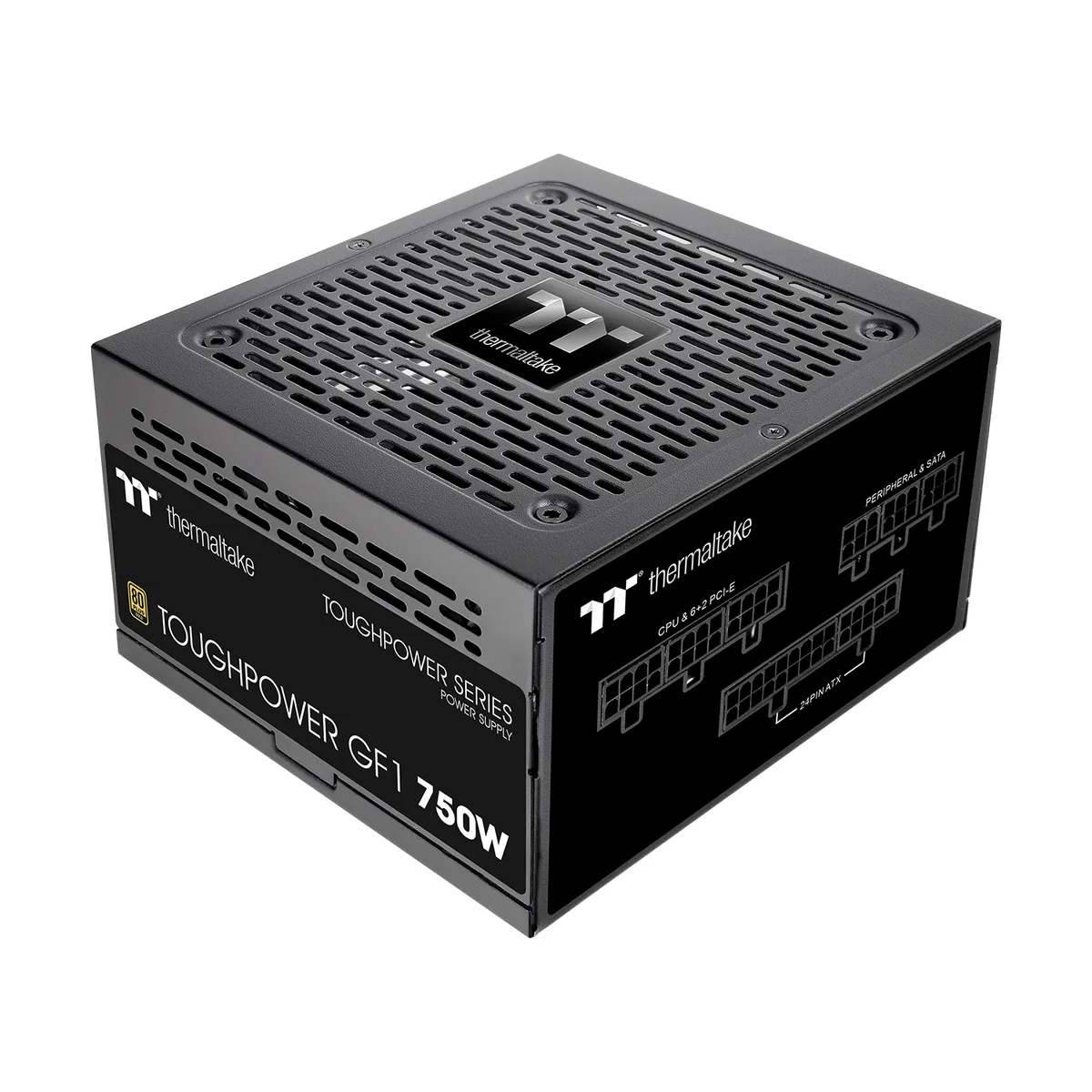

Rectangular black ATX power supply unit with 120mm fan grille and modular cable sockets visible

Thermaltake

Thermaltake Toughpower GF1 2024 750W power supply PS-TPD-0750FNFAGU-P

SKU CH-7J05-QPVN9 MPN PS-TPD-0750FNFAGU-P

Fully modular ATX power supply delivering 750 W continuous output with 80 PLUS Gold efficiency, a 120 mm hydraulic bearing fan featuring Smart Zero RPM mode, single +12 V rail.

  • TypeATX 12V v2.4 / EPS v2.92
  • Maximum Power750 W
  • Fans120mm Hydraulic Bearing Fan
  • PFCActive
  • Main Connector24Pin
  • +12V RailsSingle

Options 750W

  • 80 PLUS Gold efficiency saves energy on every build
  • 750 W continuous output powers demanding components
  • Fully modular low-profile flat cables simplify cable routing
  • Smart Zero Fan stops the 120 mm hydraulic bearing fan at low load

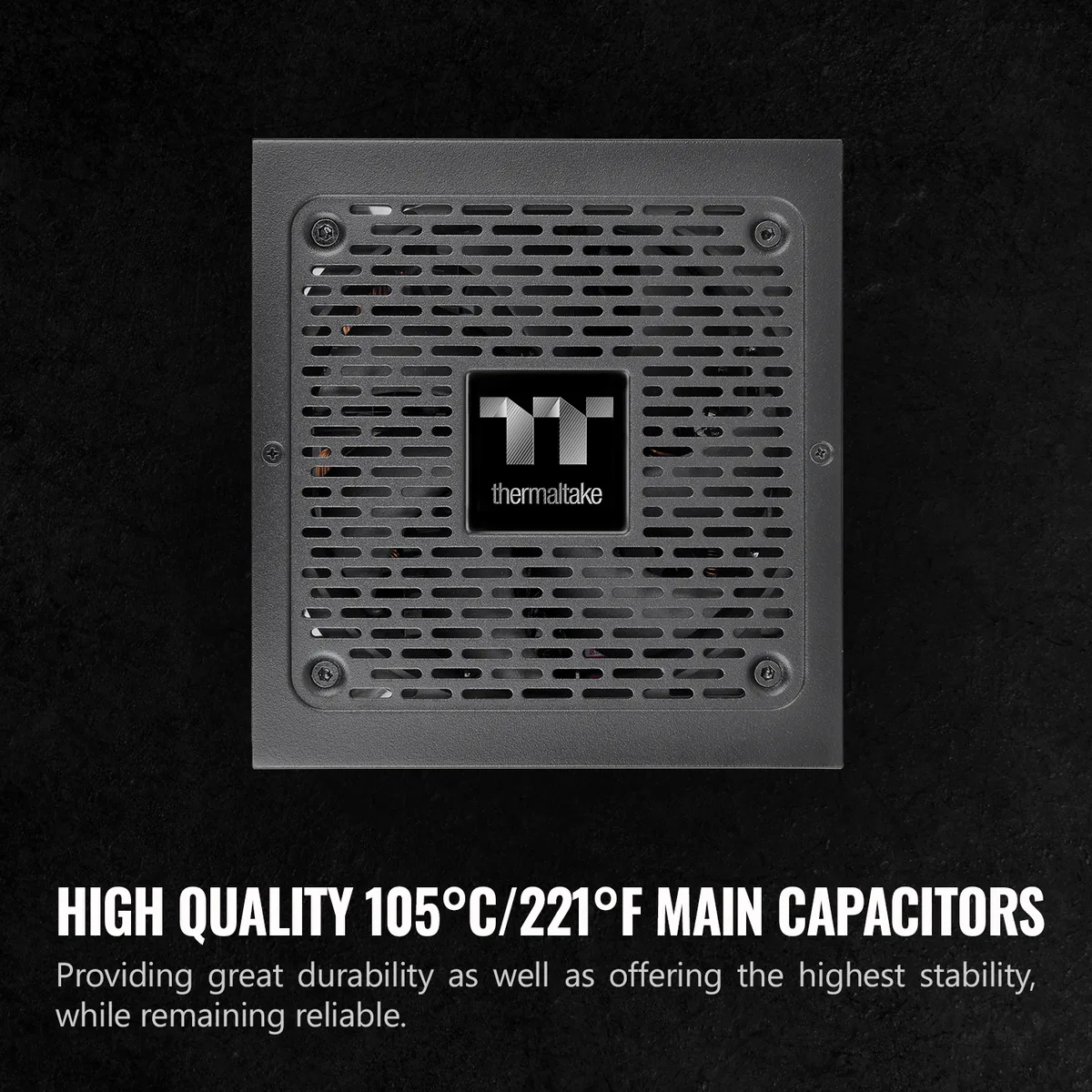

  • 105 °C Japanese capacitors ensure long-term stability

750W Fully Modular ATX Supply

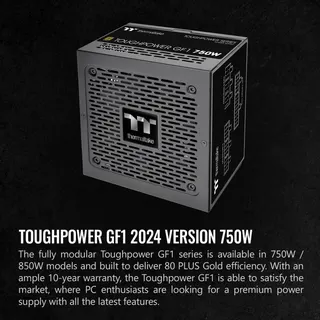

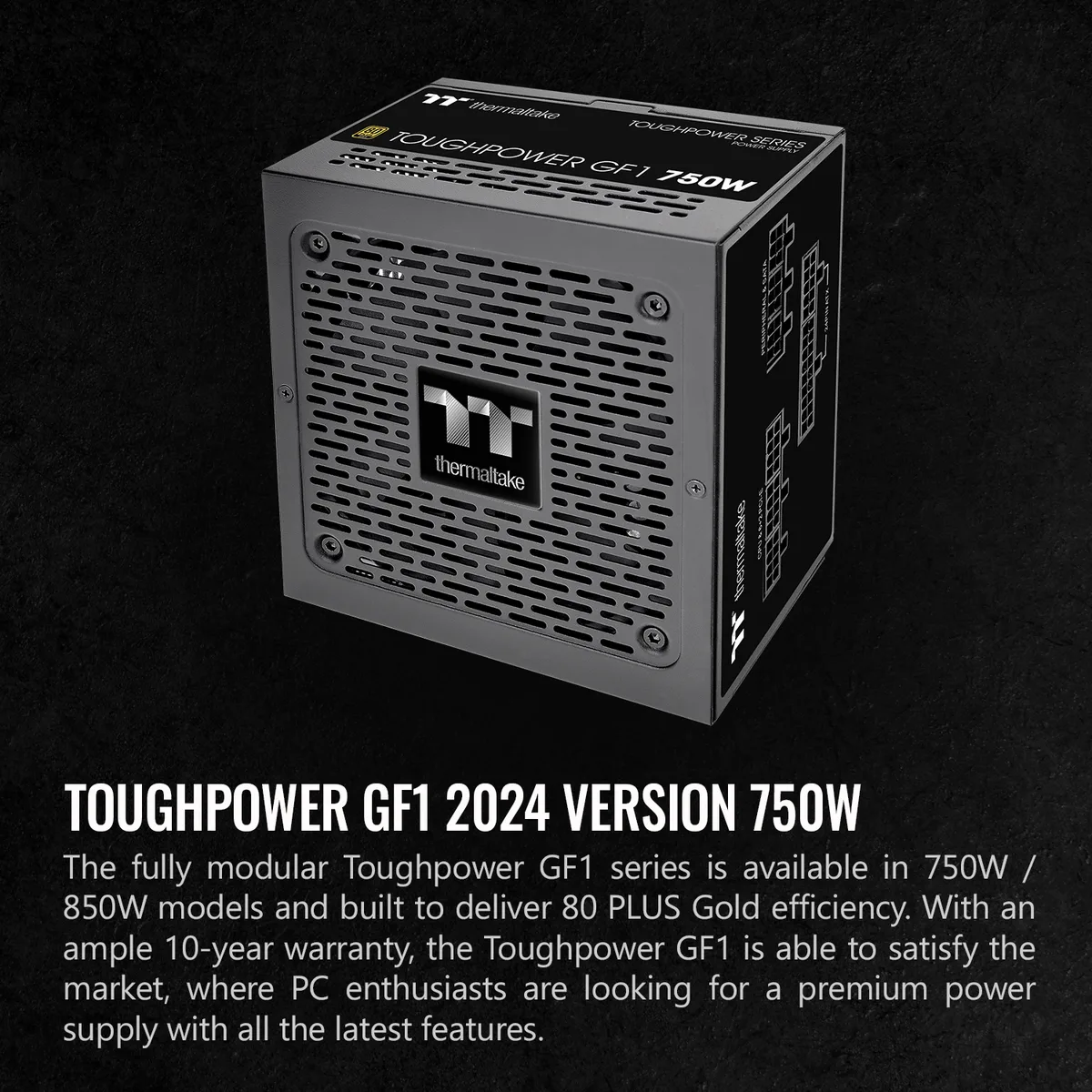

The Thermaltake Toughpower GF1 2024 delivers 750W continuous power through a fully modular ATX 12V v2.4 design. It targets PC builders who want 80 PLUS Gold efficiency and a compact 150mm depth for easier cable routing in standard cases.

Suits Mid-Range Builds, Not Extreme Loads

This unit fits mainstream gaming PCs and workstations running a single high-end GPU with its four 6+2-pin PCIe connectors and single +12V rail. Systems planning multi-GPU arrays or sustained loads well above 750W should consider higher-capacity models instead.

Fits Standard ATX Bays, Frees Cable Space

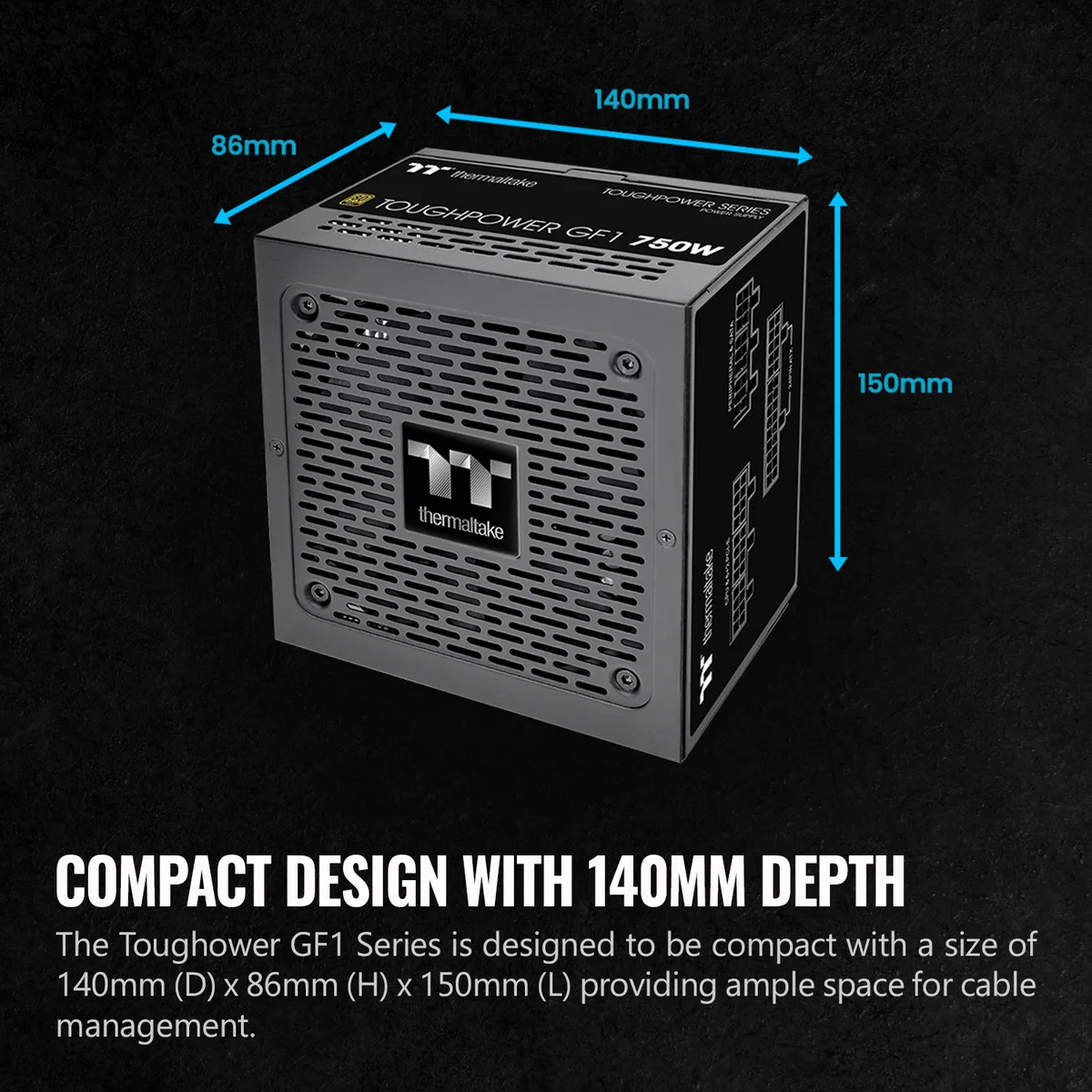

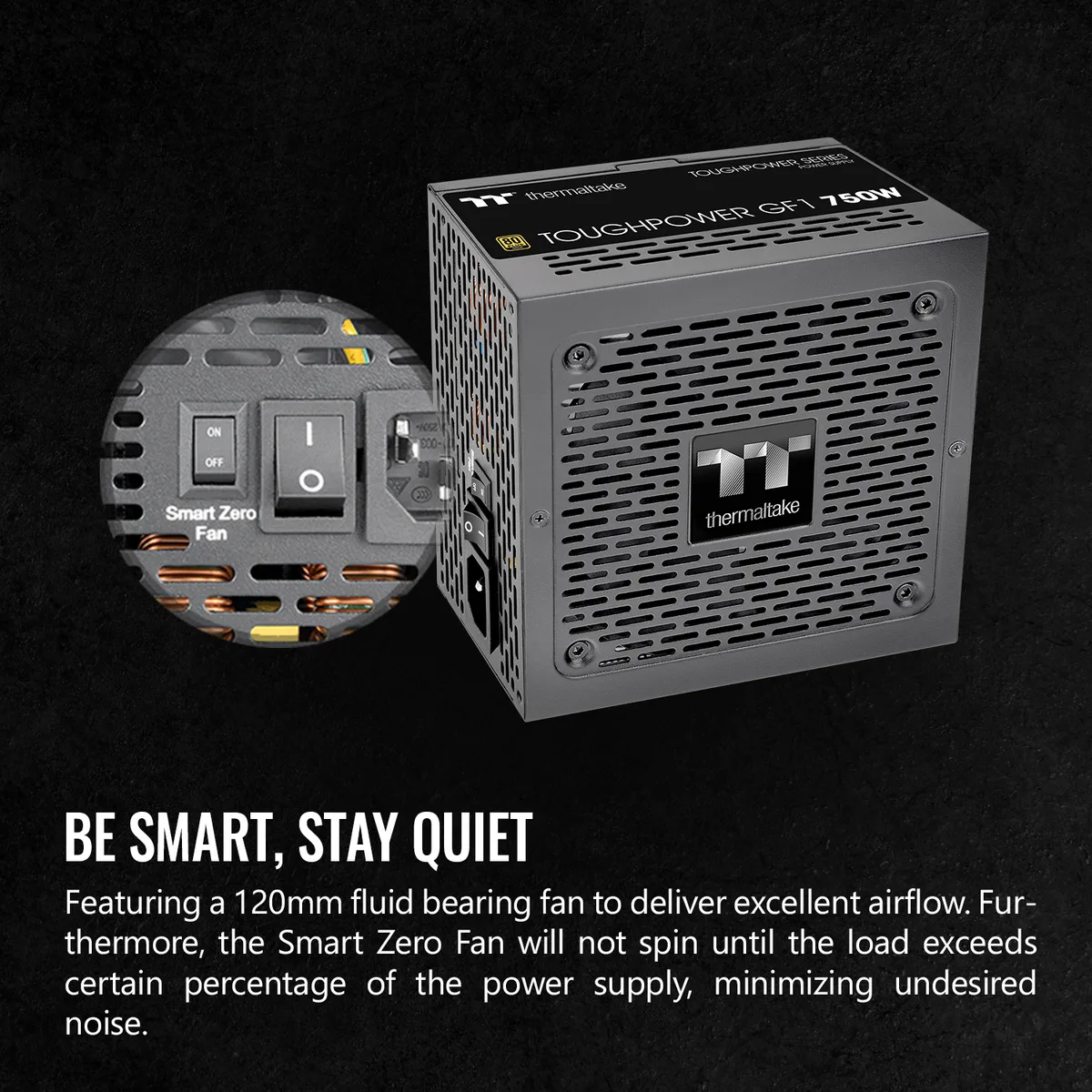

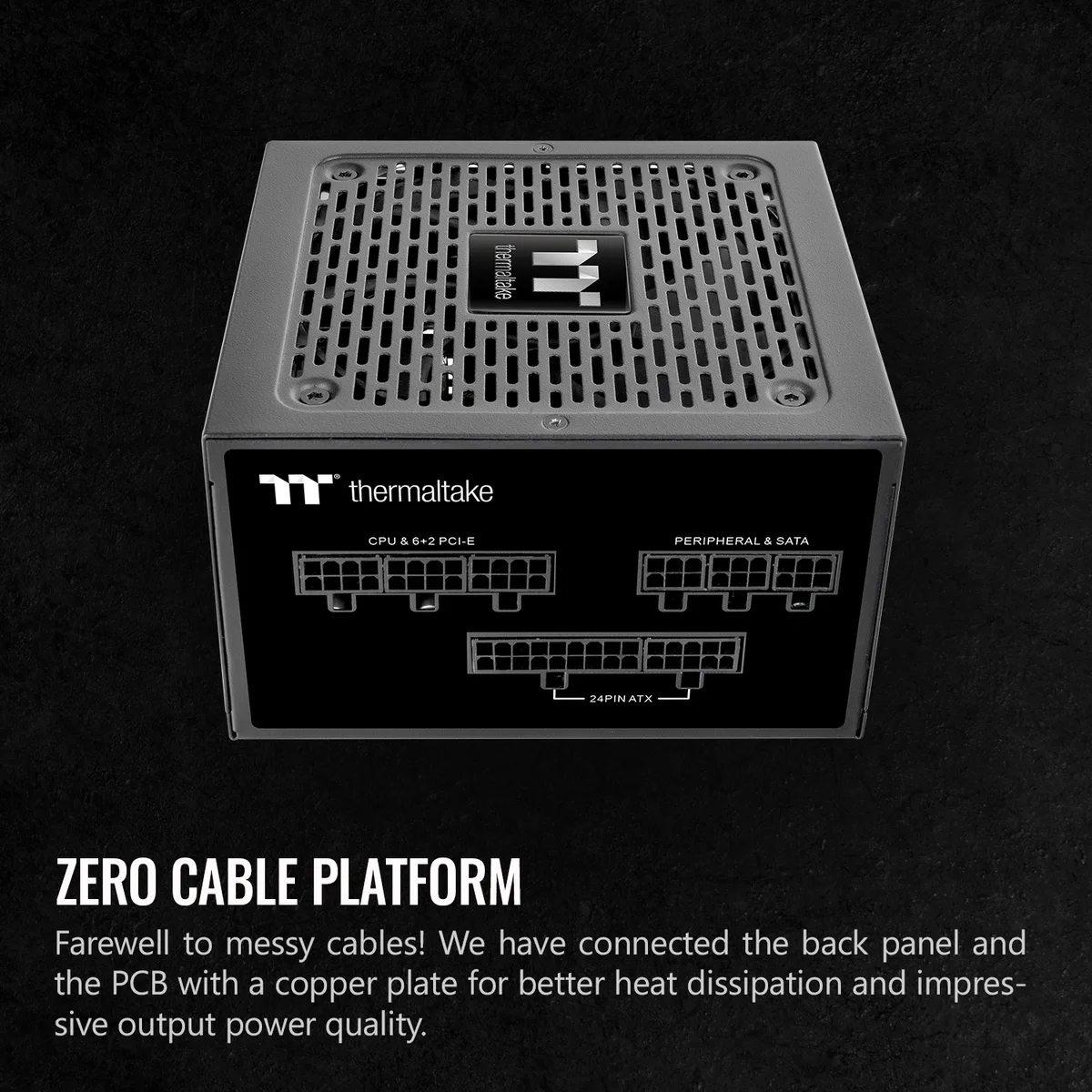

The 140 x 86 x 150mm housing slides into typical ATX bays while the flat black cables and zero-cable back-panel design reduce clutter. A 120mm hydraulic bearing fan with Smart Zero RPM mode stays idle at low loads, cutting noise without extra fan headers.

Highlights

  • 80 PLUS Gold efficiency saves energy on every build
  • 750 W continuous output powers demanding components
  • Fully modular low-profile flat cables simplify cable routing
  • Smart Zero Fan stops the 120 mm hydraulic bearing fan at low load
  • 105 °C Japanese capacitors ensure long-term stability

Specifications

BrandThermaltake
SeriesToughpower GF1 2024 Series
ModelPS-TPD-0750FNFAGU-P
TypeATX 12V v2.4 / EPS v2.92
Maximum Power750 W
Fans120mm Hydraulic Bearing Fan
PFCActive
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector4 x 6+2-Pin
SATA Power Connector8
Haswell SupportYes
Max PSU Length150 mm
ModularFull Modular
Energy-Efficient80 PLUS GOLD Certified
ProtectionOCP/OVP/UVP/OPP/SCP/OTP
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current10A max
Output+3.3V@22A, +5V@22A, [email protected] , [email protected] , +5VSB@3A
MTBF120,000 Hours Minimum
ApprovalsCE/cTUVus/TUV/FCC/BSMI/EAC
ConnectorsMain Power Connector (24pin) x 1
ATX 12V / EPS 12V (8pin/4+4pin) x 2
SATA (5pin) x 8
PCI-E (6+2pin) x 4
Peripheral (4pin) x 4
Features750W continuous output at 80Plus Gold efficiency
100% high quality Japanese 105°C/221°F capacitor
Fully modular with low-profile flat black cables
<30mV low ripple noise design & strict voltage regulation <±2%
Upgraded CPU/PCI-E main cables (16AWG wires)
Smart Zero Fan: auto-regulated fan speed based on power consumption for a quiet and efficient operation
Ultra quiet 120mm hydraulic bearing fan
High amperage single +12V rail design
Intel C6/C7 states & ErP ready
Dimensions5.9" x 3.4" x 5.5"
Weight3.3 lbs
Shipping weight2.59 kg
Package size318 × 218 × 135 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this power supply fit in a case that only accepts units up to 150 mm long?

The unit measures 150 mm in depth, so it fits exactly in cases rated for that maximum length.

Can I use the existing 24-pin motherboard cable from my old PSU with this fully modular unit?

No, you must use the supplied low-profile flat black cables; the modular sockets are keyed for this model only.

How do I confirm the Smart Zero Fan mode is active after I build the system?

Under light load the 120 mm hydraulic bearing fan will stay completely still; it spins only when power draw rises above the internal threshold.
